KINGPO Guide to IEC 60309 Connector Variants and Their Key Features

You should know about IEC 60309 connector variants to keep things safe. Using the wrong connector can make things too hot. It can break your equipment or even start a fire. People sometimes choose the wrong load rating. Some forget about tough environments. Others install parts too fast. Some people use bad or fake parts. This can be very dangerous. If you pick the right parts and use them well, you stay safe. This also helps your work go well.

Key Takeaways

• Pick the correct IEC 60309 connector to stay safe and stop things from getting too hot or breaking.

• Learn about the different current ratings like 16A, 32A, 63A, and 125A so you can match the connector to your equipment’s power needs.

• Choose connectors with the right IP ratings for your area to keep out dust and water.

• Always use wire sizes that fit the connector ratings to stop things from getting too hot and to keep everything safe.

• Use the color codes and markings on connectors to find the right voltage range fast and avoid mistakes.

IEC 60309 Overview and Standards

What Is IEC 60309?

You might find IEC 60309 connectors in many places. They are used in factories, workshops, and at outdoor events. IEC 60309 is a group of international rules. The International Electrotechnical Commission made these rules. They cover plugs, socket-outlets, and couplers for industry. These connectors give safe and steady power to big machines. Their design helps stop mistakes and keeps people safe.

Standardization and Global Use

Standardization helps make your work safer and simpler. IEC 60309 gives rules for plugs, connectors, and receptacles in many countries. These rules let you use devices together, even from different places. You can trust IEC 60309 connectors to be safe and high quality. The standard works for many devices with different voltages and currents. In the European Union, EN 60309-1 is for safety and EN 60309-2 is for size and fit. North America uses these rules too, so equipment works well and stays safe.

Tip: Picking IEC 60309 connectors helps your projects stay safe, uniform, and compatible.

Key Features and Benefits

IEC 60309 connectors give you many good things over non-standard types. The table below shows some main differences:

Benefit	IEC 60309 Connectors	Non-standardized Connectors
Safety Standards	Meet international safety standards	Varies, often not standardized
Durability	Use high-quality, hazard-resistant materials	Often less durable
Interoperability	Work with other equipment reliably	May not be compatible
Unique Coding System	Prevent accidental connections	No such feature
Locking Mechanism	Secure connection, reduces disconnections	Typically lacks this feature
Recessed Contact Pins	Lower risk of accidental contact and shocks	Standard design may not offer this

IEC 60309 connectors help stop accidents and damage to equipment. You also save time because you do not worry about parts that do not match.

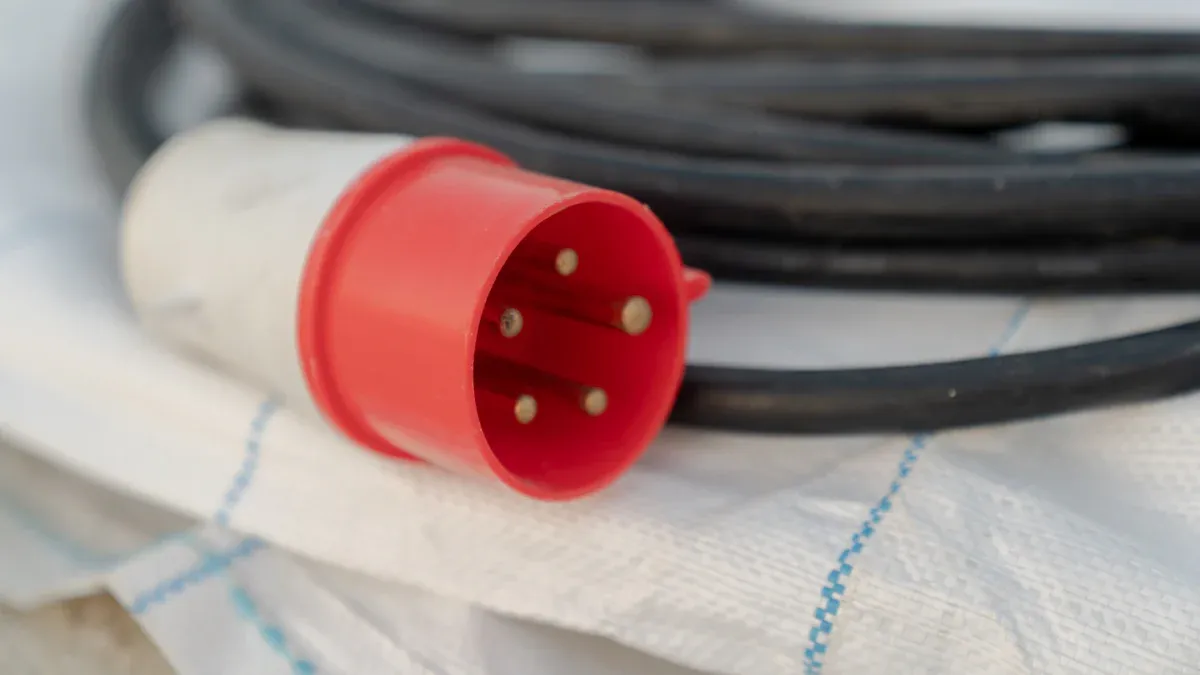

IEC 60309 Connector Variants & Configurations

When you pick IEC 60309 connector variants, you should know about the different types and setups. Each one has its own job. If you know the right setup, you can match it to your equipment and where you use it. Learning about the main types, current choices, and wire sizes helps you avoid mistakes and stay safe.

Single-Phase and Three-Phase Variants

IEC 60309 variants come in single-phase and three-phase setups. Each one is made for different power needs. Single-phase types are good for small machines and tools you can move. Three-phase types are for bigger machines and factory systems. The table below shows the most common setups you will see in factories:

Configuration	Description
3P+E	Three-phase with earth connection, no neutral
3P+N+E	Three-phase with earth and neutral connection
P+N+E	Unbalanced single phase with neutral
2P+E	Balanced single phase

The 2P+E setup is used for balanced single-phase loads. The P+N+E type is for unbalanced single-phase systems. For three-phase power, you pick 3P+E or 3P+N+E. The extra neutral in 3P+N+E lets you run things that need both three-phase and single-phase power. These IEC 60309 connector variants help you get the right power for your machines.

Standard vs. High Current Options

IEC 60309 variants have standard and high current setups. Standard types work with lower currents, like 16A or 32A. High current types can handle bigger loads, such as 63A or 125A. You need to choose the right one for your machine’s power needs.

High current types use thicker contacts and stronger parts. These can handle tough places and big machines. You will see high current types in factories, building sites, and places with heavy machines. Picking the right IEC 60309 connector variants keeps your system safe and working well.

Tip: Always check what current your machine needs before you pick a connector. If you use the wrong one, things can get too hot or break.

Gauge and Wire Compatibility

You must look at the wire size when you pick IEC 60309 variants. Each setup works with certain wire sizes. Using the right size keeps things safe and stops wires from getting too hot. If the wire is too small, it can get very hot and start a fire. If the wire is too big, it might not fit in the connector.

Here is a list of wire sizes for different IEC 60309 connector variants:

Connector Model	Current Rating	Voltage Range	Wire Gauge Compatibility
Mennekes 360C6W Connector	60A	220V – 250V	4 AWG to 8 AWG
IEC 60309 16A Variant	16A	110V – 415V	1.5 mm² to 4 mm²
IEC 60309 32A Variant	32A	110V – 415V	2.5 mm² to 10 mm²
IEC 60309 63A Variant	63A	110V – 415V	10 mm² to 25 mm²
IEC 60309 125A Variant	125A	110V – 415V	25 mm² to 50 mm²

Each IEC 60309 connector variant works with certain wire sizes. For example, the Mennekes 360C6W connector, which is a high current type, uses 4 AWG to 8 AWG wires. The 16A and 32A types use smaller wires. The 63A and 125A types need much thicker wires.

When you pick IEC 60309 variants, always match the wire size to the connector’s rating. This step keeps your setup safe and working right. If you are not sure, look at the maker’s guide or ask an expert.

Note: Using the right wire size for each setup is just as important as picking the right connector. This helps stop electrical problems and makes sure your system works well.

Now you know about the main IEC 60309 connector variants, their setups, and why wire size matters. This helps you make safe and smart choices for your electrical work.

Current Ratings and Applications

IEC 60309 Current Categories

IEC 60309 connectors are used in many places. They come in four main current ratings: 16A, 32A, 63A, and 125A. Each rating is made for a certain job. You need to know which rating your equipment needs. If you pick the wrong one, it can be unsafe and not work well.

• 16A connectors are for light jobs. You see them with small tools, in workshops, and at outdoor events.

• 32A connectors are for medium jobs. People use them for bigger tools, small generators, and some factory work.

• 63A connectors are for heavy jobs. You find them in factories, big kitchens, and with large machines.

• 125A connectors are for the hardest jobs. They are used for big machines, building sites, and heavy work.

Choosing the right current rating keeps your system safe and working well. This helps stop problems like overheating or broken equipment.

Typical Applications by Rating

You should always pick the right connector for your job. Each current rating is for different things. The table below shows what each rating is used for:

Current Rating	Typical Applications
16A	Hand tools, lighting, small appliances, event setups
32A	Welders, compressors, mobile generators, small machinery
63A	Industrial ovens, large pumps, HVAC units, production lines
125A	Heavy machinery, large motors, construction equipment

If you use the wrong rating, bad things can happen. You could have overheating, short circuits, broken equipment, fires, or break the rules. The table below explains these dangers:

Safety Risk	Description
Overheating	Wrong connectors can make cords get too hot.
Short Circuits	Pins that do not match can cause short circuits.
Equipment Damage	Wrong specs can break your equipment.
Electrical Fires	Bad cords can start electrical fires.
Compliance Violations	Using the wrong connectors can break safety rules.

Tip: Always check what your equipment needs before you choose a connector. The right current rating keeps your work safe and your equipment working.

Now you know how current ratings fit different jobs. This helps you pick the best connector every time.

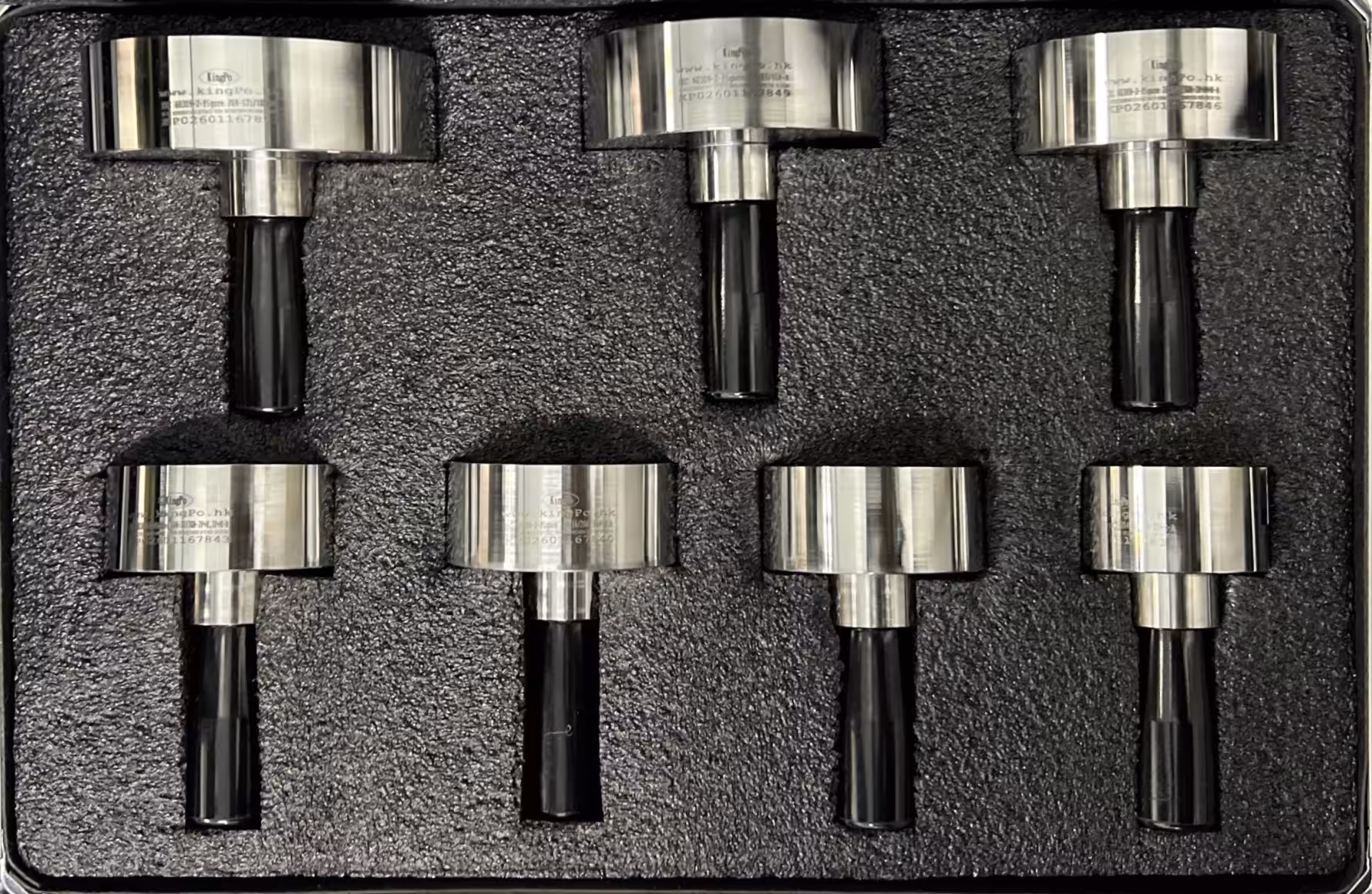

IEC 60309 Gauge List

No.	Items	Description	Photo	Qty
1	IEC 60309-2- Fig.201	16/20A, 32/30A, 63/6A and 125/100A socket-outlets and connectors having rated operating voltages exceeding 50V- “Go” gauges for checking dimensions d1, d2, l1		7
2	IEC 60309-2- Fig.202	16/20A, 32/30A, 63/6A and 125/100A socket-outlets and connectors having rated operating voltages exceeding 50V- “not Go” gauges for checking dimensions d1, d2.		14
3	IEC 60309 Fig.203	16/20 A,32/30 A,63/60 A and 125/100A plugs and appliance inlets having rated operating voltages exceeding 50 V-“go” gauges for checking dimensions d2, d4, l1		12
4	IEC 60309 Fig.204	16/20 A,32/30 A,63/60 A and 125/100A plugs and appliance inlets having rated operating voltages exceeding 50 V-“no go” gauges for checking dimensions d2, d4		19
5	IEC 60309 Fig.205	16/20 A and 32/30 A socket-outlets and connectors having rated operating voltages not exceeding 50 V – Gauges for checking compatibility		1
6	IEC 60309 Fig.206	16/20 A and 32/30 A plugs and appliance inlets having rated operating voltages not exceeding 50 V – Gauges for checking compatibility		1
7	IEC 60309 Fig.207	No Gauges for socket-outlets and connectors of 16/20A, 32/30A, 63/6A and 125/100A having rated operating voltages exceeding 50V		7
8	IEC 60309 Fig.208	16/20 A and 32/30 A plugs and appliance inlets having rated operating voltages not exceeding 50V- Gauges for checking rigidity of enclosures of thermoplastic material under humid and warm conditions		1
9	IEC 60309 Fig.211	Gauges for checking socket-outlets of 16/20 A, 32/30 A, 63/60 A and 125/100 A having rated operating voltages exceeding 50 V		7
10	IEC 60309 Fig.212	16/20 A and 32/30 A socket-outlets having rated operating voltages not exceeding 50 V- Gauges for checking rigidity of enclosures of thermoplastic material under humid and warm conditions		2
11	IEC 60309 Fig.213	Gauge for checking phase holes		4
12	IEC 60309 Fig.215	Socket-outlets and connectors with enclosures of resilient or thermoplastic material – Gauge for checking impossibility of single-pole insertion of 10/16 A 250 V two-pole plugs		1

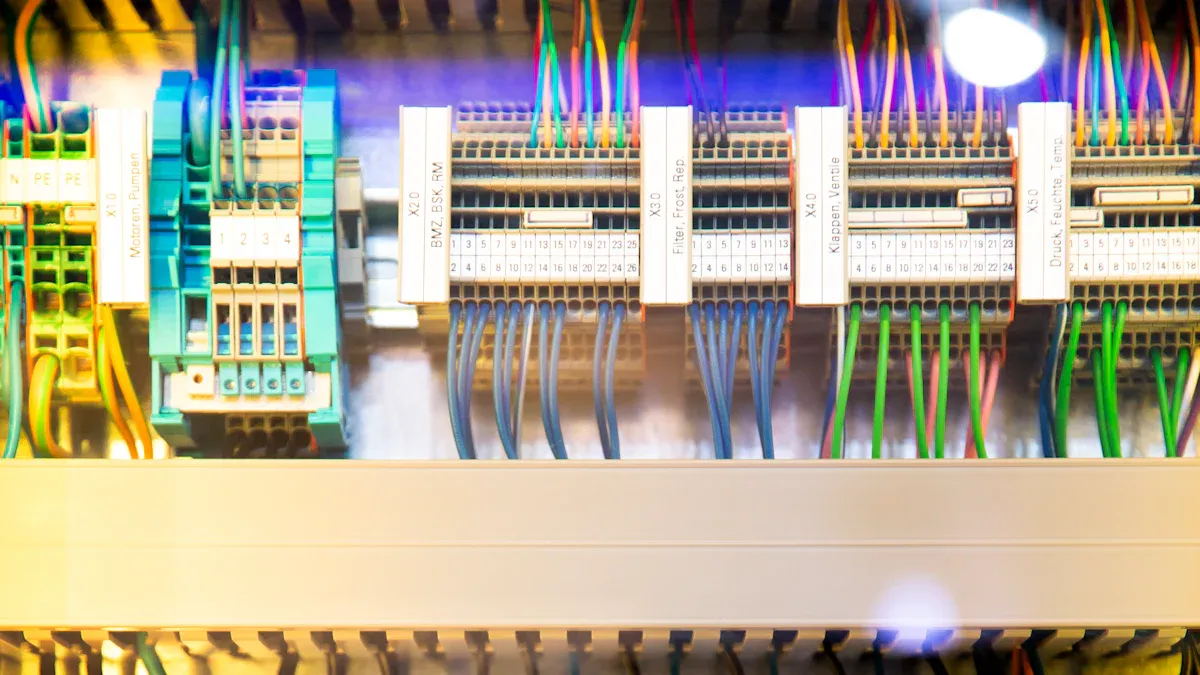

Environmental Protection for IEC 60309 Variants

IP Ratings Explained

It is important to know about IP ratings. IP ratings tell you how well a connector blocks dust and water. This helps you pick the right connector for your job. The table below shows what each IP rating means for IEC 60309 connectors:

IP Rating	Dust Protection	Water Protection	Applications
IP44	Stops objects bigger than 1mm	Keeps out water splashes from any direction	Indoor factories, covered outdoor places
IP55	Some dust can get in, but not enough to harm	Blocks water jets from any direction	Building sites, partly open areas
IP67	No dust gets in at all	Safe if put under water for a short time	Boats, outside setups, food factories

You can use this table to find the right IP rating for your space. IP44 is good for most indoor work. IP55 and IP67 are better for wet or rough places.

Suitability for Harsh Environments

IEC 60309 connectors work well in tough places. You see them in wet, dusty, or outside areas. These connectors are made from strong, UV-resistant materials. They can handle sunlight, chemicals, and hard use. High IP ratings like IP66 or IP67 keep out water and dust. Locking parts stop the plug from coming out by accident and keep power on.

Feature	Description
Robust Housing	Strong, UV-resistant materials stop damage
Ingress Protection	IP66/67 ratings block water and dust
Secure Locking Mechanisms	Stop plugs from coming loose, keep power steady

You can trust these connectors in places like building sites, shipyards, and food plants.

Safety Features

IEC 60309 connectors have many safety features. These help keep you safe in tough places. Here are some important features:

• Hinged covers snap shut and keep out dirt and water.

• Locking rings on IP67 types hold the plug tight and stop dirt.

• Plastic housing does not conduct electricity, so you stay safe if there is a short.

• Color codes help you match plugs and sockets, so you do not overload or make mistakes.

• Tough design means the connector still works if you drop it.

• Training for using and fixing connectors helps stop accidents.

Tip: Always look for locking parts and color codes before you plug in. This helps you avoid mistakes and keeps you safe.

You can count on IEC 60309 connectors to protect you and your equipment anywhere.

Visual Identification of IEC 60309 Connector Variants

You can spot IEC 60309 connector variants by their colors, markings, and pin shapes. These clues help you pick the right connector and keep things safe.

Color Coding and Markings

IEC 60309 connectors have bright colors and clear labels. Each color means a different voltage range. This helps you choose the right connector fast. You do not have to guess or look in a manual.

Color	International Voltage Range	North America Voltage
Yellow	100–130 V	125 V
Blue	200–250 V	250 V
Red	380–480 V	480 V
Orange	—	125/250 V

Connectors also have phase and voltage labels. These labels help you check your choice. Colors and markings work together to stop mix-ups. This lowers the chance of power problems in busy places.

Tip: Always match the connector’s color to your voltage. This easy step helps you stay safe.

Pin and Sleeve Design

IEC 60309 connectors use a special pin and sleeve setup. This design keeps you safe and makes sure connections work well.

Feature	Description
Sequential Grounding	The ground pin connects first and disconnects last. This keeps you safe from shocks.
Keyed Configurations	Each connector has a unique pin layout. This stops you from plugging into the wrong socket.
Automatic Safety Covers	Covers snap shut when you unplug. This keeps out dust, water, and stops accidental contact.

You can trust this design to protect you in tough places.

Keying and Physical Features

Keying means each connector has a special shape or ground pin spot. This stops you from making wrong connections. You cannot plug a connector into a socket with a different voltage or phase.

Feature	Description
Keyed Configurations	Unique ground pin spots stop mismatched voltages or wrong connections.

You will also see strong housings and locking rings. These keep the connection tight and safe, even if you move things around.

Note: Visual clues like color, markings, pin shapes, and keying help you avoid mistakes and keep your work safe every day.

You should learn about IEC 60309 connector variants to keep your equipment safe and working right. When you pick a connector, think about these important things:

• Where you will use it and what ratings it needs

• How much voltage and current your equipment uses

• What the pin setup looks like and how to spot it

• If the wire size fits the connector

Here are some steps to take care of your connectors:

1. Clean the connectors often.

2. Check them for damage or worn parts.

3. Keep them in weatherproof covers when not in use.

4. Put on lubricants and coatings to protect them.

Industrial-grade connectors can last five to ten years in hard places. Good training and UL certification help you follow safety rules and stop problems.

FAQ

What is the main purpose of IEC 60309 connectors?

IEC 60309 connectors give safe power in factories and workshops. They help you avoid mistakes when picking and installing them. These connectors work with many machines. They make sure your power is safe and steady.

How do I check compatibility with devices before choosing IEC 60309 connectors?

Check your device’s voltage, current, and phase first. Look at the connector’s color and pin layout. Check the gauge list too. This helps you pick the right IEC 60309 connector. It keeps your devices safe and working well.

Why is understanding power requirements important for IEC 60309 selection?

Knowing power needs helps you pick the right connector. You stop overloads and keep machines safe. Always check the current rating and voltage. Make sure the wire size matches. This keeps everything safe and reliable.

What are the key environmental considerations for IEC 60309 connectors?

Think about dust, water, and temperature. IEC 60309 connectors have IP ratings for different places. Picking the right one protects your equipment. It helps your system work well in tough spots.

What types of connectors are available for industrial applications of female IEC connectors?

There are many types of female IEC connectors. You can get single-phase or three-phase types. These work for different power levels and jobs. Always check safety features and compatibility before you choose.
