G13 Lamp Cap Gauge | IEC 60061-3 7006-44-4 Go/No-Go Gauge

 IEC60061-3 7006-45-4 Go Gauge for Bi-Pin Cap on Finished Lamp G13

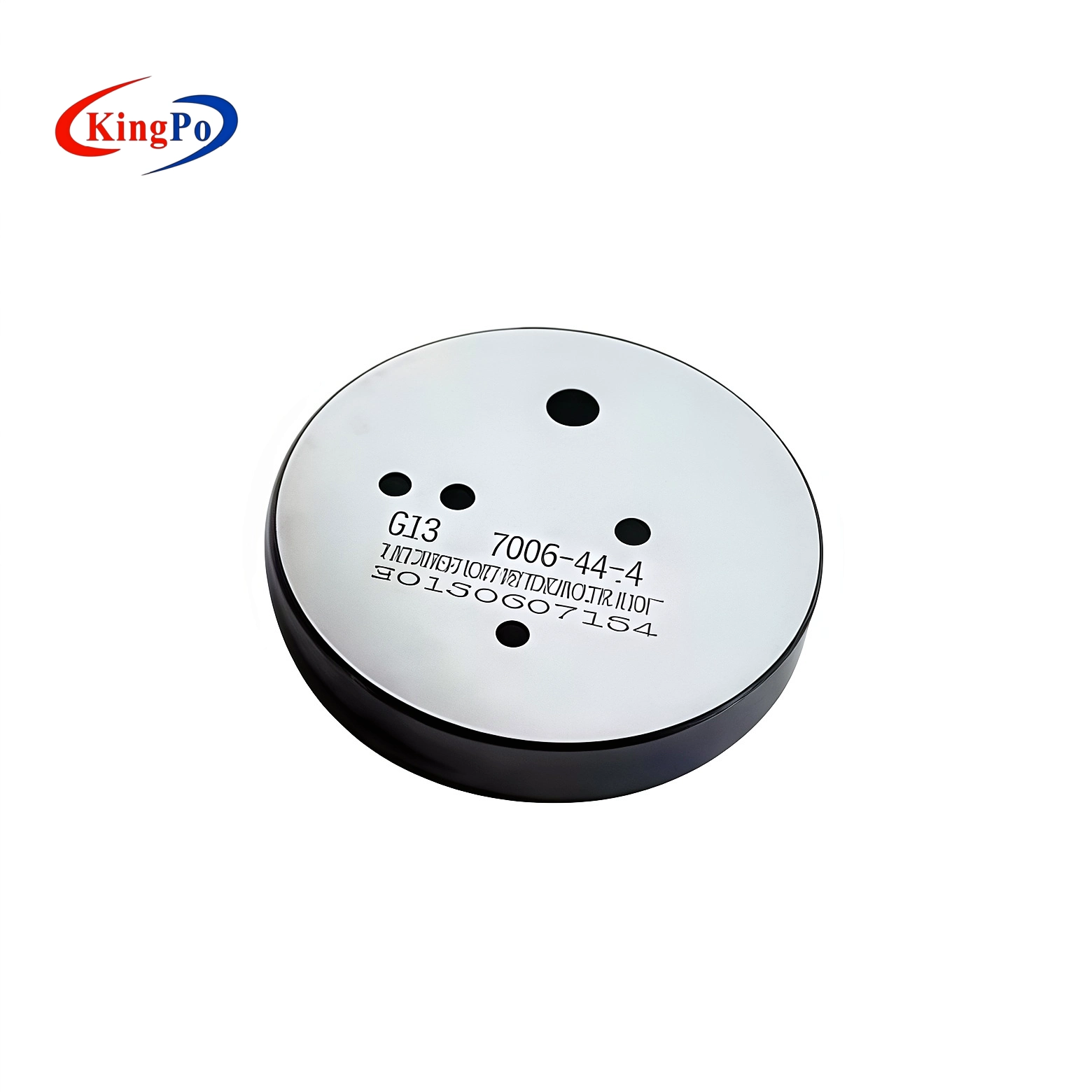

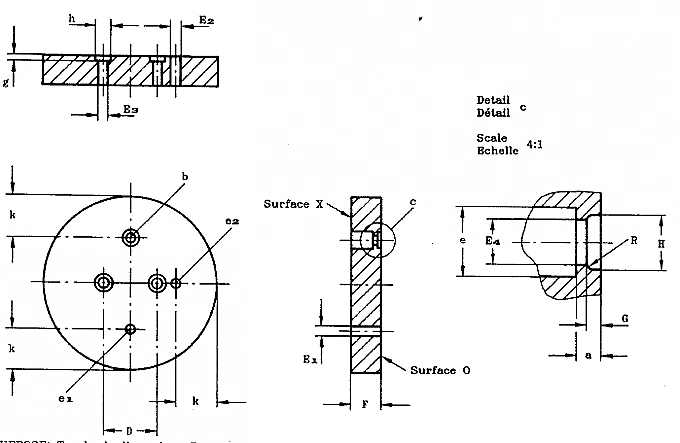

The G13 Lamp Cap Gauge (7006-44-4) is a high-precision dimensional verification tool specifically engineered to control the critical dimensions and interchangeability of unmounted bi-pin G13 lamp caps. Manufactured in strict accordance with IEC 60061-3, it ensures that every G13 cap meets the exact tolerances for pin diameter, center-to-center spacing, displacement, and key geometric features before assembly. This precise control is essential for achieving reliable electrical contact, mechanical stability, and long-term safety in T8 fluorescent tubes, LED tubes, and other bi-pin lighting products.

Technical Parameters

Item	Specification	Standard Reference	Function
Gauge Model	7006-44-4	IEC 60061-3	Go/No-Go gauge for unmounted bi-pin caps
Purpose	Checks E (min./max.), F (min.), G (max.), H (max.), pin diameter, combined displacement (including bosses)	IEC 60061-3	Full dimensional interchangeability verification
Material	Hardened tool steel (SKD61 equivalent)	—	Exceptional wear resistance and dimensional stability
Surface Treatment	Precision mirror polished	—	Smooth operation and zero damage to test specimens
Calibration	Factory traceable	Optional ISO 17025	Included as standard
Application	Unmounted G13 bi-pin lamp caps only	Lamp cap manufacturing & QC	Not intended for use on finished lamps

Professional Construction & Technical Precision

Each G13 Lamp Cap Gauge is precision-ground from premium-grade hardened tool steel using advanced CNC machining and individually verified on coordinate measuring machines (CMM) to guarantee extremely tight tolerances even after thousands of test cycles. The mirror-polished surface eliminates micro-burrs and ensures consistently smooth engagement, preventing any risk of scratching or deforming the lamp cap during inspection.

The Go/No-Go design delivers instant, unambiguous pass/fail results for all critical dimensions, including pin geometry and boss displacement. This level of precision allows manufacturers to catch dimensional deviations at the earliest stage of production, significantly improving final product quality and reducing downstream assembly issues.

Testing Principle

The gauge is applied directly to the unmounted G13 bi-pin lamp cap. The “Go” end must enter smoothly and fully without resistance, while the “No-Go” end must not engage at all. This rapid verification confirms that the pin diameter, center-to-center spacing, displacement, and other key geometric parameters fully comply with IEC 60061-3 requirements — before the cap proceeds to final lamp assembly.

Common Error Mitigation

To ensure accurate and repeatable results, follow these best practices:

• Thoroughly clean both the gauge and the lamp cap before each test to eliminate dust, residue, or oil that could affect measurement accuracy.
• Always apply force perpendicular to the specimen without tilting or side loading.
• Store the gauge in its protective case when not in use to prevent damage or dimensional drift.
• Schedule periodic recalibration (recommended annually for certification laboratories) to maintain full traceability.
• Never use the 7006-44-4 gauge on finished lamps — it is designed exclusively for unmounted bi-pin caps.

Primary Use Cases & Business Value

This gauge set is an essential quality control instrument for G13 lamp cap manufacturers and lighting fixture producers. It enables early detection of dimensional deviations, ensures consistent interchangeability across production batches, reduces assembly defects and field failures, and provides reliable data for IEC/EN certification. Ultimately, it helps lower rejection rates, shortens time-to-market, and strengthens confidence in product safety and reliability.

Industrial Applications & Lab Scenarios

• G13 LED tube and traditional fluorescent lamp cap production lines
• Bi-pin lamp base manufacturing and in-process quality control
• Incoming material inspection and supplier validation departments
• Independent third-party certification laboratories performing IEC 60061-3 compliance testing
• R&D teams developing next-generation G13-based lighting products and holders

Strategic Procurement Advantages & Global Support

• Robust hardened steel construction engineered for long service life under daily laboratory use
• Full traceability with factory calibration certificate included as standard
• Optional third-party ISO 17025 accreditation available upon request
• Manufactured under ISO 9001 certified quality management system
• Comprehensive one-year warranty supported by responsive lifetime technical assistance from our Dongguan facility
