UL 1598 Rain Test Apparatus

Wet Environment UL Rain Test Machine , Water Spray System UL 1598 Standard

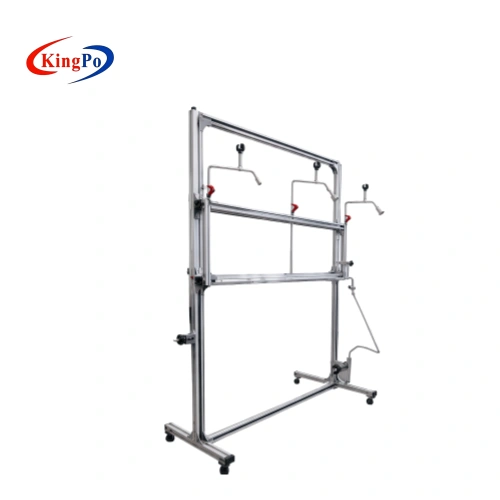

The UL 1598 Rain Test Apparatus is used to perform controlled water spray testing on luminaires intended for wet locations as specified in UL 1598. The system directs a steady water spray onto the luminaire to confirm that water does not enter critical electrical compartments such as the ballast or lampholder.

This water spray test equipment is suitable for testing self-ballasted lamps, lamp adapters, and other types of luminaires used in wet or damp environments. It supports lighting manufacturers in product development, quality control, and compliance verification, helping ensure electrical safety and prevent hazards caused by water ingress in wet location applications.

Technical Parameters

Professional Construction & Technical Precision

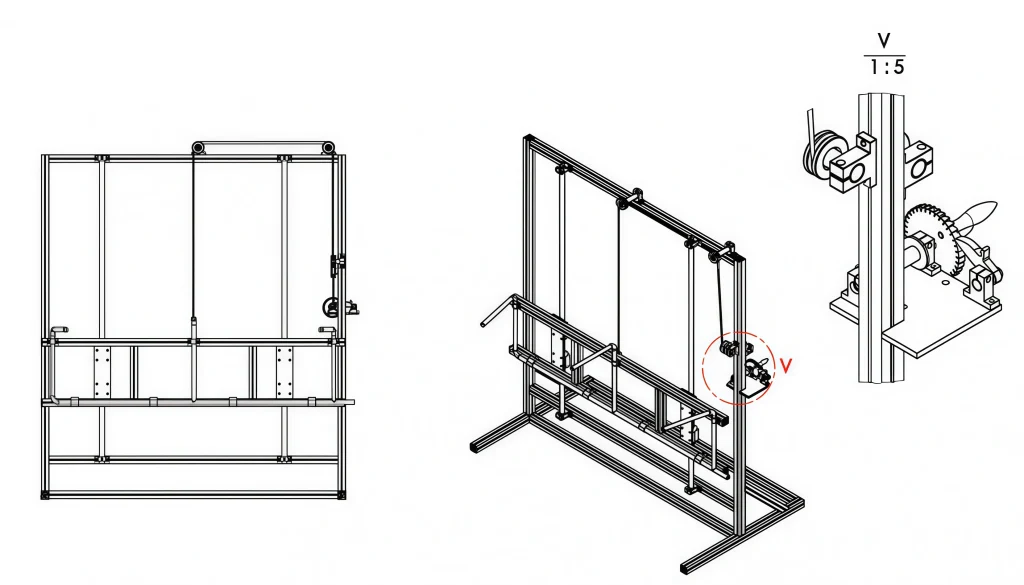

The UL 1598 Rain Test Apparatus features a movable aluminum profile frame with lockable universal wheels, allowing flexible positioning during testing. The spray structure is designed for smooth height adjustment from 0 to 1400 mm, accommodating different luminaire sizes and test configurations.

The system integrates 4 precision spray nozzles with a complete water supply unit, including a booster pump, flow meter, solenoid valve, and filter. These components work together to maintain stable water pressure and flow. The independent controller enables convenient operation and supports consistent, repeatable test conditions for wet location luminaire evaluation.

Testing Principle

The test involves positioning the luminaire under the water spray system and exposing it to a controlled water spray for a specified duration. According to UL 1598, water should not enter the ballast compartment or lampholder of luminaires intended for wet locations and damp locations.

This method evaluates the sealing performance of the luminaire enclosure by simulating water spray conditions that luminaires may encounter in wet environments. It helps manufacturers verify that self-ballasted lamps, lamp adapters, and other luminaires maintain electrical safety by preventing water ingress into critical compartments during exposure.

Common Error Mitigation

To obtain accurate and consistent test results, the following practices are recommended:

• Keep the spray nozzles clean and free from blockage to maintain consistent water spray patterns.
• Verify that the water pressure and flow rate remain within the specified range throughout the test.
• Properly position the luminaire under the spray system according to UL 1598 test requirements.
• Ensure the test duration meets the specifications for wet location luminaires.
• Regularly inspect and maintain the water supply system, including filters and pumps, to ensure stable performance.

Applications & Use Cases

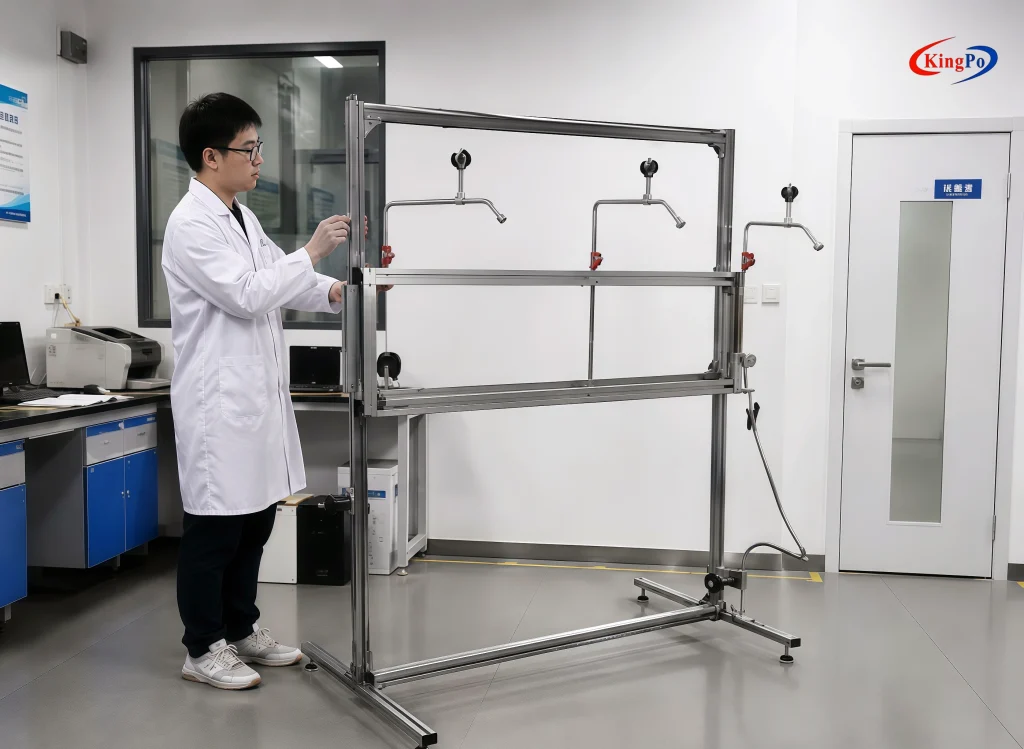

The UL 1598 Rain Test Apparatus is used by lighting manufacturers, testing laboratories, certification bodies, quality control departments, and research institutions to evaluate the waterproof performance of luminaires intended for wet locations and damp locations. It supports product development, design validation, quality control, and regulatory compliance for self-ballasted lamps, lamp adapters, and other luminaires as required by UL 1598.

This apparatus enables manufacturers to perform wet location testing on their lighting products, assists laboratories and certification bodies in conducting UL 1598 compliance and qualification testing, and helps research institutions study water ingress behavior in luminaires used in wet environments.

Key Advantages

This UL 1598 Rain Test Apparatus is specifically designed for wet location and damp location luminaire testing in accordance with UL 1598. It provides lighting manufacturers and testing laboratories with a reliable solution to verify that water does not enter the ballast or lampholder compartments of self-ballasted lamps and other luminaires under controlled water spray conditions.

The apparatus is equipped with UL-compliant spray nozzles and an adjustable spray structure, allowing flexible positioning and testing of different luminaire sizes. Its aluminum frame with lockable wheels offers convenient mobility, while the independent controller ensures easy and stable operation. Technical support is available to assist with equipment setup and proper application of the UL 1598 test method for wet location lighting products.
