What Do IP Ratings Mean?

What Is an IP Rating?

An IP rating, also called an ingress protection classification, is a standardized enclosure code defined by IEC 60529. It is widely used for electrical enclosures, luminaires, consumer electronics, outdoor controls, industrial machines, laboratory equipment and other products containing parts that must be protected from contact, foreign objects or water.

The classification applies to the enclosure and the tested product configuration. It does not automatically extend to a different connector, cable gland, cover, gasket, mounting arrangement or production variation. A component enclosure carrying an IP marking may therefore require additional verification after it is integrated into the final product.

KingPo provides IP testing equipment for laboratories and manufacturers that need to evaluate IPX1 to IPX8 water ingress protection, IP5X and IP6X dust protection, water-jet testing and related enclosure verification requirements.

How to Read an IP Code

An IP code normally begins with the letters “IP” and is followed by two characteristic numerals. Additional letters may also be used in some cases, but most product specifications and purchase requirements focus on the two main numerals.

Example: IP65 means dust-tight protection under IP6X and protection against the specified IPX5 water-jet exposure. It does not by itself establish IPX6 powerful-water-jet protection or IPX7/IPX8 immersion protection.

Solid-Object, Access and Dust Protection Levels

The first characteristic numeral is often described only as the “dust digit,” but that is incomplete. It also addresses protection of persons against access to hazardous parts. For the lower numerals, standardized access probes and object sizes are important. For IP5X and IP6X, the enclosure category, dust-circulation arrangement and possible pressure reduction must be considered.

Laboratory note: IP5X and IP6X testing should not be reduced to placing a sample in a dusty chamber. The enclosure category, internal pressure, cable entries, ventilation openings, operating condition, dust type, test duration and post-test inspection method must be confirmed.

Water Ingress Protection Levels

The second characteristic numeral describes protection against specified water exposure. Each method controls factors such as flow, nozzle geometry, angle, distance, duration, specimen movement, immersion depth or pressure. A product statement should therefore identify the complete rating and, where necessary, the conditions supporting that rating.

IPX5, IPX6, IPX7 and IPX8 Are Not a Simple Linear Sequence

A common mistake is to assume that passing a higher-numbered water test automatically demonstrates every lower-numbered classification. That assumption can be wrong when the exposure mechanisms differ. Water jets apply dynamic impact to local seals, while immersion creates hydrostatic pressure and can produce pressure differences across the enclosure.

Practical implication: A product classified as IP67 should not automatically be advertised as compliant with IP65 unless the required IPX5 test was also completed or the applicable product standard explicitly provides another basis for the claim.

IP44, IP54, IP55, IP65, IP66, IP67 and IP68 Compared

The following table separates the solid-protection requirement, water-exposure method and limitations of each common rating. It should be used as a preliminary comparison rather than as a substitute for the applicable standard.

IP54 vs IP65: Which Rating Should You Choose?

Choose IP54 only where the product requires protection from limited dust ingress and splashing water. Typical use cases may include sheltered outdoor controls, certain bathroom-zone products and equipment exposed to rain or splash without direct washdown.

Choose IP65 when the enclosure must be dust-tight and withstand the specified IPX5 water-jet test. This is a more appropriate target for many outdoor electronic products, security cameras, charging equipment and industrial control enclosures that may receive directed rain or cleaning water.

Do not select IP65 merely because it appears stronger. The target rating should come from the product standard, installation environment and foreseeable exposure. Where powerful cleaning jets are expected, IP66 may be necessary. Where temporary flooding or immersion is foreseeable, IP67 or a separately defined combination of jet and immersion tests may be more appropriate.

How Other Common IP Ratings Differ

What Engineers Should Confirm for an IPX7 Test

IPX7 is commonly summarized as “one metre for 30 minutes,” but that wording is incomplete. The test duration is 30 minutes, while the prescribed water level depends on the enclosure dimensions and the reference points defined by the standard. Large and small enclosures may therefore be positioned differently.

Important: Temporary immersion resistance does not prove water-jet resistance. Products requiring both exposures should be tested to each applicable method.

What Does IPX8 Mean?

IPX8 addresses protection against the effects of immersion under defined conditions more severe than IPX7. It should not be described only as “waterproof” because the claim is incomplete without the test depth or pressure, duration and acceptance criteria.

The applicable product standard may specify the conditions. Where it does not, the manufacturer and user should establish the required service condition, and the laboratory test programme should document how that condition will be reproduced and verified.

For pressure-based immersion testing, review KingPo’s IEC 60529 IPX8 water immersion test chamber and the detailed IPX8 waterproof testing guide.

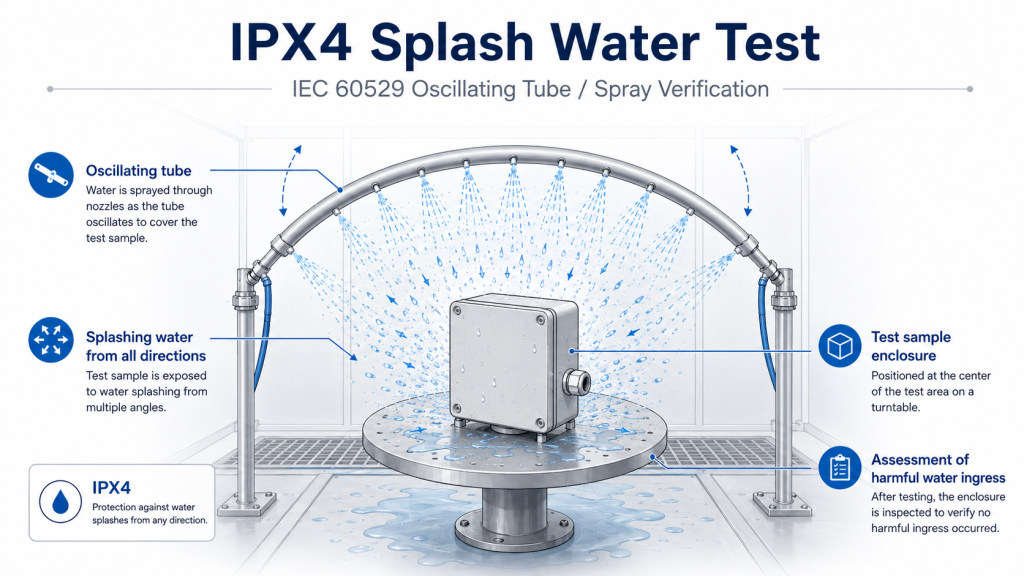

Oscillating Tube, Spray Nozzle, Jet Nozzle or Immersion Tank?

The correct equipment depends on the target rating, specimen dimensions and applicable procedure. Equipment selection should reproduce the defined exposure across the complete enclosure rather than merely wetting the most accessible surfaces.

Information to Confirm Before an IP Test

Many disputed or invalid IP tests result from an incomplete test plan rather than unsuitable equipment. The manufacturer and laboratory should establish the following details before exposure begins.

Why the Final Product Configuration Matters

An enclosure can perform differently after it is assembled into a finished product. The IP rating can be affected by the dimensions and tightening of cable glands, connector seals, display windows, ventilation membranes, hinges, latches, fasteners and mounting brackets.

The specimen should therefore represent the production design, including normal cables, unused opening plugs, removable covers and installation accessories. Temporary laboratory sealing, non-production fasteners or unusually careful assembly can produce a result that is not representative of normal manufacturing.

Does Any Water Inside the Enclosure Mean Failure?

Not every test is evaluated by the simple rule “completely dry equals pass.” The applicable acceptance criteria may consider whether water reaches live parts, insulation, safety-critical components or areas where it could accumulate and impair normal operation. Drainage provisions may also be relevant.

However, this does not mean that visible ingress can be ignored. The laboratory must document the location and quantity of water, the product condition after exposure and any required electrical or functional checks. Acceptance should be determined from IEC 60529 together with the applicable product standard, not from an informal visual judgment.

Common Causes of IP Test Failure

An IP Rating Does Not Mean All-Environment Protection

An IP classification only addresses specified access, solid-object, dust and water-ingress conditions. It does not automatically establish resistance to corrosion, ageing, chemicals, pressure cycling, mechanical damage or long-term outdoor service.

Outdoor, automotive, marine, industrial and medical equipment may require additional environmental, corrosion, electrical safety, EMC, mechanical and product-specific evaluations in addition to ingress protection testing.

Recommended IP Test Equipment by Exposure Method

The table below provides a practical starting point for equipment selection. Final selection should be confirmed against the standard edition, specimen dimensions, required flow or pressure, test duration, movement method, laboratory space and automation requirements.
