Abstract / Technical Summary Accurate dimensional verification is essential for industrial plugs and sockets to meet international safety standards. This step-by-step IEC 60309-2 gauge testing guide demonstrates how to use a professional compliance gauge kit to check Go/No-Go dimensions, mechanical strength, and single-pole protection for 16A–125A connectors, helping manufacturers achieve reliable certification results.
Introduction Industrial power connectors operating in harsh environments must pass strict interchangeability and safety tests. The IEC 60309-2 standard specifies precise gauge testing requirements (Figure 201–215) to ensure plugs and sockets are dimensionally correct and electrically safe. This practical guide walks you through the complete testing procedure using a full compliance gauge set.
Why Proper Gauge Testing Matters for IEC 60309 Compliance
- Prevents certification delays or failures during CB, CE, or CCC audits
- Reduces risk of electric shock and mechanical failure in field use
- Ensures compatibility between plugs, sockets, and appliance inlets
- Maintains product quality and brand reputation in global markets
Key Standards and Specifications The primary reference is IEC 60309-2:2021, which details dimensional gauges for plugs and socket-outlets exceeding 50V. Key figures include Fig.201 (Go gauges), Fig.202–215 (various No-Go and special checks). A professional gauge kit must meet strict tolerance requirements, typically ±0.01mm to ±0.05mm depending on the dimension.
Technical Advantages of KingPo IEC 60309 Gauge Set KingPo has over 20 years of independent research and development experience in safety testing equipment. Unlike suppliers focused only on final assembly, our engineering team designs and manufactures these gauges in-house. This results in:
- Hardened stainless steel construction (HRC 58-62) for superior wear resistance
- CMM-verified precision with tight tolerances
- Laser marking for clear identification and full traceability
- Complete kit packaging (~76 pieces) covering all required IEC 60309-2 figures
- Optional accredited calibration certificates
These advantages make the KingPo gauge set a reliable choice for daily laboratory and production quality control.

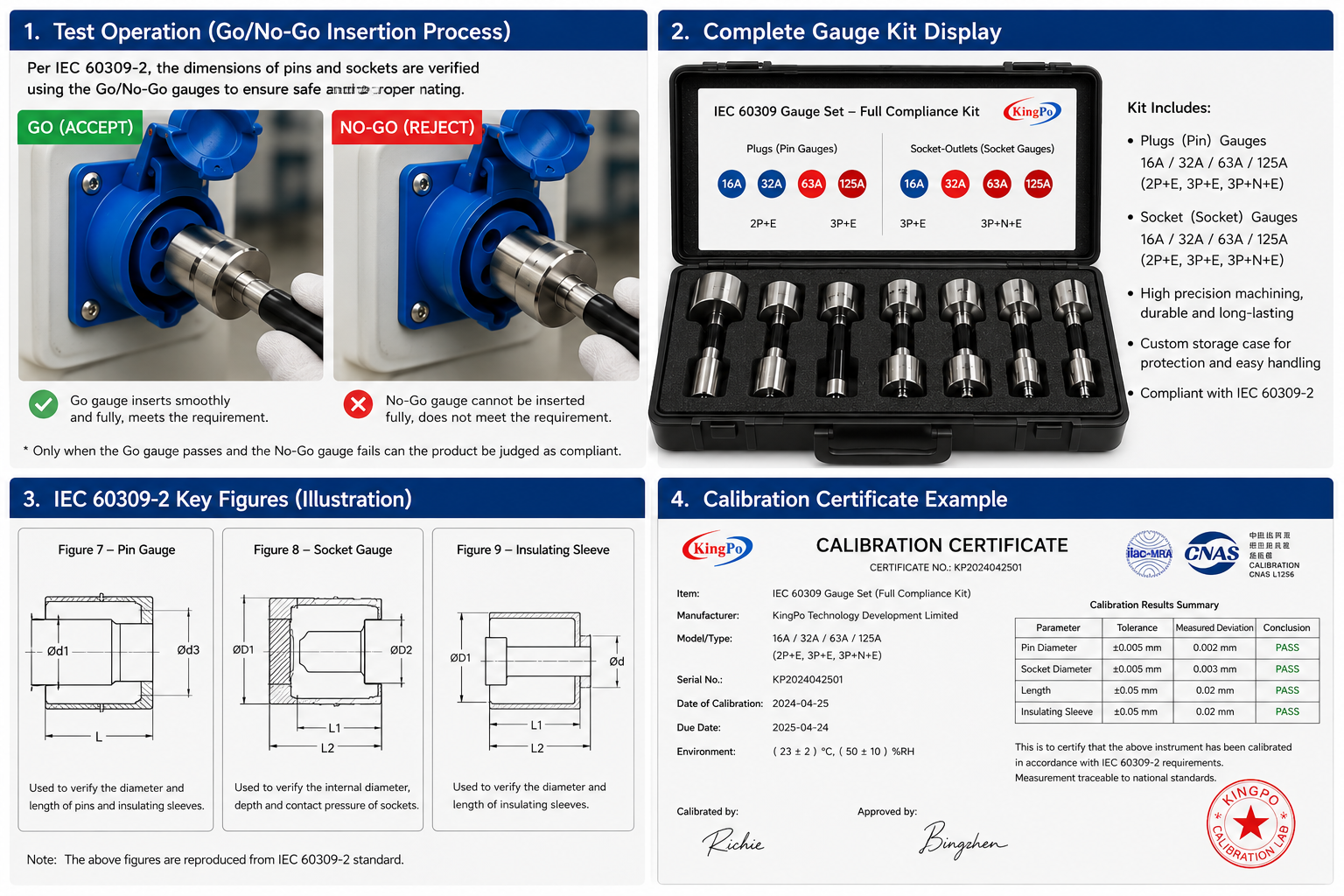

Step-by-Step IEC 60309 Gauge Testing Procedure
- Preparation Clean all gauges and test samples thoroughly. Ensure the environment is well-lit and free of dust.
- Go Gauge Verification Insert the corresponding Go gauge into the plug or socket. It should enter smoothly without excessive force.
- No-Go Gauge Check Attempt to insert the No-Go gauge. It must not fully enter. This confirms critical dimensions are within tolerance.
- Multi-Position Testing Perform checks at different angles and key measuring points as specified in IEC 60309-2 figures.
- Thermoplastic Rigidity Test Apply specified force to enclosure parts (e.g., Fig.208/212) and verify no excessive deformation.
- Single-Pole Insertion Prevention Use dedicated gauges (Fig.215 series) to confirm a single pin cannot be inserted incorrectly.
- Documentation Record all results with photographs. Retain reports for certification submission.
Common Issues and Best Practices
- Worn gauges can cause false results — schedule regular calibration.
- Inconsistent operator technique affects repeatability — follow standardized procedures.
- Always use the complete set rather than individual gauges for full compliance.
Conclusion Following this IEC 60309-2 gauge testing procedure ensures your industrial plugs and sockets meet the highest safety and interoperability standards. KingPo’s Full Compliance Gauge Set provides the precision tools and reliability needed for consistent results.
