E27 Lamp Cap Gauge 7006-51-2 | IEC 60061-3 Protection Against Accidental Contact Gauge

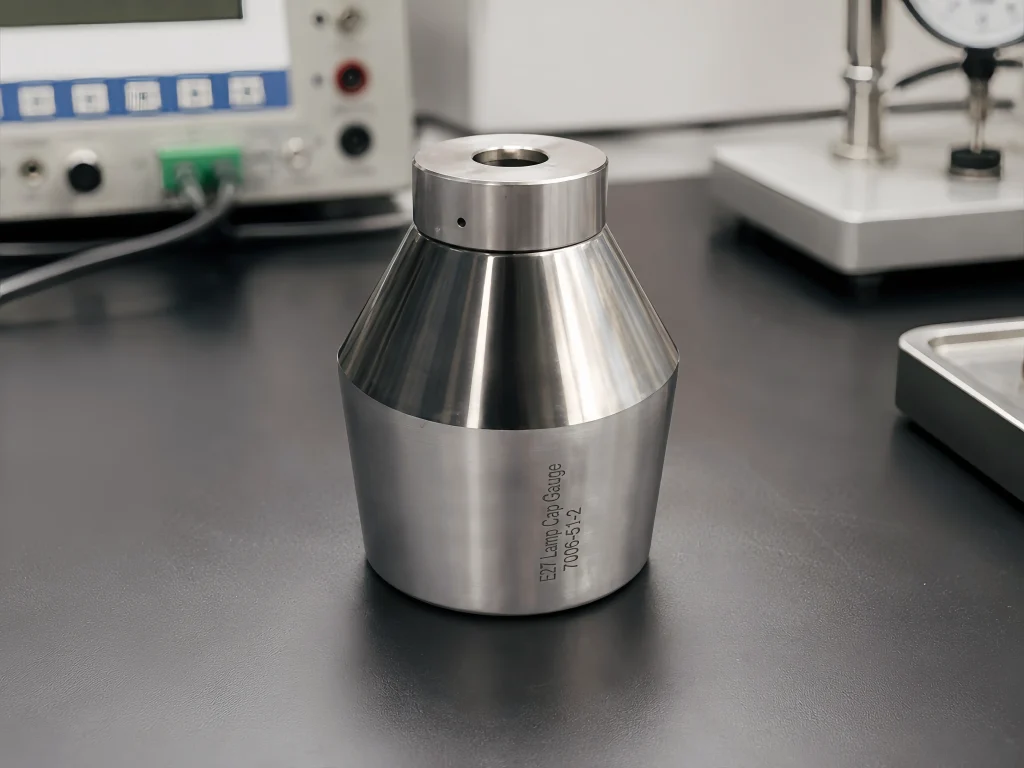

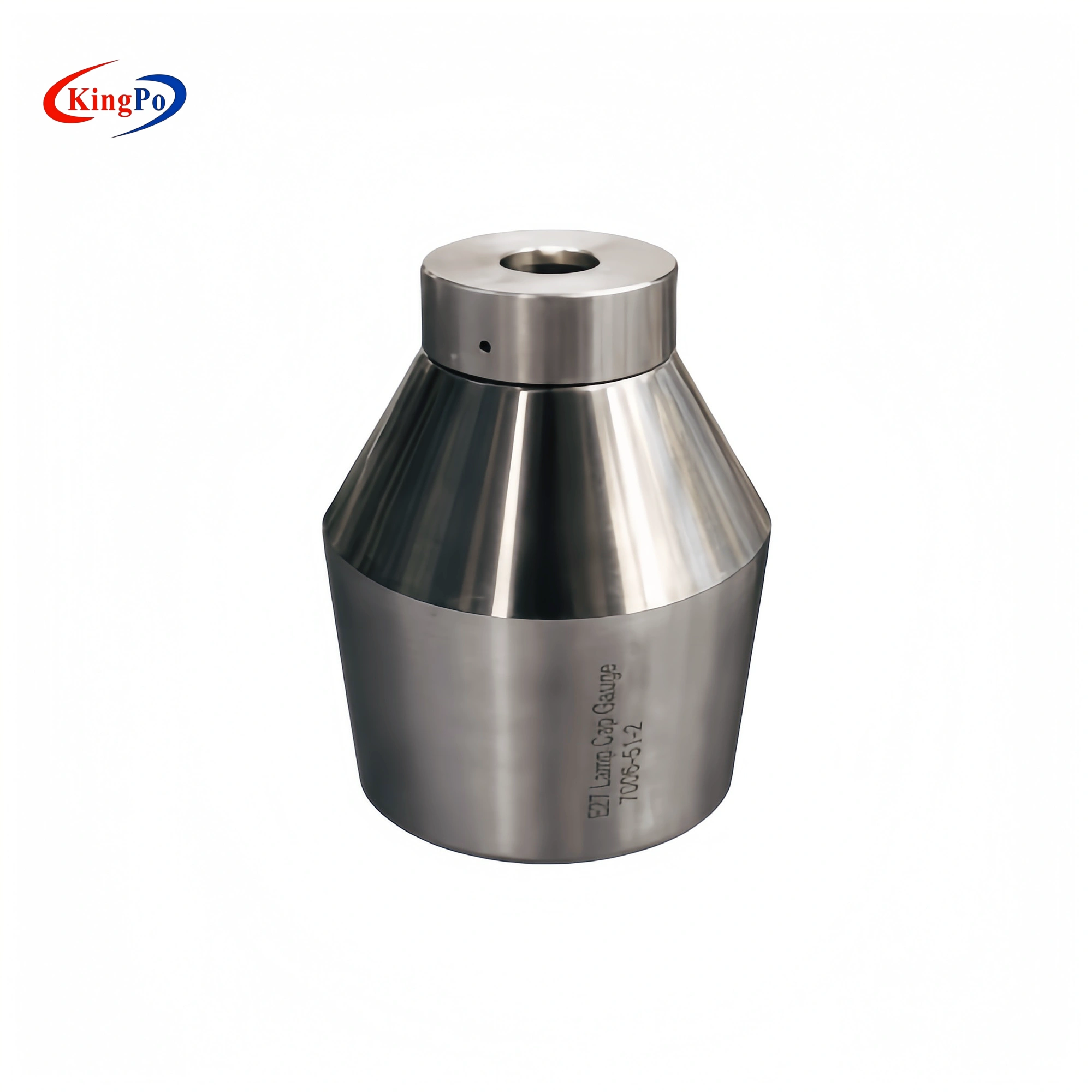

The E27 Lamp Cap Gauge is precision-manufactured from premium-grade hardened steel with a controlled hardness of HRC 58–60, delivering superior wear resistance and exceptional long-term dimensional stability even after thousands of inspection cycles. Every critical surface is CNC-machined to the exacting tolerances specified in IEC 60061-3, ensuring consistent Go/No-Go performance across high-volume production environments.

Its compact, ergonomic handheld design allows operators to perform rapid, fatigue-free testing directly on the production line or in the laboratory. The clearly defined reference surfaces (V and W) provide instant visual confirmation of results, eliminating the need for secondary measuring instruments and streamlining the entire verification process.

Testing Principle

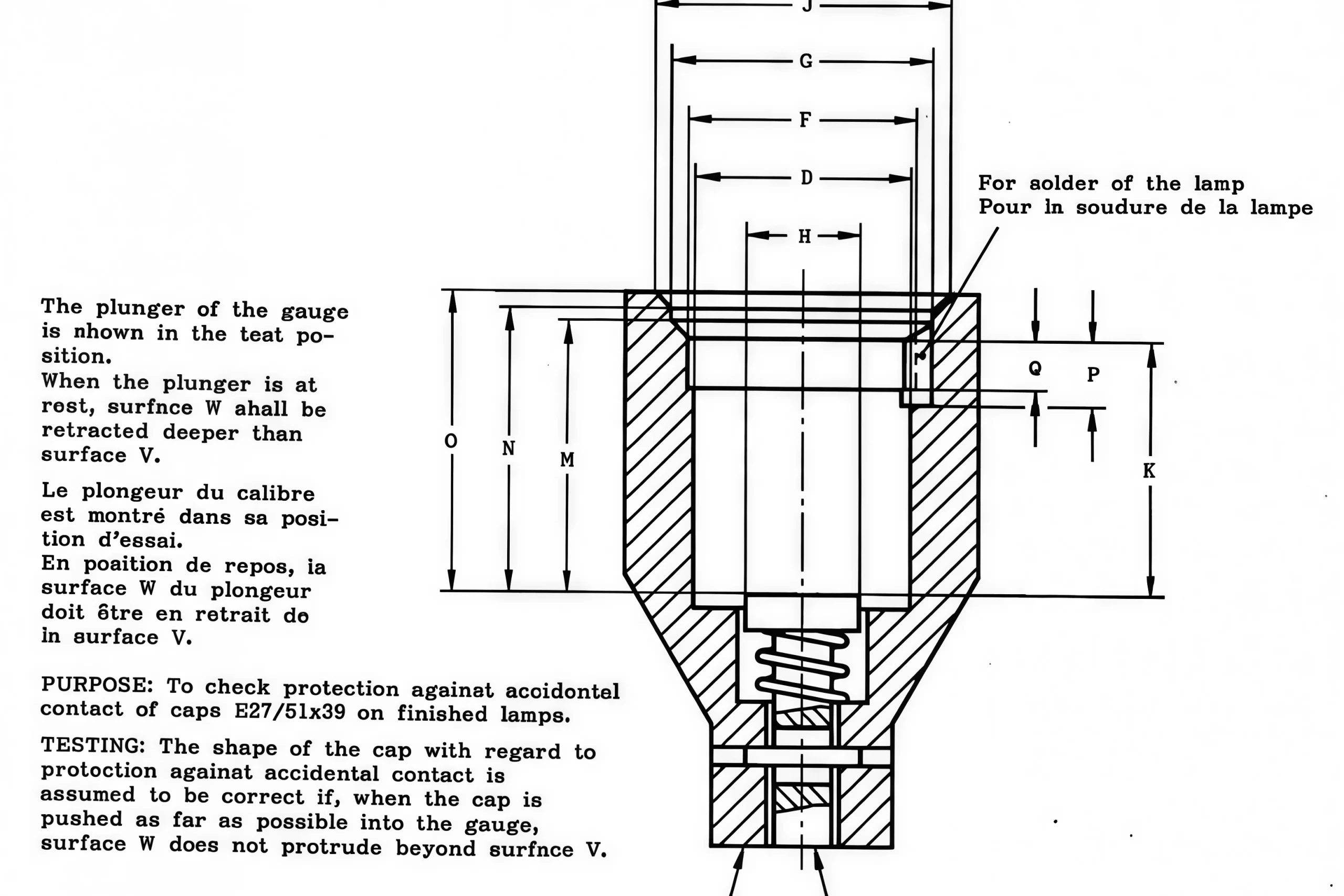

The E27 Lamp Cap Gauge evaluates protection against accidental contact by precisely replicating real-world user interaction with a finished lamp. The completed E27 lamp is inserted fully into the gauge until it reaches its natural stopping point. According to IEC 60061-3 (code 7006-51-2), the test is considered passed if surface W of the lamp cap does not protrude beyond surface V of the gauge.

This straightforward yet highly effective method confirms that no live electrical parts are accessible during normal handling or installation, significantly reducing the risk of electric shock and ensuring the lamp meets international safety requirements for consumer and commercial lighting applications.

Common Error Mitigation

To achieve consistently accurate and fully standards-compliant results with the E27 Lamp Cap Gauge, operators are recommended to follow these best practices:

• Thoroughly clean the gauge before each use to eliminate any debris, dust, or residue that could affect measurement accuracy.
• Insert the lamp cap smoothly and fully until it stops naturally—never apply excessive force or tilt the lamp.
• Visually verify that surface W remains flush with or below surface V under proper lighting conditions.
• Conduct periodic dimensional verification and recalibration in accordance with IEC guidelines to maintain long-term precision.
• Maintain comprehensive test records, including lamp model, batch number, date, and pass/fail outcome, to support full traceability and audit compliance.

Primary Use Cases & Business Value

The E27 Lamp Cap Gauge serves as an essential quality control instrument for verifying the electrical safety of E27 lamps throughout every stage of the product lifecycle. It empowers manufacturers to detect cap design or manufacturing deviations at the earliest possible point, dramatically accelerating compliance testing while minimizing the potential for costly field failures or product recalls.

By delivering reliable, repeatable results with minimal training required, this gauge helps companies enhance overall product quality, shorten time-to-market, and strengthen customer confidence in their lighting solutions across global markets.

Industrial Applications & Lab Scenarios

• Lighting Manufacturers — Final safety inspection of finished E27 LED, CFL, and halogen lamps prior to shipment
• Quality Control Departments — High-volume in-line and batch testing of lamp caps on automated production lines
• Third-Party Certification Laboratories — IEC 60061-3 type approval, regulatory verification, and compliance reporting
• R&D Teams — Rapid validation of new lamp cap designs and ongoing safety performance improvements

Strategic Procurement Advantages & Global Support

• Precise verification of protection against accidental contact using the official IEC 60061-3 7006-51-2 specification
• Robust hardened steel construction guarantees years of maintenance-free, high-accuracy service
• Intuitive handheld operation that supports fast, high-throughput production environments
• Manufactured under ISO 9001 certified quality management with responsive technical support and full customization capabilities
