IEC 60309 Gauge Set – Full IEC 60309-2 Compliance Kit | KingPo
Precision IEC 60309-2 compliance gauge kit for industrial plugs & sockets – durable stainless steel, full dimensional & safety verification, ideal for manufacturers and labs
- Full IEC 60309-2 Coverage Complete Fig.201–215 gauges for 16/20A–125/100A, >50V & ≤50V – all dimensional, compatibility, rigidity, and safety tests in one kit.
- Precision Hardened Stainless Steel Durable, high-accuracy construction for repeated lab and production-line use.
- Go/No-Go Clarity Clear pass/reject design minimizes errors and speeds up inspection.
- Certification Ready Essential tool for manufacturers and labs to achieve CB, CE, CCC compliance.

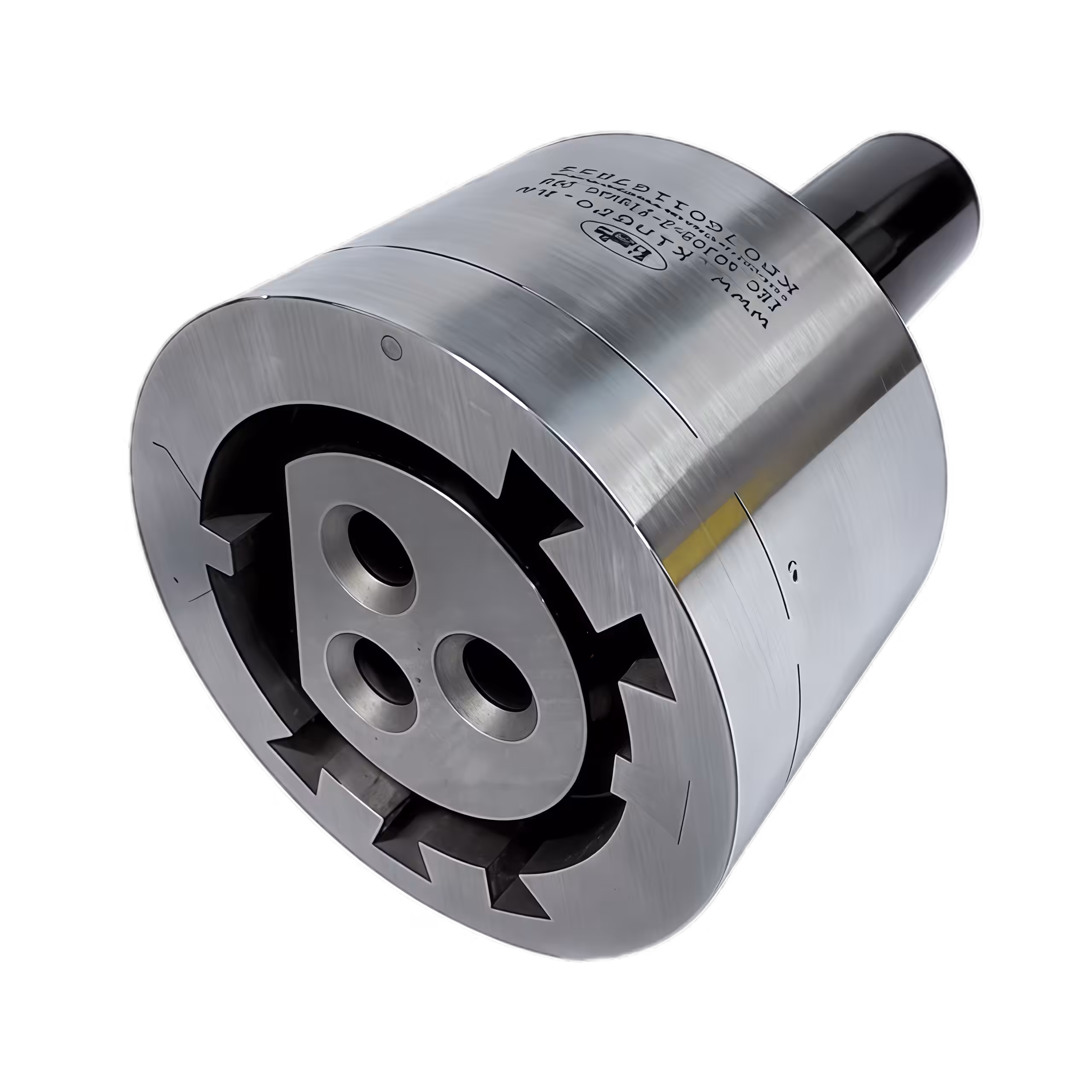

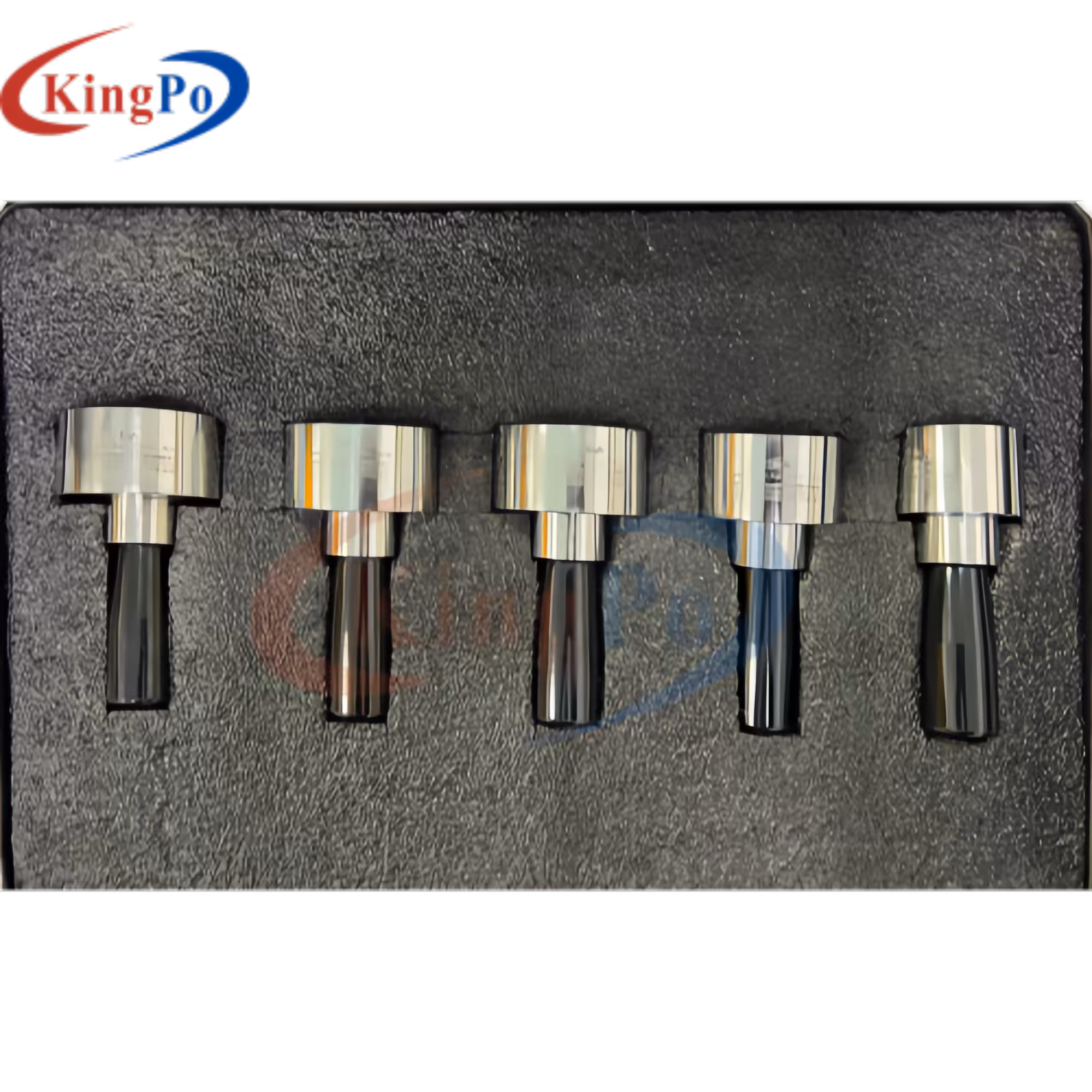

- All-in-One Kit (~76 pcs) Eliminates separate sourcing – saves time and ensures standard conformity.
IEC 60309 Gauge Description
IEC 60309-2 Industrial Plug & Socket Gauge Compliance Kit (Full Set)
Product Overview This comprehensive gauge kit is designed for precise testing and verification of industrial plugs, socket-outlets, connectors, and appliance inlets in accordance with IEC 60309-2 (Dimensional interchangeability requirements for pin and contact-tube accessories).
It ensures compliance with international safety and dimensional standards for rated currents from 16/20 A up to 125/100 A, and rated operating voltages exceeding 50 V (or not exceeding 50 V in specific cases).
Ideal for manufacturers, testing laboratories, certification bodies, and quality control departments. The kit includes “Go” and “No-Go” gauges for dimensional checks (d1, d2, l1, d4), compatibility verification, enclosure rigidity under humid/warm conditions, phase hole inspection, and protection against single-pole insertion.
Key Benefits
- Precision-machined stainless steel for long-term durability and accuracy
- Covers all major configurations in IEC 60309-2 (16/20 A, 32/30 A, 63/60 A, 125/100 A)
- Supports both >50 V and ≤50 V rated accessories
- Essential for third-party certification, production line testing, and regulatory compliance
- Complete set matching standard figures (Fig.201 to Fig.215)
Specifications
- Material: Hardened stainless steel
- Standards Compliance: IEC 60309-2 (latest edition)
- Applications: Industrial plugs & sockets (pin & sleeve type), couplers, appliance inlets
- Quantity per Item: As listed below (total ~76 pieces)
- Usage: Go/No-Go testing, compatibility, rigidity, and safety checks
IEC 60309 Gauge Set Contents
| No. | Items | Description &Purpose | Qty |
|---|---|---|---|

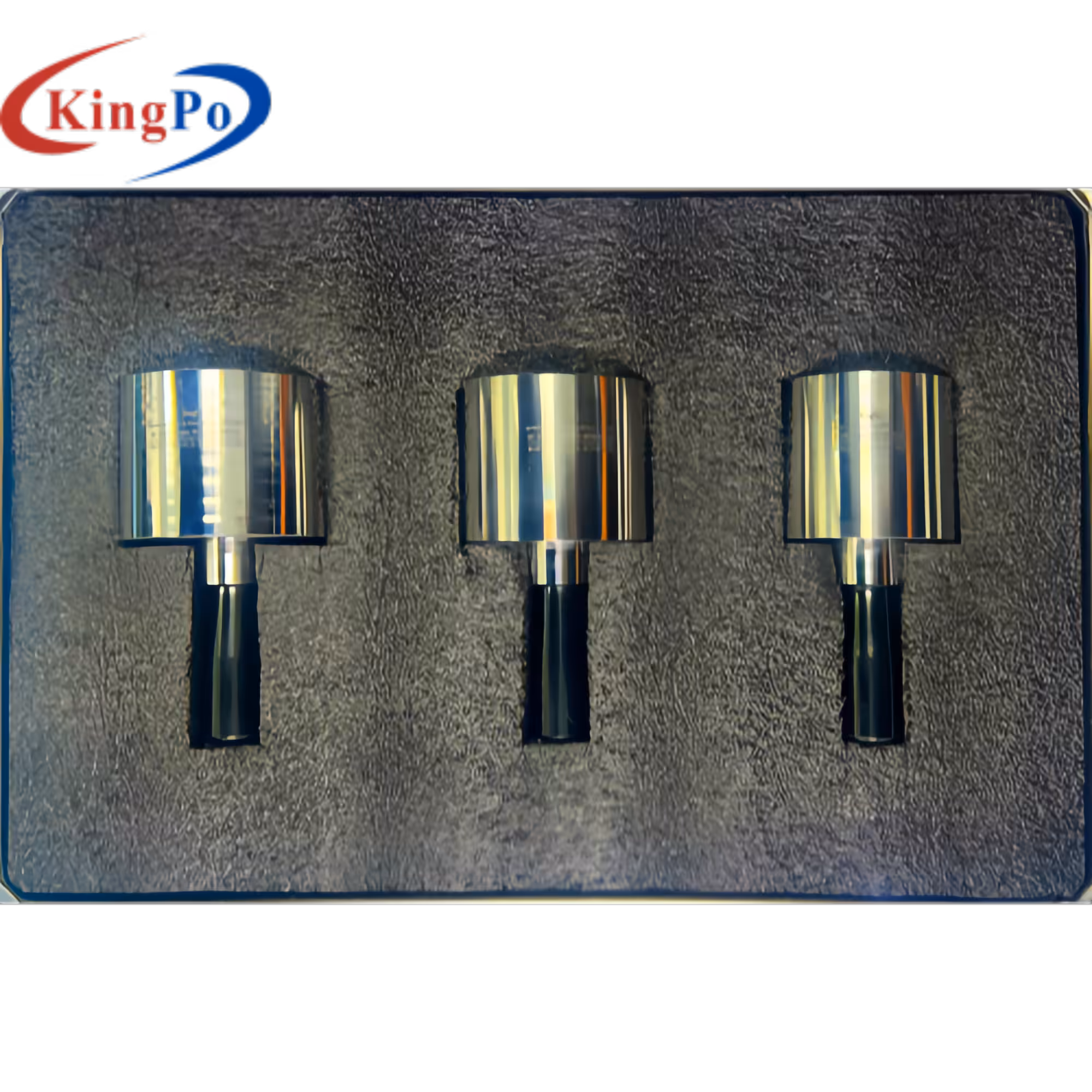

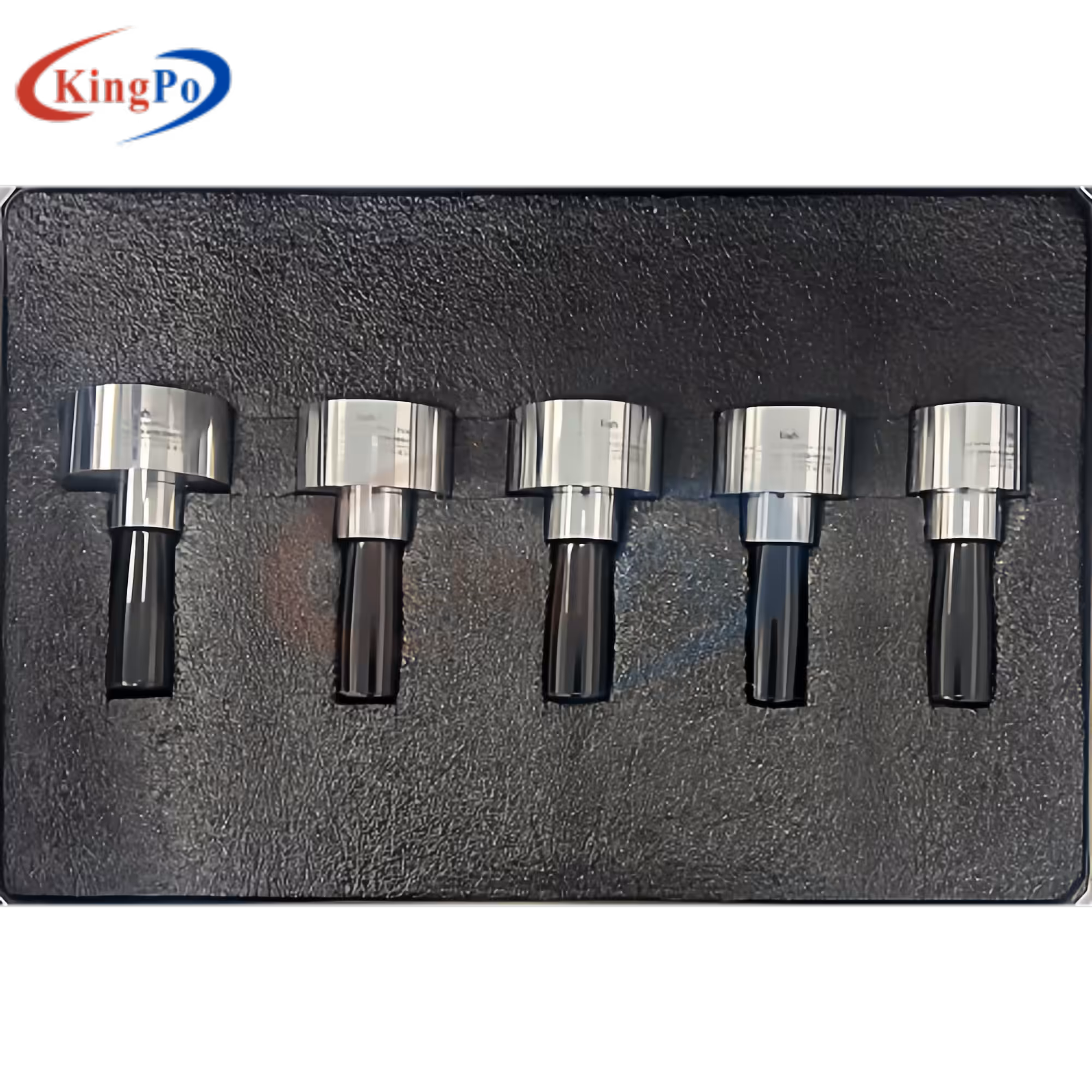

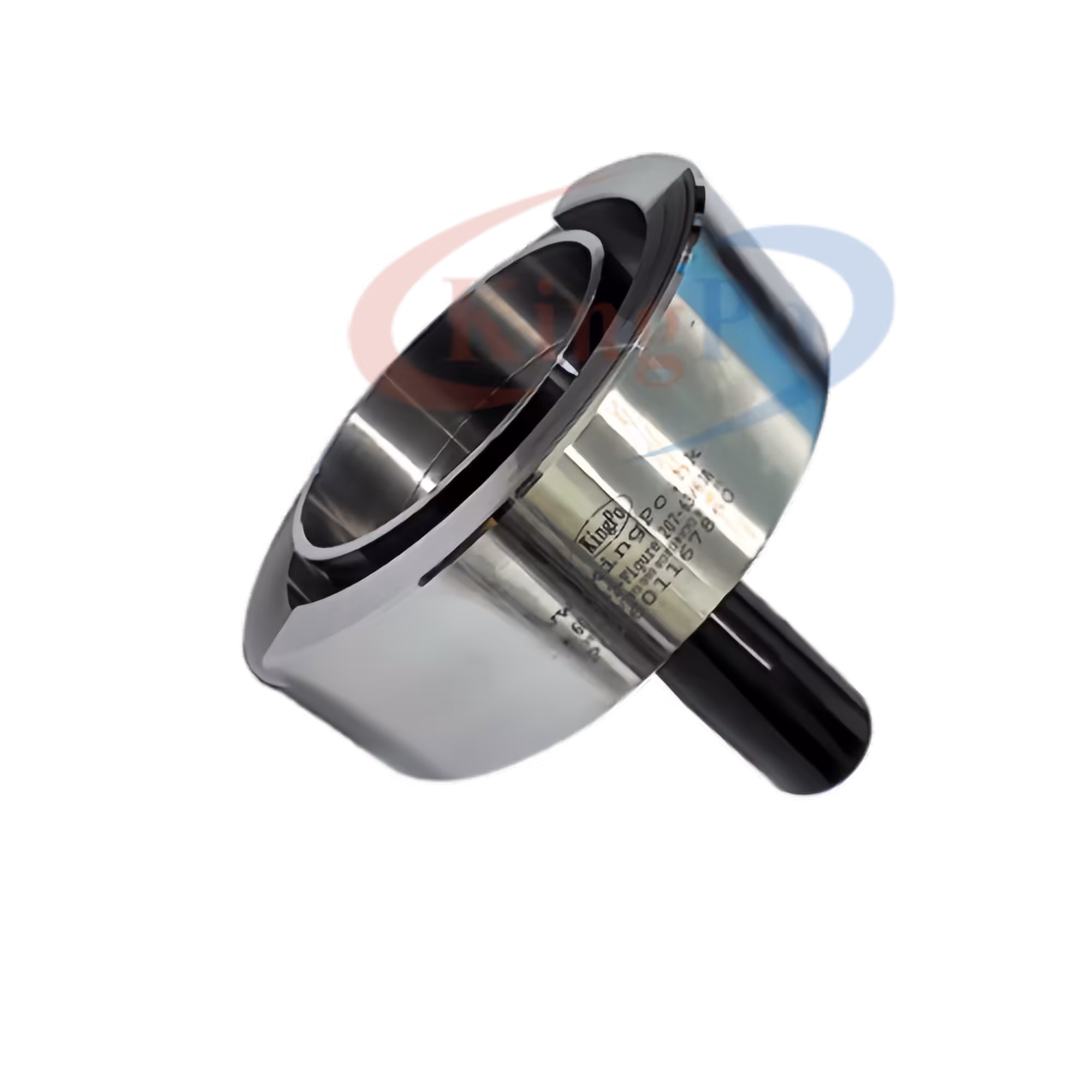

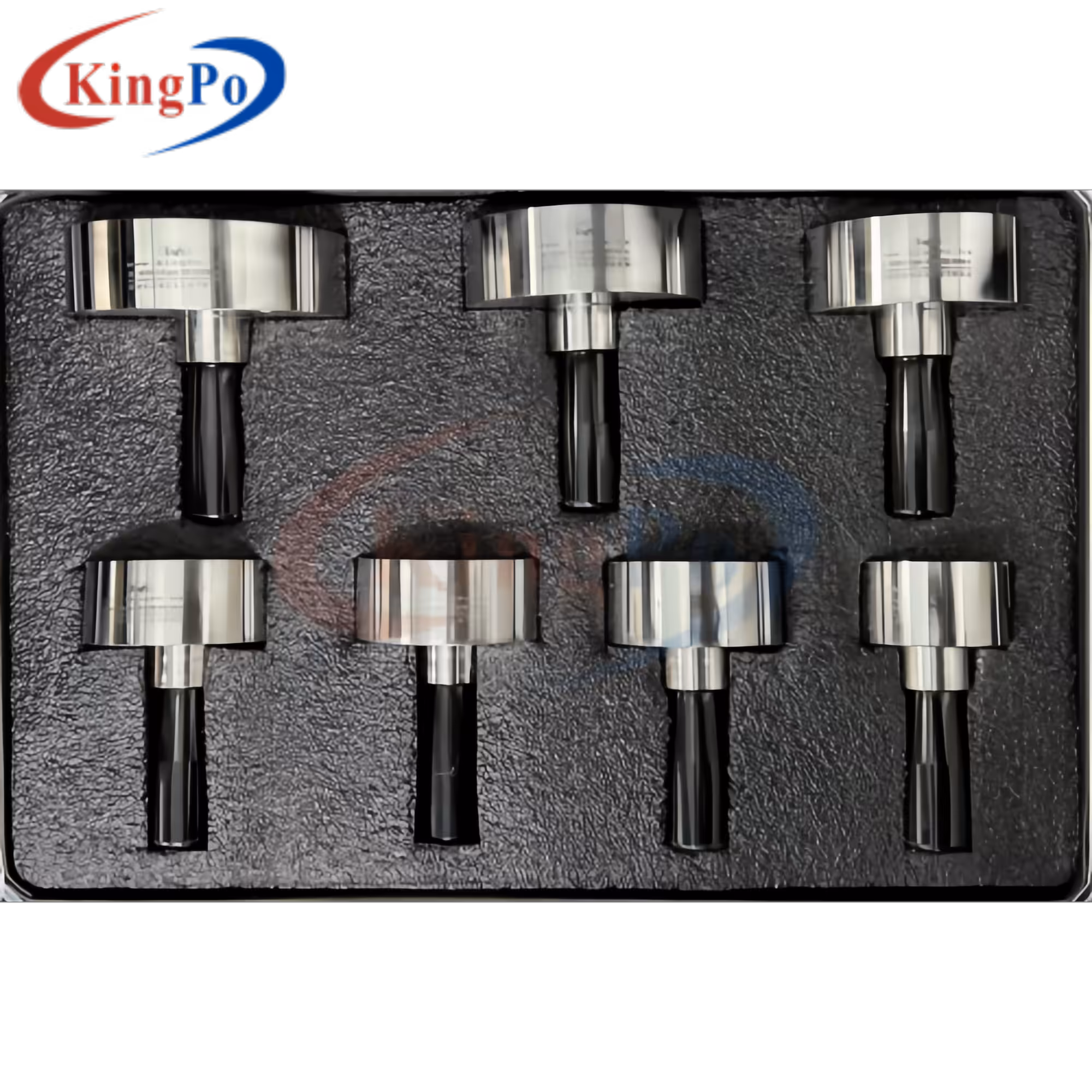

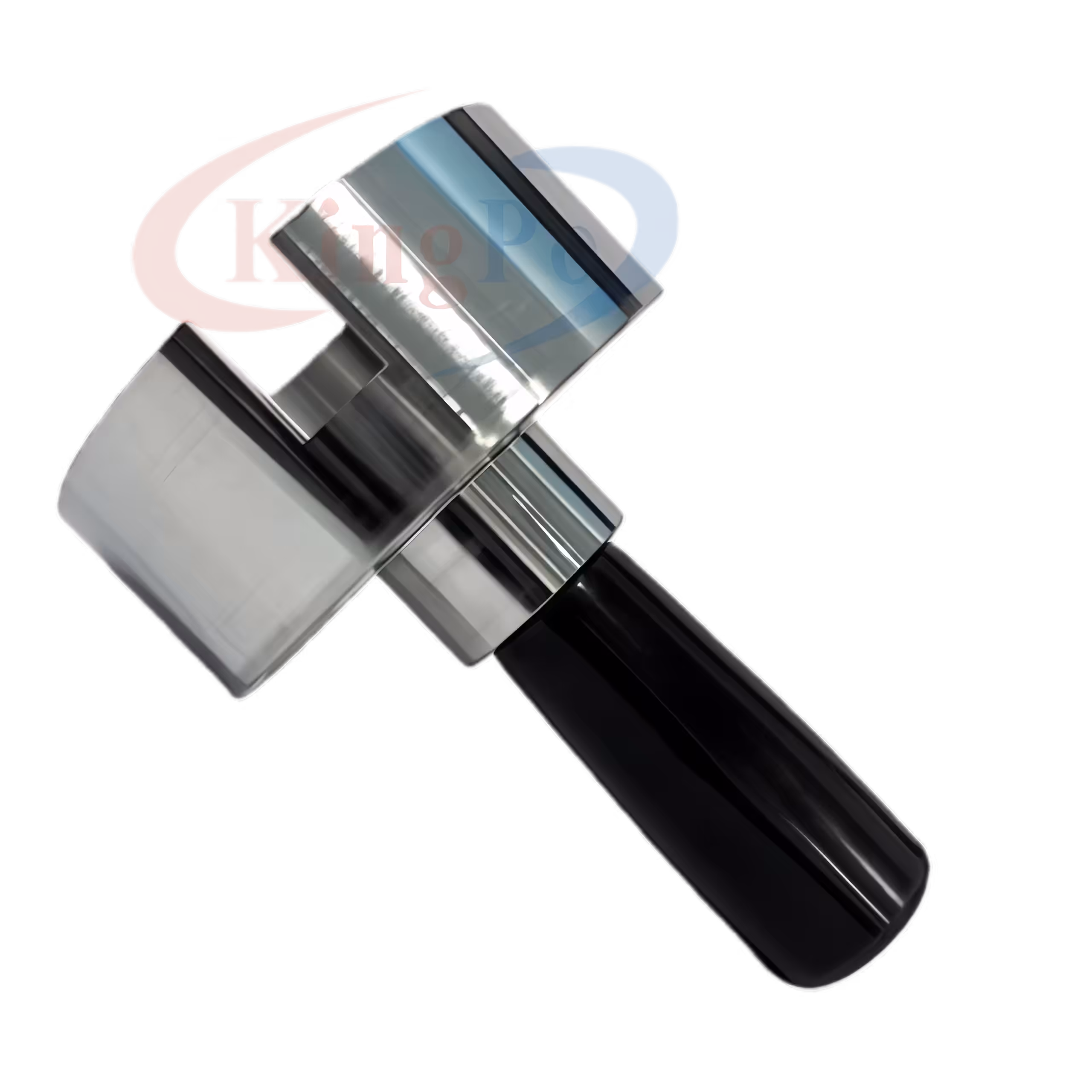

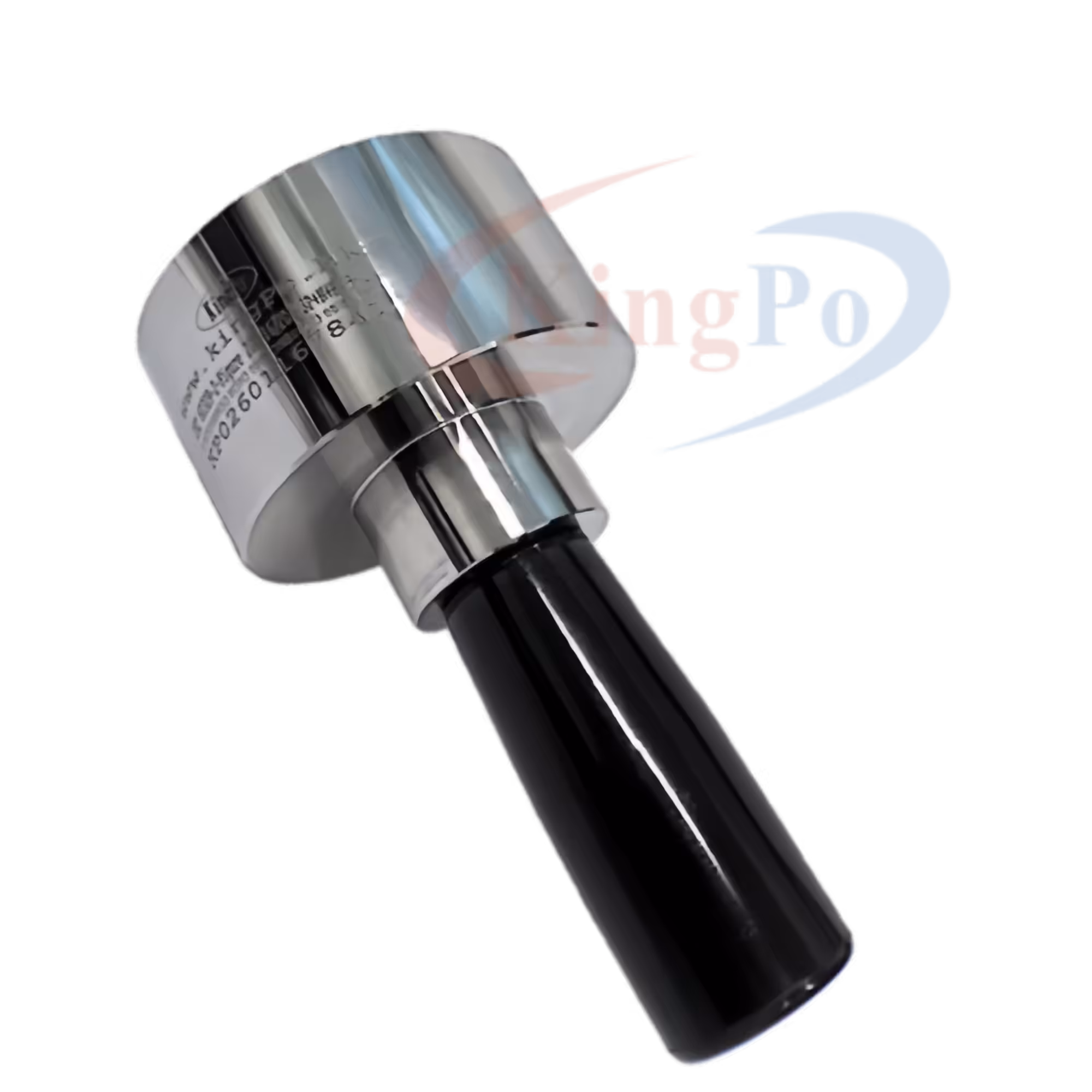

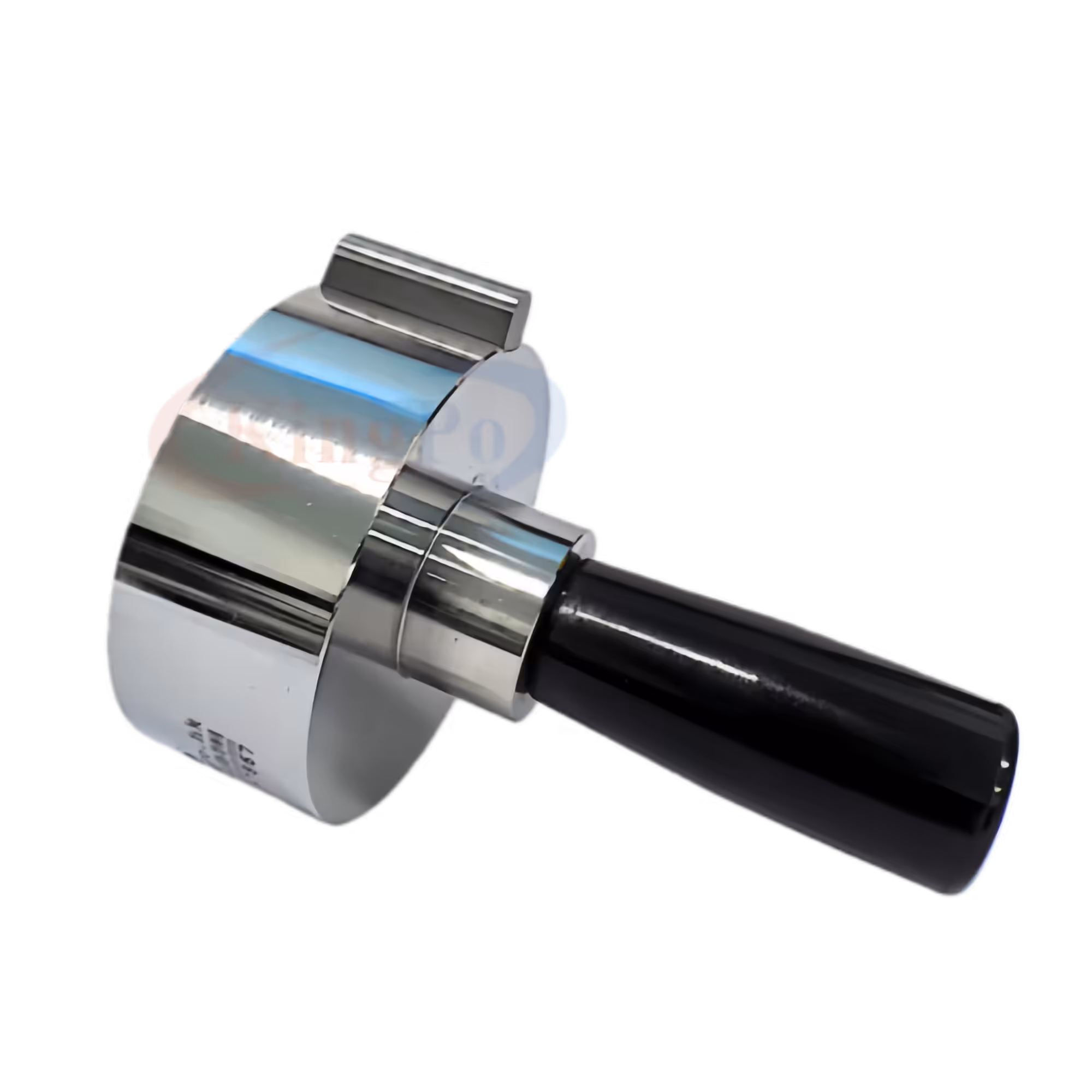

| 1 | IEC 60309-2 Fig.201 | 16/20A, 32/30A, 63/60A and 125/100A socket-outlets and connectors (>50V) – “Go” gauges for checking dimensions d1, d2, l1
Purpose: Go gauges, d1 d2 l1, socket-outlets connectors, maximum dimensions check, acceptance criteria |
7 |

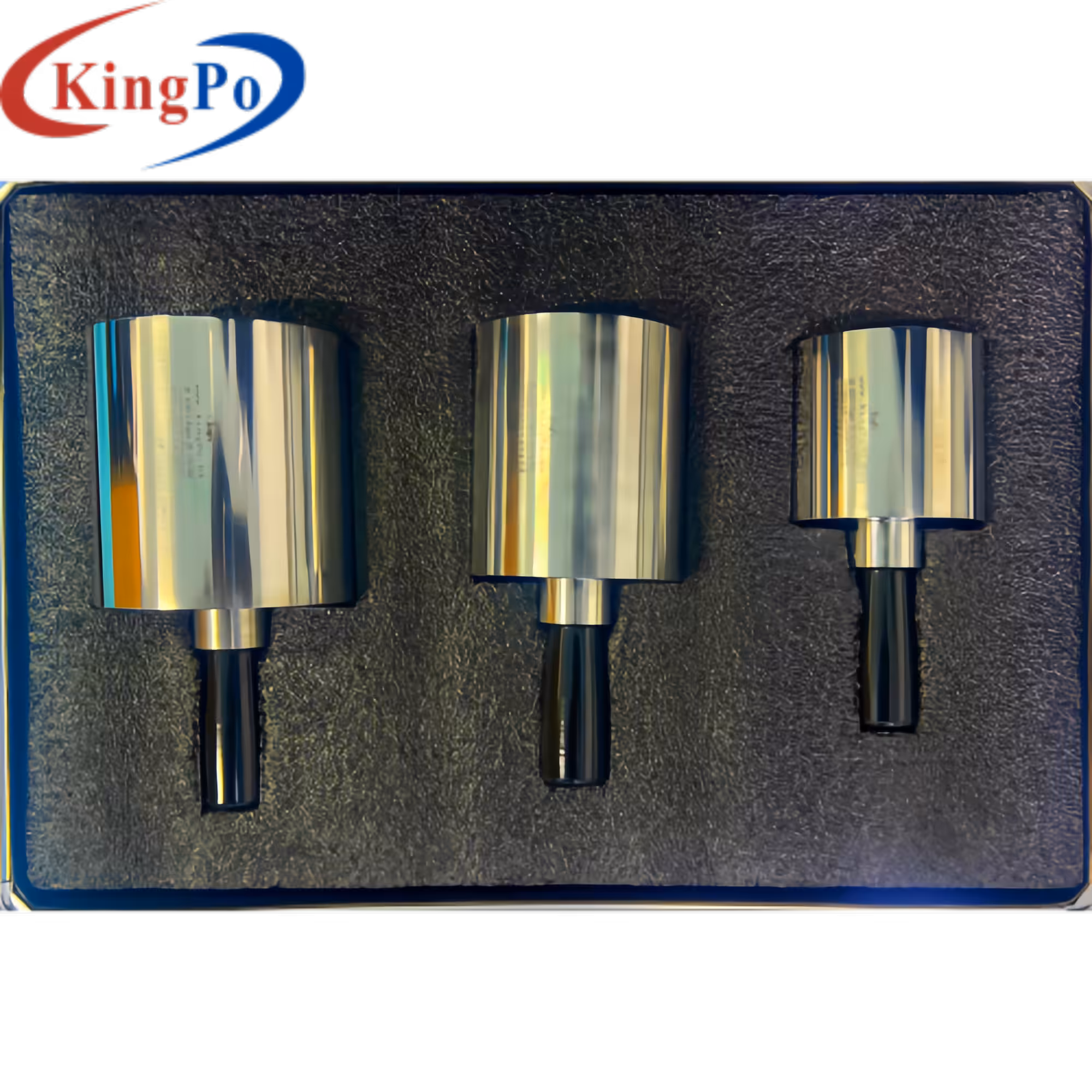

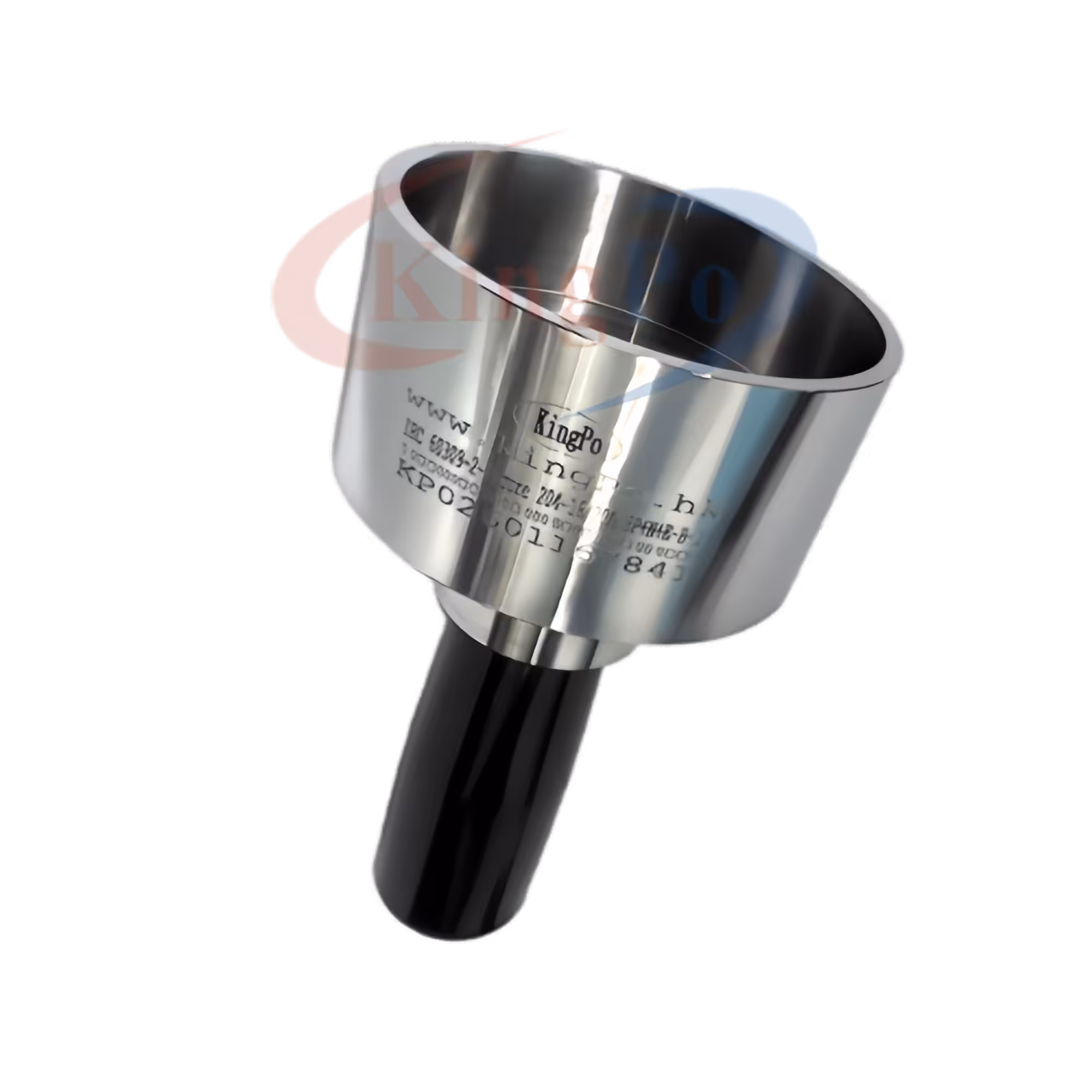

| 2 | IEC 60309-2 Fig.202 | 16/20A, 32/30A, 63/60A and 125/100A socket-outlets and connectors (>50V) – “Not Go” gauges for checking dimensions d1, d2
Purpose: Not Go gauges, d1 d2, minimum dimensions, rejection criteria, non-acceptance |
14 |

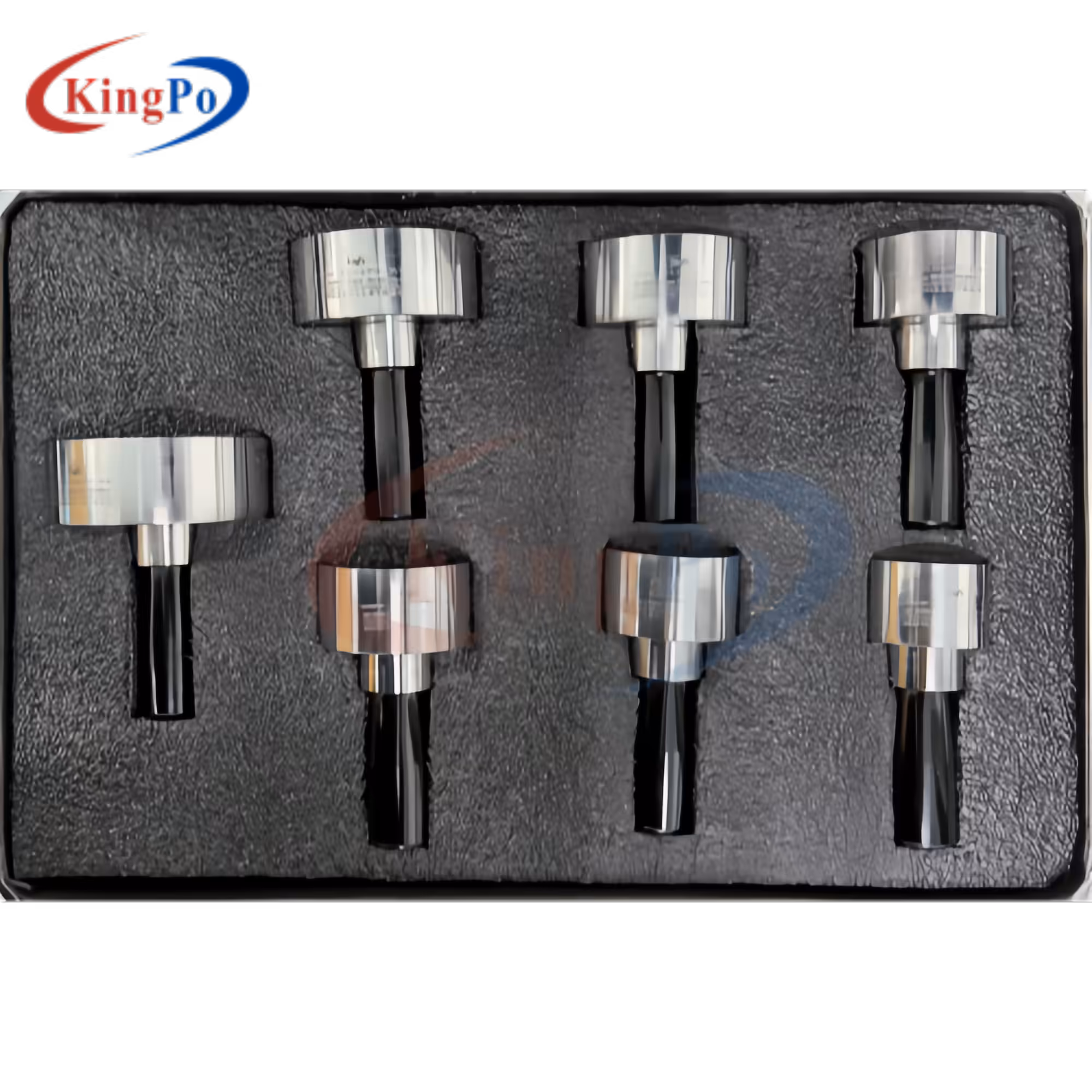

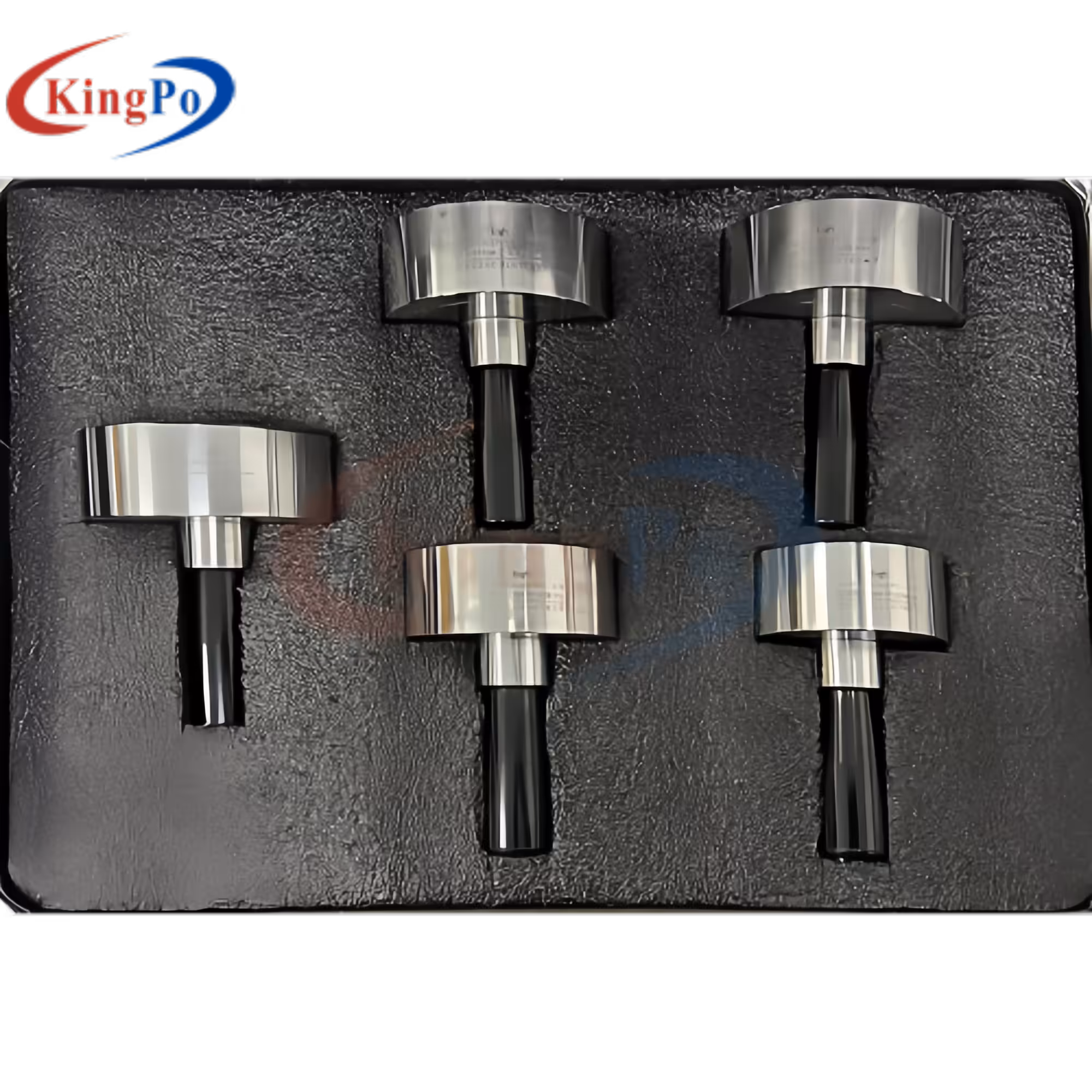

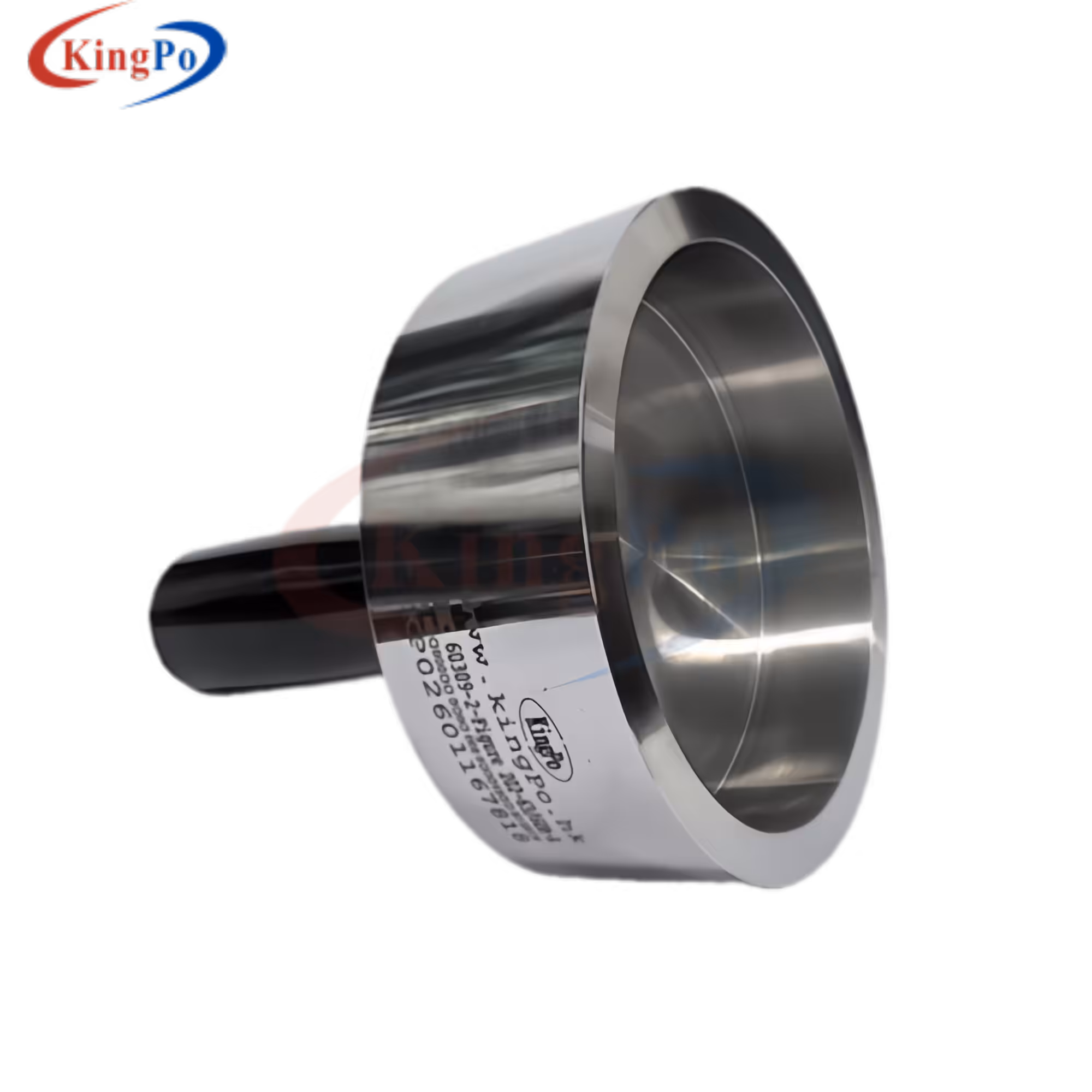

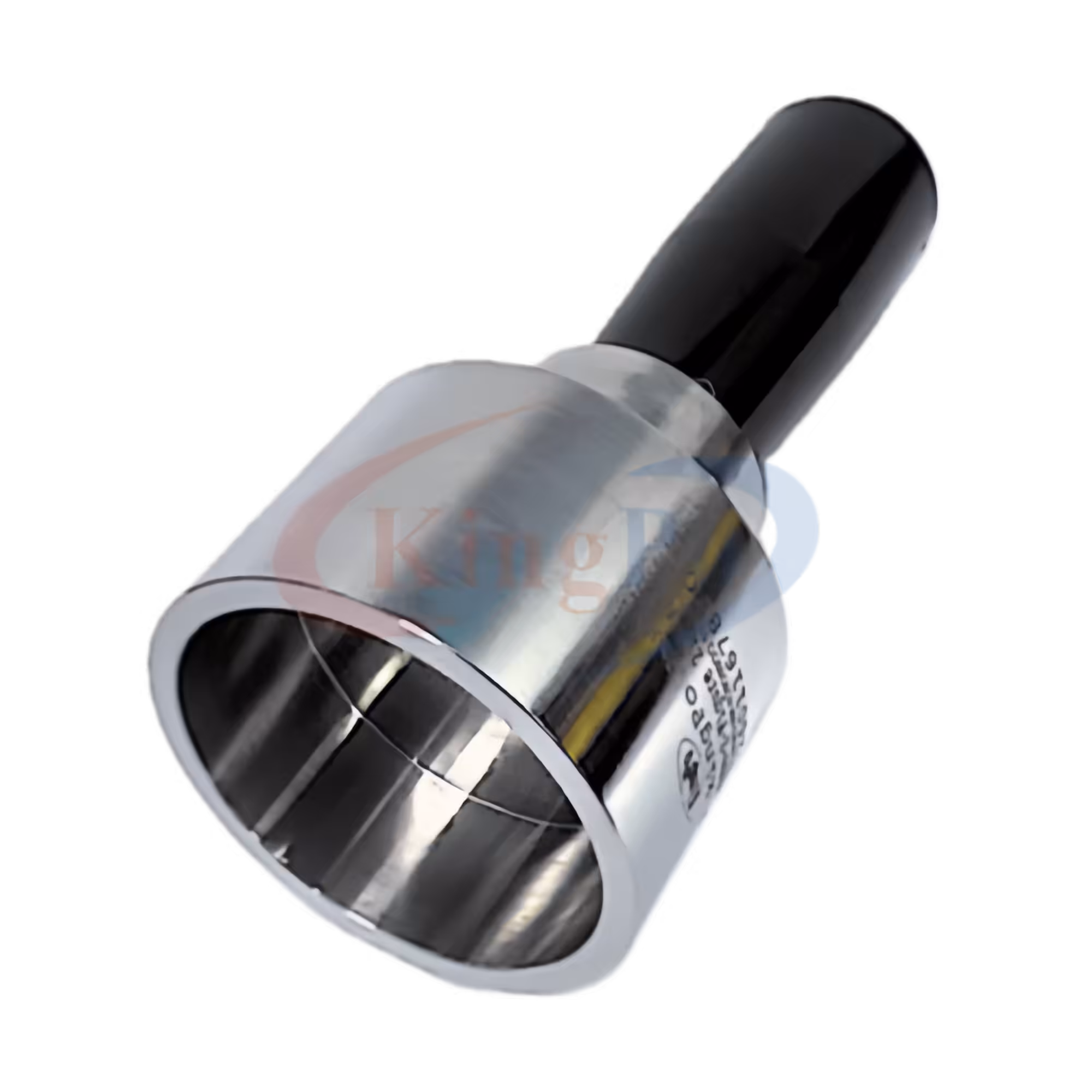

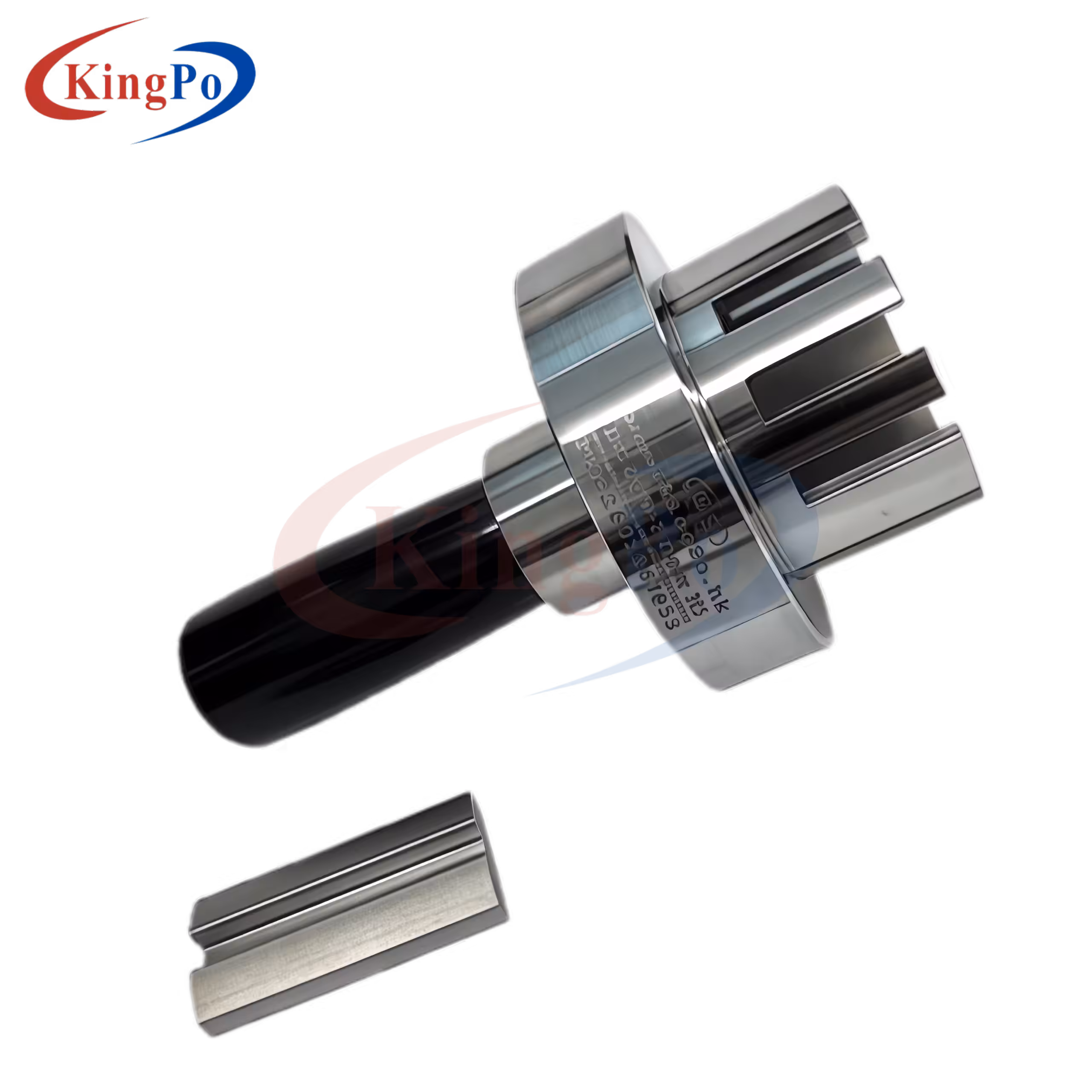

| 3 | IEC 60309 Fig.203 | 16/20A, 32/30A, 63/60A and 125/100A plugs and appliance inlets (>50V) – “Go” gauges for checking dimensions d2, d4, l1
Purpose: Go gauges, d2 d4 l1, plugs appliance inlets, maximum dimensions, acceptance |
12 |
| 4 | IEC 60309 Fig.204 | 16/20A, 32/30A, 63/60A and 125/100A plugs and appliance inlets (>50V) – “No Go” gauges for checking dimensions d2, d4
Purpose: No Go gauges, d2 d4, minimum dimensions, rejection, non-conformance |
19 |

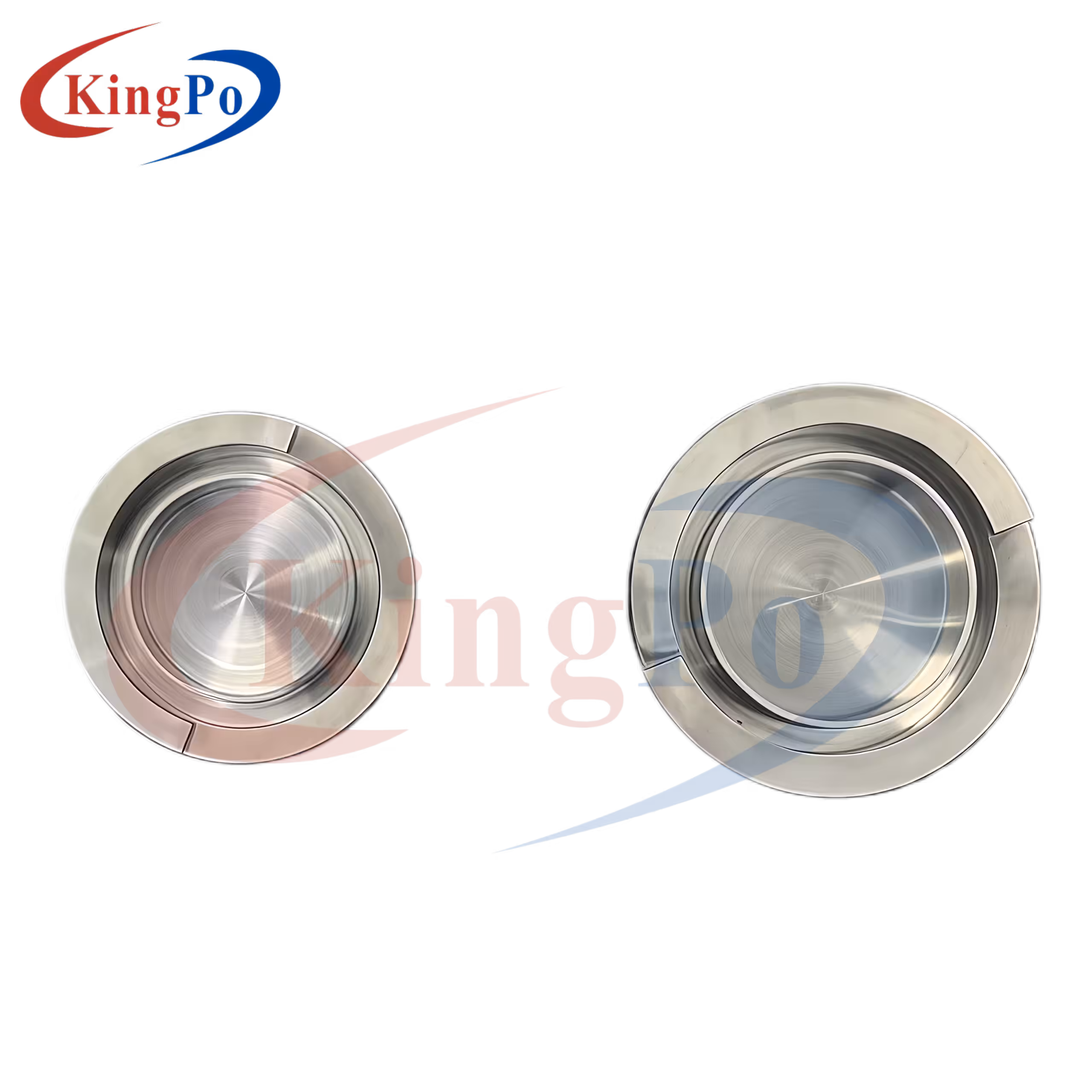

| 5 | IEC 60309 Fig.205 | 16/20A and 32/30A socket-outlets and connectors (≤50V) – Gauges for checking compatibility
Purpose: Compatibility gauges, interchangeability, mating compatibility, ≤50V sockets connectors |
1 |
| 6 | IEC 60309 Fig.206 | 16/20A and 32/30A plugs and appliance inlets (≤50V) – Gauges for checking compatibility
Purpose: Compatibility gauges, interchangeability, mating compatibility, ≤50V plugs inlets |
1 |
| 7 | IEC 60309 Fig.207 | No gauges for socket-outlets and connectors of 16/20A, 32/30A, 63/60A and 125/100A (>50V)
Purpose: No gauges required, certain checks not needing gauges, >50V sockets connectors |
7 |

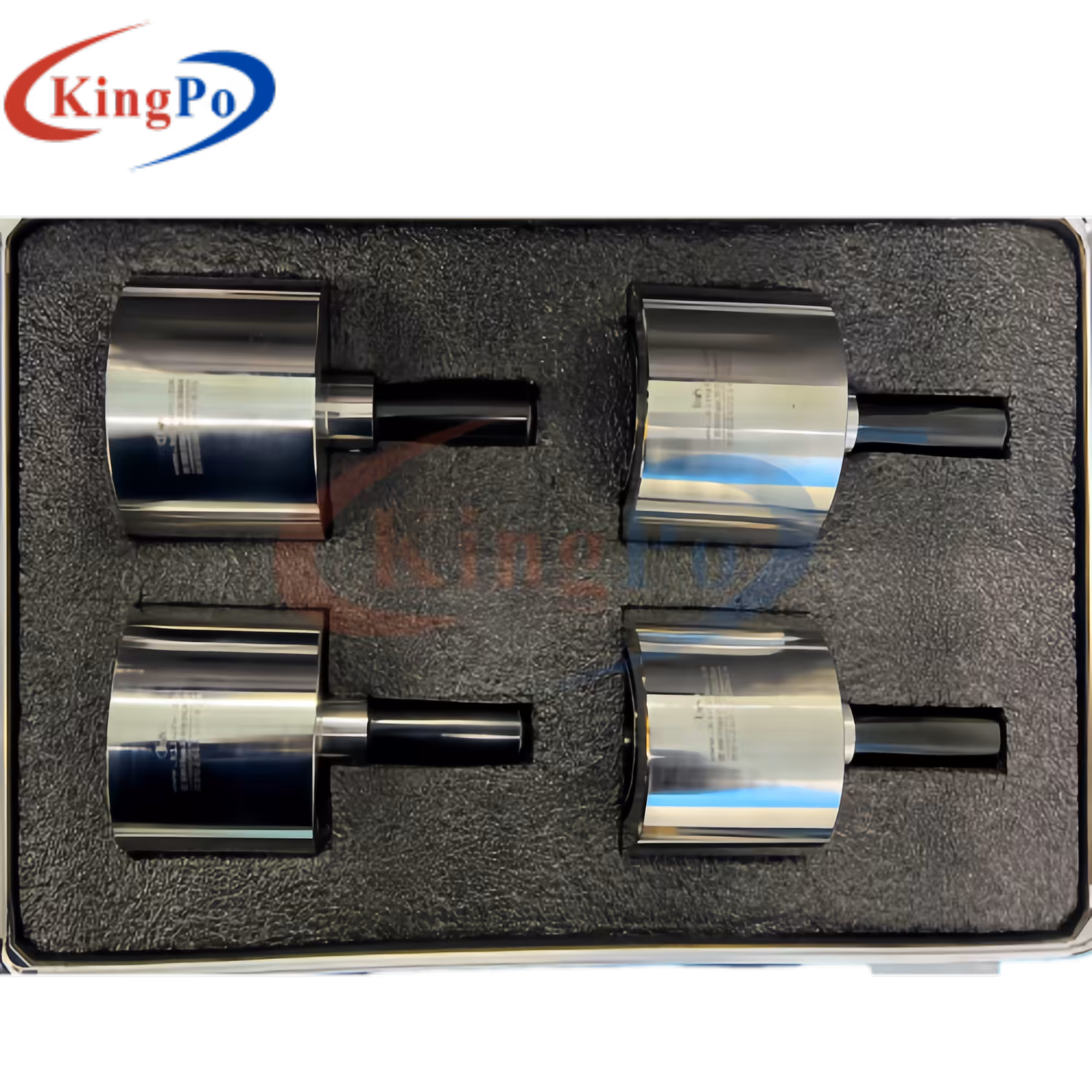

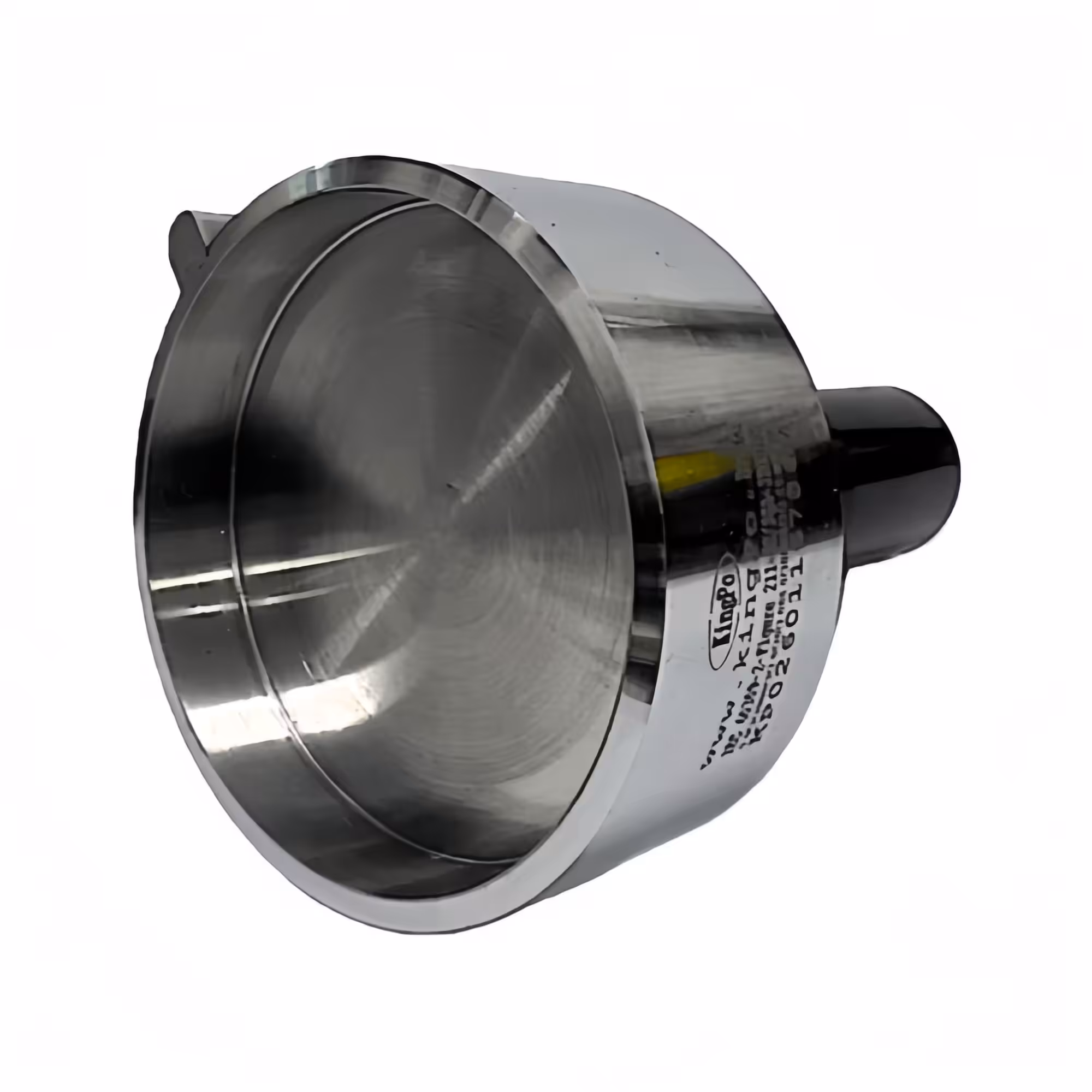

| 8 | IEC 60309 Fig.208 | 16/20A and 32/30A plugs and appliance inlets (≤50V) – Gauges for checking rigidity of thermoplastic enclosures under humid and warm conditions
Purpose: Rigidity gauges, thermoplastic enclosures, humid warm conditions, mechanical strength, deformation check |
1 |

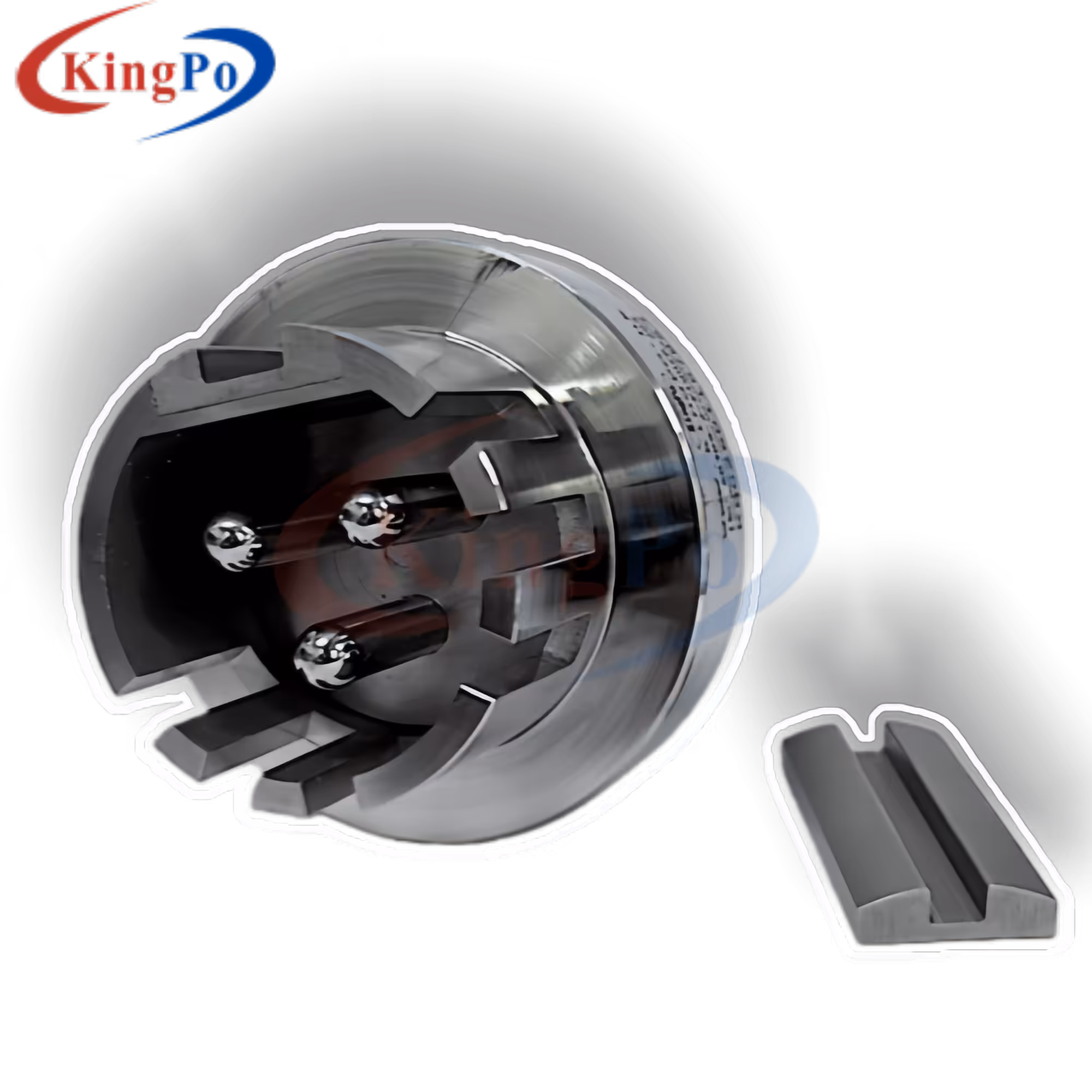

| 9 | IEC 60309 Fig.211 | Gauges for checking socket-outlets of 16/20A, 32/30A, 63/60A and 125/100A (>50V)
Purpose: Checking gauges, socket-outlets verification, dimensional functional check, >50V |
7 |

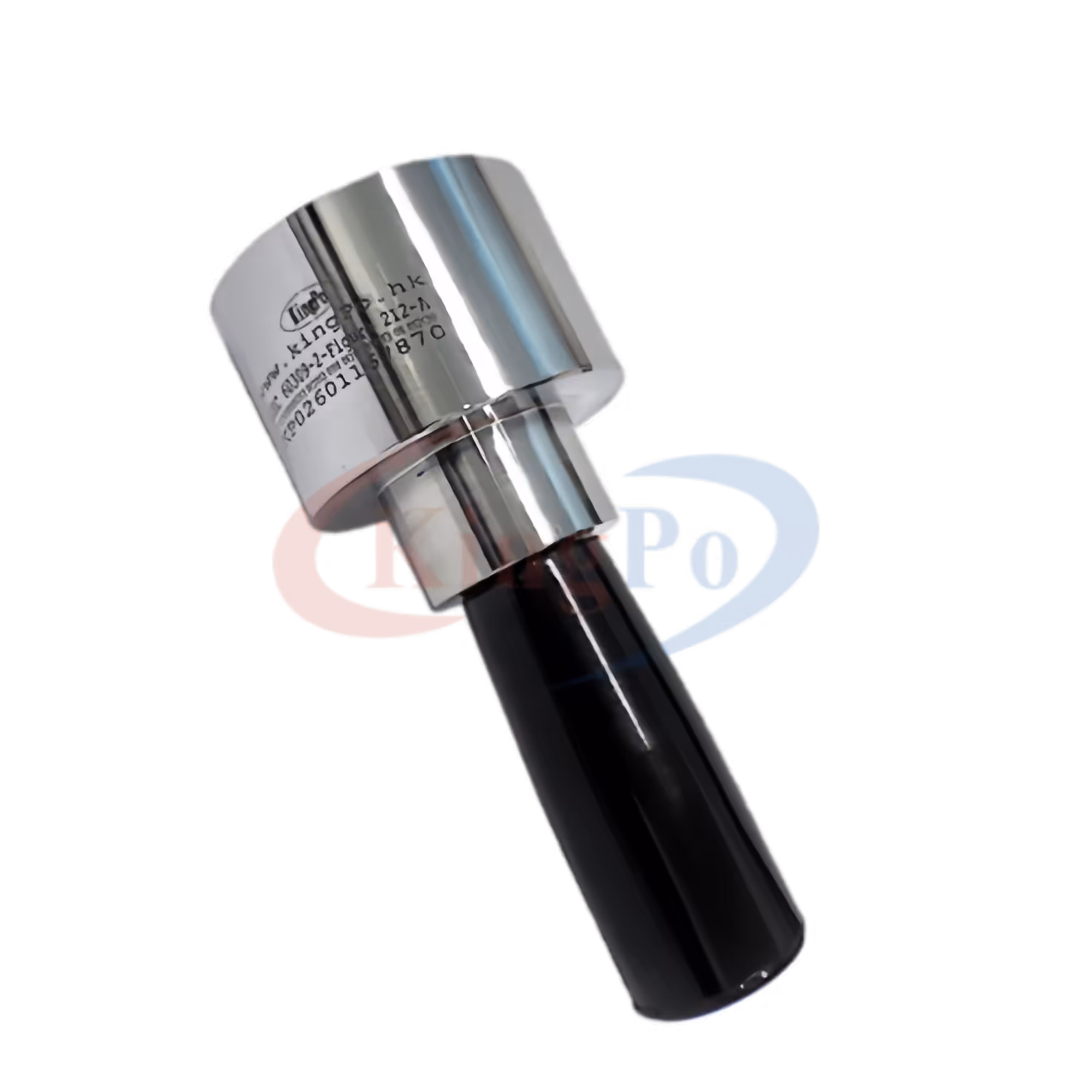

| 10 | IEC 60309 Fig.212 | 16/20A and 32/30A socket-outlets (≤50V) – Gauges for checking rigidity of thermoplastic enclosures under humid and warm conditions
Purpose: Rigidity gauges, thermoplastic enclosures, humid warm conditions, enclosure strength, ≤50V sockets |
2 |

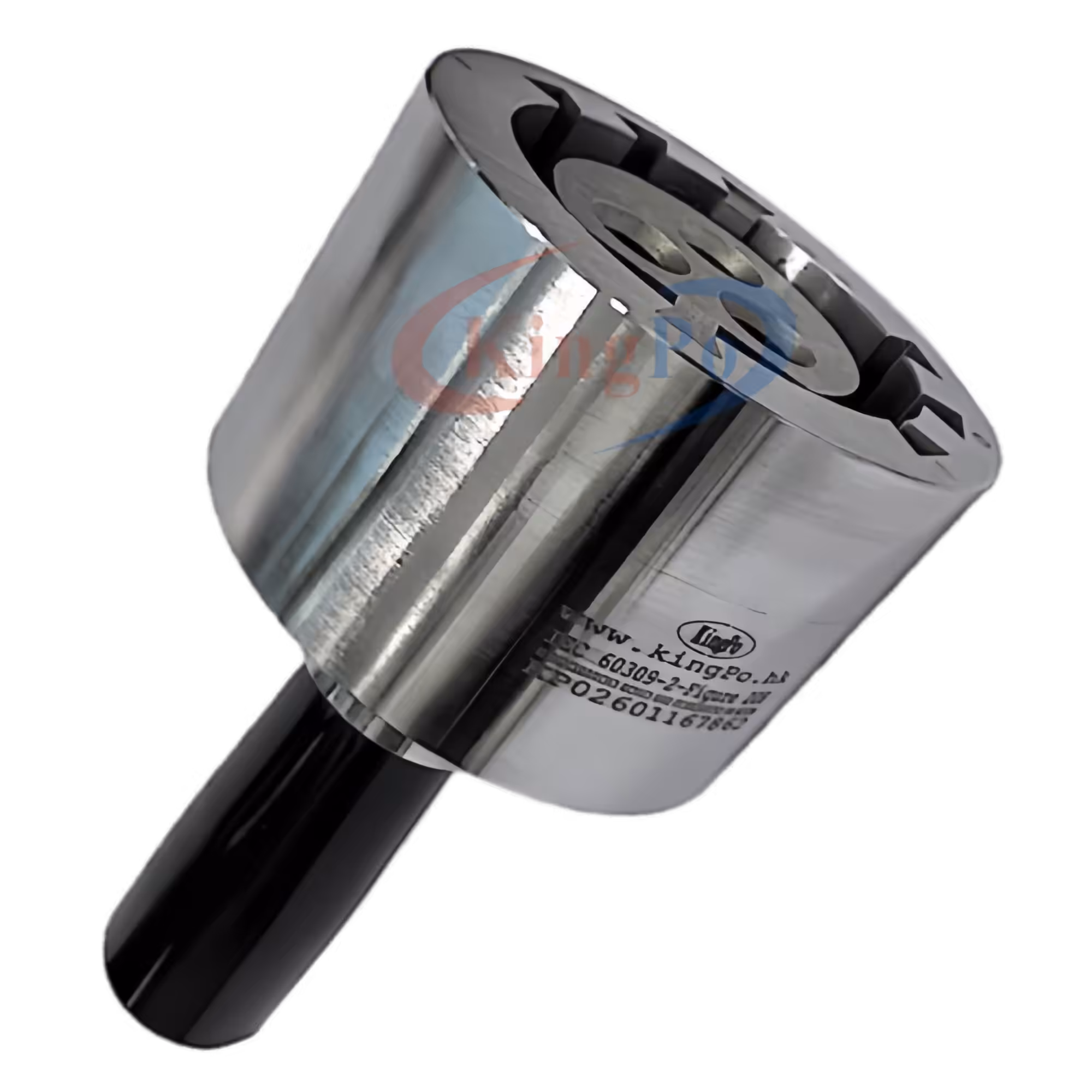

| 11 | IEC 60309 Fig.213 | Gauge for checking phase holes
Purpose: Phase holes gauge, hole positions sizes verification, polarity contact correctness |
4 |
| 12 | IEC 60309 Fig.215 | Socket-outlets and connectors (resilient or thermoplastic material) – Gauge for checking impossibility of single-pole insertion of 10/16A 250V two-pole plugs
Purpose: Single-pole insertion prevention, safety protection, electric shock hazard prevention, resilient thermoplastic enclosures |
1 |
Ensure full IEC 60309-2 compliance and streamline your certification process.
Contact us now for a detailed quotation, calibration certificate options, or customized kit configuration. Limited stock – secure your professional gauge set today!
IEC 60309 Gauge Applications
This IEC 60309 Gauge Set is widely used in the following scenarios:
- Industrial plug & socket manufacturers (production line QC and final inspection)
- Third-party testing laboratories and certification bodies (CB, CE, CCC, UL, etc.)
- Electrical equipment R&D and product development teams
- Quality assurance departments in appliance inlet and coupler production
- Importers/exporters for incoming goods inspection and compliance verification
- Training centers and technical colleges for IEC standard education
