7006-28A-1 E27 Lamp Cap Gauge | IEC 60061-3 NOT GO Gauge for Finished Lamps
E27 Lamp Cap Gauge IEC 60061-3 NOT GO Gauge performs precision screw thread testing for E27 caps on finished lamps.
- Precision NOT GO gauge specifically checks minimum outside (major) diameter of E27 caps on finished lamps
- Hardness steel construction manufactured to exact IEC 60061-3 tolerances
- Reference diameter 10.4 mm dedicated for E27 caps on finished lamps
- Calibration certificate included for full traceability
- MOQ: 1
- Delivery: 7 working days
- IEC 60061-3
E27 Lamp Cap Gauge IEC 60061-3 NOT GO Gauge Description

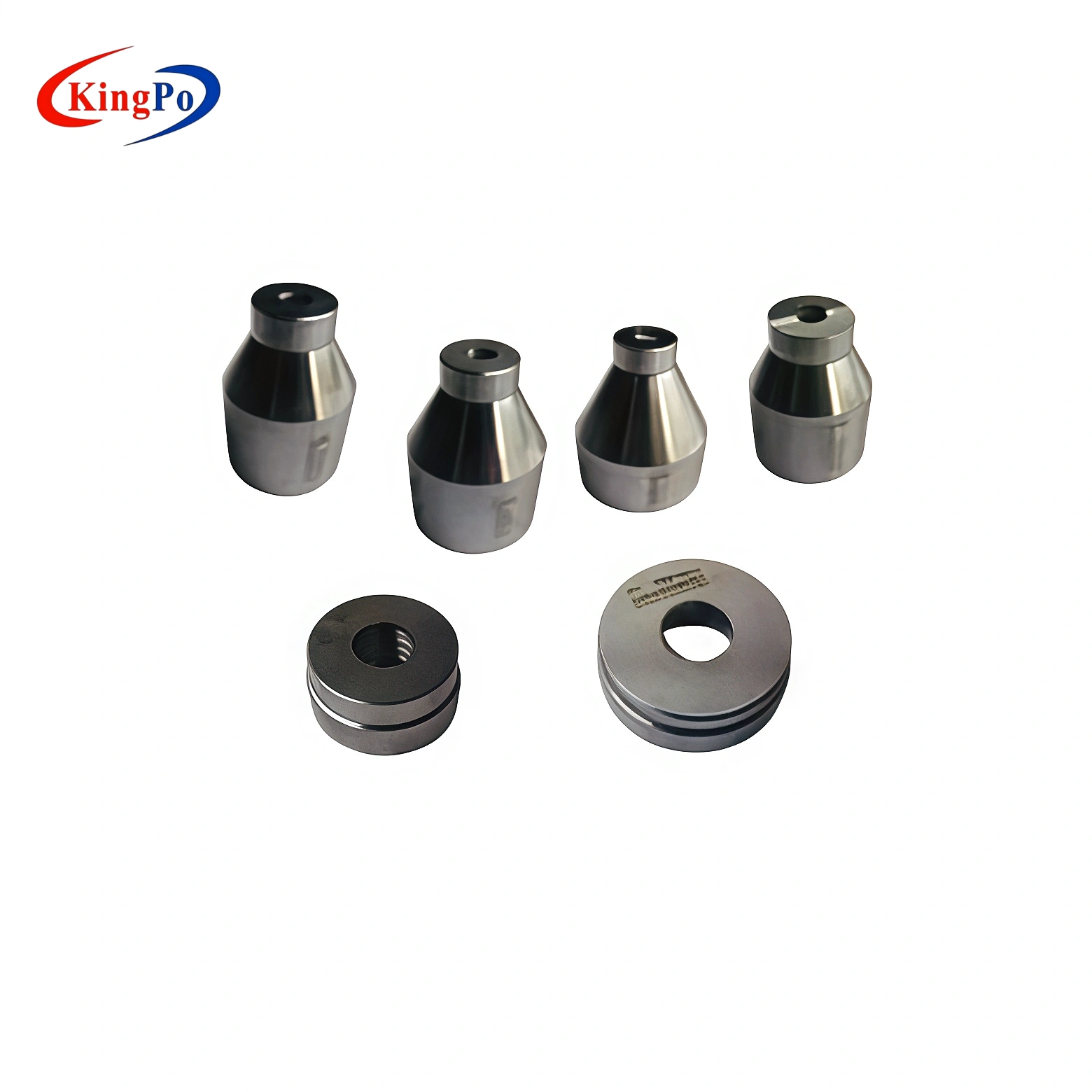

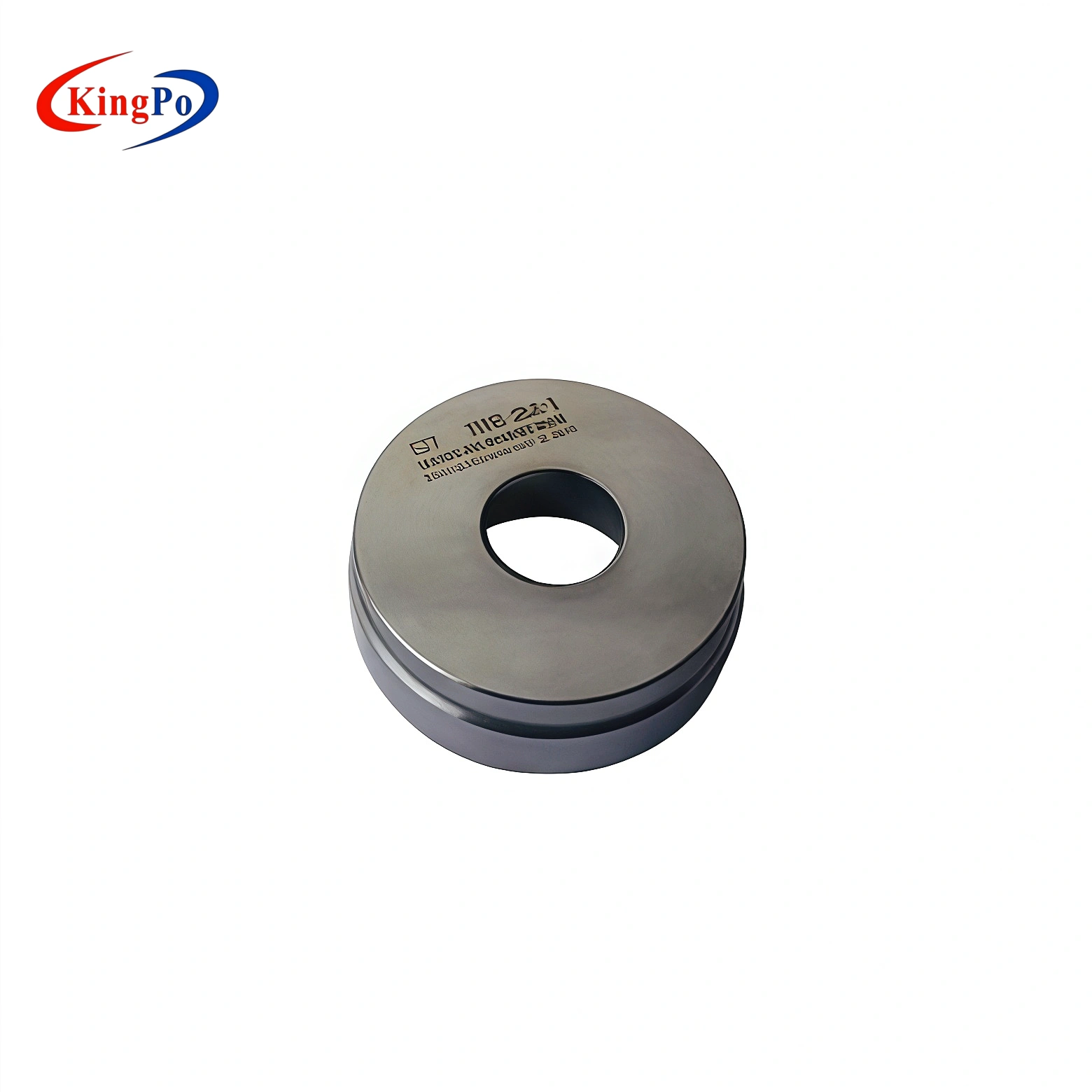

7006-28A-1 E27 Lamp Cap Gauge / NOT GO Gauge For E27 Caps On Finished Lamps
The E27 Lamp Cap Gauge | IEC 60061-3 NOT GO Gauge for Finished Lamps is a precision Go/No-Go measuring instrument manufactured by KingPo. It is designed to check the minimum outside (major) diameter of the screw thread (dimension D) of E27 caps on finished lamps in accordance with IEC 60061-3 (7006-28A-1), ensuring dimensional compliance and proper fit for lamp safety and interchangeability.
Testing Principle

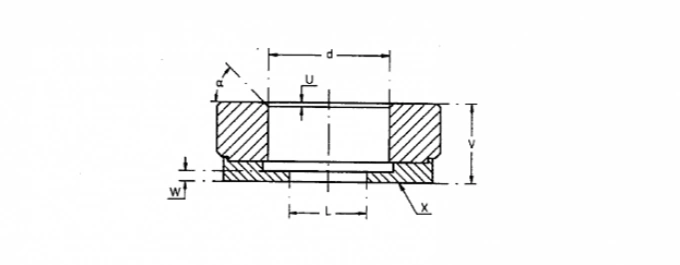

When the E27 cap on a finished lamp is pushed into the gauge as far as it will go, surface W of the plunger shall not project beyond surface V, with the cap positioned so that the solder on the intermediate contact is located in the recess provided in the gauge. This verifies that the screw thread dimensions meet the exact minimum requirements of IEC 60061-3.
-
- Gauge for E27 Caps On Finished Lamps
Common Error Mitigation
To ensure repeatable results, always align the solder on the intermediate contact with the gauge recess and apply consistent axial force without tilting the cap. Regular cleaning of the gauge surface prevents debris accumulation that could affect measurement accuracy.
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer. Each unit undergoes rigorous calibration and is delivered with a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- High-hardness steel with HRC C58 to C60 for superior wear resistance and long-term dimensional stability
- Precision-machined Go/No-Go geometry to check minimum outside (major) diameter of E27 screw thread
- Marked reference surfaces and recess for accurate positioning of the intermediate contact solder
- Surface finish and plunger design optimized for repeatable measurement with minimal wear
These elements ensure accurate, repeatable and standard-compliant screw thread verification.
Technical Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Standard | IEC 60061-3 (7006-28A-1) | NOT GO gauge for E27 caps on finished lamps |
| Reference Diameter | 10.4 mm | Checks minimum outside (major) diameter of screw thread (dimension D) |
| Material | Hardness steel | HRC C58 to C60 for high durability and precision |
| Gauge Type | NOT GO (Go/No-Go) | Pass/fail dimensional verification |
| Calibration | Calibration certificate included | Traceable to national standards |
The E27 Lamp Cap Gauge | IEC 60061-3 NOT GO Gauge for Finished Lamps is used to verify dimensional accuracy and interchangeability of E27 lamp caps during production quality control and third-party certification. It helps lighting manufacturers ensure caps meet exact screw thread requirements and maintain consistent product quality and safety.
Procurement Benefits
The gauge offers precision hardness steel construction, exact reference diameter 10.4 mm and Go/No-Go design with calibration certificate in a durable, easy-to-use format. It provides consistent, repeatable test results with minimal maintenance, making it a practical solution for IEC 60061-3 E27 cap testing.
E27 Lamp Cap Gauge Applications
- E27 lamp caps on finished lamps โ screw thread dimensional verification per IEC 60061-3
- Lighting manufacturers โ quality control of E27 lamp bases
- Certification laboratories โ compliance testing according to IEC 60061-3
- R&D departments โ optimization of lamp cap thread design and interchangeability
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 60061-3 for testing E27 lamp caps. It provides a standardized method to verify screw thread dimensions, ensuring lamp caps meet the required safety and interchangeability levels.
For detailed information on IEC 60061-3 testing, please refer to the latest edition of IEC 60061-3
Regular verification of gauge dimensions is recommended to maintain traceability.
The Core Value We Deliver to You
- Precision NOT GO gauge for E27 caps on finished lamps
- Exact reference diameter 10.4 mm per IEC 60061-3
- Hardness steel construction with HRC C58 to C60
- Calibration certificate included for immediate traceability
- Durable packaging for gauge protection
Tell us your lamp cap type or test requirements โ our engineering team will reply with tailored recommendations within 24 hours.
LED Lamp Cap Gauge Series
| Standard Code | Product Name |
|---|---|
| IEC60061-3, 7006-27B-1 | “Go” gauges for E40 and E27 caps on finished lamps |
| IEC60061-3, 7006-28A-1 | “Not Go” gauges for E27 caps on finished lamps |
| IEC60061-3, 7006-50-1 | Gauge for finished lamps fitted with E27 caps for testing contact making |
| IEC60061-3, 7006-51A-2 | Gauge for E27 caps on finished lamps for testing protection against accidental contact during insertion |
| IEC60061-3, 7006-51-2 | Gauge for caps on finished lamps for testing protection against accidental contact E27 51*39 |
| IEC60061-3, 7006-27C-1 | “Go” gauges for dimension “S1” of E27 caps on finished lamps |
| IEC60061-3, 7006-25A-2 | E27 “Go” gauge for lampholders |
| IEC60061-3, 7006-26-4 | E27 “Not Go” plug gauge for screw threads of lampholders |
| IEC60061-3, 7006-21-5 | E27 Gauge for testing protection against bulb-neck damage and for testing contact making in lampholders |
| IEC60061-3, 7006-22A-4 | E27 Gauge for testing contact making and protection against accidental contact during insertion |
| IEC60061-3, 7006-22B-1 | E27 Gauge for detecting side-contacts with cutting-edges |
| IEC60061-3, 7006-22C-1 | E27 Gauge I. For testing resilience of side contact |
| IEC60061-3, 7006-22D-1 | E27 Gauge II. For testing resilience of side contact |
| IEC60238 Fig 11 | E27 Test Cap for temperature test 14.4 and 19.3 of IEC60238 |
| IEC60238 Fig 5 | E27 Test Cap for torque test clause 18 of IEC60238 |
| IEC60238 Fig 14 | E27 Test Cap for resistance to heat test clause 19 of IEC60238 |
