Abstract & Technical Summary
Navigating Australia’s heavy-duty electrical landscape requires strict adherence to the AS/NZS 3123 standard, which governs polyphase supplementary equipment. As any experienced sparky in the field knows, it’s not just about getting power; it’s about ensuring phase rotation consistency, minimizing harmonic distortion, and deploying IP66 ingress protection that actually holds up against the Kimberley’s dust or the Queensland coast’s salt spray to prevent catastrophic dielectric breakdown.
Setting the Stage: When Single Phase Doesn’t Cut It
We often get asked, “Can’t I just run this on a standard 240V plug?” When you’re talking about heavy-duty gear—think industrial pumps, commercial coolrooms, or massive welders—single-phase power (which dips to zero power 50 times a second) just doesn’t have the grunt.
Three-phase power is the heavy lifter. By offsetting the power peaks by 120 degrees across three conductors, it delivers smooth, constant rotation that motors love. It’s the difference between pushing a car on your own versus having two mates help, all pushing at different points in your stride to keep the car rolling perfectly.
The Nitty-Gritty Math
You don’t need to be a mathematician to work this out, but you need to know the numbers. The relationship between Line Voltage (the big 415V stuff) and Phase Voltage (standard 240V) in a Star configuration is:
Voltage-Line = √3 × Voltage-Phase
In the Australian context, where Voltage-Phase is 230V, that works out to a nominal Line-to-Line voltage of 400V – 415V. This is the voltage our heavy-duty KingPo plugs are engineered to manage day in, day out.
Real-World Tech Specs: From the Workshop Floor
To properly build out your distribution knowledge graph and secure ranking dominance, you have to understand the specific stress vectors these components face.
-
Residual Current Devices (RCDs): We’re seeing more integrated RCD protection right at the outlet, especially in movie sets and construction site sheds where 56 Series gear is standard. It’s a lifesaver, literally.
-
Polycarbonate UV-stabilized housings: The Australian sun is brutal. If you use cheap, non-UV-stabilized plastic, it’ll be brittle and cracking within two summers. A premium KingPo housing is designed to take the sun and the hits.
-
Contact Resistance: This is the silent killer. A slightly loose terminal screw leads to micro-arcs, which create carbon buildup (pitting). This increases resistance, creates immense heat, and eventually melts the plug face.
-
Electromagnetic Compatibility (EMC): In modern factories full of Variable Frequency Drives (VFDs), poor plug connections can lead to Harmonic Distortion that messes with sensitive control PLCs.

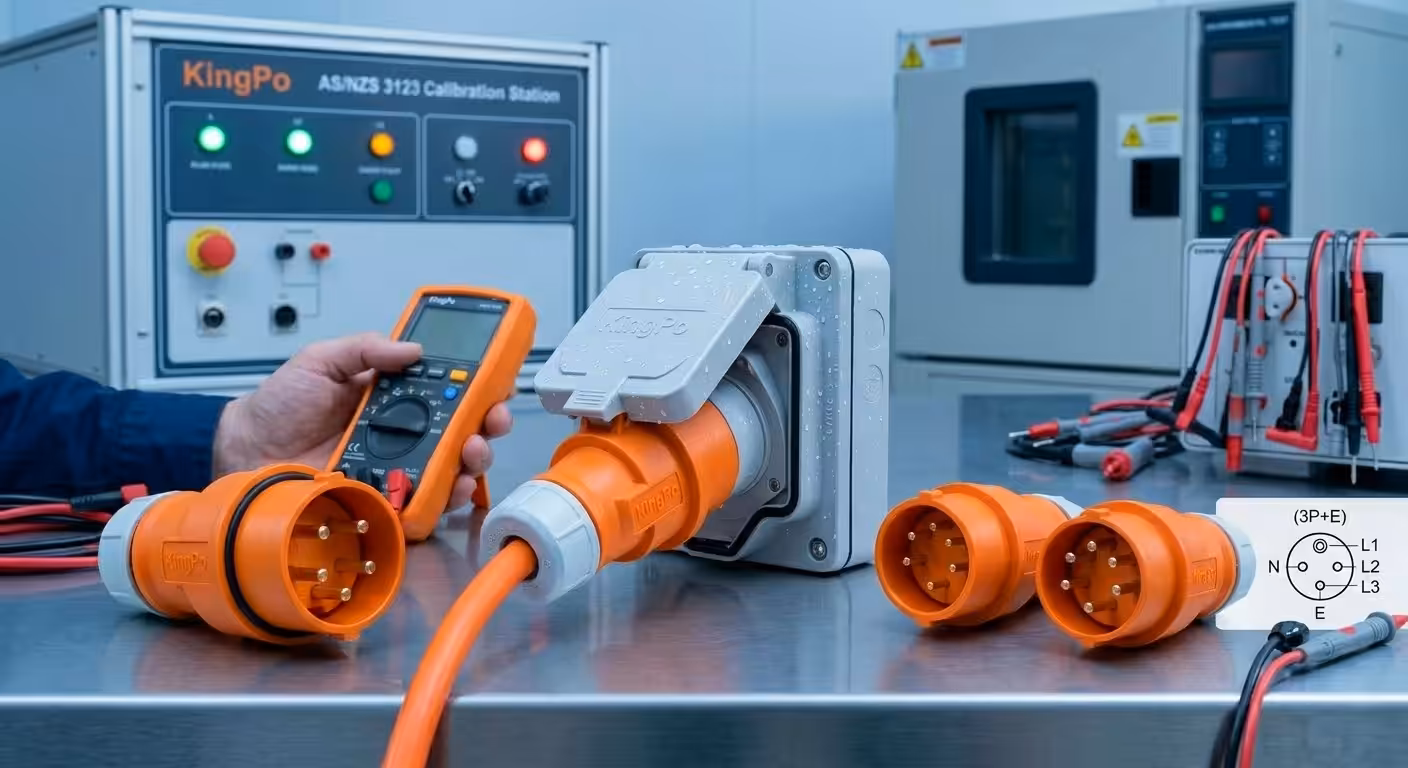

Know Your Plug: Australia’s Core Configurations
Forget the circular blue and red Ceeform plugs you see in Europe. In Australia, we do things differently. The reigning champion is the “Clipsal style” or 56 Series. It’s modular, rugged, and unmistakable. At KingPo, we’ve refined this design for maximum field reliability.
The 4-Pin: Pure Power for Balanced Loads
This is the “go-to” for 3-phase AC induction motors—pumps, compressors, massive fans.
-
Pins: L1, L2, L3, and Earth. No Neutral needed.
-
The Trap: If you’re wiring a machine that also needs 240V for its control panel (like a timer or indicator light) and you only run a 4-pin lead, you’re stuck. You can’t safely tap into that power without a step-down transformer.
The 5-Pin: Versatility for Complicated Machinery
This is the most common configuration we sell for general-purpose workshop leads.
-
Pins: L1, L2, L3, Neutral, and Earth.
-
Why You Need It: It allows for “unbalanced loads.” It can power the 3-phase motor and provide the 240V return path (via the Neutral pin) for internal lighting, PLCs, or auxiliary 240V sockets built into the machine. It keeps the Neutral-Earth (MEN) connection integrity safe.
Amperage Matters: The Physical Keying System
You can’t accidentally plug a 10A lathe into a 63A site welder socket. The physical size of the pins and the pitch circle change with the amperage. It’s a fool-proof safety system.
| Amperage | Pin Diameter (Approx) | Typical Real-World Application |
| 10 Amp | 4.75 mm | Commercial kitchen mixers, small benchtop lathes. |
| 20 Amp | 6.35 mm | Workshop compressors, smaller industrial welders. |
| 32 Amp | 8.00 mm | Large HVAC units, major factory machinery. |
| 50/63 Amp | Flat/Reinforced | Mains power distribution for mobile stages, construction site sheds. |
Built for the Bush: Material Science and IP Ratings
An industrial plug in Australia has a hard life. Dust in a Pilbara mine, salt spray on a Fremantle wharf, or grease in a Melbourne abattoir.
When IP66 is Non-Negotiable
Our premium plugs are rated IP66. This isn’t just a number on a spec sheet.
-
IP [6] (Dust): Completely dust-tight. Fine mining dust cannot get in.
-
IP [6] (Water): Protected against heavy, high-pressure water jets from any angle. It’s essential for wash-down areas in food processing plants.
This level of protection requires precision silicone gaskets and a lock ring that feels secure when you twist it down onto the socket.
Chemical and Heat Resistance
Plugs are often covered in oil and cleaning solvents. We use Polycarbonate or Nylon-66 for our plug bodies. Why? Because they have a high Glass Transition Temperature (Tg). This means they won’t get soft and doughy when running at max current on a 40-degree day.
Wiping its Face: The Professional Installation Protocol
We’ve all seen a bad wiring job. Here is the technician’s workflow for wiring a 5-pin plug.
Cable Prep: Ferrules are not Optional
We recommend using Orange Circular (V-90HT rated) cable for its rugged outer sheath. When stripping the inner cores, don’t just twist the strands. You must crimp on bootlace ferrules. This prevents loose, stray strands from arcing across to the next terminal, which is a leading cause of plug failure.
The Vital Phase Rotation Check
Incorrect phase rotation can be a disaster.
-
The old-school Aussie code was Red (L1), White (L2), Blue (L3).
-
The modern AS/NZS 3000 standard uses Brown (L1), Black (L2), Grey (L3).
Before you even think about plugging in that brand-new $50k compressor, use a phase sequence meter to confirm L1, L2, L3 rotation is clockwise. If it’s reverse, the compressor will run backward and self-destruct in seconds.
FAQ: Real Tech Support, from Sparky to Sparky
Q1: We just installed a massive new pump, and it’s running backward. What did we do wrong?
A: You’ve got a reverse phase rotation. Don’t panic. Shut it down, open the plug, and swap any two of the active phase wires (e.g., swap L1 and L2). Re-test, and it should run clockwise.
Q2: We have a machine with a 4-pin plug, but we need to run a small single-phase light on it. Can we just bridge Earth and Neutral in the plug?
A: Absolutely not. That is extremely dangerous and illegal in Australia. You cannot bridge Earth and Neutral at the plug end; it defeats the MEN (Multiple Earthed Neutral) safety system. You either need to run a proper 5-pin circuit or install a step-down transformer on the machine.
Q3: Are there new AS/NZS 3123 standard updates we need to be aware of for a project next year? A:
Yes, we’re seeing new mandates on increased thermal performance for the internal contact carriers (the part that holds the pins) and tougher specs for chemical resistance in food-grade environments. KingPo is already compliant.
Q4: Can I plug a 10A motor into a 20A socket?
A: No, the physical keying is different. But more importantly, even if you forced it, the 20A circuit breaker wouldn’t properly protect the 10A motor, creating a fire risk.
Q5: What’s the correct torque setting for the terminal screws on a 32A plug?
A: It’s not just “as tight as you can get it.” For most 32A terminals, you’re looking at around 1.5 Nm to 2.5 Nm.
Under-tightening causes high resistance and heat; over-tightening crushes and weakens the copper strands.
Q6: We’re getting persistent nuisance tripping on an RCD protecting a 3-phase outlet. What’s the most likely cause?
A: Usually, it’s not the RCD itself. Check for moisture ingress within the plug body compromising the dielectric strength, or insulation breaking down on one of the motor’s phase windings, causing tiny leakage currents to Earth
Q7: Is IP66 enough for a mine site wash-down bay, or should we use IP67?
A: For most high-pressure hosedowns, IP66 (protection against jets of water) is actually a better spec. IP67 is for temporary submersion. Our KingPo 56 Series is IP66 rated and can handle standard industrial wash-down pressures.
Q8: Can poor-quality plugs really cause harmonic distortion in a factory?
A: A poor-quality or corroded connection creates high impedance. For non-linear loads like VFDs, this adds noise to the Neutral conductor, which can cause erratic behavior in sensitive PLCs and control circuits.
Q9: The 5-pin lead on our mobile generator has failed its earth continuity test. Where should we look first?
A: Check the connection points at both ends. Vibrations can loosen the terminal screws, and heavy use can break the fine copper strands right at the terminal interface where they lose the support of the main cable sheath.
Q10: What’s the expected life of a KingPo 5-pin 32A plug in a full-time agricultural irrigation setting?
A: Agriculture is one of the toughest environments due to constant UV and chemical fertilizer exposure. However, with nickel-plated brass pins and a UV-stabilized KingPo polycarbonate body, you can expect a service life exceeding 15 years,
