IEC standard for dust test IEC 60529 IP5X IP6X

I use the IEC standard to verify how well products resist dust intrusion. The IEC 60529 dust test assigns ratings like IP5X for dust protected enclosures and IP6X for dust tight designs. These ratings help me confirm that dust cannot interfere with sensitive components. When I follow standardized ingress protection procedures, I see improved reliability and smoother compliance with global regulations. Understanding every step of the test process lets me deliver products that meet strict dust protection requirements and gain industry acceptance.

Key Takeaways

• Understanding IP ratings is crucial. IP5X indicates limited dust ingress protection, while IP6X signifies complete dust-tightness. Choose the right rating based on your product’s environment.

• Conducting dust tests early in product development enhances reliability. It helps identify weaknesses, reducing the risk of costly recalls and improving overall product performance.

• Using the IEC 60529 standard streamlines compliance with global regulations. This standardization saves time and money by avoiding redundant testing across different markets.

• Invest in reliable testing equipment like the KingPo Dust Test Chamber. It ensures accurate results by maintaining stable conditions and automating processes, reducing human error.

• Thorough documentation is essential for compliance. Keep detailed records of test setups, conditions, and results to support certification and improve future testing.

About the IEC Standard

Purpose and Scope

When I work with electronic and industrial products, I rely on the iec standard to guide my approach to dust and water protection. The iec 60529 test standard defines clear requirements for evaluating how well enclosures resist the intrusion of solid particles and liquids. This standard helps me ensure that products can withstand harsh environments and maintain their reliability. I see the iec 60529 as a global benchmark that sets consistent testing protocols for dust and water ingress. It gives me confidence that my results will be accepted worldwide.

The scope of iec 60529 covers several important aspects:

• It defines ingress protection (ip) ratings for both dust and water.

• It establishes a framework for testing procedures, including spray and dust exposure.

• It ensures that products meet durability and safety requirements in different conditions.

I use this standard to verify that my products are ready for real-world challenges. It helps me avoid unexpected failures and supports compliance with international regulations.

IP Code System

The ip code system gives me a simple way to describe the level of protection an enclosure provides. Each rating consists of two digits. The first digit shows the dustproof level, while the second digit shows the waterproof level. I find this system easy to use and understand.

Characteristic Number	Description
1	Represents the dustproof level, indicating the degree of protection against dust ingress.
2	Represents the waterproof level, indicating the degree of protection against water ingress.
0-6	Range for dust protection, with higher numbers indicating better protection.
0-8	Range for water protection, with higher numbers indicating better protection.

When I see an IP5X or IP6X rating, I know exactly how much dust protection the enclosure offers. The ip code system makes it easy for me to compare products and select the right solution for each application. I trust the iec standard to provide clear guidance and reliable results every time.

IEC 60529 Overview

IP5X Rating Explained

When I evaluate dust protection, I start with the ip 5x rating. According to iec 60529, ip 5x means the enclosure offers limited dust ingress protection. Some dust may enter, but it cannot interfere with the operation of the equipment. I use the ip5x test to verify this level of protection. During the ip5x test, I place the product in a chamber filled with dry talc powder. The chamber maintains a dust concentration of 2 kg/m³ for eight hours. The powder passes through a metal screen with a wire diameter of 50 micrometers and a sieve hole size of 75 micrometers. After the test, I check the enclosure for dust entry. If no harmful amount of dust is found and the equipment remains operational, the product receives the ip 5x rating.

The ip5x test ensures that products can operate reliably in environments where some dust exposure is expected. I rely on this rating for devices used in offices and light industrial settings.

Rating	Definition
IP5X	Indicates limited dust ingress protection, allowing some particle penetration without interfering with equipment operation.

IP6X Rating Explained

For applications requiring maximum dust protection, I focus on the ip 6x rating. The iec 60529 standard defines ip 6x as complete exclusion of particulate matter. No dust can enter the enclosure under specified test conditions. I use the ip6x test to confirm this level of sealing. The ip6x test involves placing the product in a chamber with talcum powder at a concentration of 2 kg/m³. The test lasts at least eight hours, sometimes up to sixteen hours. I may apply a slight vacuum to the chamber to simulate extreme conditions. After the ip6x test, I inspect the enclosure. If no dust is present inside, the product qualifies for the ip 6x rating.

The ip6x test is critical for products used in harsh environments, such as mining, aerospace, and outdoor installations. I trust this rating to guarantee dust-tight performance.

Rating	Definition
IP6X	Represents complete exclusion of particulate matter, requiring zero particle ingress under specified conditions.

Key Differences

I compare ip 5x and ip 6x ratings to determine the right level of protection for each application. The main difference lies in the amount of dust allowed inside the enclosure. Ip 5x permits limited ingress, while ip 6x requires a dust-tight seal. The ip5x test and ip6x test use similar conditions, but the evaluation criteria are stricter for ip 6x. I look at the following distinctions:

Test Parameter	IP5X (Dust-Protected)	IP6X (Dust-Tight)
Dust Particle Size	≤ 75 µm	Often ≤ 50 µm (talcum powder)
Test Duration	≥ 8 hours	≥ 8 hours (some specs 16 h)
Dust Concentration	≥ 2 kg/m³	≥ 2 kg/m³
Chamber Vacuum	Not typically applied	Optional/slight vacuum step
Seal Integrity	Good, but minor ingress allowed	Near‑perfect sealing required
Typical Industries	Office, light industry	Aerospace, outdoor, mining

The ip rating affects product durability and reliability. Ip 5x ensures that dust cannot disrupt operation, while ip 6x guarantees complete protection from dust ingress. I choose the appropriate rating based on the environment and the criticality of dust exclusion.

Understanding the differences between ip 5x and ip 6x helps me select the right enclosure for each project. I rely on iec 60529 to guide my decisions and ensure compliance with industry standards.

Importance of Dust Testing

Product Reliability

I always prioritize product reliability when I design and evaluate new devices. Dust can cause failures by blocking ventilation, interfering with sensors, or creating short circuits. I use the IEC standard to guide my approach and ensure that every enclosure meets strict requirements. When I conduct a dust test, I gain valuable insights into how my products perform in real-world environments. This process helps me identify weaknesses early, which reduces the risk of costly recalls or warranty claims.

I have seen that early dust testing leads to better durability and fewer failures in the field. It also helps me improve product performance and meet compliance requirements.

Mechanism	Description
Reliability and Durability	Dust testing provides insights into product longevity in dusty environments, enhancing reliability.
Cost Reduction	Early dust testing helps identify issues, reducing costs related to recalls and warranty claims.
Compliance with Standards	Ensures products meet industry standards for dust protection, enhancing market acceptance.
Enhanced Performance	Testing reveals how dust affects product function, leading to informed design improvements.

Industry Applications

I work with many industries that require reliable dust protection. Each sector faces unique challenges, so I tailor my approach to fit the application. For example, automotive electronics must survive in engine compartments, while medical devices need to stay clean and safe for patients. I rely on the IEC standard to ensure that my products meet the demands of each environment.

Industry	Typical Applications
Automotive Electronics	Control units, sensors, and connectors in harsh environments like wheel wells and engine compartments.
Industrial Control Systems	PLCs and HMIs that must resist conductive dust and particulates on factory floors.
Telecommunications Equipment	Outdoor electronics and junction boxes needing dust-tight sealing for signal integrity.
Lighting Fixtures	LED drivers and luminaires requiring protection from dust to prevent overheating.
Medical Devices	Portable diagnostic equipment needing protection from environmental contaminants.
Aerospace and Aviation	Avionics and sensors needing validation against fine particulate ingress in various operational conditions.

Certification and Market Access

I know that passing the IEC 60529 dust test opens doors to new markets. This standard gives my products a universal rating, which builds trust with customers and regulatory bodies. I do not need to repeat tests for different regions, which saves time and money. Independent labs provide objective results, making my products more credible and competitive.

• IEC 60529 provides a universal standard for protection ratings, which enhances credibility in the market.

• Compliance with this standard reduces the need for redundant testing across different regions, facilitating easier market access.

• It allows manufacturers to meet consistent evaluation criteria recognized by regulatory bodies globally, streamlining product certification.

• Achieving IEC 60529 certification enables manufacturers to enter global markets without facing additional testing requirements.

• This standardization significantly reduces time-to-market and associated costs, particularly beneficial for industries with global supply chains, such as automotive and electronics.

• Independent testing laboratories provide objective evaluations that enhance product credibility in the market.

• These labs possess specialized expertise and accredited equipment, which supports acceptance in global markets.

• Third-party certification helps alleviate customer concerns, fostering better international trade relationships.

Dust Test Principles

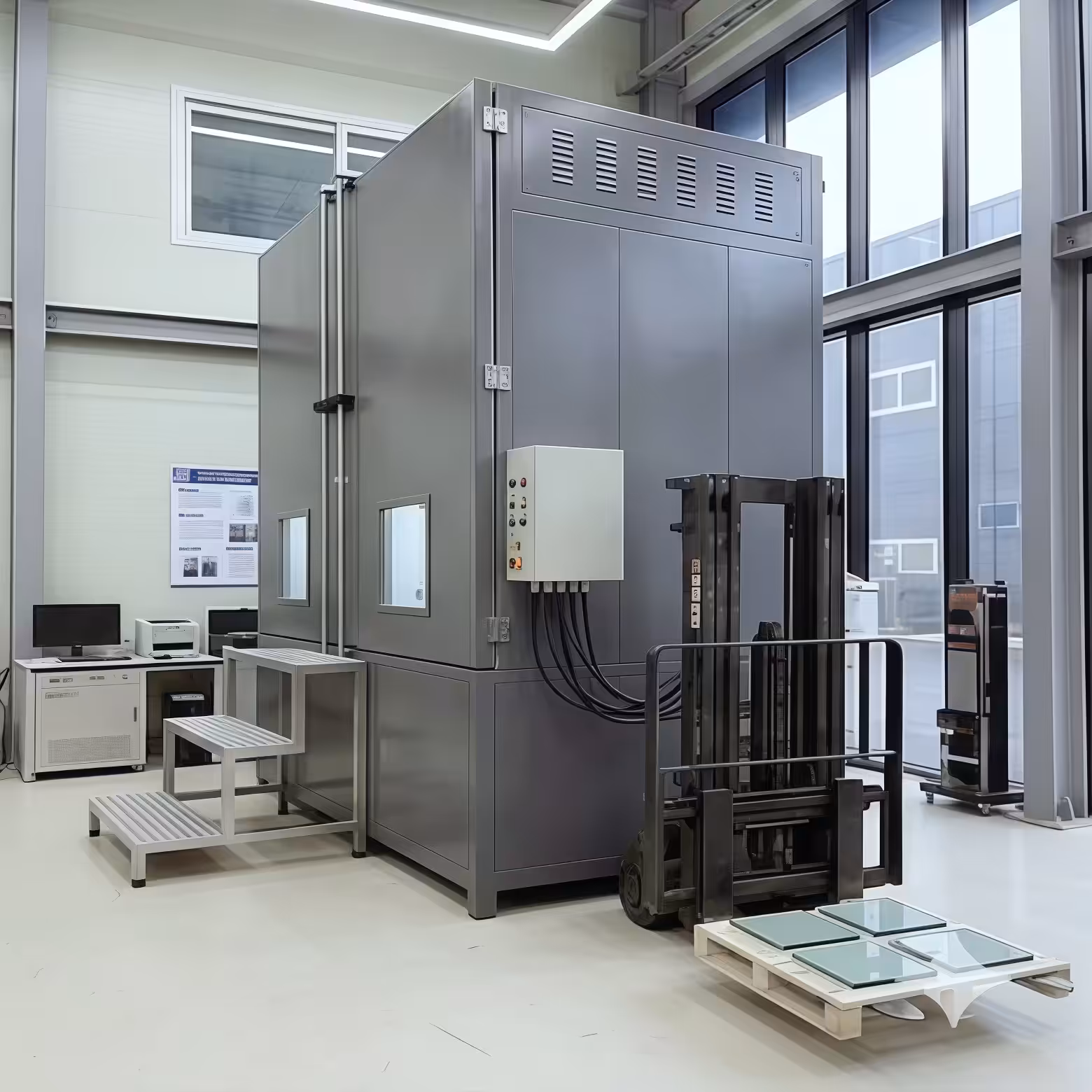

Test Chamber Design

When I set up a dust test, I always pay close attention to the design of the test chamber. The chamber must create a controlled environment that accurately simulates real-world conditions. I look for several key features in a chamber:

• The structure uses non-corrosive materials like stainless steel or PVC, which ensures durability and prevents contamination.

• An airtight access port allows me to place products inside without letting outside air in.

• The dust feeder mechanism introduces particles into the chamber and filters them from a source, maintaining a consistent concentration.

• A vacuum pump provides blowing power, while a vibration motor helps settle particles after agitation.

• An observation window with an airtight seal and built-in light lets me monitor the test without opening the chamber.

• Fans regulate air pressure and flow, making sure dust spreads evenly.

Feature	Description
Structure	Cuboid chamber, non-corrosive material
Access Port	Airtight door for easy product placement
Dust Feeder Mechanism	Introduces and filters dust particles
Blowing Power	Vacuum pump and vibration motor
Observation Window	Airtight, with built-in light
Fans	Regulate air pressure and ensure uniform dust distribution

These features help me achieve reliable and repeatable results, which are essential for IEC 60529 compliance.

Dust Types and Conditions

I know that the type of dust and the test conditions play a big role in the accuracy of the assessment. The IEC 60529 standard specifies different dust types and environmental requirements for each protection level.

Protection Level	Description	Dust Characteristics
IP5X	Limited dust ingress allowed; must not affect operation or safety	Talcum powder, portland cement, olivine, smoke ash; under 75 microns
IP6X	No dust ingress allowed under test conditions	Talcum powder (50% under 50 microns, 90% under 75 microns)

I use talcum powder most often, but sometimes I test with portland cement, olivine, or smoke ash. The chamber maintains a specific concentration and particle size to match real-world exposure. This approach ensures that products can withstand both laboratory and field conditions. Testing for dust ingress helps me confirm that devices will function reliably, even in harsh environments.

Test Procedures

Preparation and Setup

I always start my ip testing process with careful preparation. The iec standard requires a sealed chamber for the dust test, so I make sure the chamber is clean and free from contamination. I verify calibration for temperature, humidity, and dust generation. I check the particle size using standardized reference materials. I inspect the chamber’s sealing integrity to prevent dust leakage. I position the specimen inside the chamber to ensure representative exposure. I maintain dust-tight integrity for electrical connections during testing. Automated cycle management helps me achieve consistent exposure durations and reduces human error.

Step	Description
1	Clean the dust test chamber thoroughly.
2	Verify calibration for temperature, humidity, and dust generation.
3	Conduct particle size verification with reference materials.
4	Check chamber sealing integrity.
5	Position specimens for representative exposure.
6	Maintain dust-tight integrity for electrical connections.
7	Use automated cycle management for consistent exposure.

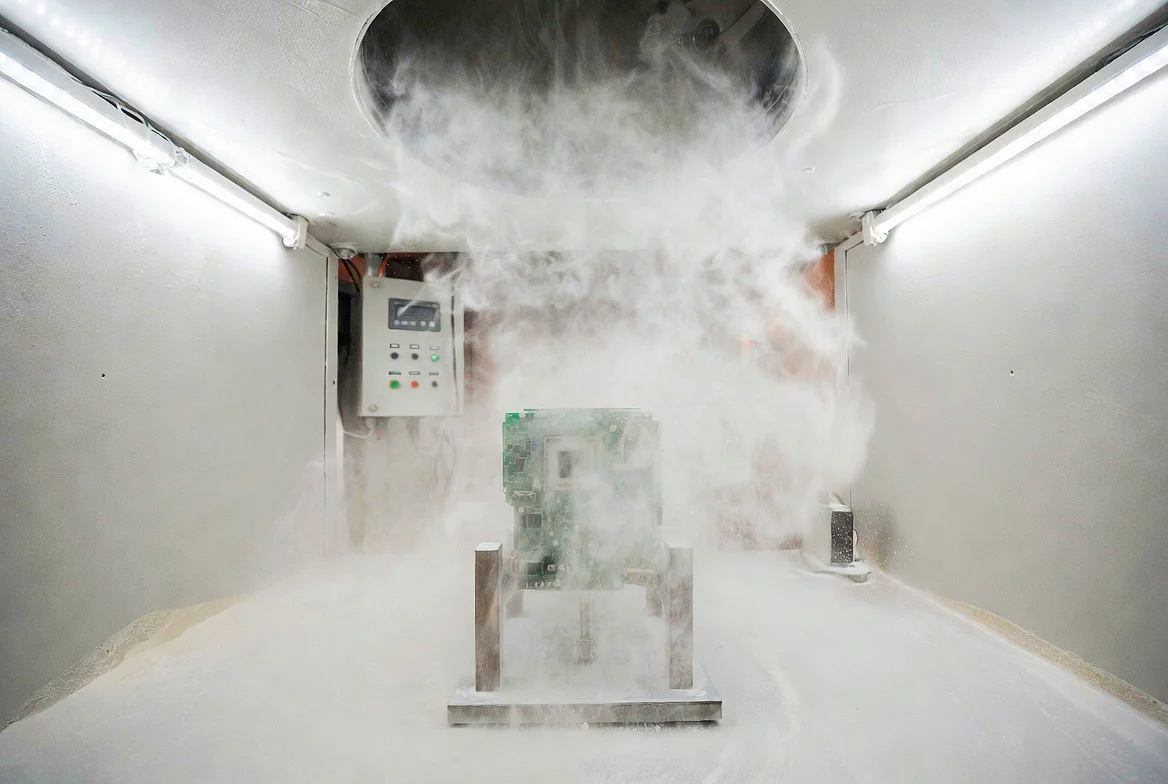

I mount the specimen inside the chamber and connect it to a vacuum pump. This setup maintains a pressure differential, which drives dust through any potential leakage paths. The recirculation system keeps the dust in a homogeneous suspension, preventing settling and ensuring uniform exposure.

Test Duration and Parameters

I follow strict guidelines for ip testing durations. For the IP5X dust test, I expose the specimen for at least eight hours. The IP6X dust test also requires a minimum of eight hours, but some standards recommend up to sixteen hours for additional assurance. Timing accuracy is critical for compliance verification, so I rely on automated cycle management to keep the process consistent.

• IP5X Test Duration: Minimum of 8 hours of continuous exposure.

• IP6X Test Duration: Minimum of 8 hours, with some industries specifying up to 16 hours.

• IP5X: Allows limited dust ingress with standard airflow and dust loading.

• IP6X: Fully dust tight, includes a vacuum phase to simulate dust penetration.

I monitor dust concentration and airflow throughout the test. The chamber maintains a stable dust concentration, usually 2 kg/m³, which matches the requirements of the iec standard. I use automated controls to ensure the specimen receives consistent exposure.

Evaluation Criteria

I evaluate the results of ip testing based on clear criteria. For IP5X, some dust particles may enter the enclosure, but they must not interfere with the operation of the equipment. For IP6X, the enclosure must prevent any dust ingress under specified conditions. I check the specimen after the test for dust entry and operational integrity.

IP Rating	Description	Criteria for Passing
IP5X	Limited dust ingress protection	Some particle penetration is acceptable if it doesn’t interfere with operation.
IP6X	Complete dust exclusion	Zero particle ingress under specified conditions. Rigorous testing with extended exposure and high particle concentrations.

I consider the level of dust ingress allowed, the duration of exposure, and the impact of dust on product functionality. I document all findings and compare them to the requirements of the iec standard. This approach ensures that my products meet the highest standards for dust protection and are ready for market acceptance.

Test Equipment

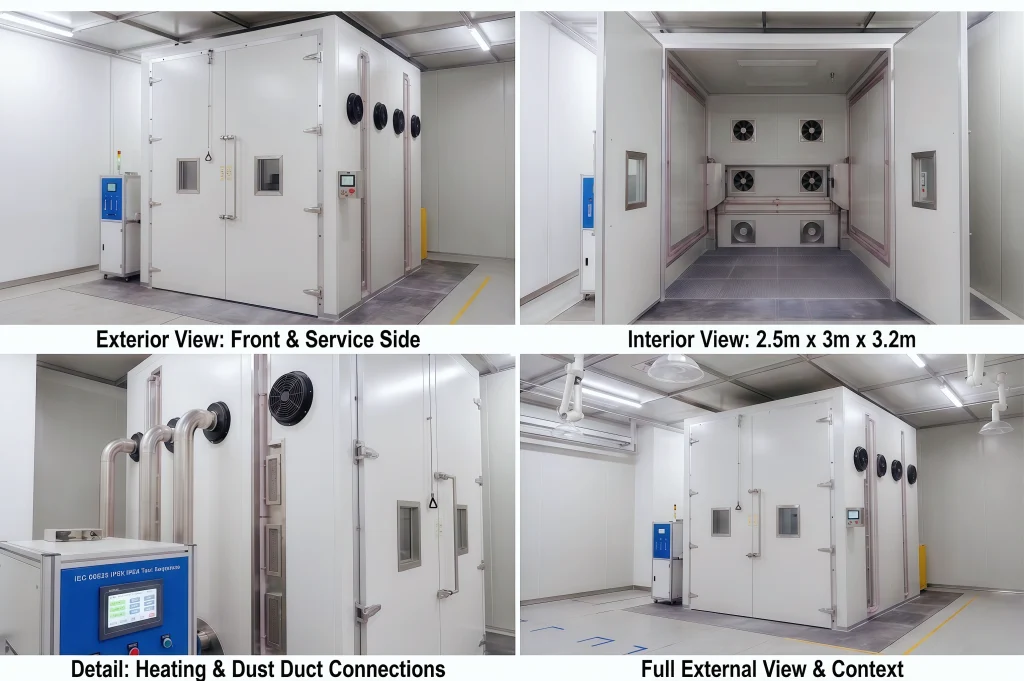

Chamber Features

When I select equipment for IEC 60529 compliance, I always look for advanced features that support reliable results. The KingPo Dust Test Chamber stands out in my experience. This chamber maintains a stable environment, which is critical for accurate evaluations. I can control temperature up to 50°C and keep humidity below 30% RH. These settings help me simulate real-world conditions. The chamber uses pneumatic dispersion to spread particles evenly. This method creates a uniform cloud, so every part of the specimen receives the same exposure. I also value the built-in monitoring system. It tracks all important parameters and logs data for quality management.

Feature	Description
Environmental Control	Maintains precise temperature (up to 50°C) and humidity (below 30% RH) for consistent testing.
Dust Generation Mechanism	Employs pneumatic dispersion for uniform particle distribution and stable dust clouds.
Monitoring Capabilities	Tracks critical parameters with data logging for compliance and quality management.

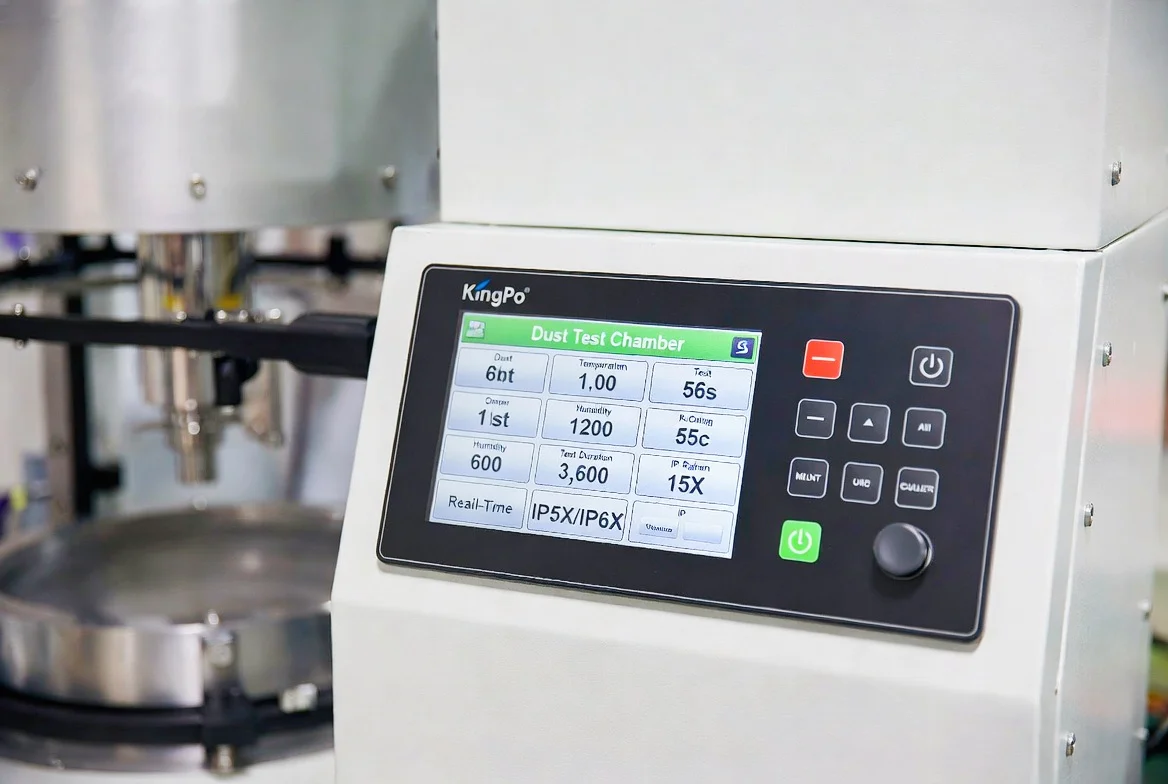

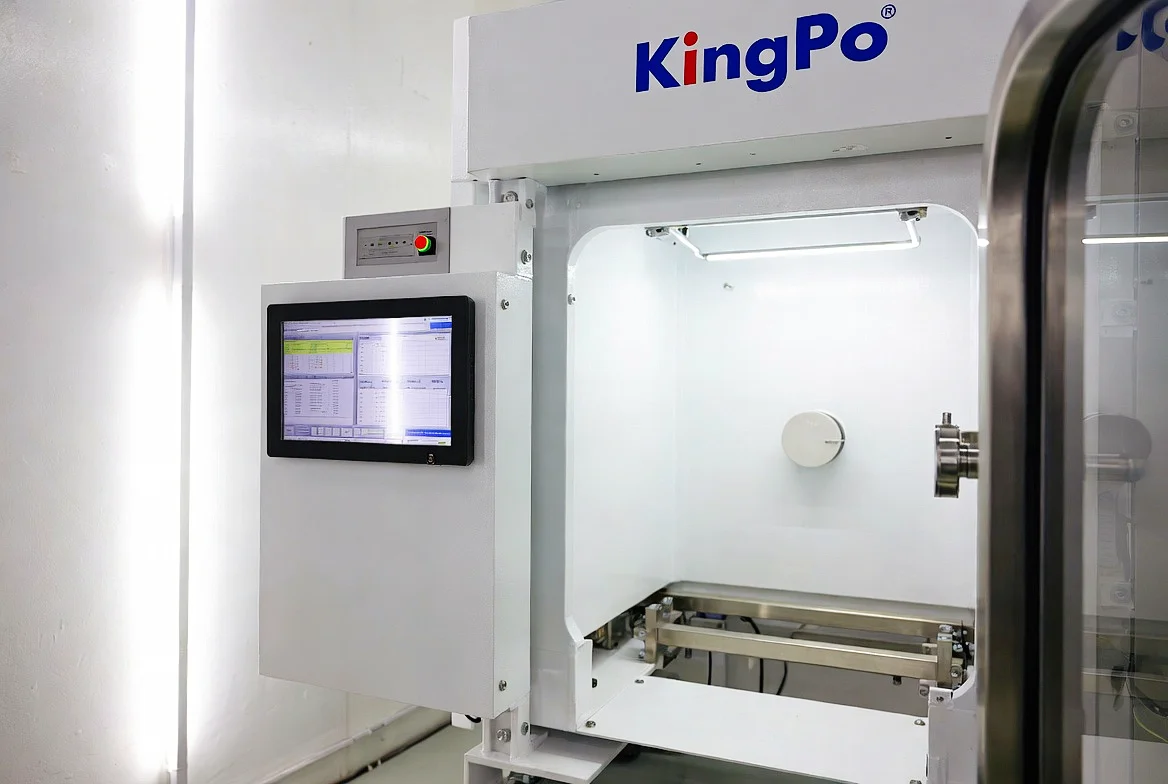

The KingPo chamber also includes a user-friendly 7-inch touch screen. I can adjust settings and monitor progress with just a few taps. The PLC control system automates the process, which reduces the chance of human error. I find these features essential for meeting strict IEC requirements.

Ensuring Accuracy

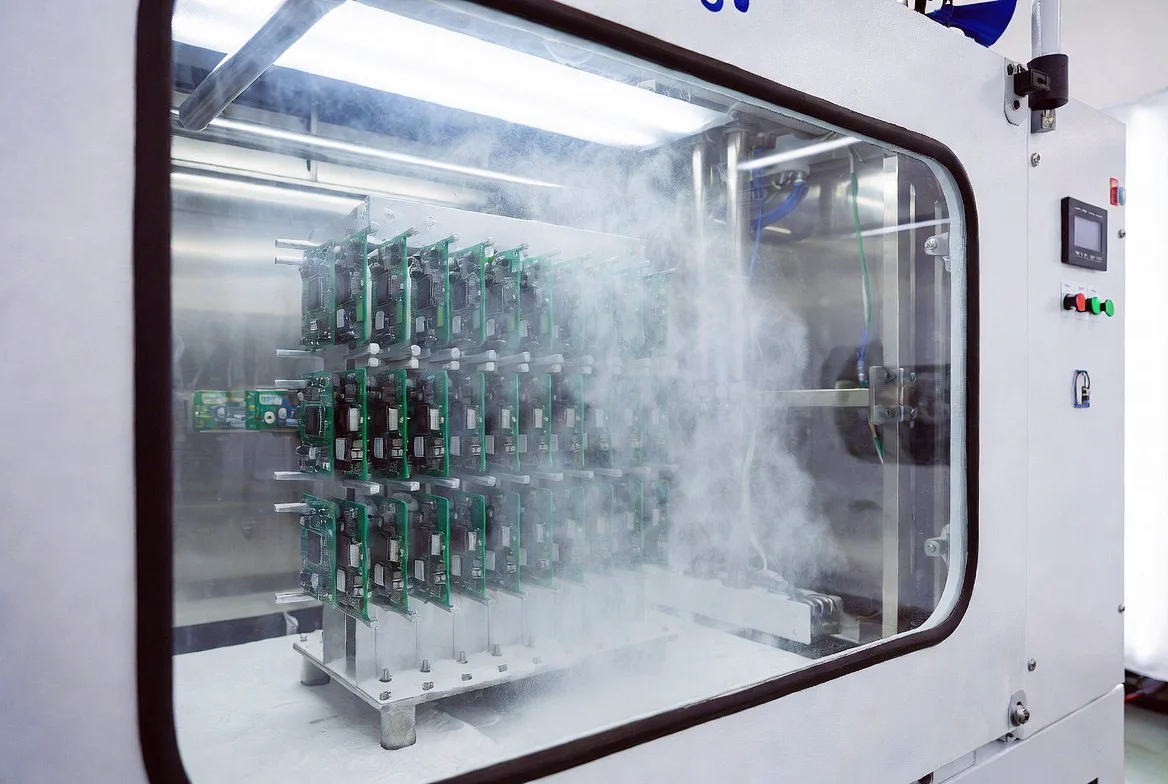

I know that accuracy in every test matters. Reliable equipment gives me confidence in my results. The KingPo Dust Test Chamber keeps dust concentration steady at 2 kg/m³, which matches the IEC 60529 standard. The chamber’s design prevents leaks and ensures even distribution. I trust the PLC system to manage cycles and maintain consistent conditions. Real-time monitoring lets me spot any issues right away. I always check calibration before each session. This practice helps me avoid mistakes and ensures repeatable outcomes. When I use dependable equipment, I can deliver results that meet industry standards and satisfy certification bodies.

Best Practices

Avoiding Test Failures

I have learned that even small mistakes can lead to failed results during an IEC 60529 dust test. I always check the chamber’s seals before I start. A poor seal can let dust escape or enter in the wrong way. I also make sure the dust is dry and matches the required particle size. If I use the wrong type of powder, the results will not reflect real-world conditions. I rely on the KingPo Dust Test Chamber because it keeps the dust concentration stable and spreads particles evenly. The PLC control system helps me avoid human error by automating the process. I always monitor the chamber’s sensors and alarms. If something goes wrong, I can stop the test and fix the problem right away.

Tip: I always calibrate my equipment before each session. This step helps me catch any issues early and ensures that every ip rating I assign is accurate.

Documentation and Reporting

I know that clear records are essential for compliance and certification. I document every step, from preparation to final inspection. I use the KingPo chamber’s data logging feature to capture temperature, humidity, and dust concentration in real time. This information helps me prove that I followed the correct procedures. I take photos of the specimen before and after the test. I also record any observations about dust ingress or equipment performance. I organize my reports with tables and checklists. This method makes it easy for auditors and customers to review my work.

• I always include:

  • Test setup details

  • Environmental conditions

  • Test duration and parameters

  • Results and observations

  • Calibration records

Note: Good documentation not only supports certification but also helps me improve future testing. I can look back at my records to find patterns or recurring issues.

By following these best practices, I increase the reliability of my results and reduce the risk of failed certifications. I trust advanced equipment and careful recordkeeping to help me deliver products that meet the highest standards.

I see IEC 60529 IP5X and IP6X compliance as essential for building products that last and perform well in the market. Reliable equipment and strict best practices help me achieve accurate test results every time. I always encourage engineers to make dust protection a top priority during product development. This approach leads to safer, more competitive devices.

Strong dust protection starts with the right standards and careful attention to detail.

FAQ

What does IP5X mean for my product?

IP5X means my product resists dust entry. Some dust may enter, but it will not affect operation. I use this rating for devices that need basic dust protection in offices or light industrial environments.

How do I know if my product needs IP6X certification?

I choose IP6X when my product must be completely dust-tight. I use this rating for equipment in harsh or outdoor environments, such as mining or construction. If dust could cause failure, I always select IP6X.

Why should I use a KingPo Dust Test Chamber?

I trust KingPo chambers because they maintain stable dust concentration and precise control. The user-friendly interface and automated features help me achieve repeatable, reliable results. This equipment supports my compliance with IEC 60529.

How long does a typical IEC 60529 dust test take?

Most tests last at least eight hours. For IP6X, I sometimes run tests up to sixteen hours for extra assurance. I always follow the standard’s minimum duration to ensure valid results.
