E26d Lamp Cap Gauge IEC 60061-3 for Screw Thread Testing on Finished Lamps
E26d Lamp Cap Gauge IEC 60061-3 performs precision Go/No-Go screw thread testing for E26d caps on finished lamps.
- Precision Go/No-Go design: specifically checks Cmax and C1max dimensions of E26d caps on finished lamps
- Hardness steel construction: high-accuracy gauge manufactured to exact IEC 60061-3 tolerances
- Reference diameter 10.4 mm: dedicated for E26d caps on finished lamps (7006-29D-1)
- Calibration certificate included: traceable quality assurance for laboratory and production use
- MOQ: 1
- Delivery Period: 7 working days
E26d Lamp Cap Gauge IEC 60061-3 Description
E26d Lamp Cap Gauge Screw Thread Gauge iec 60061 3 With Calibration Certificate

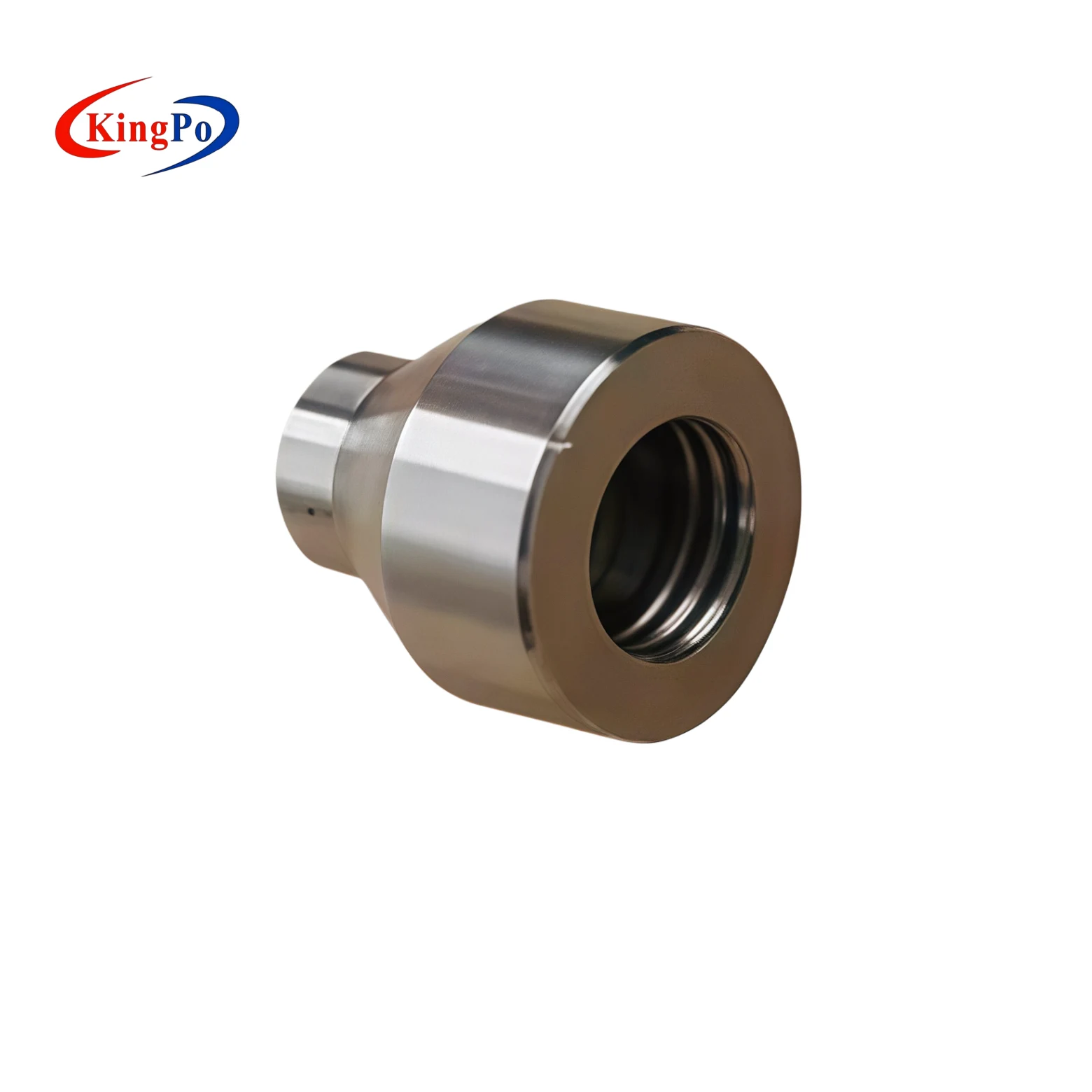

The E26d Lamp Cap Gauge IEC 60061-3 for Screw Thread Testing on Finished Lamps is a precision Go/No-Go gauge manufactured by KingPo. It is designed to check the critical dimensions Cmax and C1max of E26d caps on finished lamps in accordance with IEC 60061-3 (7006-29D-1), ensuring dimensional compliance and proper fit for lamp safety and interchangeability.
Testing Principle
- When the unmounted E26d cap is pushed into the gauge as far as it will go, surface W of the plunger shall not project beyond surface X. For caps on finished lamps, surface W shall not project beyond surface V, with the cap positioned so that the solder on the intermediate contact is located in the recess provided in the gauge. This verifies that the screw thread dimensions meet the exact IEC 60061-3 requirements.
Professional Construction & Technical Precision
Key features include:
- Hardness steel construction for high-accuracy dimensional verification
- Go/No-Go design specifically for E26d caps on finished lamps (reference diameter 10.4 mm)

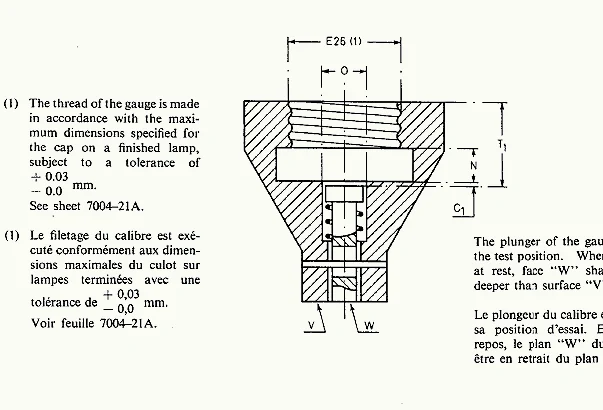

- Precise surface and plunger geometry per IEC 60061-3 Figure 7006-29D-1
- Calibration certificate supplied with every gauge for full traceability
-
To check dimensions Cmax. and C1max. of caps E26d.
These elements ensure accurate, repeatable and standard-compliant screw thread testing.
Technical Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Standard | IEC 60061-3 (7006-29D-1) | E26d caps on finished lamps |
| Reference Diameter | 10.4 mm | Checks Cmax and C1max dimensions |
| Material | Hardness steel | High precision and durability |
| Gauge Type | Go/No-Go | Pass/fail dimensional verification |
| Calibration | Calibration certificate included | Traceable to national standards |
The E26d Lamp Cap Gauge IEC 60061-3 for Screw Thread Testing on Finished Lamps is used to verify dimensional accuracy and interchangeability of E26d lamp caps during production quality control and third-party certification. It helps lighting manufacturers ensure caps meet exact screw thread requirements and maintain consistent product quality and safety.
Procurement Benefits
The gauge offers precision hardness steel construction, exact reference diameter 10.4 mm and Go/No-Go design with calibration certificate in a durable, easy-to-use format. It provides consistent, repeatable test results with minimal maintenance, making it a practical solution for IEC 60061-3 E26d cap testing.
E26d Lamp Cap Gauge Applications
- E26d lamp caps on finished lamps โ screw thread dimensional verification per IEC 60061-3
- Lighting manufacturers โ quality control of E26d lamp bases
- Certification laboratories โ compliance testing according to IEC 60061-3
- R&D departments โ optimization of lamp cap thread design and interchangeability
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 60061-3 for testing E26d lamp caps. It provides a standardized method to verify screw thread dimensions Cmax and C1max, ensuring lamp caps meet the required safety and interchangeability levels.
For detailed information on IEC 60061-3 testing, please refer to the latest edition of IEC 60061-3.
Regular verification of gauge dimensions is recommended to maintain traceability.
Technical Inquiry for E26d Lamp Cap Gauge
The Core Value We Deliver to You
- Precision Go/No-Go gauge for E26d caps on finished lamps
- Exact reference diameter 10.4 mm per IEC 60061-3
- Hardness steel construction for long-term accuracy
- Calibration certificate included for immediate traceability
- Durable packaging for gauge protection
Tell us your lamp cap type or test requirements โ our engineering team will reply with tailored recommendations within 24 hours.
Related gauges
| Item No. | Product Name | Standard Code |
|---|---|---|
| 1 | “NOT GO” GAUGE FOR E26, E26/50×39, E26/51×39 & E26d CAPS ON FINISHED LAMPS | Sh. 7006-29L-4 |
| 2 | “GO” GAUGE FOR CAPS E26, E26/50×39, E26/51×39 & E26d | 7006-27D-3 |
| 3 | GAUGE FOR TESTING CONTACT-MAKING OF LAMPS FITTED WITH CAPS E26, E26/50×39,E26/51×39 & E26d (NON-SKIRTED) | 7006-29-3 |
| 4 | E26d GAUGE FOR CAPS ON FINISHED LAMPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT | 7006-29A-2 |
| 5 | E26d GAUGE WITH REFERENCE DIAMETER OF 23 mm FOR CAPS | 7006-29B-2 |
| 6 | E26d GAUGE WITH REFERENCE DIAMETER OF 13,2 mm FOR CAPS | 7006-29C-2 |
| 7 | E26d GAUGE WITH REFERENCE DIAMETER OF 10,4 mm FOR CAPS ON FINISHED LAMPS | 7006-29D-1 |
