GU10 Lamp Cap Gauge | IEC 60061-3 Go & Torque Gauges

GU10 Lamp Cap Gauge | IEC 60061-3 Go & Torque Gauges

The GU10 Lamp Cap Gauge set provides manufacturers and testing laboratories with accurate, repeatable verification of bi-pin GU10 lamp caps and holders. Manufactured to strict IEC 60061-3 tolerances, these gauges control critical dimensions that directly affect electrical contact reliability, mechanical stability, and product safety in modern lighting applications.

Technical Parameters

GU10 Lamp Cap Gauge

Professional Construction & Technical Precision

Each gauge is precision-ground from premium-grade hardened tool steel (SKD61 equivalent) and individually inspected with coordinate measuring machines to maintain extremely tight dimensional tolerances throughout its service life. The surface is mirror-polished to eliminate burrs and ensure smooth, repeatable operation without damaging the test specimen.

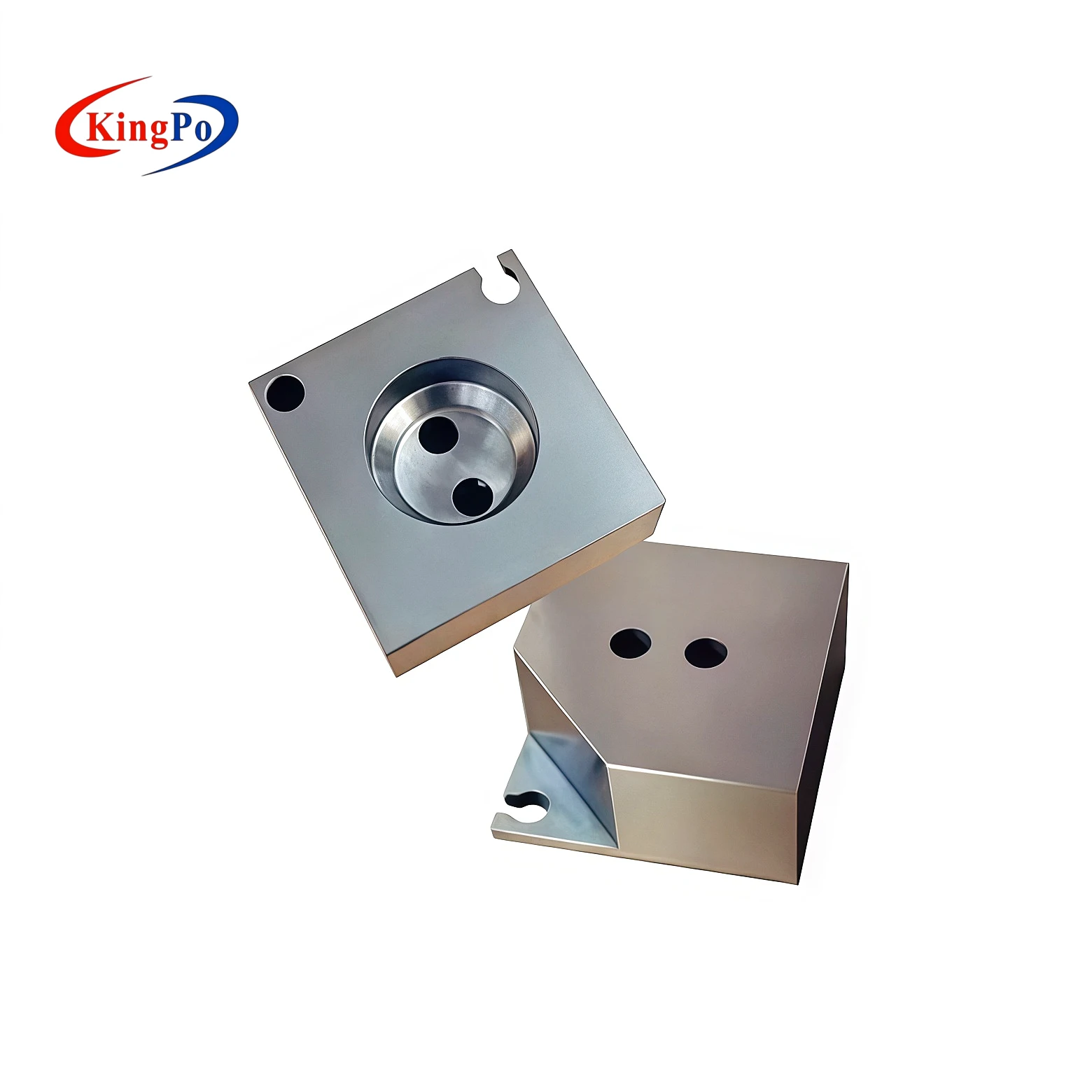

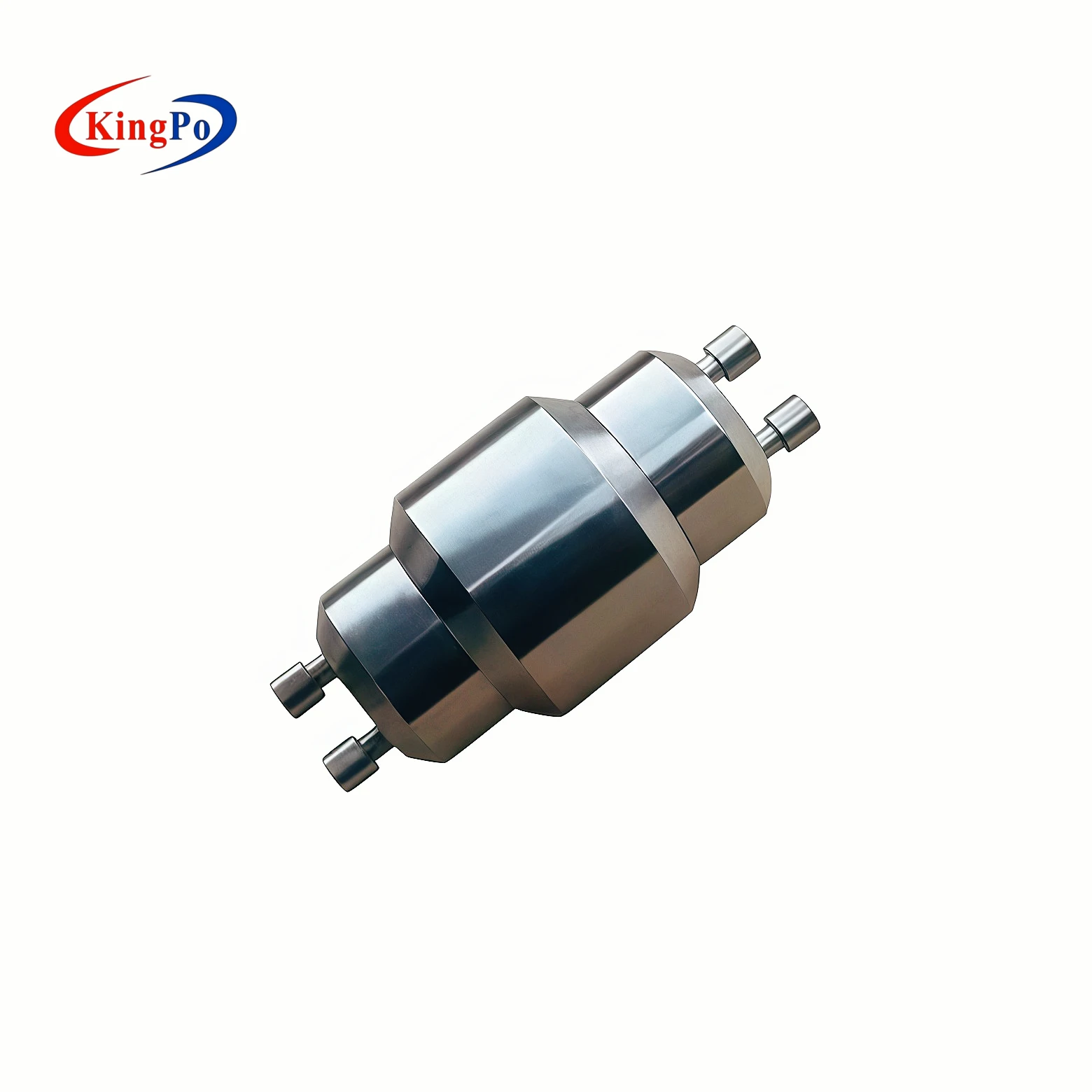

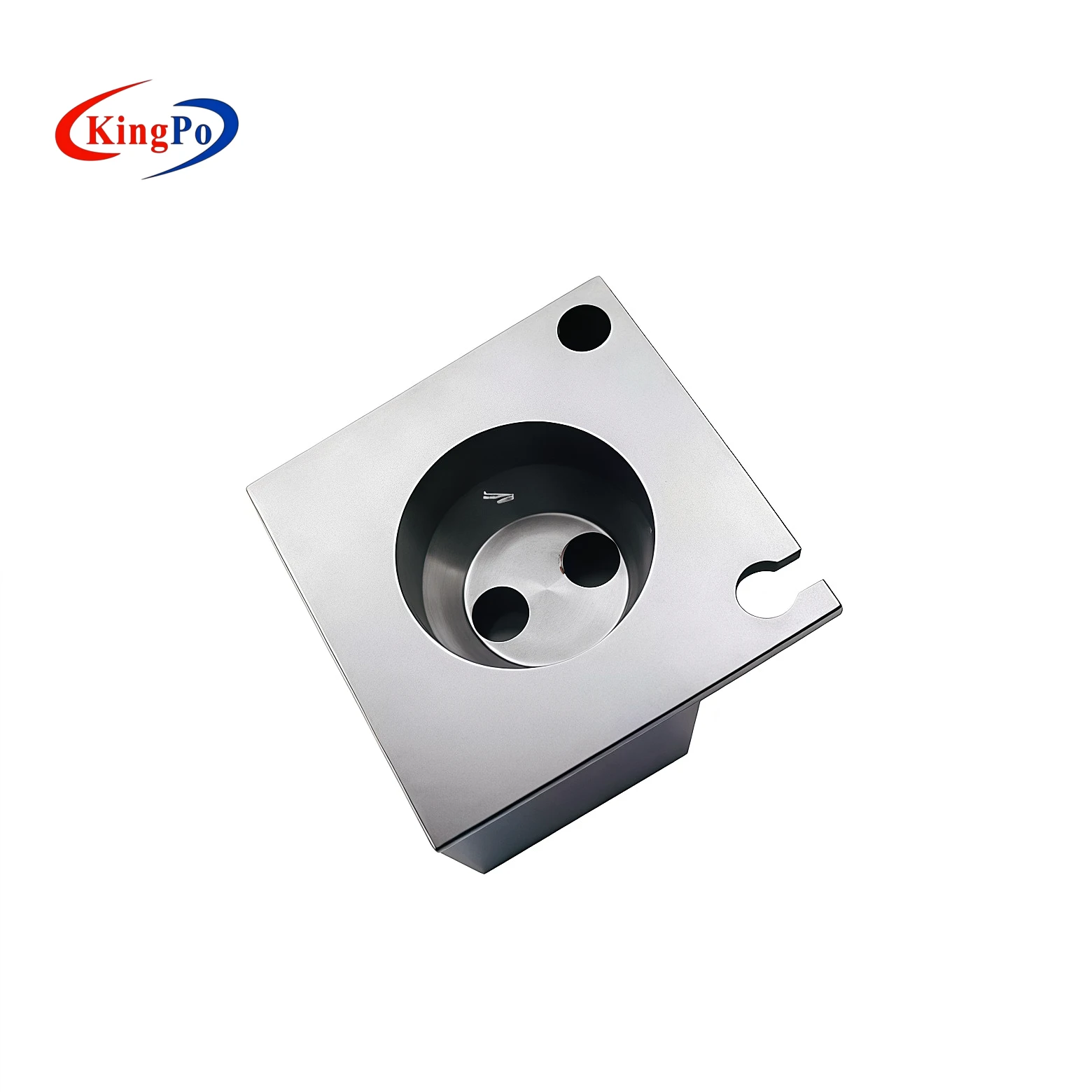

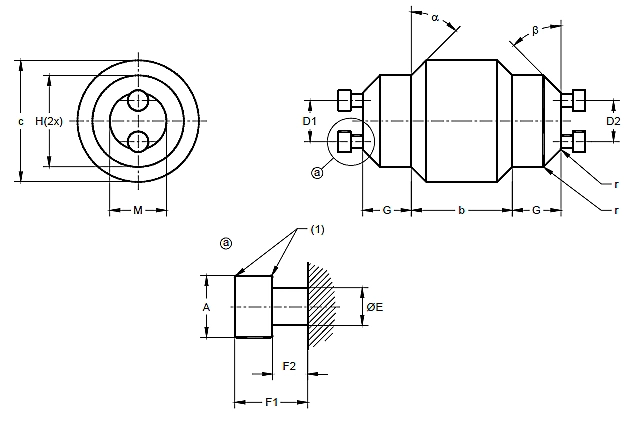

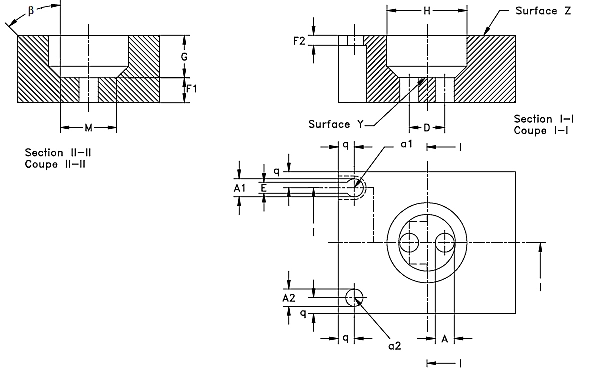

The 7006-121-1 Go/No-Go gauge precisely controls critical pin geometry, center-to-center spacing, and locking dimensions of GU10 bi-pin caps, while the 7006-21A-2 torque gauge accurately simulates real-world insertion and withdrawal forces. Together they provide comprehensive verification of both dimensional interchangeability and mechanical retention performance — essential for ensuring reliable electrical contact and long-term safety in lighting applications.

Testing Principle

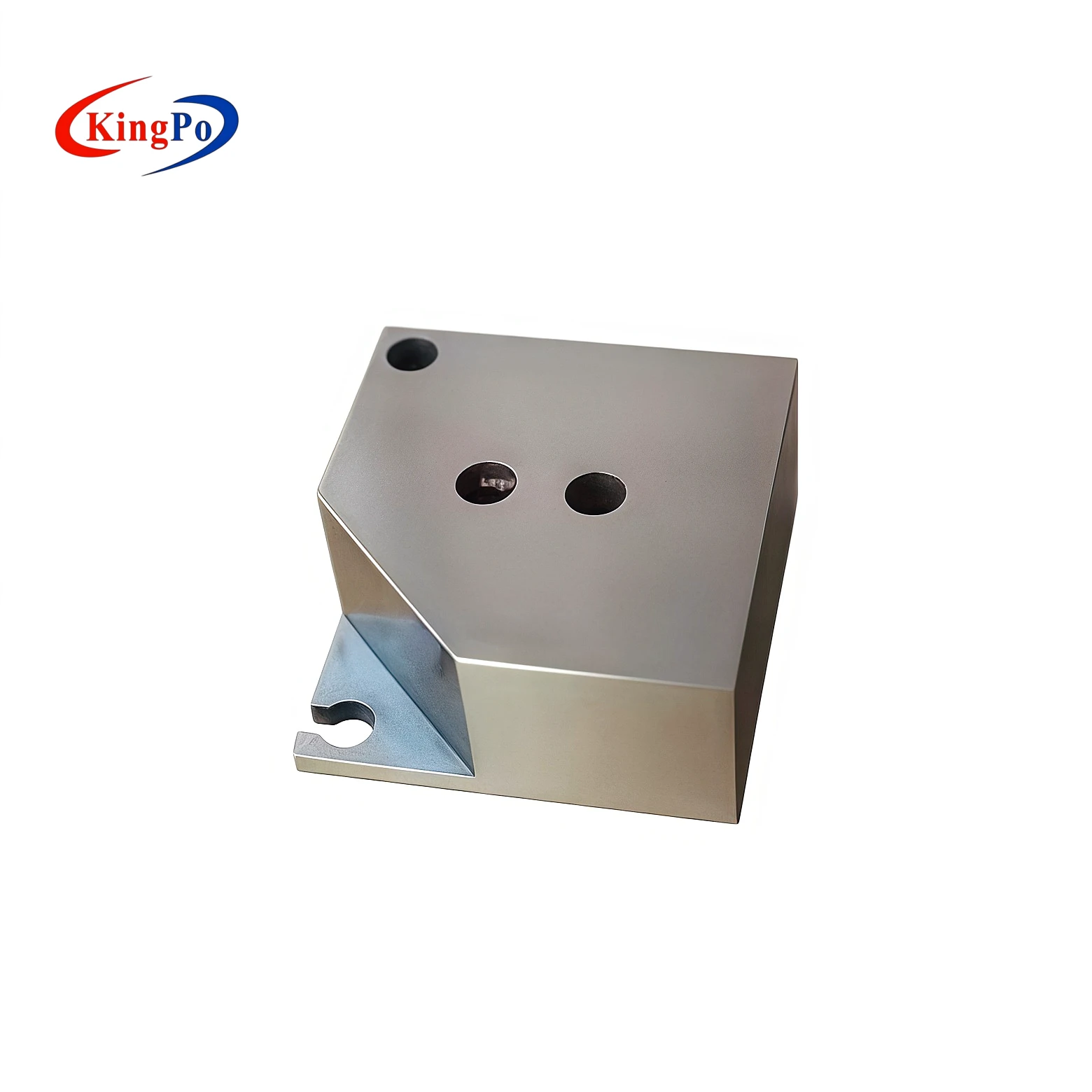

The Go/No-Go gauge is applied directly to the lamp base: the “Go” end must enter smoothly and fully, while the “Not Go” end must not, instantly confirming whether the pin diameter, displacement, and overall geometry meet IEC 60061-3 requirements.

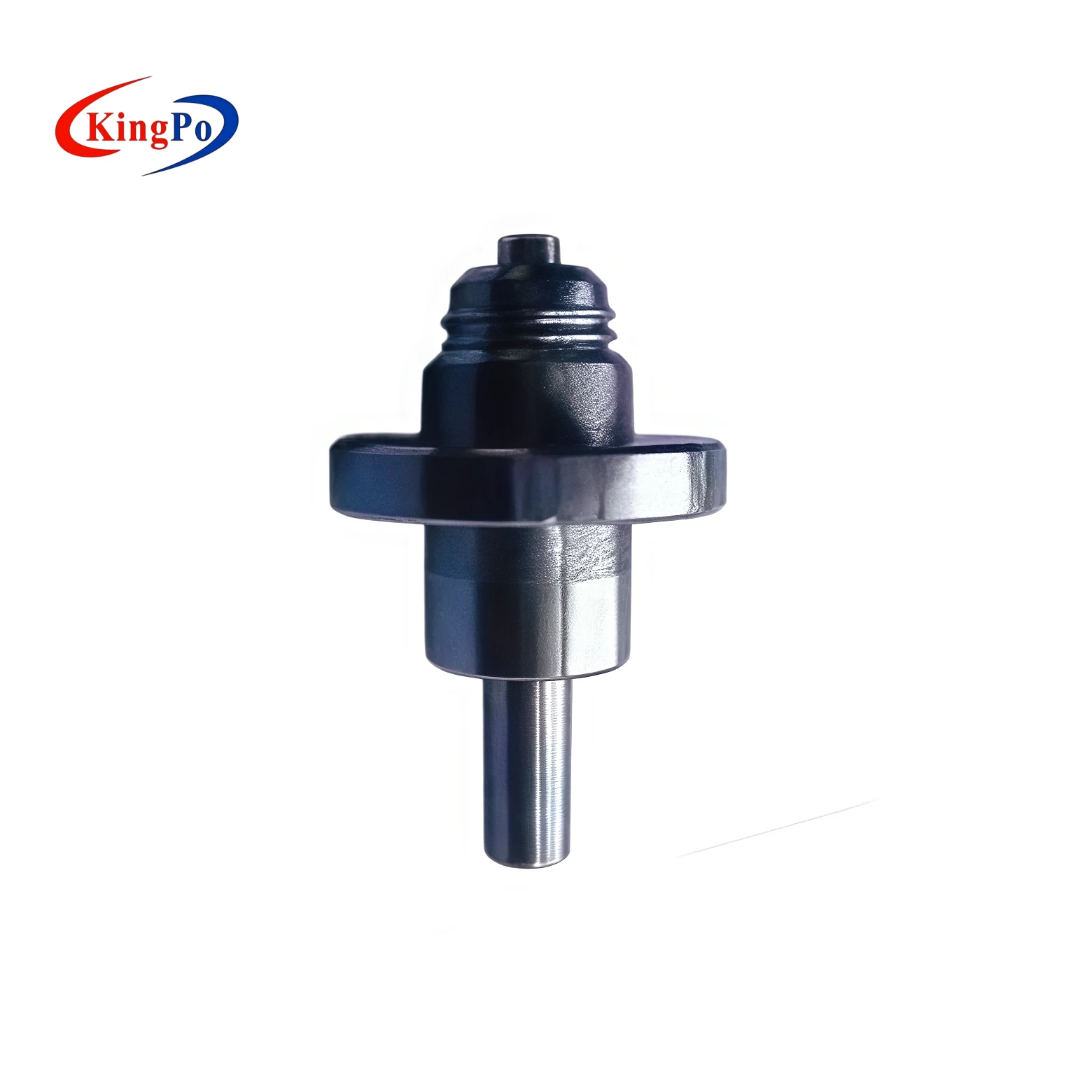

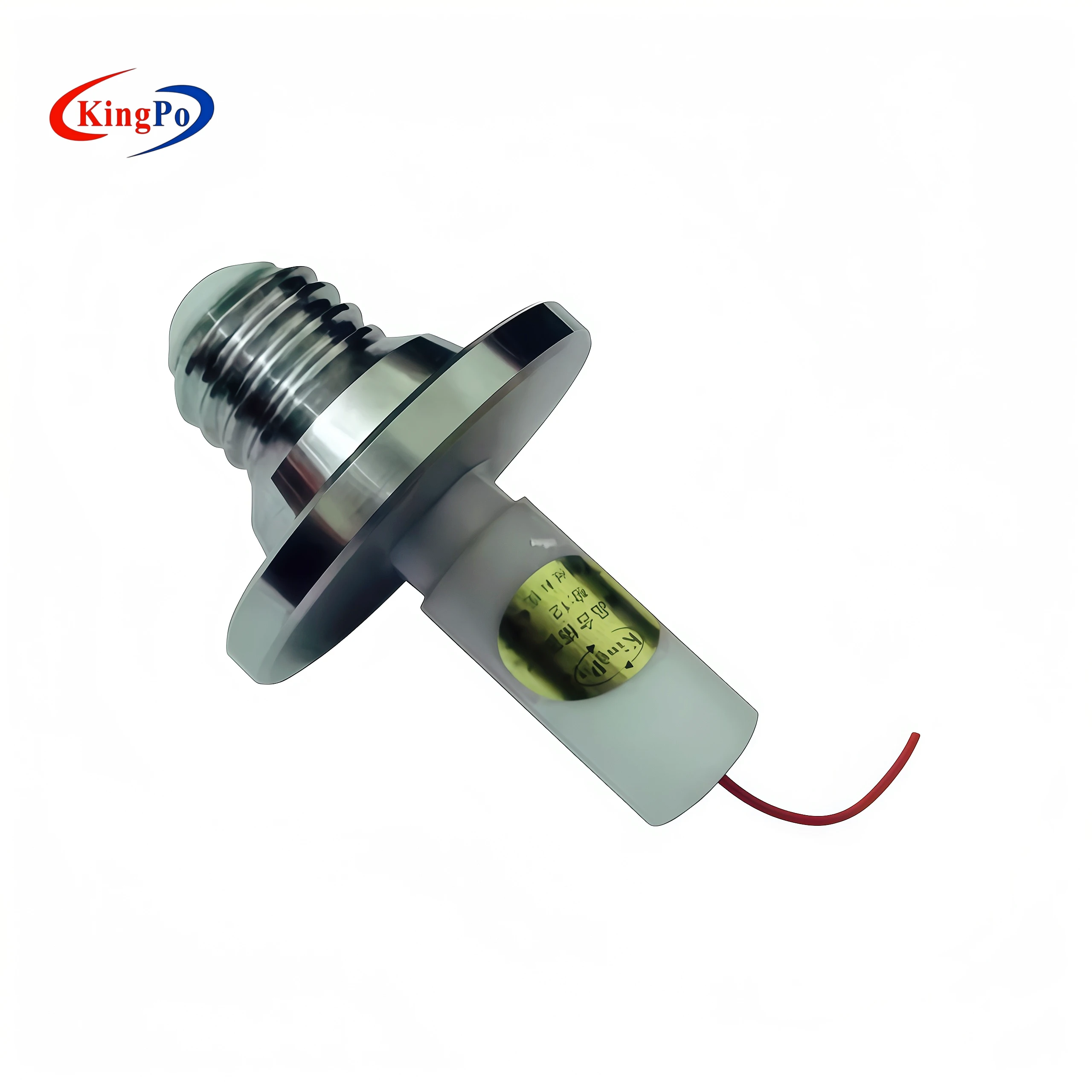

The torque gauge is then inserted into the lampholder to measure the exact force required for insertion and withdrawal. This verifies that the lampholder provides secure mechanical retention without excessive resistance, preventing poor contact, overheating, or installation hazards in actual use.

Common Error Mitigation

To achieve consistent and accurate results, follow these best practices:

• Thoroughly clean both the gauge and specimen before each test to avoid measurement errors caused by dust or residue.
• Apply force perpendicular to the specimen without tilting or side loading.
• When performing torque testing, always use a calibrated torque meter and follow the exact procedure specified in IEC 60061-3.
• Store gauges in their protective cases when not in use to prevent damage or dimensional drift.
• Schedule periodic recalibration (especially for certification laboratories) to maintain full traceability and measurement integrity.

Primary Use Cases & Business Value

This GU10 Lamp Cap Gauge set is an indispensable quality control tool for LED lamp manufacturers, lighting fixture producers, and third-party testing laboratories. It enables early detection of dimensional deviations and mechanical weaknesses, significantly reducing assembly defects, field failures, and costly product recalls. By ensuring full compliance with IEC 60061-3 from the design stage through production, it accelerates certification processes and builds greater confidence in product safety and reliability.

Industrial Applications & Lab Scenarios

• GU10 LED lamp and halogen bulb production lines (routine dimensional and torque verification)
• Downlight, spotlight, and recessed lighting fixture manufacturers
• Incoming material inspection and supplier quality control departments
• Independent third-party certification laboratories performing IEC/EN compliance testing
• R&D teams developing next-generation bi-pin lighting products and holders

Strategic Procurement Advantages & Global Support

• Durable hardened steel construction engineered for long service life under daily laboratory use
• Full traceability with factory calibration certificate included as standard
• Optional third-party ISO 17025 accreditation available upon request
• Manufactured under ISO 9001 certified quality management system
• Comprehensive one-year warranty supported by responsive lifetime technical assistance from our Dongguan facility
