DIN VDE 0620-1 Plug Socket Gauge | Precision Go/No-Go Gauge Set for German Standard Plugs and Sockets
Plug Socket Gauge performs precision Go/Not Go testing for German standard plugs and sockets.
- Comprehensive gauge set: full collection of Lehre 1โ18, Bild 14/15/43 and IPX4-related gauges covering all critical dimensions for German plugs and sockets
- Precision DC53 steel construction: hardness HRC58 with exact surface finish per DIN VDE 0620-1 requirements
- Go and Not Go verification: verifies insertion force, contact opening width, pin diameter, pin distance, withdrawal force and interchangeability
- Calibration report included: traceable quality assurance for laboratory and production use
- MOQ: 1
- Delivery Period: 7 working days
DIN VDE 0620-1 Plug Socket Gauge Description
DIN-VDE0620-1 Lamp Cap Gauge For Measuring German Standard Plug And Socket
The DIN VDE 0620-1 Plug Socket Gauge is a complete set of precision measuring instruments manufactured by KingPo for testing and verification of German standard plugs and sockets. Produced in strict accordance with DIN VDE 0620-1, each gauge is made from DC53 tool steel with hardness HRC58, ensuring long-term dimensional stability and high-accuracy compliance verification for electrical safety and quality control.
Testing Principle
The gauges check critical mechanical dimensions and functional performance of plugs and sockets. Go gauges confirm acceptable limits while Not Go gauges reject out-of-tolerance parts, covering socket R gauge, contact opening width, pin diameter, pin distance, insertion/withdrawal force, interchangeability and live-part protection per DIN VDE 0620-1 Lehre 1โ18 and Bild figures.
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer, also holding SGS, PSE and RoHS certifications. We specialize in electrical safety testing equipment and have supplied DIN VDE 0620-1 plug socket gauges to manufacturers and certification laboratories worldwide. Each unit undergoes rigorous calibration and is delivered with complete documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- DC53 tool steel with HRC58 hardness for superior wear resistance and dimensional stability
- Complete Lehre and Bild gauge coverage including socket R gauge, contact jack opening, pin diameter, pin distance and withdrawal force
- Go/Not Go design for clear pass/fail dimensional verification
- Calibration report supplied with every set for full traceability
These elements ensure accurate, repeatable and standard-compliant testing results.
Technical Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Standard | DIN VDE 0620-1 | German standard for plugs and sockets |
| Material | DC53 tool steel | Hardness HRC58, precision machined |
| Gauge Set | Complete Lehre 1โ18 + Bild 14/15/43 + IPX4 gauges | Full coverage of all required figures |
| Functions | Go/Not Go dimensional verification, insertion force, withdrawal force, contact opening, pin distance, interchangeability | Covers mechanical and safety requirements |
| Calibration | Calibration report included | Traceable to national standards |
| Packing | Special protective box | Ensures gauge integrity during transport |
The DIN VDE 0620-1 Plug Socket Gauge is used to verify dimensional accuracy and functional performance of German standard plugs and sockets during product development, production quality control and third-party certification. It helps manufacturers ensure compliance with German electrical safety regulations and maintain consistent product quality.
Procurement Benefits
The gauge set offers precision DC53 steel construction, complete coverage of all DIN VDE 0620-1 figures and a traceable calibration report in a durable protective box. It provides consistent, repeatable test results with minimal maintenance, making it a practical solution for German standard plug and socket testing.
DIN VDE 0620-1 Plug Socket Gauge Applications
- German standard plugs and sockets โ dimensional and functional verification per DIN VDE 0620-1
- Electrical accessory manufacturers โ quality control of German plugs and sockets
- Certification laboratories โ compliance testing according to DIN VDE 0620-1
- R&D departments โ optimization of plug and socket design for German market
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with DIN VDE 0620-1 for testing German standard plugs and sockets. It provides a standardized method to verify dimensional compliance and functional performance, ensuring plugs and sockets meet the required safety and quality levels for the German market.
For detailed information on DIN VDE 0620-1 testing, please refer to the latest edition of DIN VDE 0620-1.
Regular verification of gauge dimensions is recommended to maintain traceability.
Technical Inquiry for DIN VDE 0620-1 Plug Socket Gauge
KingPo specializes in electrical safety testing equipment. If you require precise DIN VDE 0620-1 plug socket gauges, our engineering team can provide technical support and configuration recommendations.
The Core Value We Deliver to You
- Complete DIN VDE 0620-1 gauge set covering all required Lehre and Bild figures
- DC53 tool steel with HRC58 hardness for long-term accuracy
- Go/Not Go design for clear pass/fail verification
- Calibration report included for immediate traceability
- Durable special packing box for gauge protection
Tell us your required gauge figures or test needs โ our engineering team will reply with tailored recommendations within 24 hours.
DIN-VDE0620-1 Gauge Specification Table
| Figure Number | Project Name | Quantity |
|---|---|---|
| DIN-VDE0620-1-Lehre1 | Socket R gauge (5.0, 5.8, 6.0) | 3 |
| DIN-VDE0620-1-Lehre2 | Minimum opening width and minimum pull out force of contact jack | 2 |
| DIN-VDE0620-1-Lehre3 | Bipolar plug force | 1 |
| DIN-VDE0620-1-Lehre4 | Bipolar plug with earthing contact insertion flanking force | 1 |
| DIN-VDE0620-1-Lehre5 | To test the first time contact closure interval gauge | 1 set / 4 parts |
| DIN-VDE0620-1-Lehre6 | Pin diameter | 1 set / 4 parts |
| DIN-VDE0620-1-Lehre7 | Pin distance | 1 / 2 combination |
| DIN-VDE0620-1-Lehre8 | The maximum opening width of the contact jack | 1 |
| DIN-VDE0620-1-Lehre9 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-Lehre10-A | The impossibility of the contact of the single pole contact hole A | 1 |
| DIN-VDE0620-1-Lehre10-B | Unipolar contact hole contacts not the possibility of B | 1 |
| DIN-VDE0620-1-Lehre11 | No bipolar plug ground contact can not be inserted | 1 |
| DIN-VDE0620-1-Lehre12 | The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack) | 1 set / 4 parts |
| DIN-VDE0620-1-Lehre13 | After normal operation test of live parts check protection inside the door can not touch the probe | 1 set |
| DIN-VDE0620-1-Lehre14 | On both sides of the ground test | 1 |
| DIN-VDE0620-1-Lehre15 | Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe | 1 |
| DIN-VDE0620-1Fig15 | Gauge | 1 |
| DIN-VDE0620-1-Lehre16a | The maximum pullout force plug (16a) | 1 |
| DIN-VDE0620-1-Lehre16d | The maximum pullout force plug (16d) | 1 |
| DIN-VDE0620-1-Lehre17 | Lehre17 | 1 |
| DIN-VDE0620-1-Lehre18 | Lehre18 gauge | 1 |
| DIN-VDE0620-1-EN50075 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-49440-L1 | 49440-L1 – on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L2 | 49440-L2 – on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L1-L2 | Bipolar grounded plug diameter gauge and test equipment | 1 set / 3 parts |
| DIN-VDE0620-1-Bild15 | Test pressure device | 1 set |
| DIN-VDE0620-1-Bild14 | Bild14 gauge | 1 set |
| DIN-VDE0620-1-Bild43 | Bild43 gauge | 1 set / 2 parts |

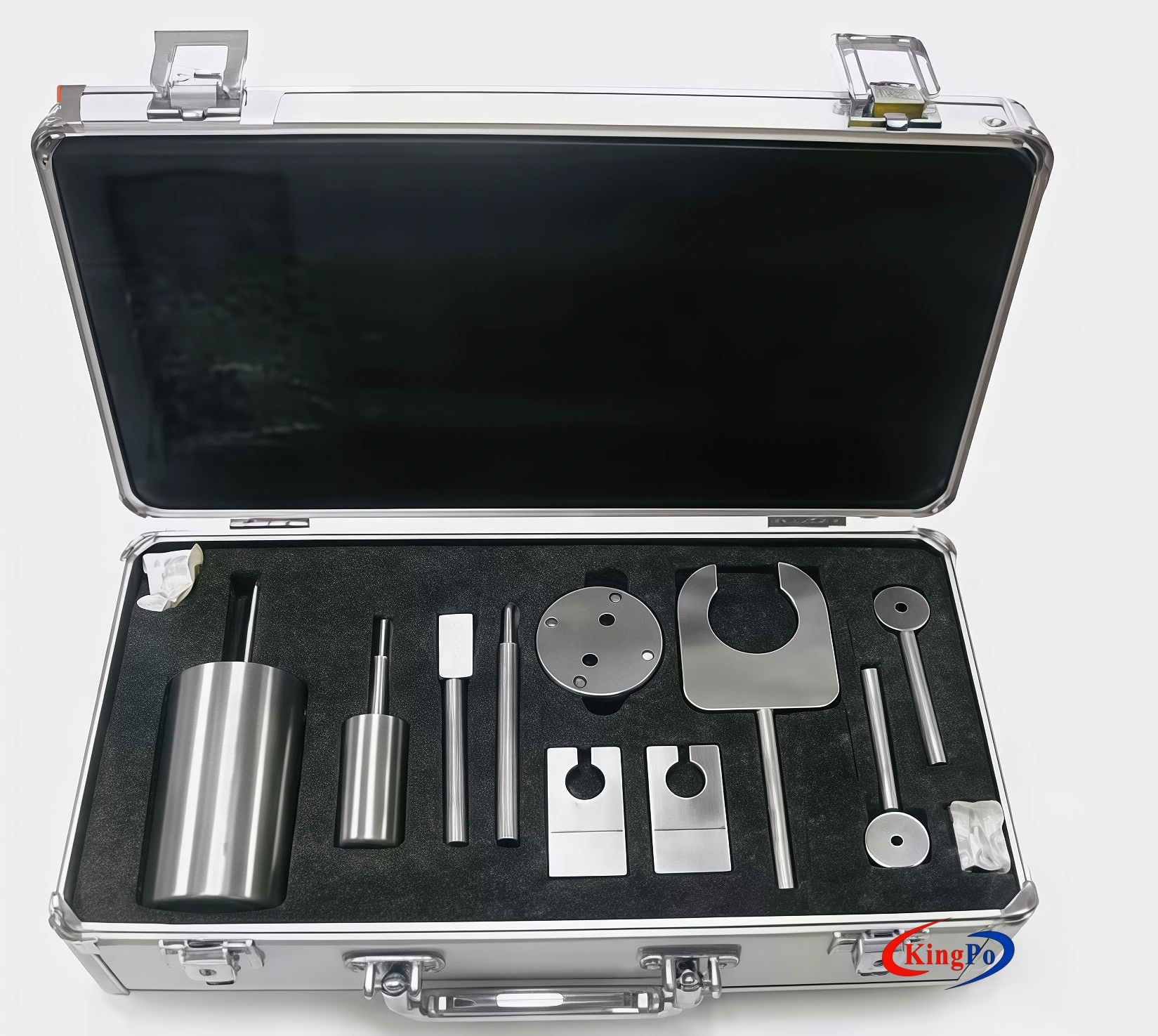

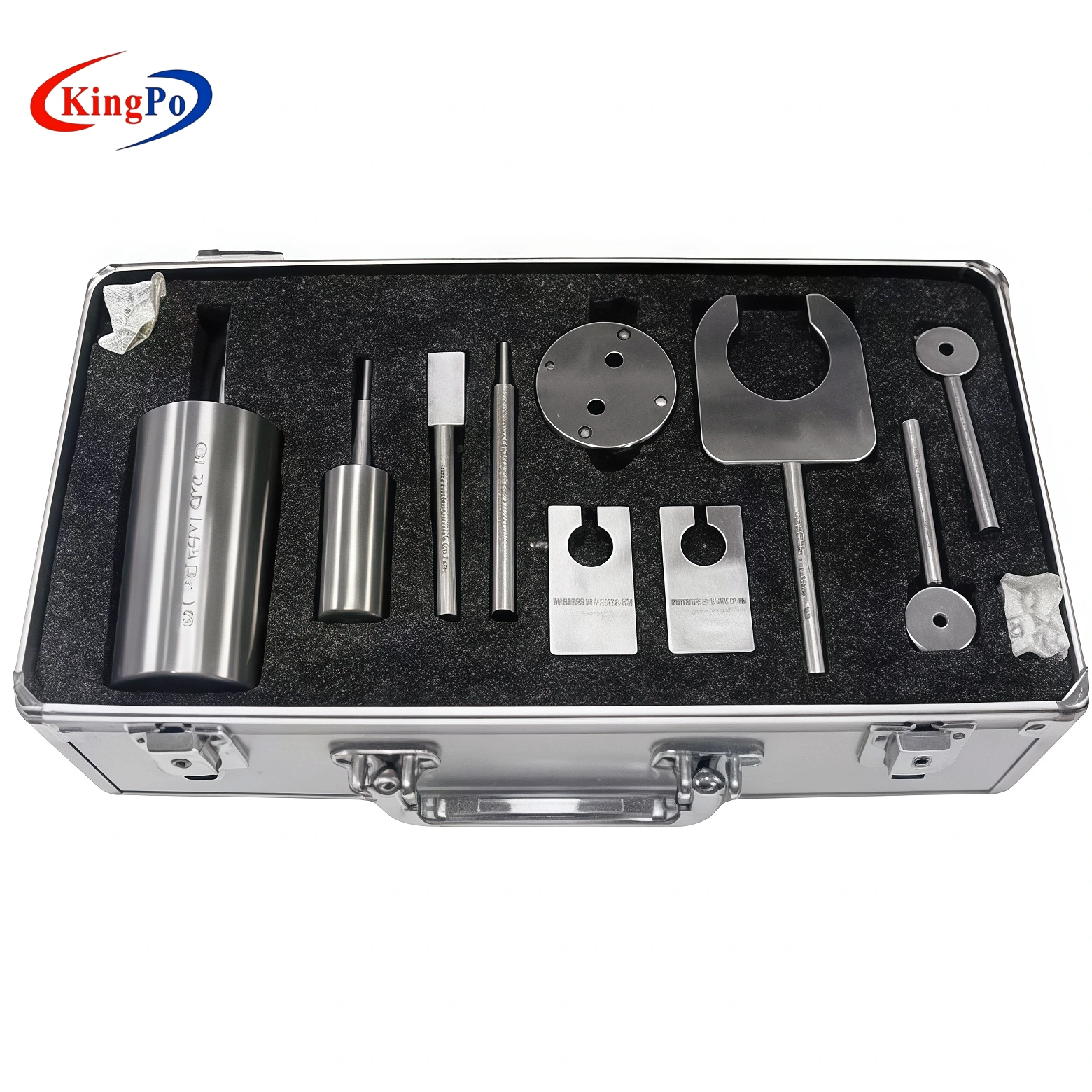

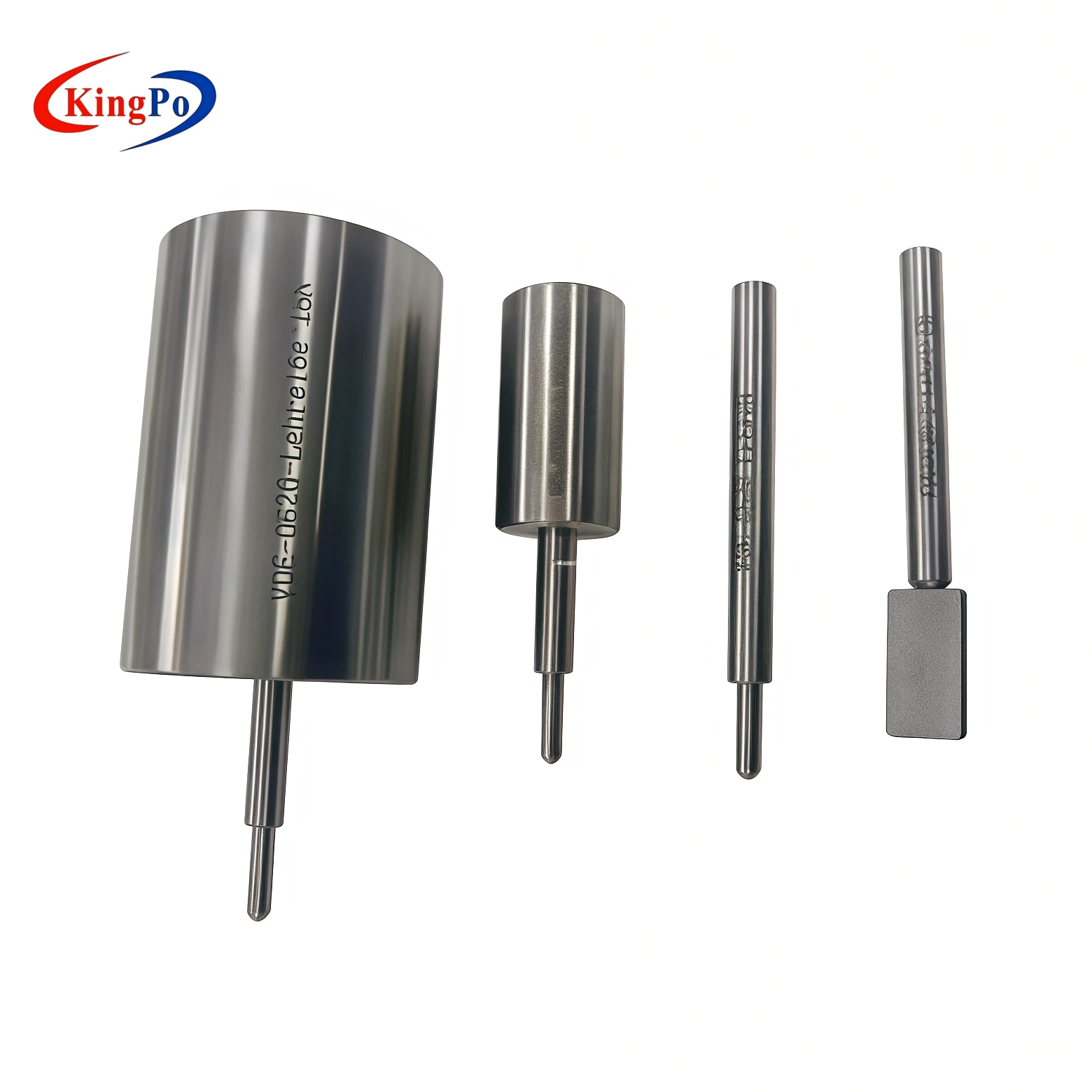

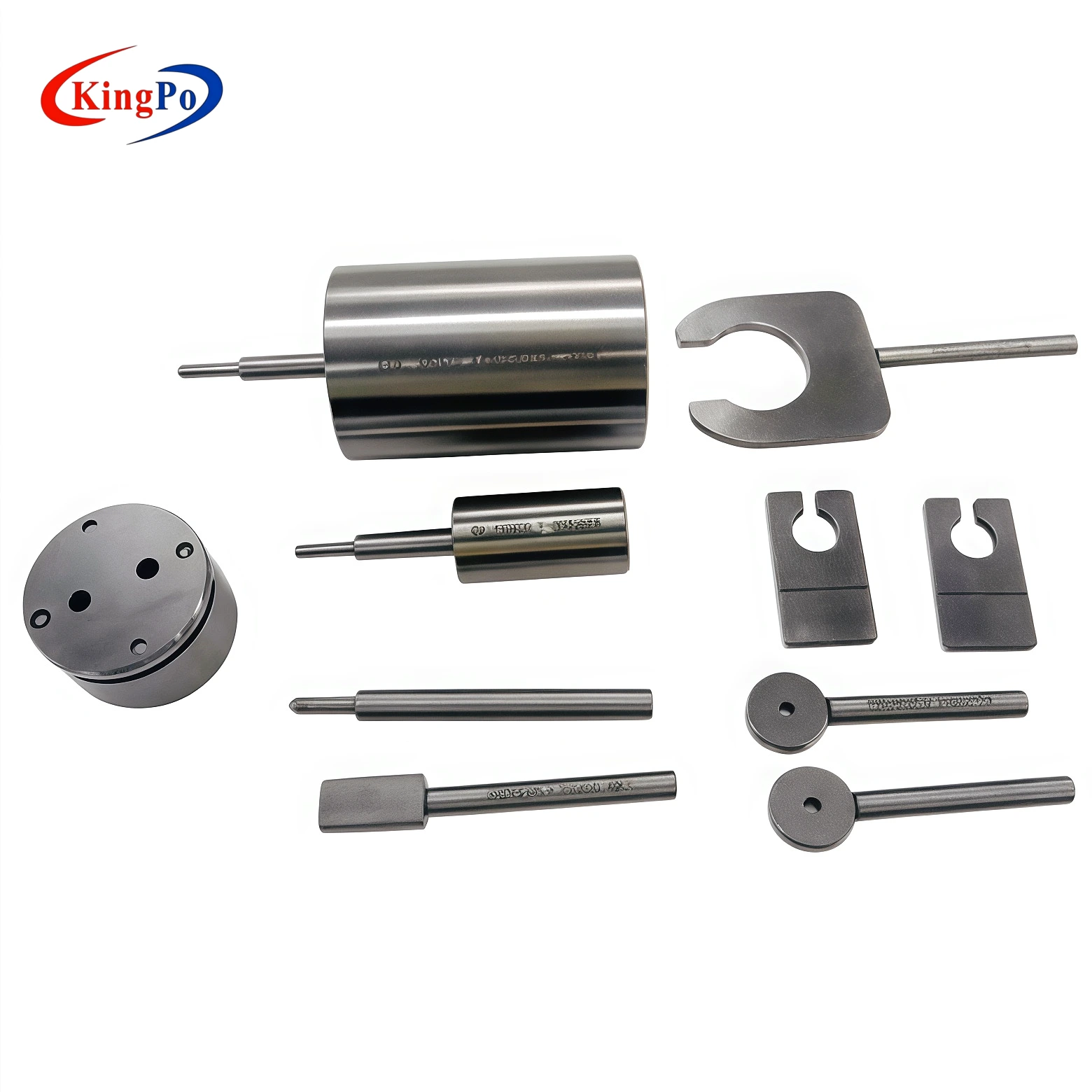

Detail Display
