IEC 62368 Aluminium Ring – Precision FOD Test Accessory for Wireless Charging

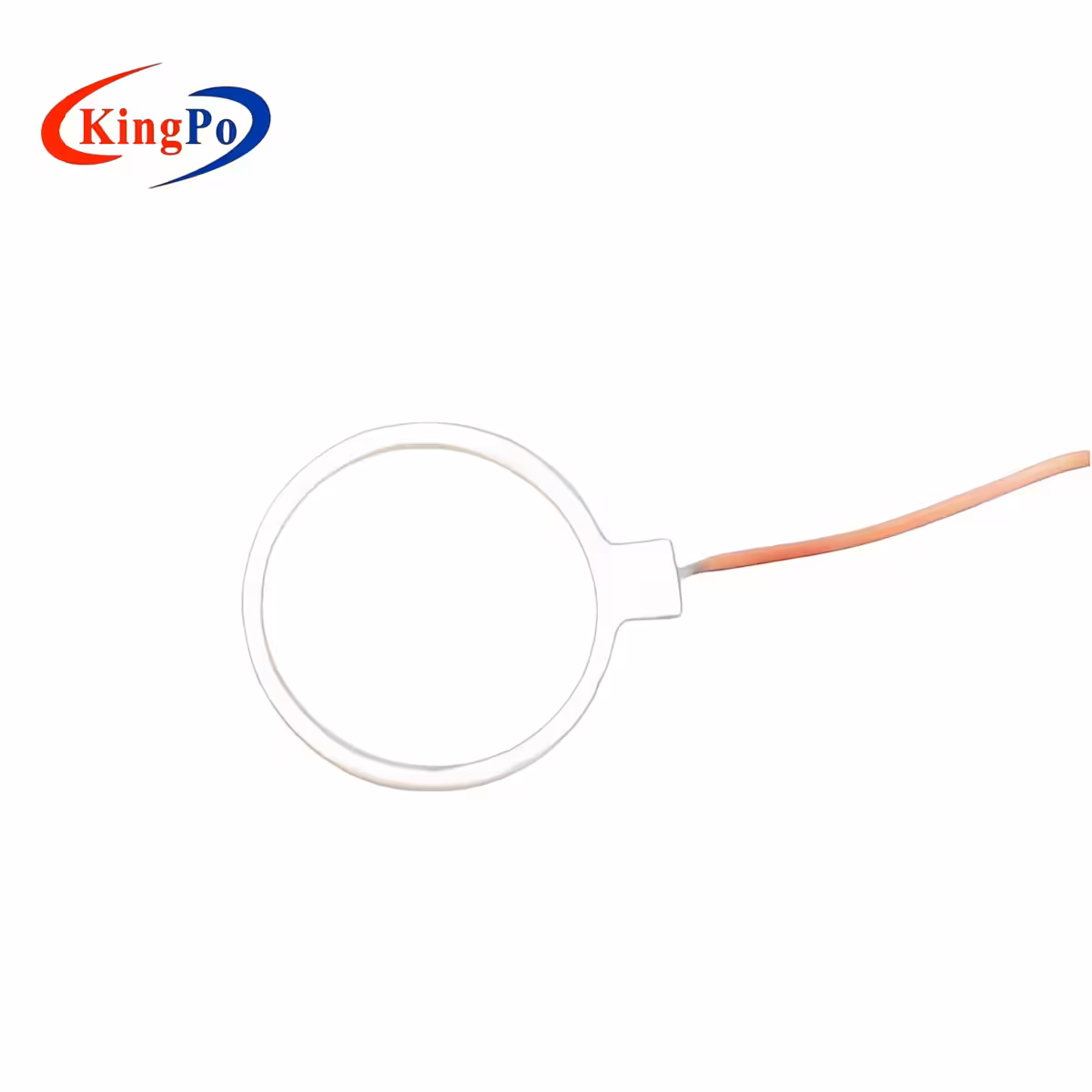

The KingPo IEC 62368 Aluminium Ring is a specialized test object used to verify the safety and Foreign Object Detection (FOD) efficacy of wireless power transmitters. In accordance with the thermal injury protection requirements of IEC 62368-1, this wireless charging foreign object test ring simulates metallic items—like jewelry or small hardware—that may be inadvertently placed on a charging surface. If the transmitter fails to detect this interference, eddy currents can cause the ring to reach hazardous temperatures. Our precision-engineered ring allows laboratories to measure this temperature rise with scientific accuracy.

As a dedicated IEC 62368 test aluminium ring, this component is essential for engineers performing Clause 9.6.2 (Radiated power transfer) compliance checks. By utilizing a specific 99.5% aluminium alloy, our rings provide a standardized reactive load that ensures your test results are globally comparable and meet the stringent audit requirements of international certification bodies.

KingPo Factory Advantages

KingPo maintains an industry-leading laboratory accessory production line, specifically focused on IEC 62368-1 and UL 62368-1 compliance tools. Unlike generic metal rings, our IEC 62368 aluminium ring is CNC-machined to a tolerance of ±0.05mm, ensuring the surface area and mass are perfectly balanced for repeatable testing. We utilize a proprietary thermocouple bonding technique that uses high-temp thermally conductive epoxy, ensuring the K-Type sensor remains in direct contact with the aluminium core even under rapid heating cycles. With a monthly capacity of 10,000 units, we support the world’s largest consumer electronics OEMs and third-party labs with rapid-response lead times and CNAS-traceable material reports.

Professional Construction & Technical Precision

• Standardized Geometry: Fully compliant with the inner/outer diameter and thickness ratios defined in IEC 62368-1 Figure 48.

• Advanced Thermal Sensing: Integrated Class 1 K-Type Thermocouple provides a temperature range from -40°C to +300°C with minimal thermal lag.

• Surface Consistency: The aluminium surface is treated to maintain stable emissivity and conductivity, preventing data drift caused by oxidation.

• FOD Specific Design: Optimized for 110kHz to 205kHz frequency ranges commonly used in Qi-certified and proprietary wireless charging protocols.

Primary Use Cases & Business Value

• Certification Readiness: A mandatory tool for obtaining CE, UL, and CCC marks for any device featuring wireless power transmission.

• R&D Safety Buffering: Helps firmware engineers calibrate the FOD sensitivity thresholds to prevent “nuisance tripping” while maintaining user safety.

• Supply Chain Quality Control: Benchmarking different wireless charging coil suppliers against a standardized IEC 62368 test aluminium ring to ensure consistent safety performance.

Compliance & Regulatory Assurance

This accessory is fully optimized for IEC 62368-1:2018 (Edition 3) and the latest IEC 62368-1:2023 (Edition 4) updates. It also aligns with the U.S. DOE Test Procedures for energy-consuming appliances involving wireless power. For laboratories pursuing ISO/IEC 17025 accreditation, we provide optional certificates of calibration and material purity analysis to ensure total measurement traceability.

Procurement Benefits

KingPo’s streamlined manufacturing allows us to offer the wireless charging foreign object test ring with a standard 7-day delivery window. By choosing a factory-direct specialist, you eliminate the risk of non-compliant test objects that can lead to costly re-testing. Contact our technical sales department for bulk pricing and detailed CAD specifications.
