IPX5 IPX6 Water Jet Test | IEC60529 IPX5 IPX6 test nozzle

Item	Specification	Remark / Notes
Applicable Standards	IEC 60529 IPX5 & IPX6	Supports both test levels in one system

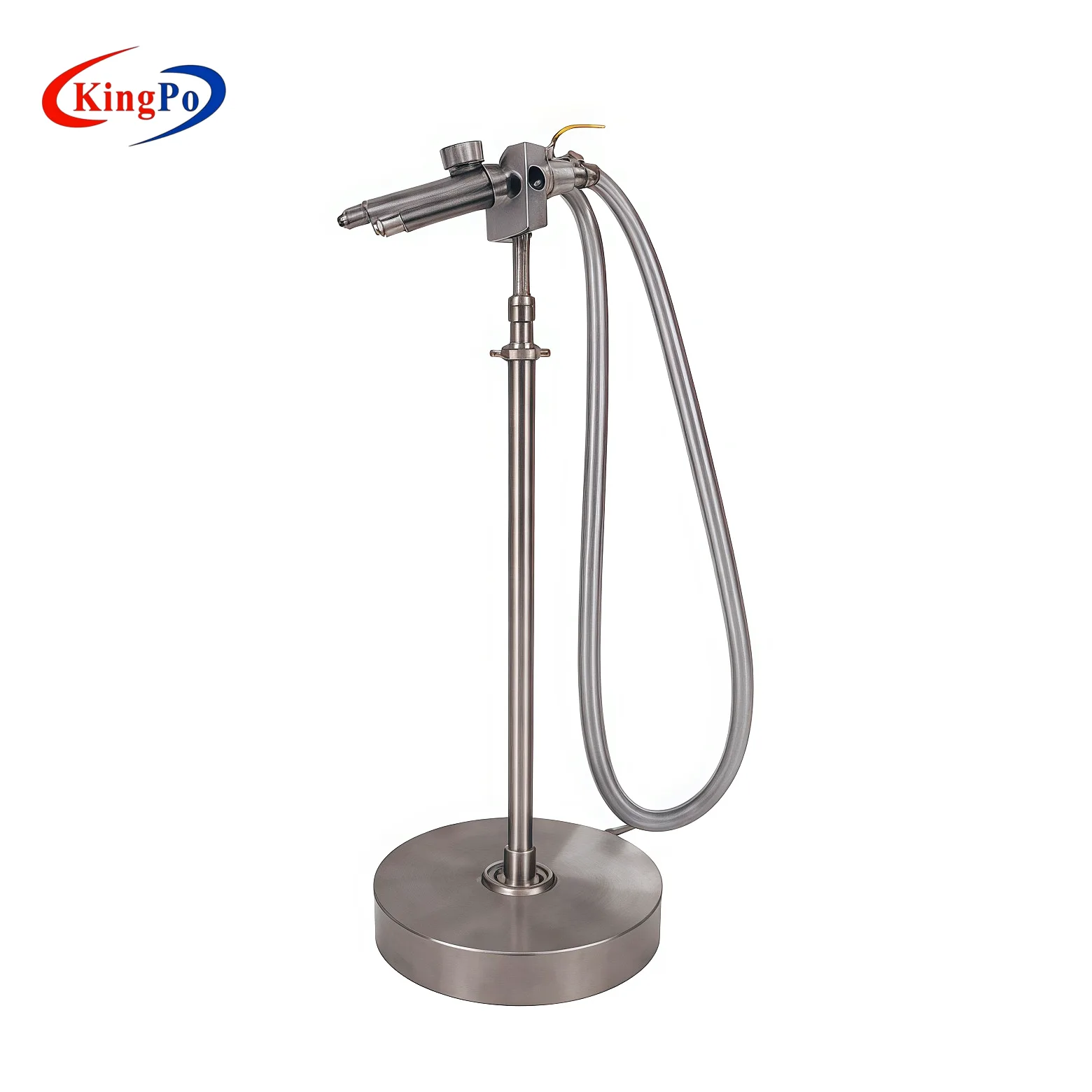

Test Method	Hose nozzle (handheld or supported)	Quick nozzle interchange between IPX5 and IPX6
IPX5 Nozzle Diameter	Φ6.3 mm	Standard for water jet testing
IPX6 Nozzle Diameter	Φ12.5 mm	Standard for powerful water jet testing
IPX5 Flow Rate	12.5 L/min ±5%	Core stream diameter ≈ 40 mm at 2.5 m
IPX6 Flow Rate	100 L/min ±5%	Core stream diameter ≈ 120 mm at 2.5 m
Water Pressure	Adjustable (approx. 30 kPa for IPX5; 100 kPa for IPX6)	Precise control for each test level
Test Distance	2.5–3.0 m	Per IEC 60529 requirements
Turntable Diameter	Φ600 mm (standard)	Load capacity ≤ 80 kg
Turntable Speed	1–10 rpm (adjustable)	Ensures uniform exposure
Turntable Height	500–1500 mm (adjustable)	Flexible sample positioning
Test Duration	Minimum 3 minutes (or 1 min/m²)	Adjustable per protocol
Control System	PLC + touchscreen	Easy switching between IPX5 and IPX6 modes
Water Management	Recirculating system with multi-stage filtration	Stable flow and pressure
Power Supply	AC 380V, 50Hz	Standard industrial power

Professional Construction & Technical Precision

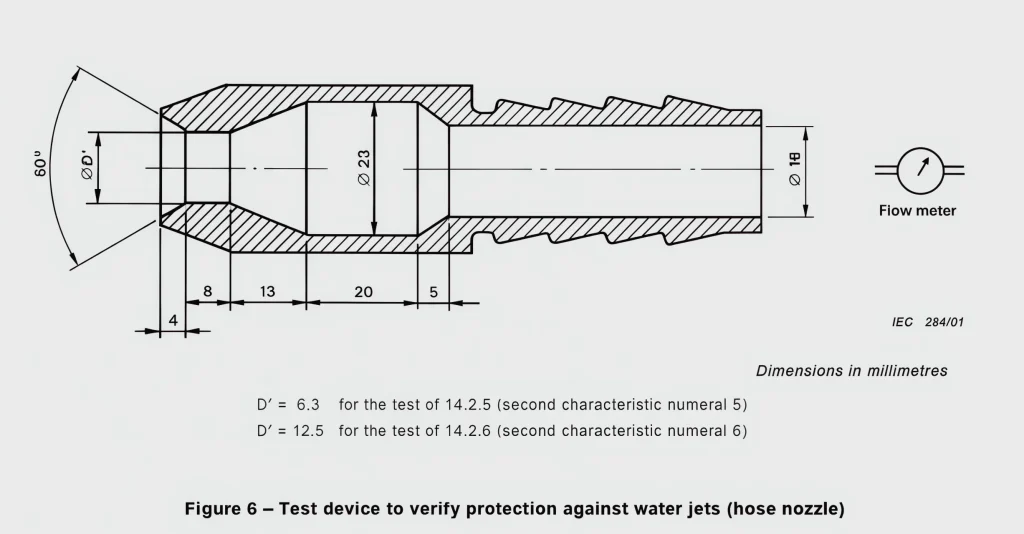

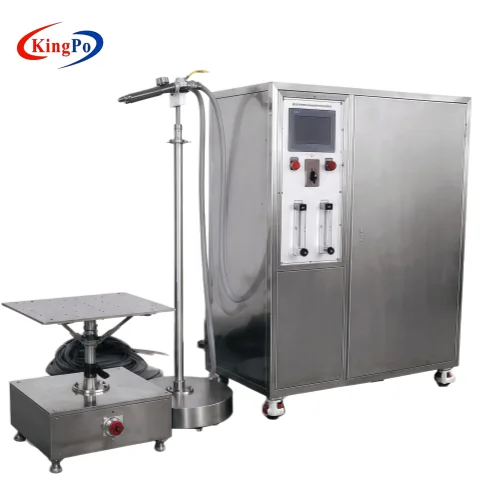

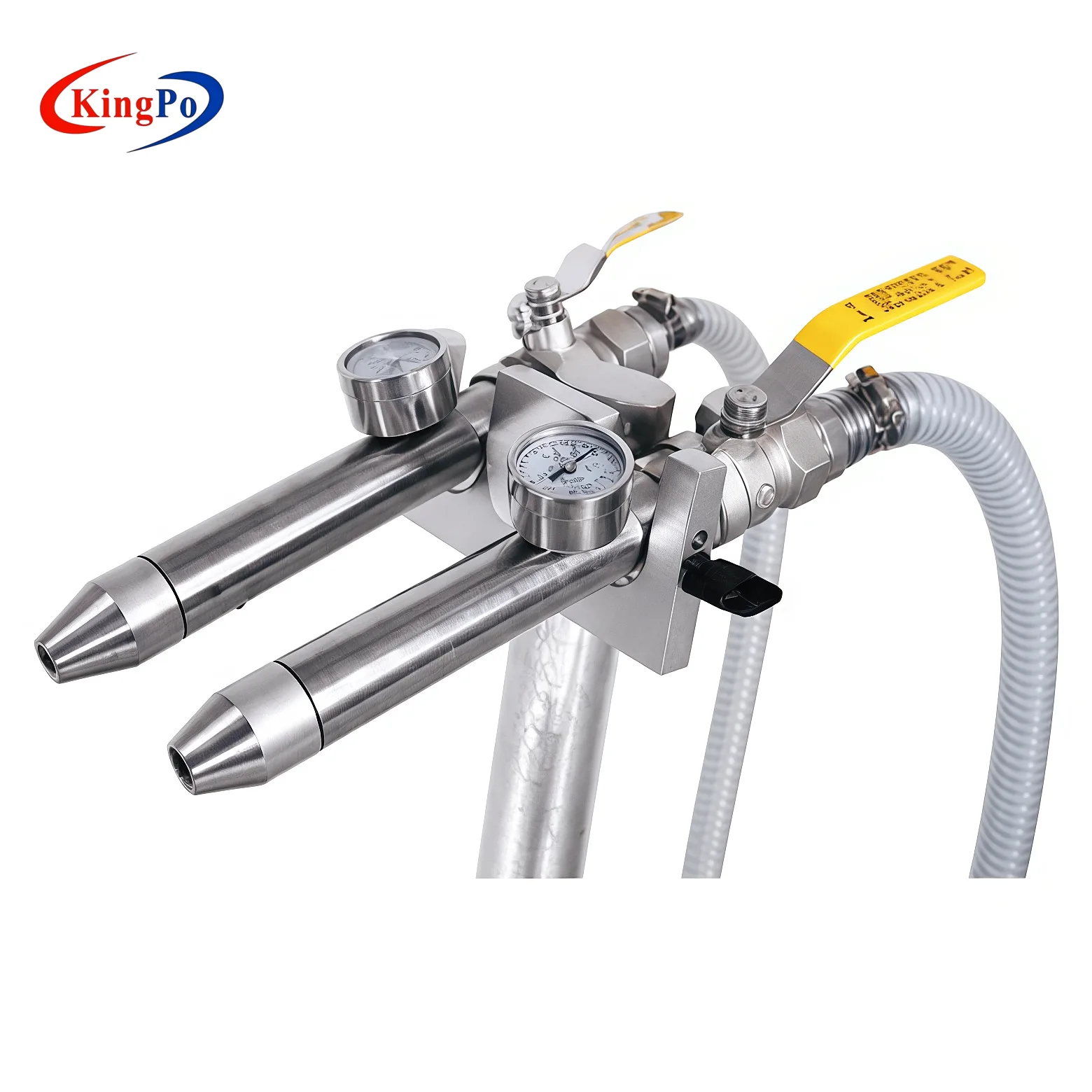

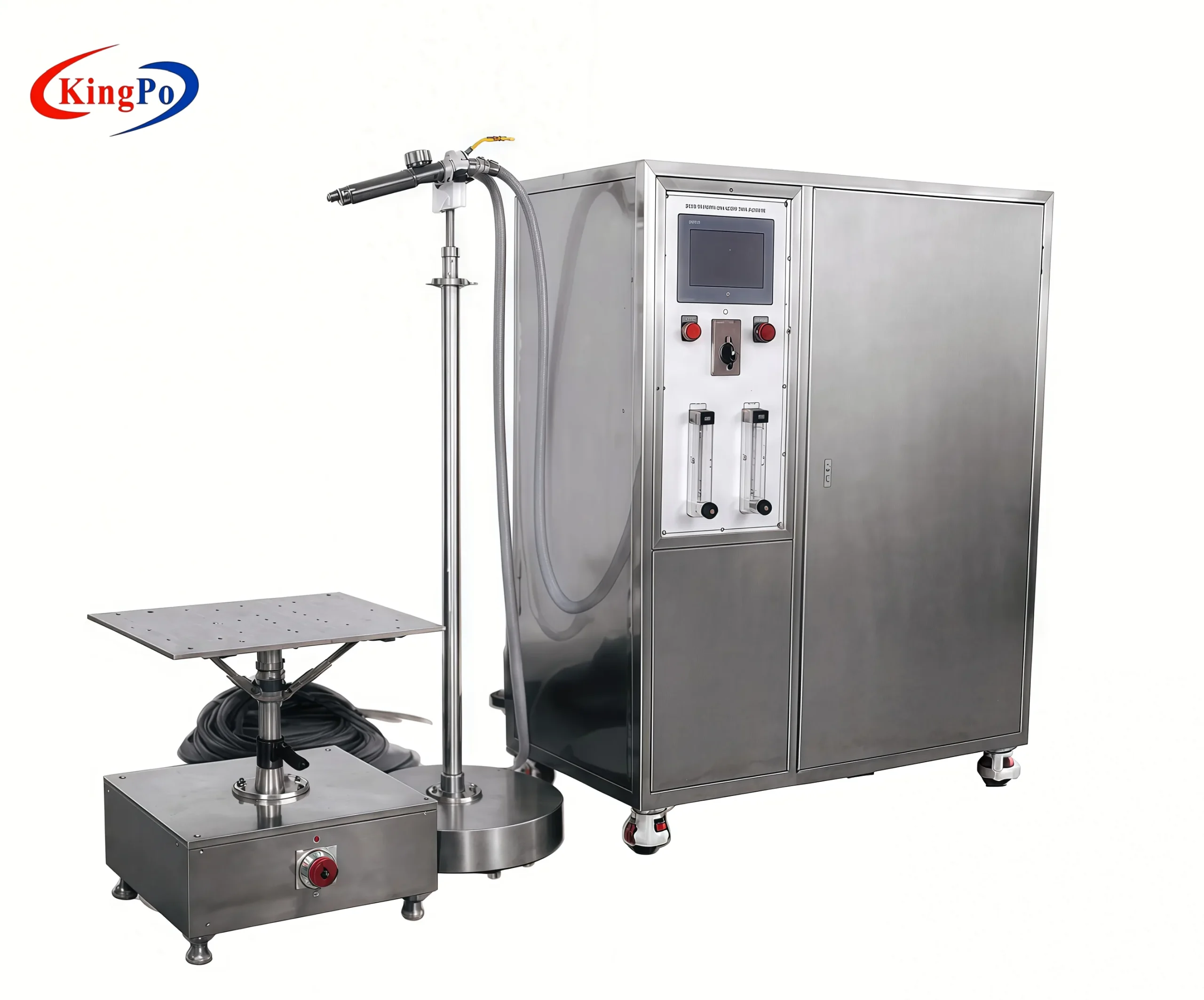

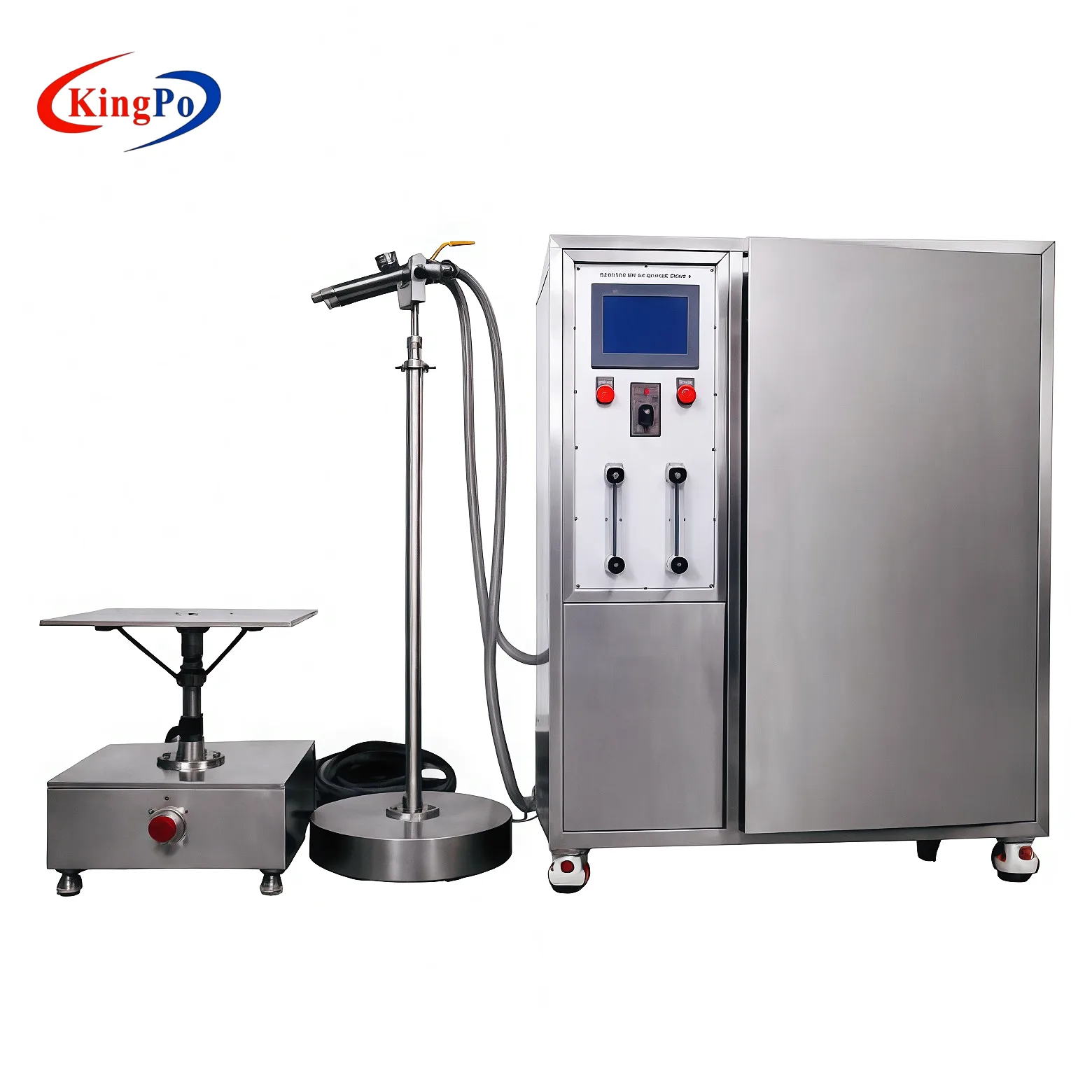

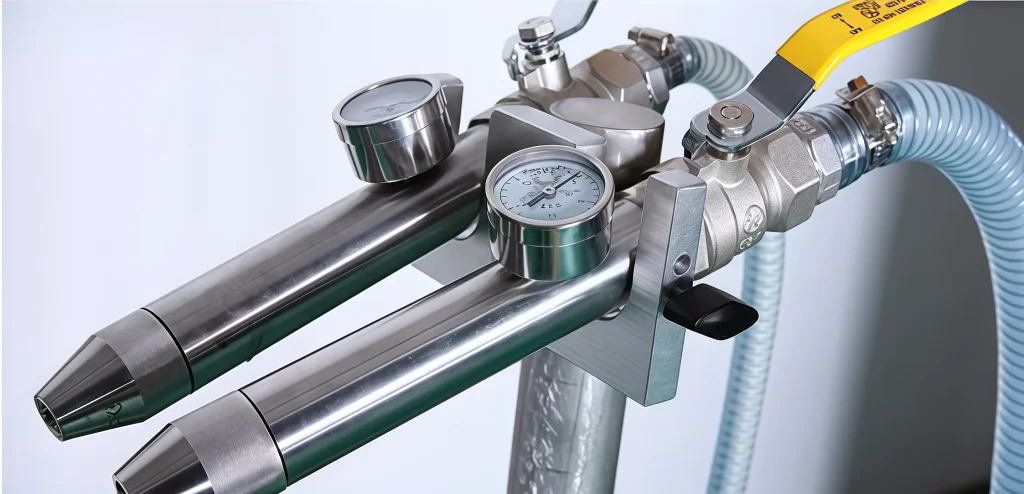

The IPX5 IPX6 Water Jet Test Chamber is constructed entirely from high-quality SUS304 stainless steel, delivering exceptional corrosion resistance even under prolonged exposure to high-volume water jets. Precision-machined interchangeable nozzles (Φ6.3 mm for IPX5 and Φ12.5 mm for IPX6) ensure exact flow rates and defined stream diameters in full accordance with IEC 60529.

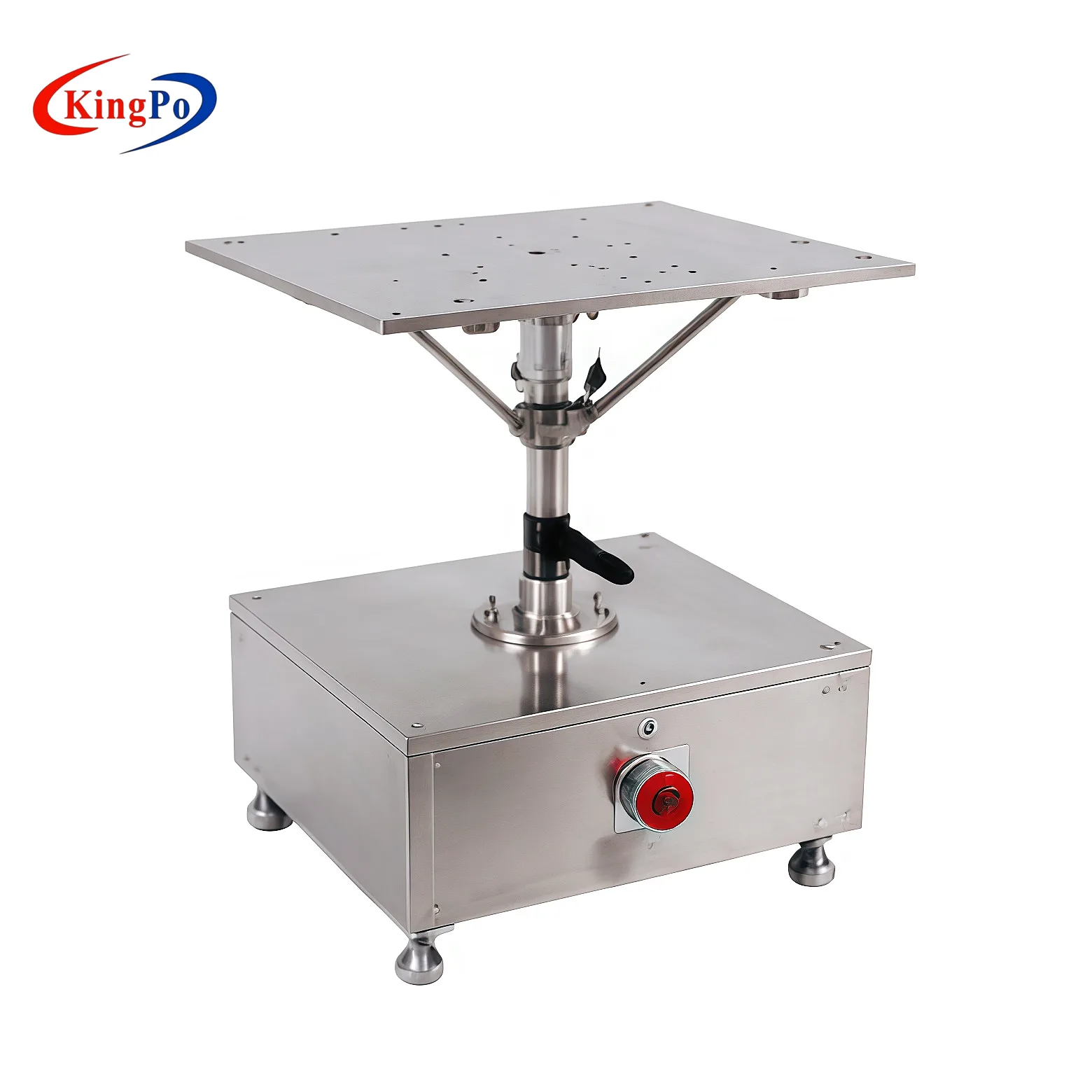

A robust rotating turntable with adjustable speed and height guarantees uniform exposure from all directions. The integrated recirculating water system with multi-stage filtration maintains stable flow and pressure while minimizing consumption, supporting efficient, continuous laboratory operation. This design accommodates both handheld nozzle use and fixed mounting, providing maximum flexibility across diverse specimen sizes and test configurations.

Testing Principle

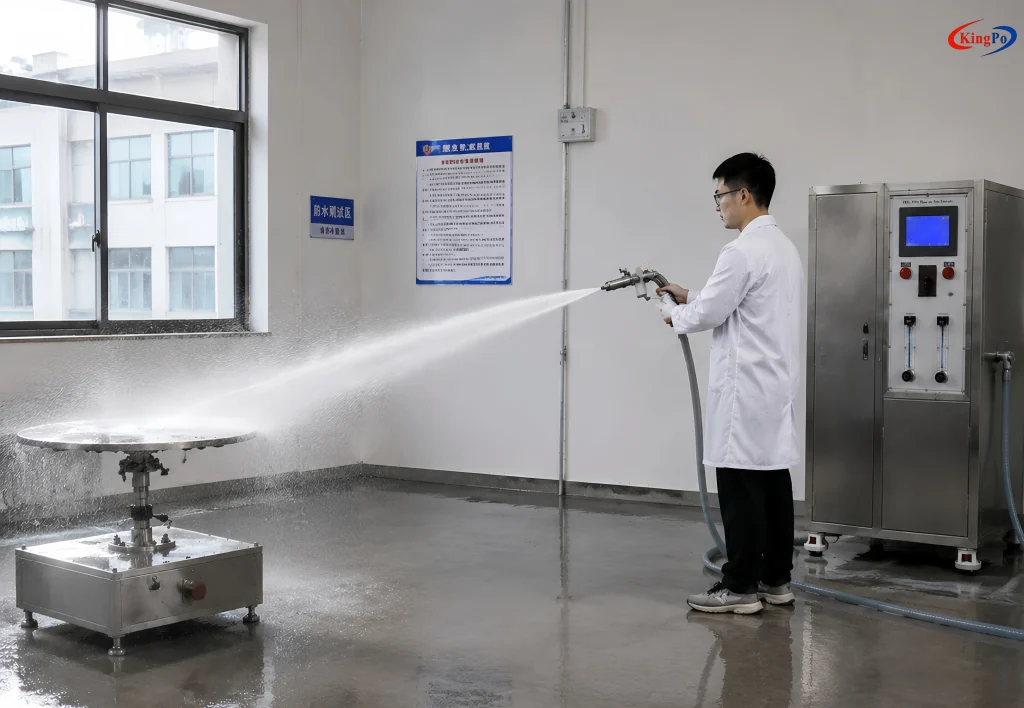

The IPX5 IPX6 Water Jet Test Chamber assesses enclosure protection against water jets (IPX5) and powerful water jets (IPX6) as specified in IEC 60529. A precision nozzle projects controlled water at a defined flow rate and pressure from 2.5–3.0 m onto the specimen mounted on a rotating turntable.

In IPX5 mode, the Φ6.3 mm nozzle delivers 12.5 L/min at approximately 30 kPa. In IPX6 mode, the Φ12.5 mm nozzle delivers 100 L/min at approximately 100 kPa. The turntable rotation ensures comprehensive, uniform exposure. Operators switch seamlessly between test levels by interchanging nozzles, enhancing laboratory efficiency while preserving full compliance with both standards.

Common Error Mitigation

To ensure accurate, repeatable, and fully compliant IPX5 and IPX6 test results, the following best practices are strongly recommended:

• Confirm the correct nozzle (Φ6.3 mm or Φ12.5 mm) and verify flow rate and pressure prior to each test series.
• Position the specimen precisely at the center of the turntable and secure it firmly.
• Maintain the required test distance of 2.5–3.0 m throughout the procedure.
• Perform regular nozzle inspection and cleaning to prevent blockages and sustain consistent stream performance.
• Document all key parameters—including nozzle size, flow rate, pressure, duration, and observations—for complete traceability and audit readiness.

Primary Use Cases & Business Value

The IPX5 IPX6 Water Jet Test Chamber delivers exceptional value by enabling both IPX5 and IPX6 testing within a single, highly efficient system. It minimizes capital expenditure and laboratory footprint, streamlines daily workflows, and accelerates overall testing throughput. This capability supports faster product development cycles and more cost-effective compliance with international standards.

Industrial Applications & Lab Scenarios

• Testing Laboratories — Streamlined IPX5 and IPX6 compliance testing with minimal equipment requirements
• Automotive and Transportation Manufacturers — Validation of water jet resistance for exterior components and electrical connectors
• Lighting and Luminaire Producers — Comprehensive waterproof verification for outdoor and industrial lighting fixtures
• Electrical Equipment Manufacturers — Ingress protection assessment of control cabinets and power distribution systems
• Quality Assurance and R&D Departments — High-efficiency water jet validation throughout product development and batch inspection

Strategic Procurement Advantages & Global Support

• Conduct both IPX5 and IPX6 water jet testing efficiently with a single system and rapid nozzle interchange
• Realize substantial cost savings through reduced equipment needs and smaller laboratory space requirements
• Achieve reliable, repeatable results via precise flow, pressure, and turntable control
• Ensure long-term durability with robust SUS304 stainless steel construction and advanced water management
• Benefit from responsive technical support, customization options, and expert guidance from our experienced engineering team
