ISO 20653 IPX6K Water Jet Test Equipment | Automotive IP Testing

ISO20653 IPX6K Waterproofing Testing Equipment，ISO20653 IPX6K Ingress Protection Test Equipment

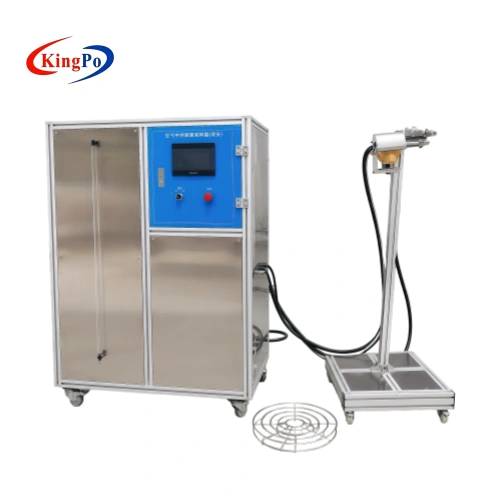

ISO 20653 IPX6K Water Jet Test Equipment is used to perform high-pressure water jet testing on road vehicle electrical components as specified in ISO 20653 IPX6K and DIN 40050-9. The system directs a powerful water jet from a Φ6.3 mm nozzle onto the test sample from a distance of 2.5–3.0 m to evaluate its ability to resist water ingress under high-pressure conditions.

This Automotive Waterproof Test Equipment is specifically designed for testing automotive sensors, EV connectors, vehicle lamps, battery pack parts, ECU housings, and other road vehicle electrical components. It supports manufacturers in product development, design validation, quality control, and compliance verification for components that must withstand powerful water jets during vehicle operation or high-pressure cleaning.

Technical Parameters

Professional Construction & Technical Precision

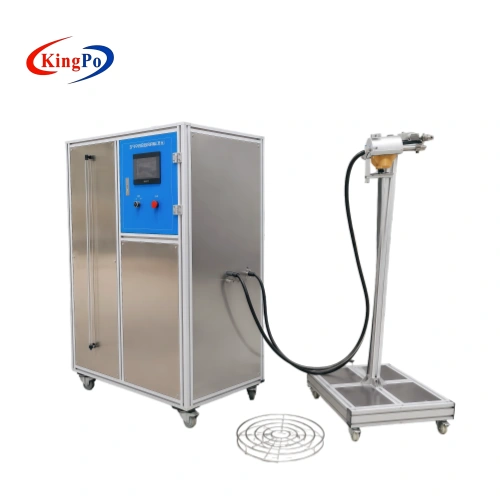

ISO 20653 IPX6K Water Jet Test Equipment features a robust stainless steel spray system and industrial-grade components to withstand high-pressure water jet testing. The Φ6.3 mm nozzle is precisely manufactured to deliver the powerful water jet required by ISO 20653 IPX6K for road vehicle applications.

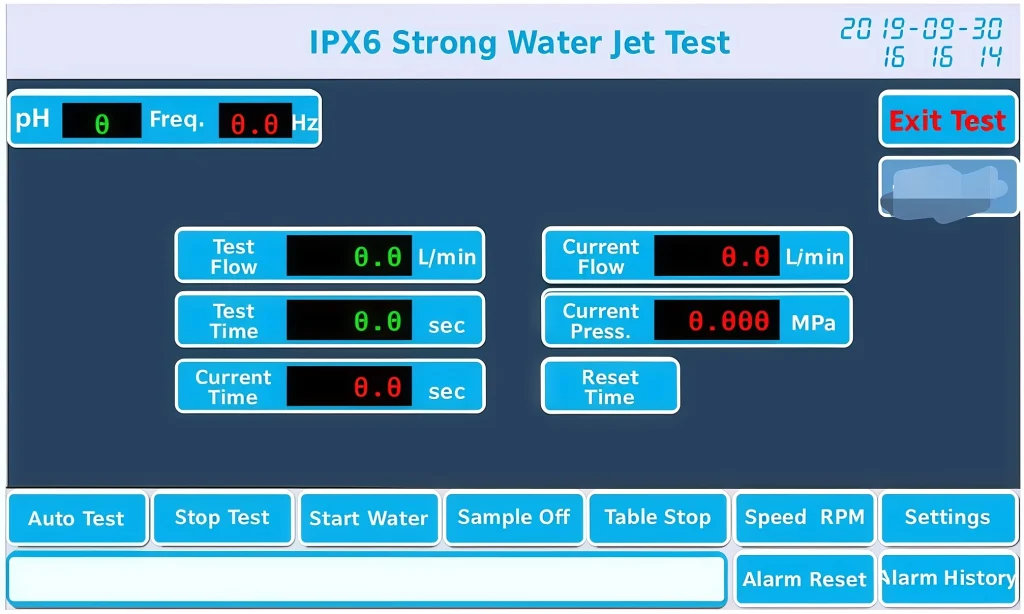

The equipment is equipped with a Mitsubishi PLC control system and frequency conversion technology, enabling stable water pressure and flow rate throughout the test. The rotatable sample table with stainless steel mesh structure ensures uniform water exposure from all directions while supporting safe and convenient testing of automotive sensors, EV connectors, battery pack parts, and other road vehicle electrical components.

Testing Principle

The IPX6K test exposes the equipment to a powerful water jet from a Φ6.3 mm nozzle at approximately 1000 kPa from a distance of 2.5–3.0 m for a minimum of 3 minutes. According to ISO 20653 and DIN 40050-9, this test simulates high-pressure water jet conditions that road vehicle electrical equipment may encounter during operation or high-pressure vehicle washing.

The test evaluates whether water can penetrate the equipment and affect its functionality, helping manufacturers ensure the waterproof reliability of components such as automotive sensors, EV connectors, vehicle lamps, battery pack parts, and ECU housings used in road vehicles.

Common Error Mitigation

To obtain accurate and consistent test results, the following practices are recommended:

• Ensure the nozzle is clean and free from blockage to maintain the required water pressure and jet pattern.
• Verify that the water pressure remains stable at approximately 1000 kPa throughout the test.
• Properly position the test sample at the correct distance (2.5–3.0 m) from the nozzle.
• Use the rotatable sample table to ensure uniform water exposure from all directions.
• Regularly inspect and maintain the high-pressure pump and filtration system to ensure stable performance.

Applications & Use Cases

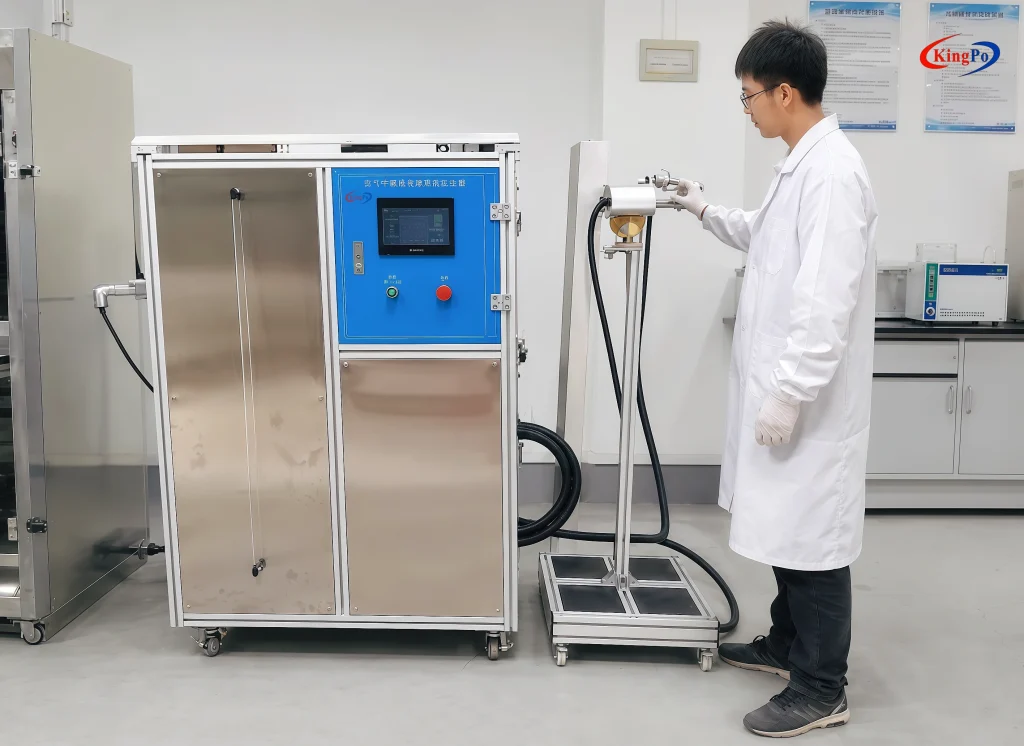

ISO 20653 IPX6K Water Jet Test Equipment helps automotive component manufacturers and testing laboratories verify that electrical equipment for road vehicles meets the high-pressure water jet protection requirements of ISO 20653 IPX6K and DIN 40050-9. It supports product development, design validation, quality control, and regulatory compliance for components used in passenger cars, commercial vehicles, and electric vehicles.

This equipment is commonly used by automotive electronics manufacturers for IPX6K high-pressure water jet testing, by electric vehicle component suppliers for waterproof testing of high-voltage parts, by testing laboratories for ISO 20653 IPX6K compliance testing, and by certification bodies for safety evaluation of road vehicle electrical components.

Key Advantages

This ISO 20653 IPX6K Water Jet Test Equipment is specifically designed for high-pressure water jet testing of road vehicle electrical equipment according to ISO 20653 IPX6K and DIN 40050-9. It provides automotive manufacturers and testing laboratories with a reliable solution to evaluate the waterproof performance of components such as automotive sensors, EV connectors, battery pack parts, and ECU housings.

The equipment is equipped with a precise Φ6.3 mm nozzle and a stable high-pressure water supply system with Mitsubishi PLC and touchscreen control. Frequency conversion technology ensures accurate and repeatable pressure and flow throughout testing, while technical support is available for equipment operation and ISO 20653 IPX6K test method application.
