Water Immersion Test Chamber โ IEC60529 IPX8 Pressure Immersion Test Equipment
Water Immersion Test Chamber performs IEC 60529 IPX7 and IPX8 pressure immersion testing for electrical enclosures and sealed components.
- Pressure range: 0โ0.3 MPa with 0.001 MPa resolution
- Depth simulation: Up to 30 m (IPX8) / 1 m (IPX7)
- Test timer: 0โ999 minutes, programmable
- Chamber material: SUS304 stainless steel, 3 mm wall thickness
- Observation window: Tempered glass for safe visual monitoring
- Control system: PLC color touchscreen with 15 programmable groups and USB data export
- Safety protections: Overload, short-circuit, water-shortage and buzzer alarm
- MOQ: 1
- Delivery Period: To be quoted
Water Immersion Test Chamber Description
IEC60529 IPX8 Ingress Protection Test Equipment For Pressure Immersion
The Water Immersion Test Chamber is a high-precision pressure immersion testing system designed to evaluate water resistance performance of electronic products, electrical enclosures and sealed components under IEC 60529 IPX7 and IPX8 conditions. It applies microprocessor-controlled pressure (0โ0.3 MPa) to simulate real-world water depths up to 30 m, delivering accurate and repeatable assessment of enclosure integrity against water ingress.
Testing Principle
The chamber submerges the test specimen in water and applies controlled pressure using a microprocessor system. For IPX8 testing, pressure is increased to simulate greater depths while monitoring for water ingress. The PLC controller maintains stable pressure and automatically records test duration, ensuring compliance with standardized immersion conditions.

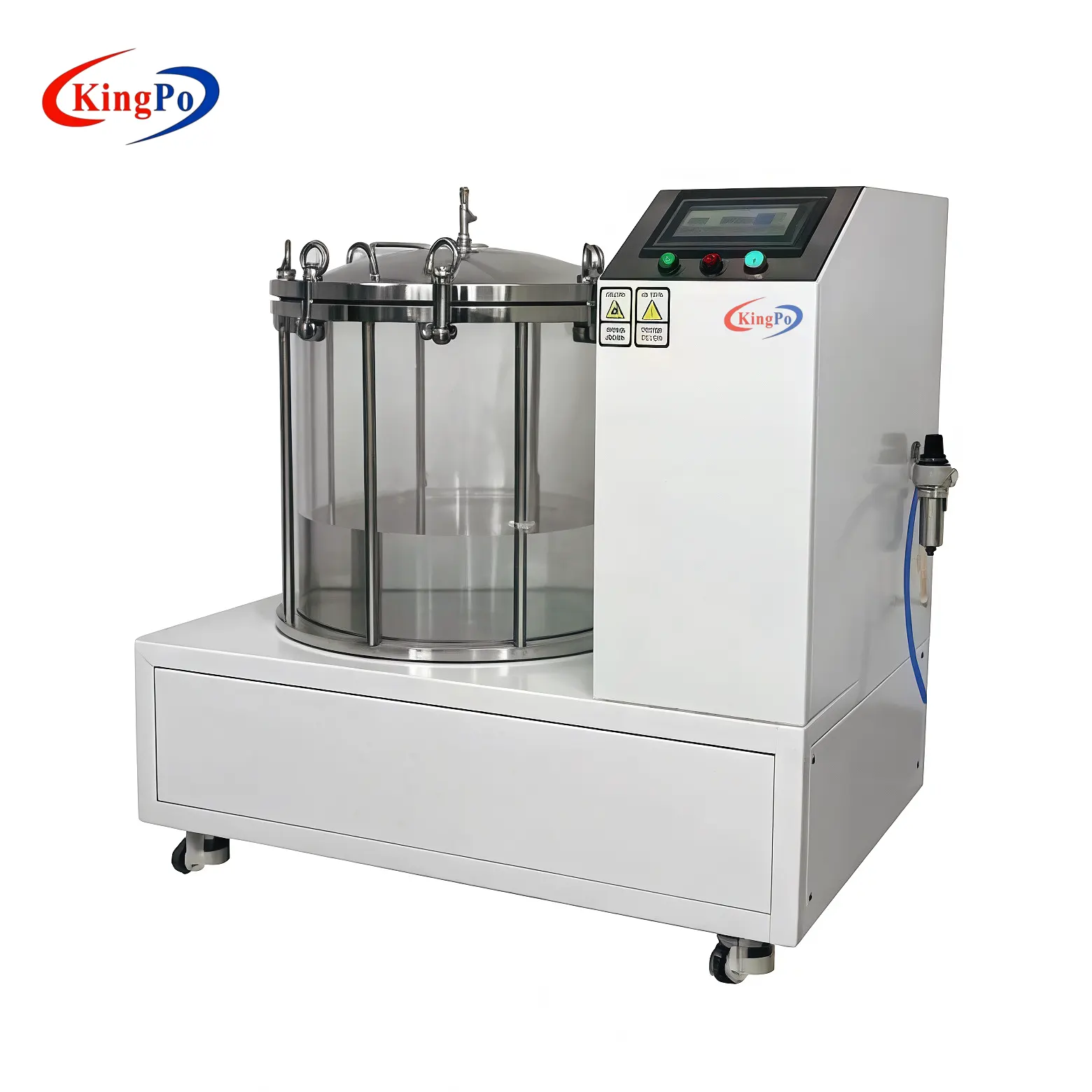

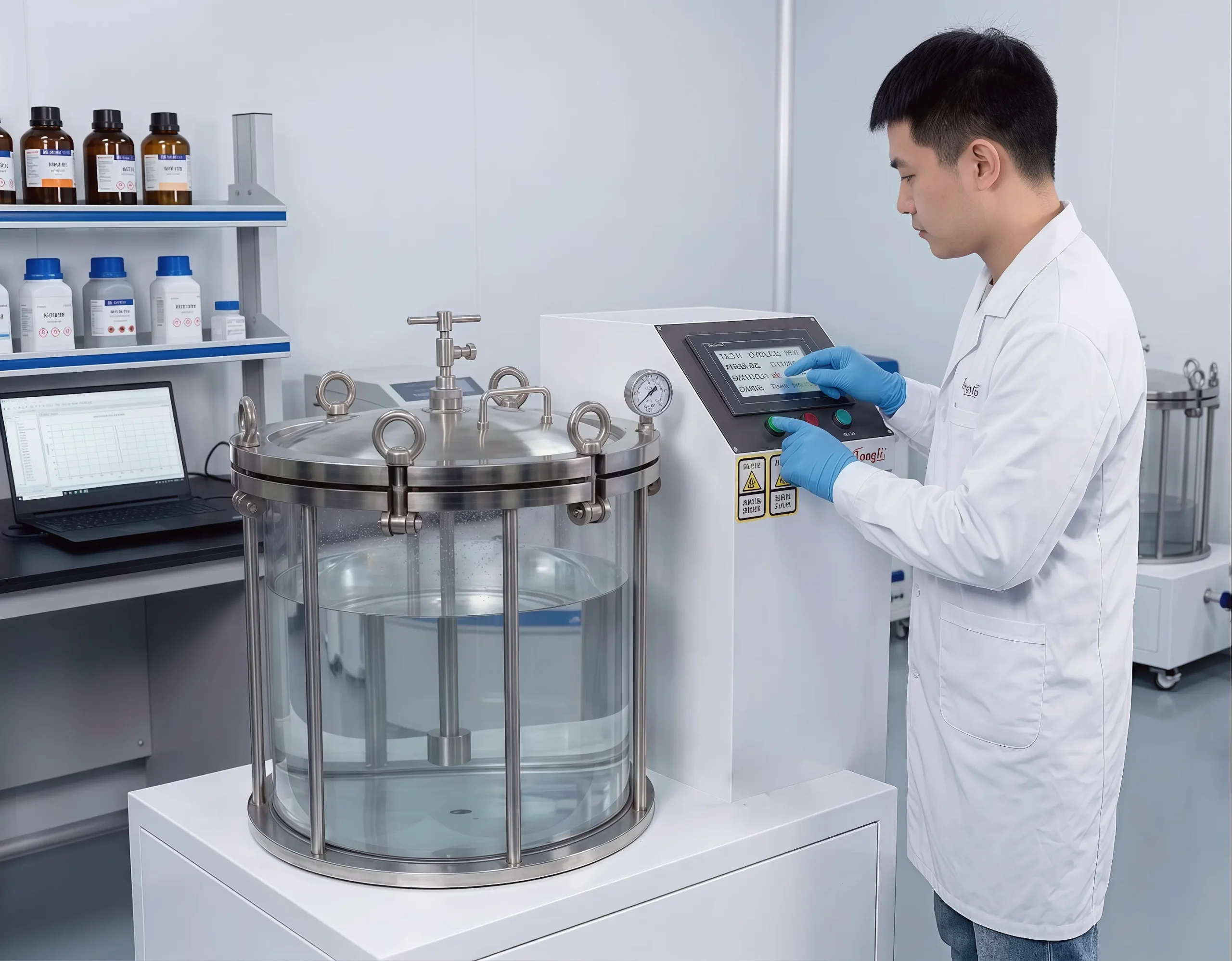

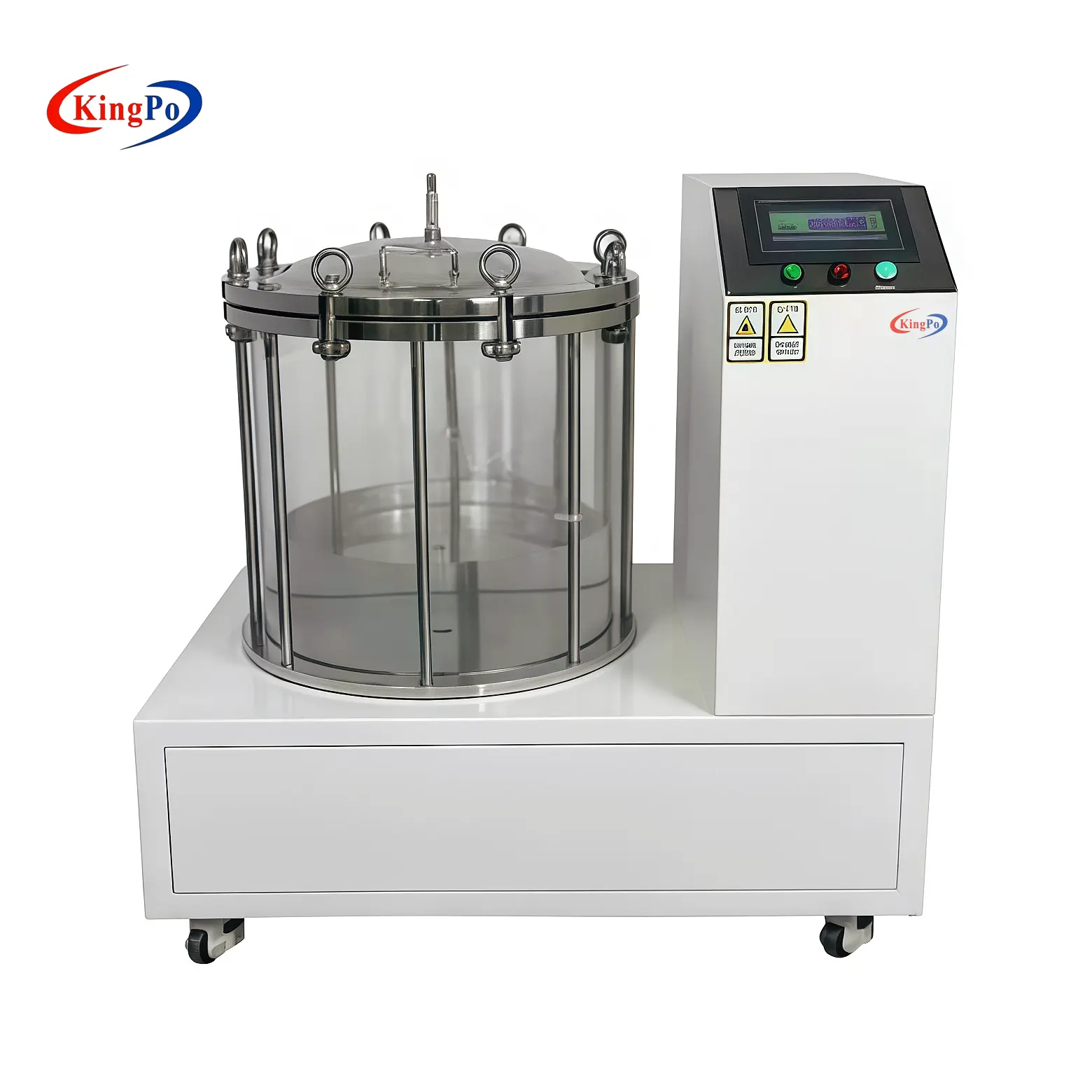

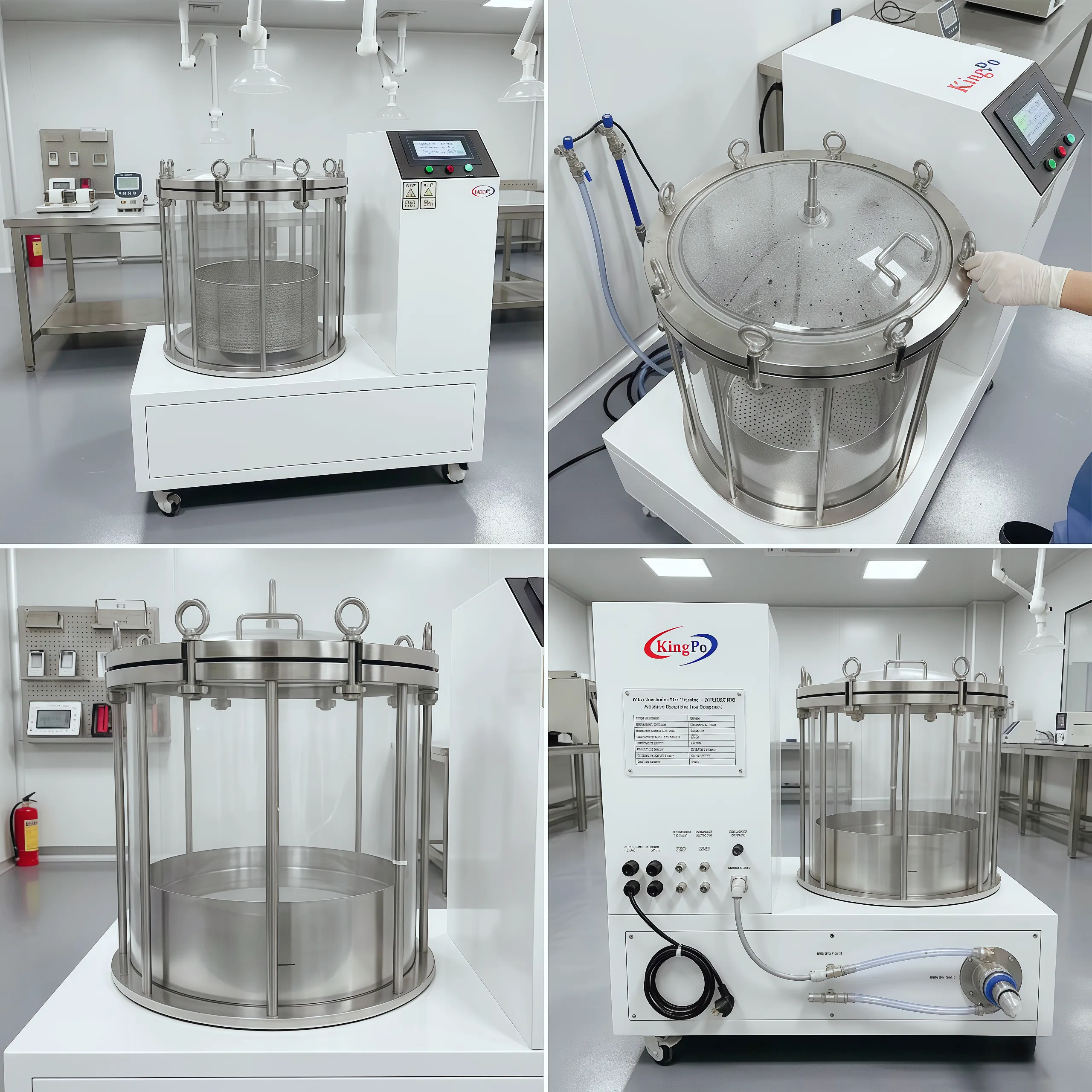

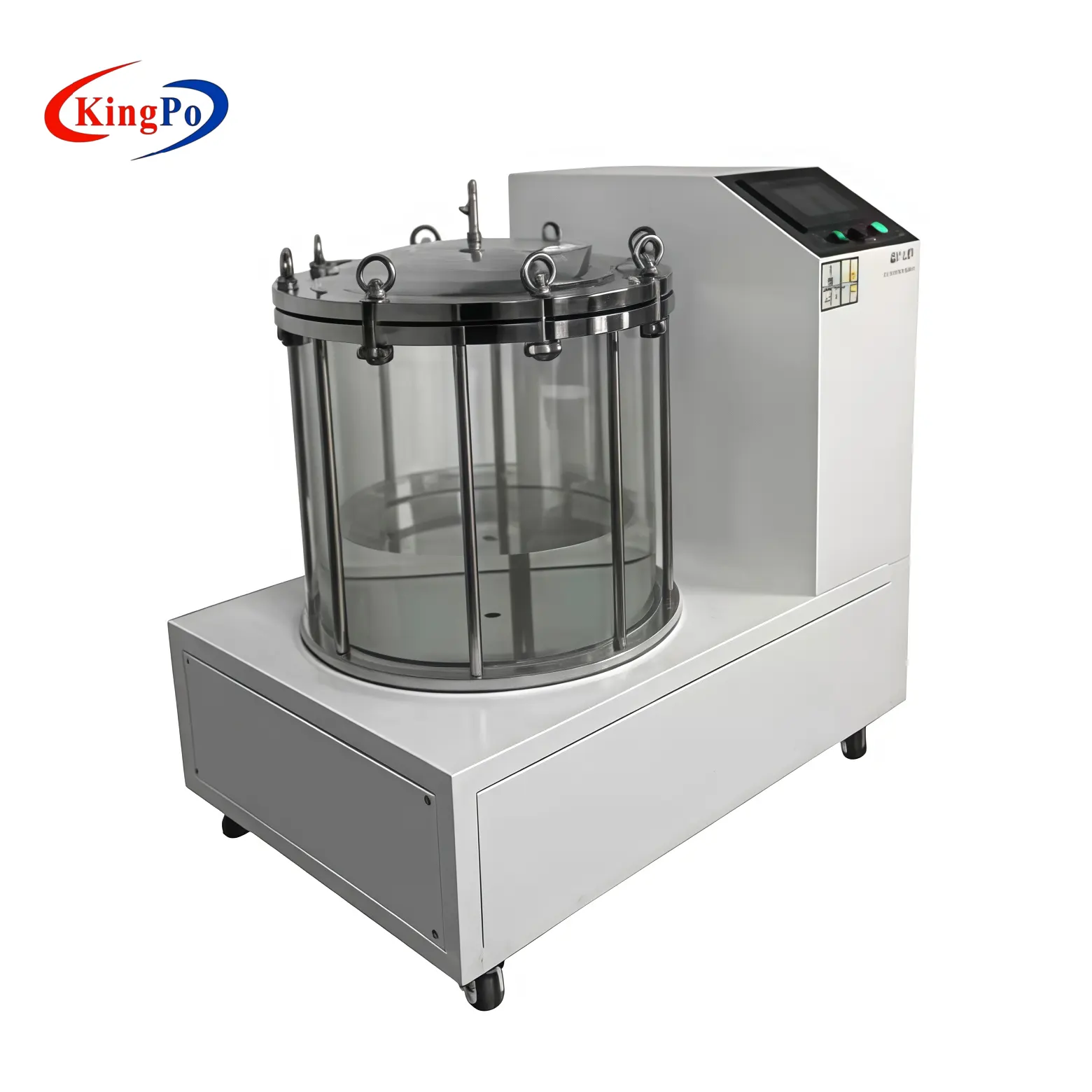

water immersion test chamber overall overview
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer, also holding SGS, PSE and RoHS certifications. We specialize in ingress protection and environmental testing equipment and have supplied water immersion test chambers to electronics manufacturers and certification laboratories worldwide. Each unit undergoes rigorous calibration and is delivered with complete documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- Heavy-duty SUS304 stainless steel chamber with 3 mm wall thickness and silicone gasket sealing for superior leak prevention
- Tempered glass observation window for safe visual monitoring during pressure immersion testing
- Microprocessor-controlled pressure system with digital sensor accuracy of 0.001 MPa and 0.2% FS overall accuracy
- Multiple safety protections including overload, short-circuit, water-shortage and buzzer alarm
- PLC color touchscreen controller supporting 15 programmable parameter groups with USB data export
- Automatic drainage valve and customizable specimen holders for 1โ3 samples per cycle
These engineering features ensure high accuracy, excellent repeatability and reliable long-term operation for IPX7/IPX8 water immersion testing.
Technical Parameters
Core Test Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Pressure Range | 0โ0.3 MPa | Digital sensor accuracy 0.001 MPa |
| Immersion Depth Simulation | Up to 30 m (IPX8) / 1 m (IPX7) | Microprocessor controlled |
| Timer Range | 0โ999 minutes | Adjustable with automatic stop |
| Test Accuracy | 0.2% FS / 1 mm depth | Meets IEC60529 and GB/T 4208 |
| Specimen Capacity | 1โ3 samples per cycle | Customizable holders |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Chamber Material | SUS304 stainless steel | 3 mm wall thickness |
| Observation Window | Tempered glass | Safe visual monitoring |
| Seal Type | Silicone gasket | Leak-proof |
| Control Mode | PLC + color touchscreen | USB data export, 15 parameter groups |
| Safety Protections | Overload, short-circuit, water-shortage, buzzer alarm | Automatic pressure relief valve at 0.35 MPa |
| Power Supply | AC 220 V, 50 Hz | 60 W (main unit) |
| External Dimensions | Approx. 400 ร 350 ร 185 mm | Weight โ 9.5โ120 kg depending on configuration |
The water immersion test chamber supports critical stages across the product lifecycle:
- Product Development โ Validate waterproof design of new diving equipment, automotive sensors, connectors and outdoor electrical enclosures under realistic deep-water conditions
- Certification Testing โ Generate comprehensive data packages for IEC60529 IPX8 and related compliance submissions
- Quality Control โ Perform efficient batch verification of continuous immersion resistance during production
- Failure Analysis โ Identify seal degradation, water ingress paths or material weaknesses after exposure to high-pressure submersion
By providing realistic and repeatable test conditions, the chamber significantly improves product durability, reduces costly field failures and accelerates time-to-market for IPX8-rated components.
Procurement Benefits
Procurement Benefits The chamber features a robust SUS304 construction, precise pressure control, PLC touchscreen operation and comprehensive safety interlocks in a compact, reliable design. It delivers consistent, repeatable test results with minimal maintenance, making it a practical solution for IPX7 and IPX8 water immersion testing.
Water Immersion Test Chamber Applications
- Electronic products โ waterproof integrity testing of sealed components
- Electrical enclosures โ IPX7 and IPX8 protection verification
- Automotive components โ sensors, connectors and control units water resistance testing
- Certification laboratories โ compliance testing according to IEC 60529
- R&D departments โ optimization of sealing design and material performance
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 60529 for water immersion testing. It provides a standardized method to evaluate IPX7 and IPX8 performance, ensuring enclosures meet the required water protection levels for electrical safety and reliability.
For detailed information on water immersion testing, please refer to the latest edition of IEC 60529.

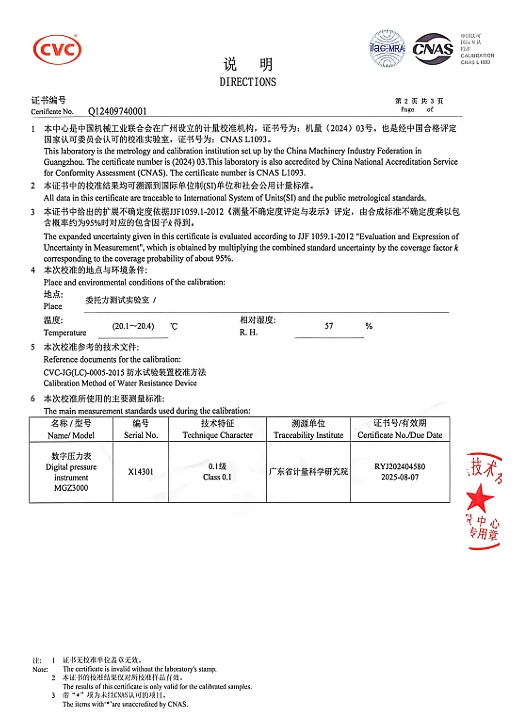

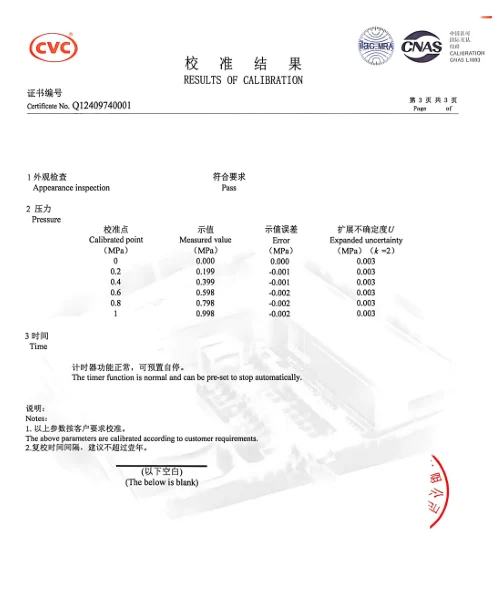

Regular verification of pressure sensor accuracy and system performance is recommended to maintain traceability.
Technical Inquiry for Water Immersion Test Chamber
KingPo specializes in ingress protection testing equipment. If you require precise IEC 60529 IPX7 and IPX8 water immersion testing, our engineering team can provide technical support and configuration recommendations.
The Core Value We Deliver to You
- Precise pressure control from 0โ0.3 MPa simulating 0โ30 m depth
- Robust ฯ500 ร H500 mm SUS304 chamber with 20 mm tempered glass cover

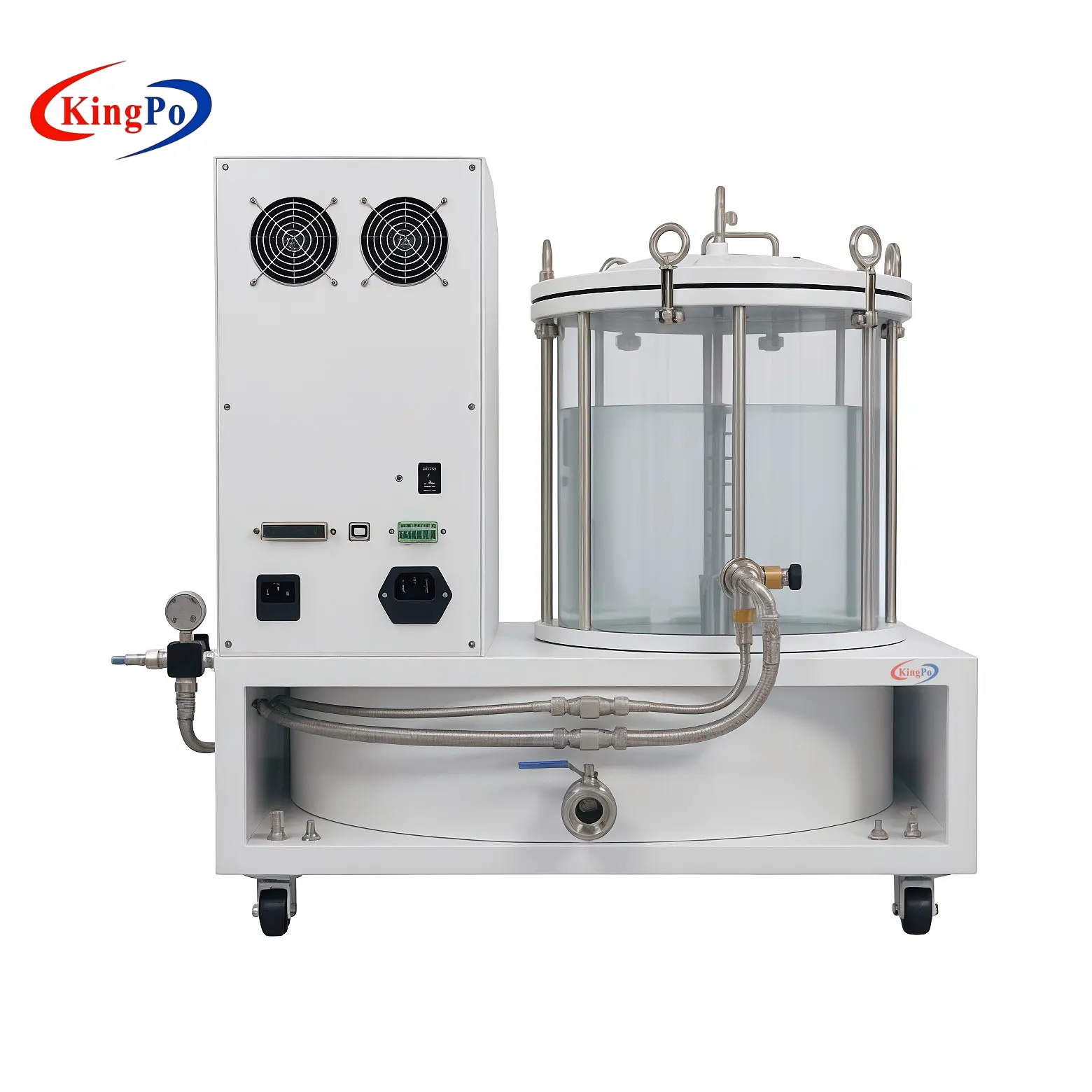

- Safety valve and multiple protection systems for safe operation
- PLC touchscreen for easy programming and real-time monitoring
- Reliable compliance with IEC60529 IPX8 and related standards
Tell us your product types, required test depth or special requirements โ our engineering team will reply with tailored recommendations within 24 hours.
