Toilet Seat Endurance Test Apparatus – IEC 60335-2-84 1250N Test Equipment

Toilet Seat Endurance Test Apparatus for Power Tool Safety Compliance

The Toilet Seat Endurance Test Apparatus is a professional, high-precision testing system manufactured by KingPo. It is specifically designed to perform the rigorous endurance test specified in IEC 60335-2-84 Clause 21.103.1 for toilet seats and similar household appliances. The system applies an evenly distributed force of 1250 N perpendicularly to the seat for 4 seconds using a calibrated rubber disc (Ø300 mm, thickness 10 mm, Shore A 70°) combined with a steel disc (Ø300 mm, thickness 5 mm), repeating the cycle 20,000 times to verify long-term mechanical durability and safety performance under repeated loading conditions.

Why This Toilet Seat Endurance Test Apparatus Meets the Needs of OEMs and Certification Laboratories？

• Large-scale manufacturers and accredited testing laboratories require precise, repeatable and fully traceable endurance testing to comply with IEC 60335-2-84 safety requirements. This tester applies an evenly distributed 1250 N force perpendicularly to the seat for 4 seconds using a calibrated rubber disc and steel disc, repeating the cycle 20,000 times. With adjustable force up to 2000 N, digital pressure sensing and PLC control, it delivers the accuracy and automation demanded by professional organizations.

KingPo Factory Advantages

KingPo is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer specializing in household appliance safety testing equipment. We have delivered numerous Toilet Seat Endurance Test Apparatus units to leading OEMs, certification laboratories and testing organizations worldwide. Every system undergoes rigorous factory calibration and is supplied with comprehensive documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.

Professional Construction & Technical Precision

Key features include:

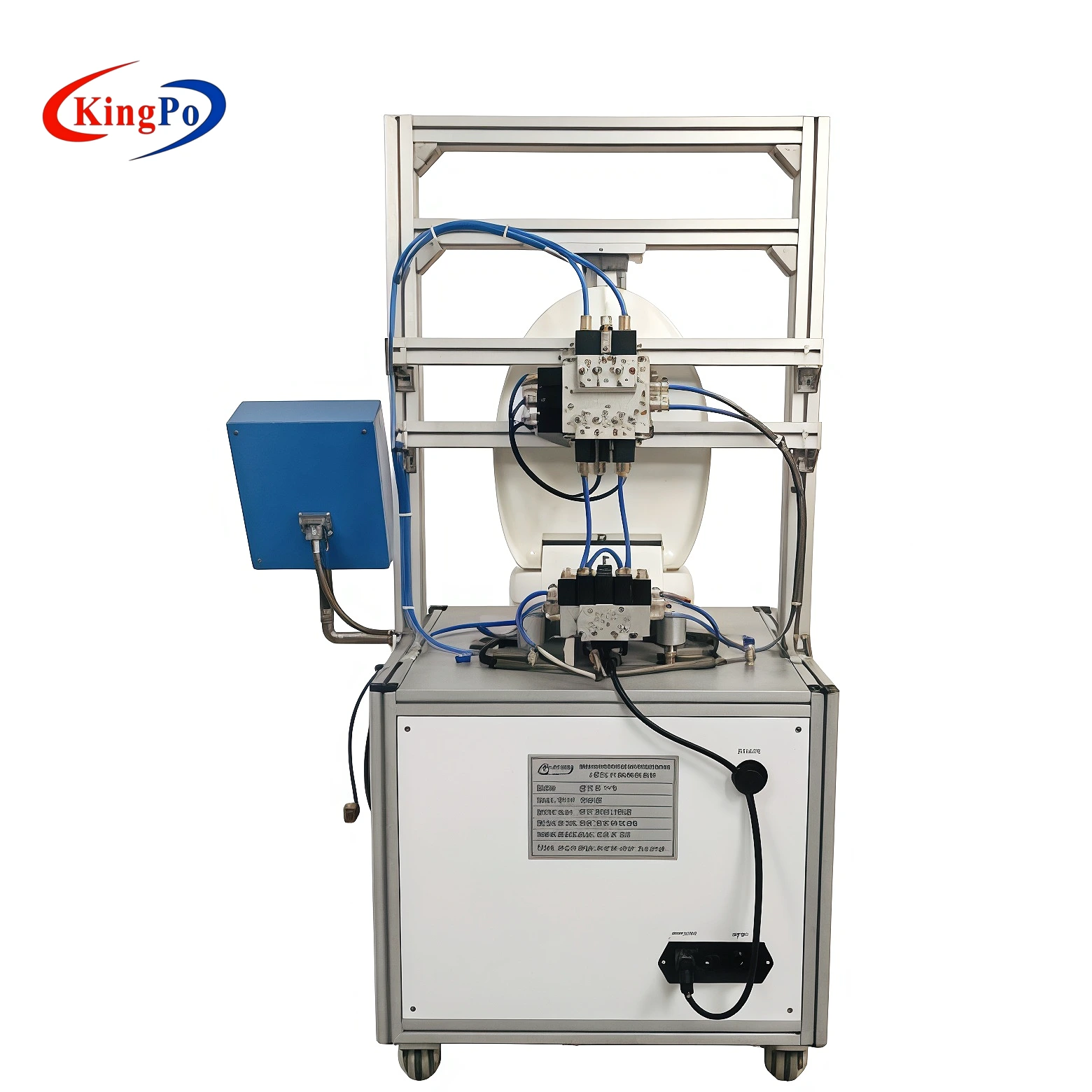

• Cylinder-driven force application: Pneumatic cylinder with precise pressure regulation delivers 0–2000 N force range, ensuring stable and repeatable 1250 N loading as required by IEC 60335-2-84 Clause 21.103.1.

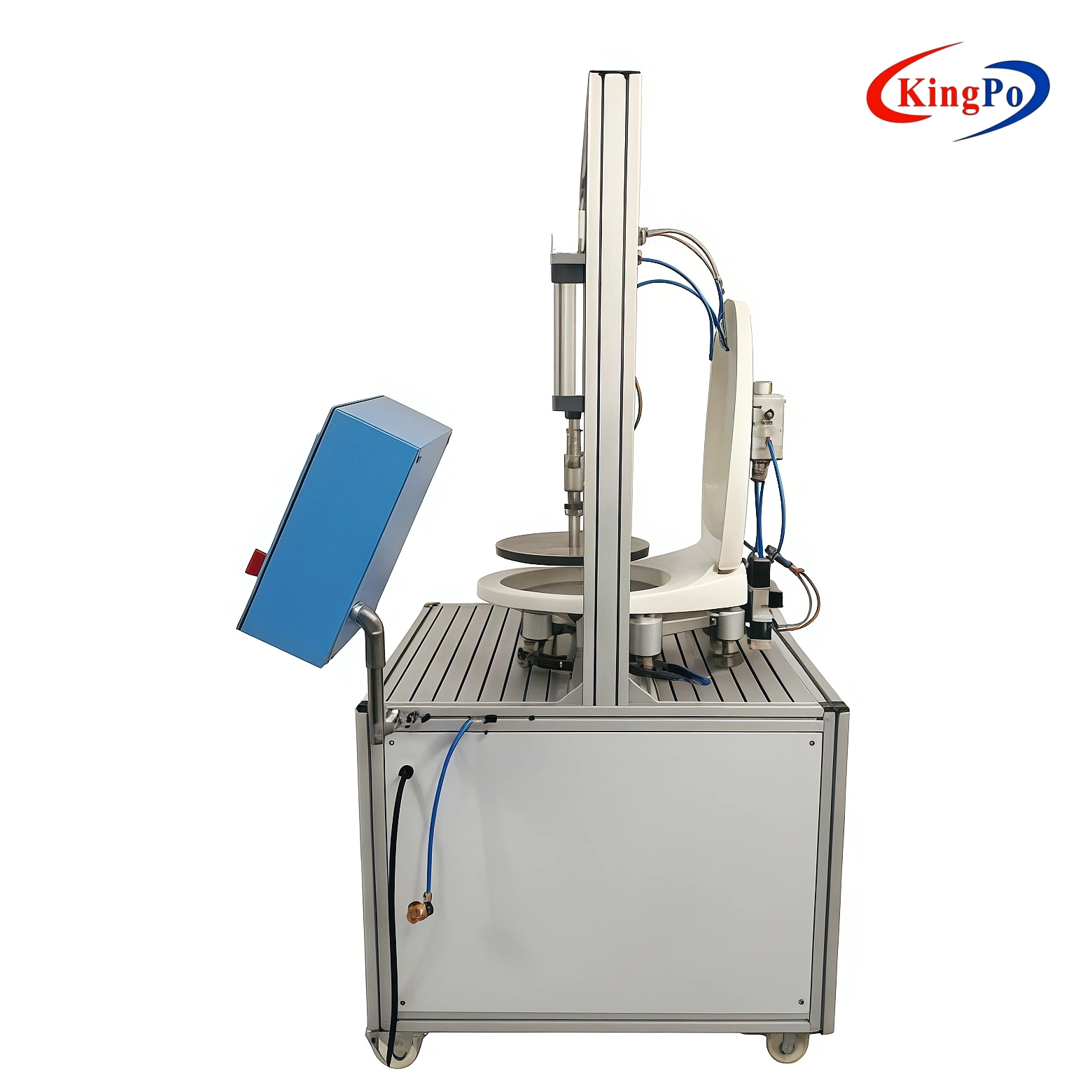

• Precision test discs: Ø300 mm rubber disc (thickness 10 mm, Shore A 70°) combined with Ø300 mm steel disc (thickness 5 mm) provides uniform force distribution and complies exactly with the standard test piece specification.
• Digital pressure sensor: High-accuracy real-time force monitoring with digital display and data logging, guaranteeing traceable and repeatable test results.

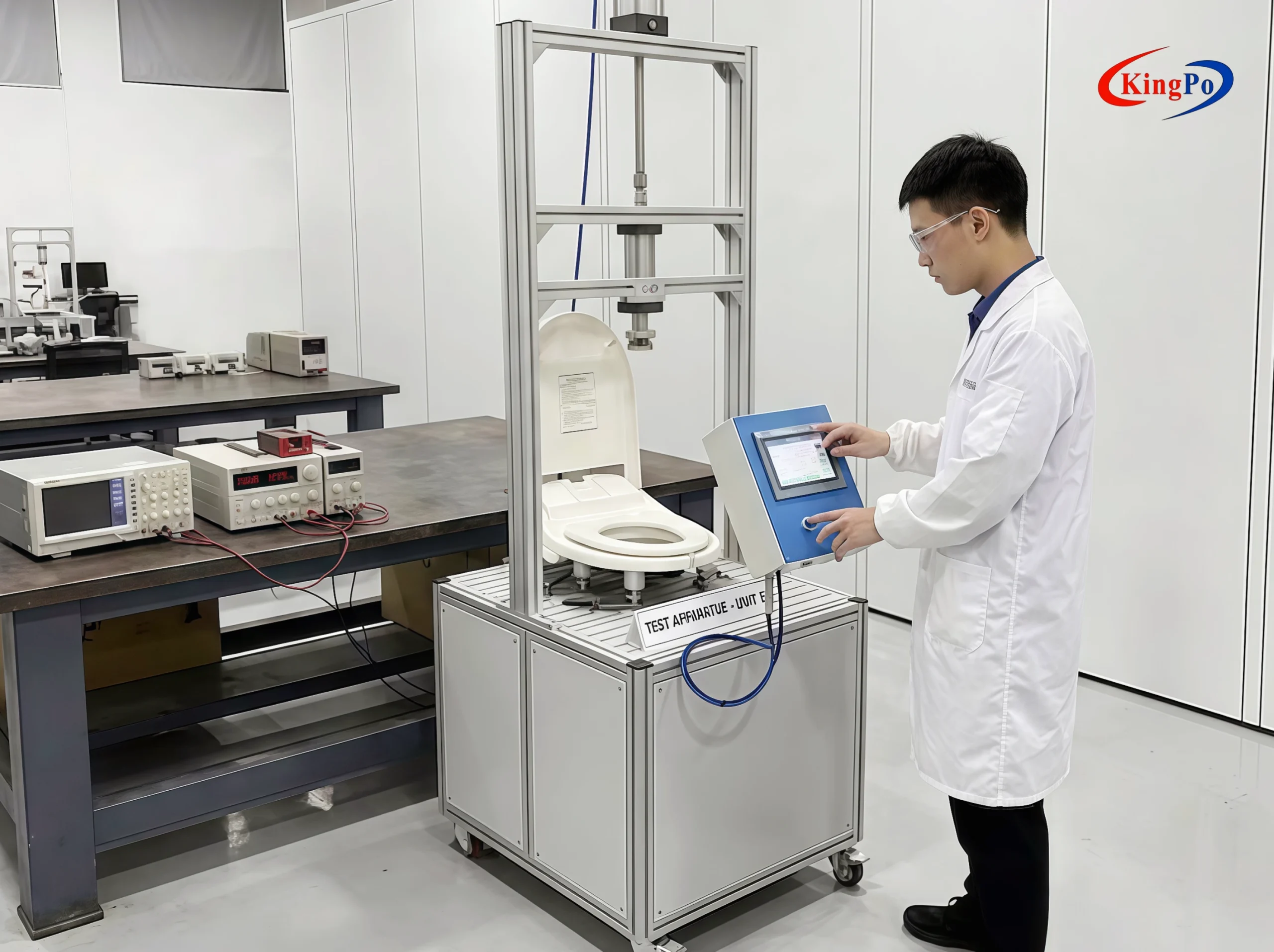

• PLC + touch screen control system: Fully programmable test cycles, automatic stop function, cycle counting (0–99,999) and power-off memory for reliable long-duration endurance testing.
• Industrial aluminum frame: Rigid welded structure with high stability and vibration resistance, designed for continuous laboratory and production-floor operation.

These engineering features deliver the accuracy, repeatability, and operational reliability demanded by IEC 60335-2-84 testing.

Technical Parameters

Core Test Parameters

The Toilet Seat Endurance Test Apparatus supports critical stages: product development validation of new toilet seat designs, certification testing for IEC 60335-2-84 compliance, production quality control of batch appliances, and failure analysis of mechanical durability issues. It helps manufacturers ensure long-term reliability, reduce field failures and accelerate product certification.

Procurement Benefits

Precise cylinder-driven force application with digital sensing delivers consistent, repeatable results with minimal operator intervention. Robust industrial aluminum construction ensures long-term reliability. This Toilet Seat Endurance Test Apparatus strengthens IEC 60335-2-84 validation and minimizes quality risks. Contact us today for your quote – we will respond within 24 hours with detailed technical specifications and pricing.

Toilet Seat Endurance Test Apparatus Applications

• Smart Toilet Manufacturing: Verifying the structural durability of electronic toilet seats under the 1250 N load of the Toilet Seat Endurance Test Apparatus.
• Safety Certification Labs: Providing repeatable and traceable test data for IEC 60335-2-84 compliance audits (TÜV, UL, Intertek).
• R&D Prototype Evaluation: Assessing the fatigue resistance of new hinge designs and slow-close dampening mechanisms.
• Quality Assurance (QA): Routine batch sampling to ensure consistent load-bearing capacity across production lines.
• Material Performance Analysis: Testing the resistance of polymer composites and other materials to repeated mechanical stress cycles.
