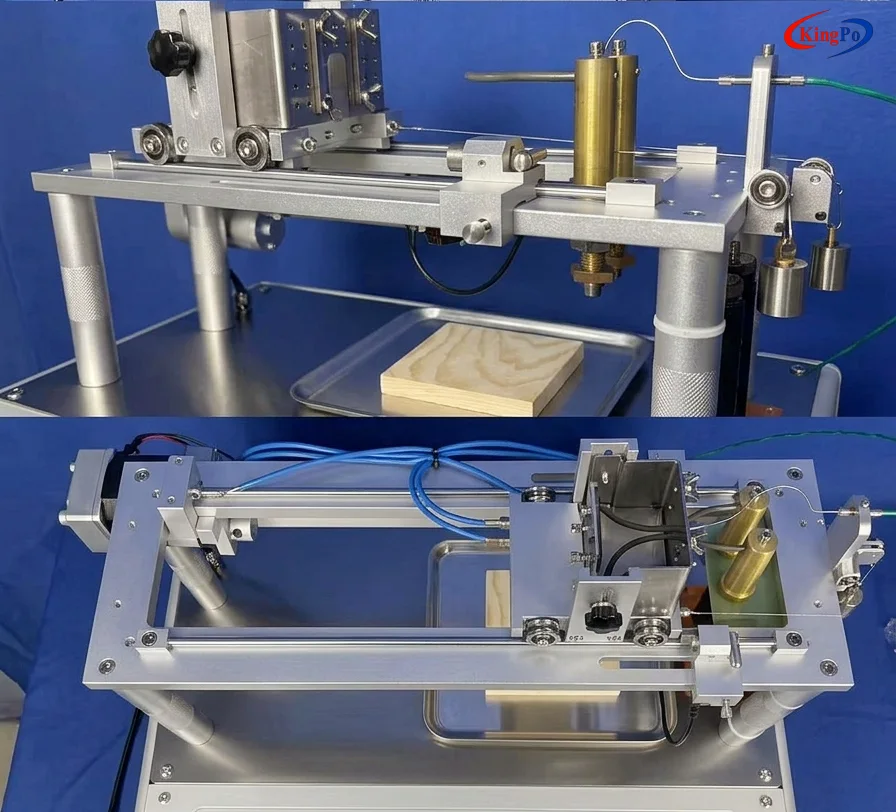

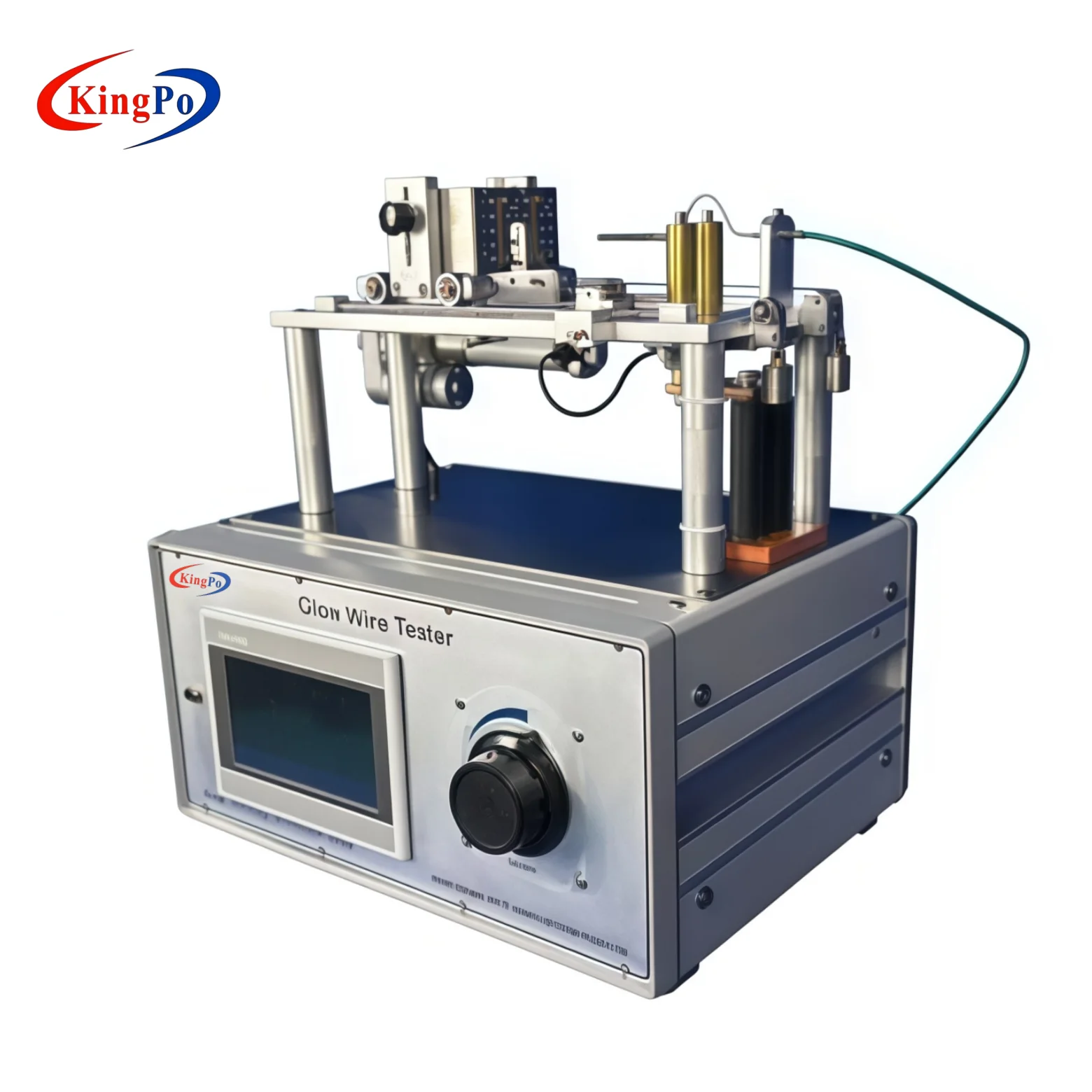

IEC 60695-2-10 Glow Wire Test Apparatus for Flammability Testing
The Glow Wire Test Apparatus is a precision glow wire tester designed to assess the flammability and ignition hazard of insulating materials and components in electrical and electronic equipment per IEC 60695-2-10.
- Standard Compliance: IEC 60695-2-10 and UL 746A for glow wire flammability and ignition testing.
- Glow Wire Temperature: 550ยฐC to 1000ยฐC ยฑ2ยฐC constantly adjustable.
- Glow Wire: ฮฆ4 mm nickel-chromium (>77% Ni / 20ยฑ1% Cr).
- Contact Force: 0.95 N ยฑ0.1 N with 7 mm ยฑ0.5 mm penetration depth.
- Test Speed: 10โ25 mm/s servo-controlled.
- Timing Accuracy: 0.1 s resolution for ignition, burning and smothering times.
- MOQ: 1 set.
- Delivery Period: Typically 15โ25 working days

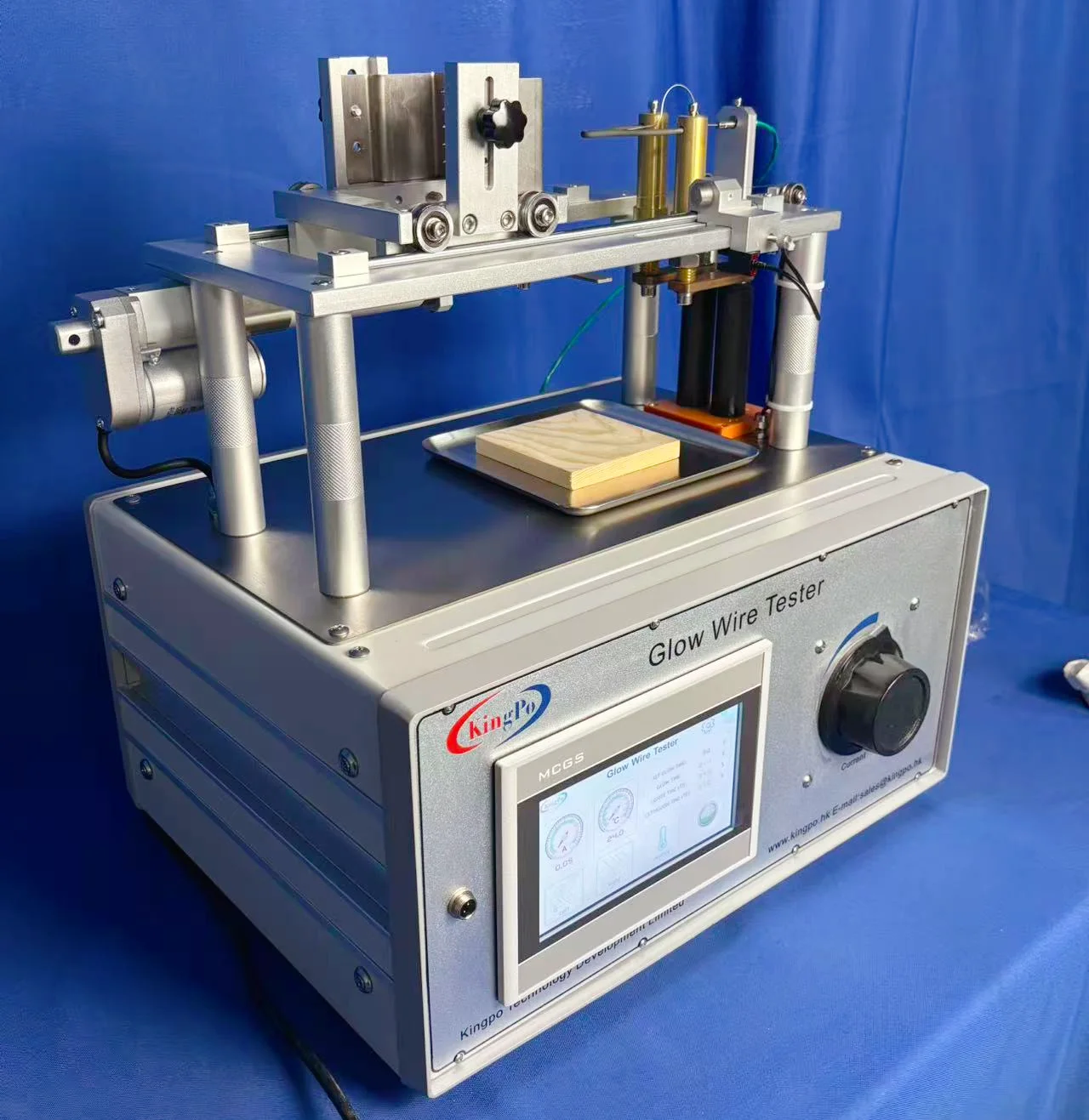

Glow Wire Test Apparatus Description
IEC 60695-2-10 Glow Wire Test Apparatus for Flammability Testing
The Glow Wire Test Apparatus is a professional glow wire tester manufactured by KingPo. It is specifically designed to evaluate the resistance of insulating materials and components to non-flame ignition sources by simulating the thermal stress caused by overheated electrical parts or glowing elements in real-world fault conditions.
Widely adopted in the safety assessment of household appliances, lighting equipment, consumer electronics, automotive electronics and electrical accessories, the apparatus enables manufacturers and certification laboratories to determine critical flammability characteristics such as Glow Wire Ignition Temperature (GWIT) and Glow Wire Flammability Index (GWFI). It plays an essential role in material selection, product development, quality control and regulatory compliance, helping to reduce fire hazards and ensure reliable product safety.
Technical Parameters
Glow Wire Test Specifications
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Standard | IEC 60695-2-10, UL 746A | Glow wire test for flammability and ignition hazard |
| Glow Wire Temperature | 550ยฐC ~ 1000ยฐC ยฑ2ยฐC constantly adjustable | Typical test temperatures 550ยฐC to 960ยฐC |
| Glow Wire | ฮฆ4 mm (>77% Ni / 20ยฑ1% Cr) | Nickel-chromium alloy per standard |
| Thermocouple | ฮฆ1.0 mm K-type | Precise real-time temperature monitoring |
| Contact Force | 0.95 N ยฑ0.1 N | Standardized contact pressure |
| Test Speed | 10โ25 mm/s | Controlled approach speed |
| Penetration Depth | 7 mm ยฑ0.5 mm | Standardized contact depth |
| Underlying Material | Fine tissue paper on 10 mm pine wood board | Included โ critical indicator for ignition and flame spread assessment |
| Timing Accuracy | 0.1 s | Broil / ignition / smother time (0โ999.9 s) |
Note: KingPo offers both manual control (KP-GWT01) and fully automated versions with test chamber upon request.

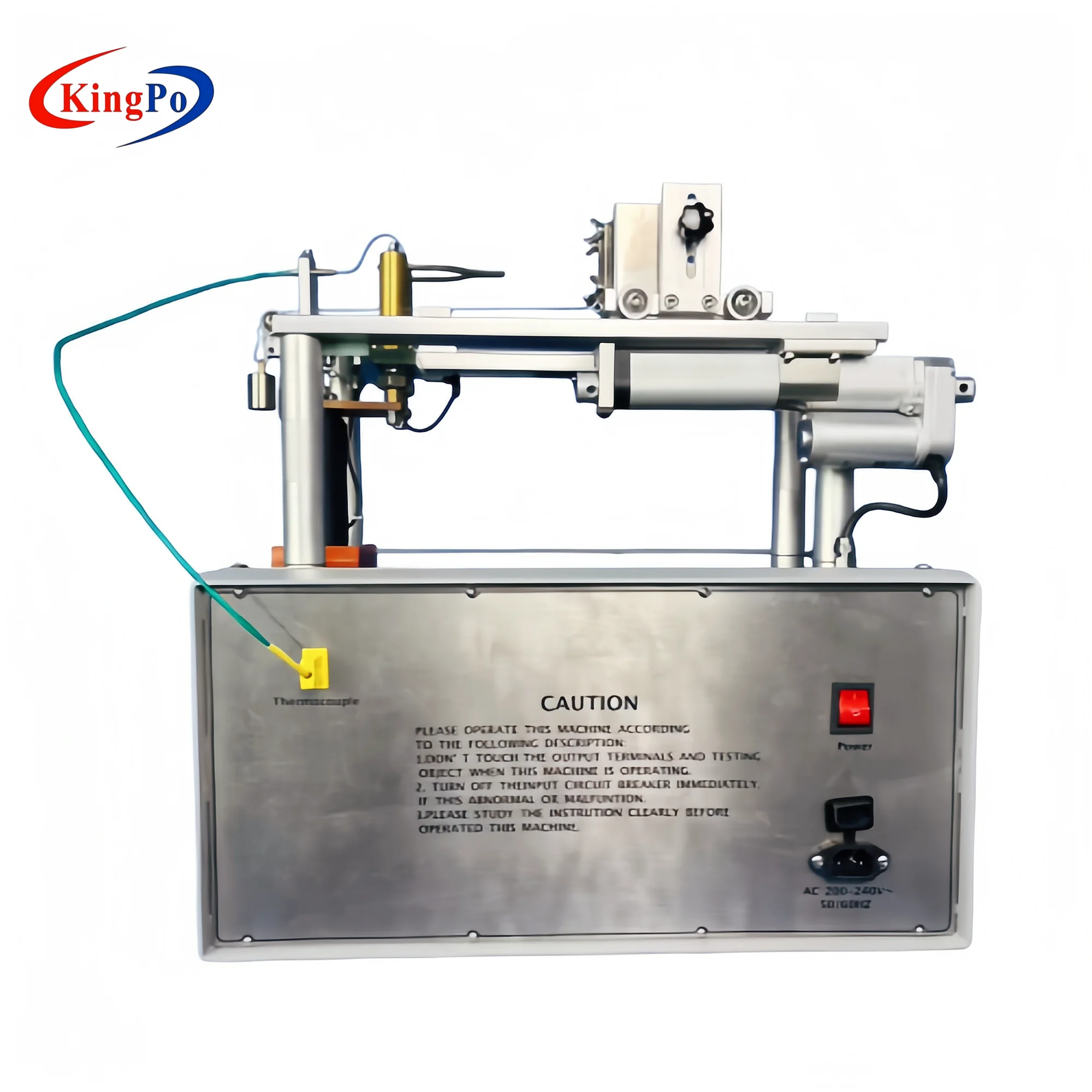

Professional Construction & Technical Precision
The Glow Wire Test Apparatus features a high-stability heating circuit with precise current and voltage control (ยฑ2% during test) to maintain the glow wire temperature within ยฑ2ยฐC. The glow wire (ฮฆ4 mm nickel-chromium alloy) is mounted on a precision carriage that advances at a controlled speed of 10โ25 mm/s and applies a constant force of 0.95 N ยฑ0.1 N.
A ฮฆ1.0 mm K-type thermocouple provides real-time temperature feedback. The system includes an independent exhaust system and stable base to ensure safe and repeatable operation. All critical components are manufactured to tight tolerances for excellent long-term stability and measurement repeatability in daily laboratory use.

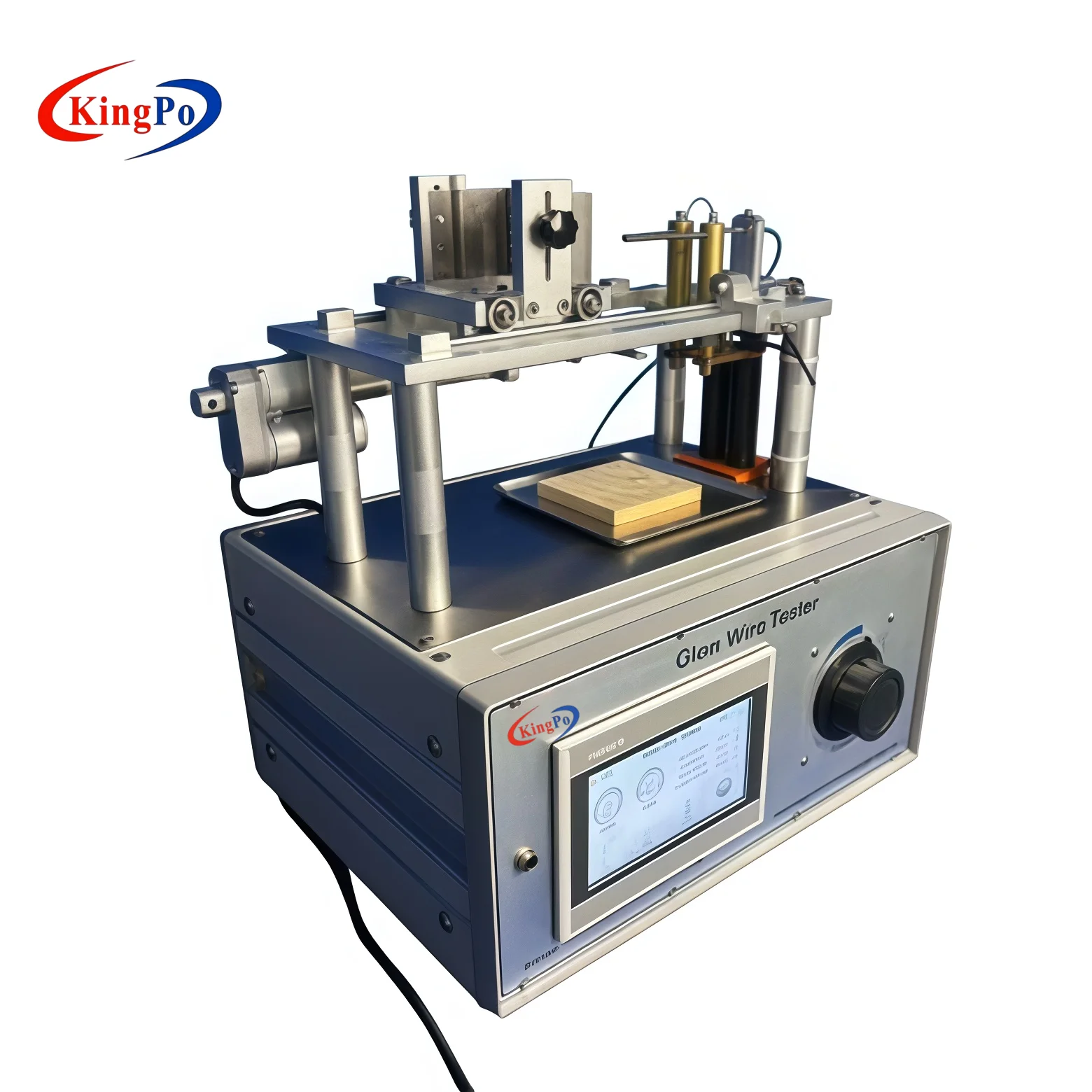

Testing Principle
The glow wire is heated to the specified temperature (550ยฐC to 1000ยฐC) and pressed against the specimen with 0.95 N force for 30 seconds at a controlled speed. The test evaluates ignition time (Ti), flame persistence time (Te), and smothering time, as well as whether the specimen or underlying bedding material (tissue paper) ignites or shows signs of sustained burning, cracking or melting. These results are used to determine the Glow Wire Ignition Temperature (GWIT) and Glow Wire Flammability Index (GWFI).
Common Error Mitigation
To ensure repeatable and accurate results, always verify the glow wire temperature with the thermocouple before each test and confirm the contact force and speed settings. Use fresh glow wire specimens as recommended and ensure the test specimen is properly positioned. Clean the glow wire and thermocouple regularly to prevent residue buildup that could affect temperature accuracy. Perform periodic calibration of temperature, force and timing systems.
Primary Use Cases & Business Value
The Glow Wire Test Apparatus is used by electrical product manufacturers and certification laboratories to verify the flammability and ignition resistance of insulating materials and components, ensuring compliance with safety standards and reducing fire hazards in electrical and electronic equipment.
Industrial Applications & Lab Scenarios
- Electrical Equipment Manufacturers โ Flammability and ignition testing of insulating materials in household appliances, lighting equipment and switchgear (IEC 60335-1, IEC 60598-1, IEC 60065)
- Third-Party Certification Laboratories โ Compliance testing according to IEC 60695-2-10 and UL 746A
- R&D Departments โ Material selection and optimization for improved fire safety performance (GB/T 4706.1, IEC 60335-1:2023)
- Quality Control Teams โ Batch verification of insulating components and finished products
- Regulatory Compliance Teams โ Generation of test reports for product certification and market approval (GB/T 5169.10, IEC 60695-2-12)
Strategic Procurement Advantages & Global Support
- High-Efficiency Testing: Precise temperature control and automated timing for fast, repeatable glow wire tests.
- Certified Manufacturing: ISO 9001/14001/45001 and CE certified production with ISO 17025 traceable calibration ensures laboratory-grade reliability.
- Reliability & Support: KingPoโs flammability series is based on over a decade of refinement in electrical safety testing. Each unit undergoes rigorous factory calibration in our Dongguan facility and is backed by a full one-year warranty, on-site installation guidance, and lifetime technical engineering support.
Compliance & Regulatory Assurance
This Glow Wire Test Apparatus is manufactured in full accordance with the official IEC 60695-2-10:2021 standard for glow wire testing, and supports the full spectrum of related methods including GWFI (IEC 60695-2-12) and GWIT (IEC 60695-2-13). It provides a standardized, reproducible test method essential for demonstrating compliance with international flammability and ignition safety requirements for electrical and electronic products. KingPo provides ISO 17025-traceable calibration support and setup guidance to ensure your laboratory passes every audit.
- Complimentary Factory Calibration: Each unit is delivered with a comprehensive traceable calibration certificate as standard.
- Third-party ISO 17025 Accreditation: Available upon request to meet the strictest requirements of certification laboratories and regulatory bodies.
- Performance Verification: Regular calibration of temperature, force and timing systems is recommended to maintain accuracy.
Technical Inquiry & Expert Support
KingPo provides validated Glow Wire Test Apparatus for flammability testing. Contact our engineering team for custom configurations, ISO 17025-traceable calibration support, and setup guidance to ensure your laboratory passes every audit.
The Core Value We Deliver
- IEC 60695-2-10 Compliance: Precise glow wire temperature control (550โ1000ยฐC ยฑ2ยฐC) and standardized contact parameters.
- Microprocessor Control: High-resolution 0.1 s PLC timing and servo-driven mechanical travel eliminate human variance, ensuring 100% repeatability.
- Material Integrity: High-performance Ni/Cr (>77% Ni) loop exceeds the durability requirements of UL 746A, preventing loop deformation at 960ยฐC.
- Lab Ready: Compact design with independent exhaust and easy manual operation.
- Fast Response: Get a tailored technical recommendation within 24 hours.
Glow Wire Tester Video

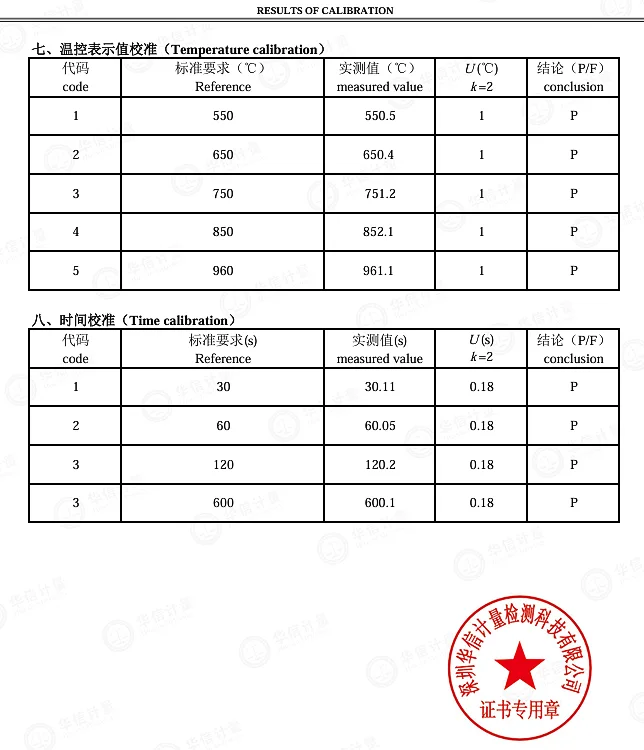

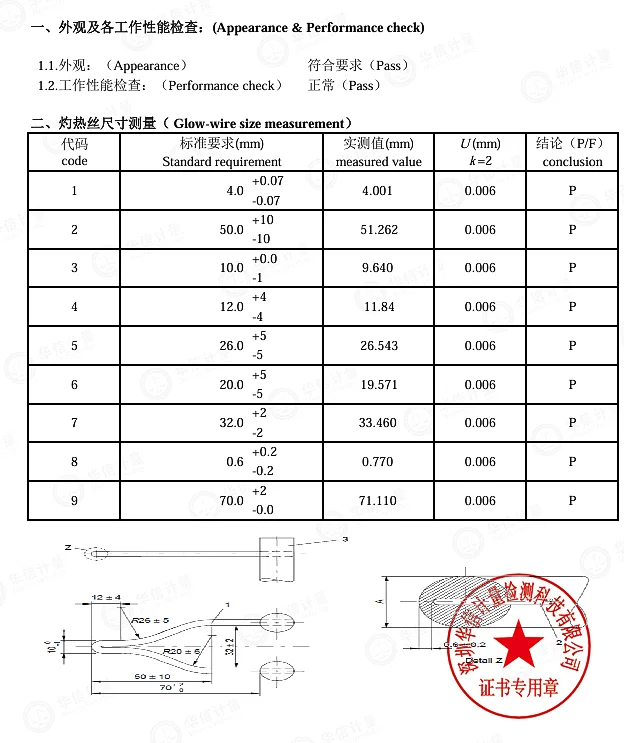

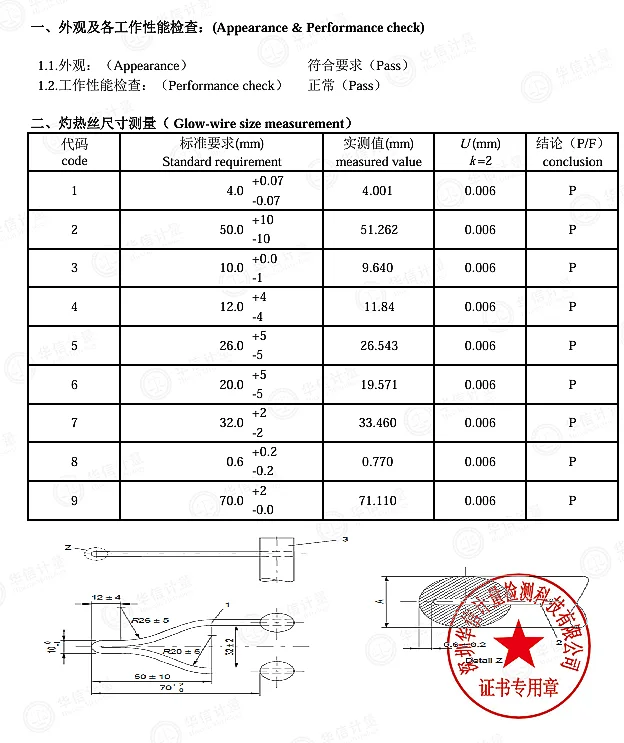

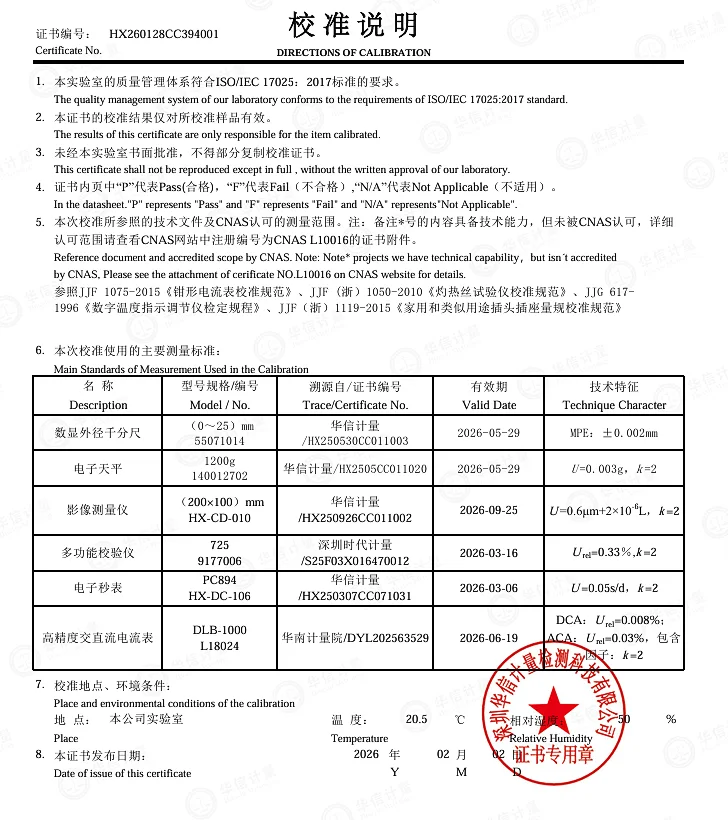

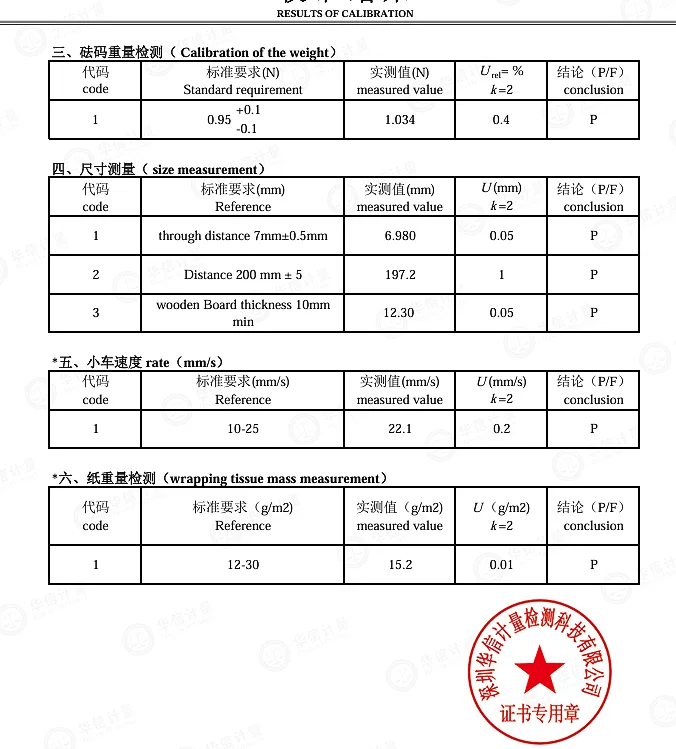

Glow Wire Test Apparatus Description with Calibration Report
Glow Wire Test Apparatus FAQs
