IEC 60332-1 Single Cable Flame Propagation Tester | Cable Flame Test Chamber

IEC 60332 Flammability Testing Equipment For Vertical Flame Propagation Single Insulated Cable

The IEC 60332-1 Single Cable Flame Propagation Tester is used to assess the vertical flame propagation performance of a single insulated wire, cable, or optical fibre cable. The equipment applies a calibrated 1 kW pre-mixed flame to the lower portion of a vertically mounted specimen and evaluates flame spread, afterflame behavior, and the production of flaming droplets or particles.

This test is an important requirement for determining the fire performance of cables in vertical installations. It helps manufacturers verify that their cables can limit flame propagation, supporting product development, quality assurance, and compliance with international safety standards.

Technical Parameters

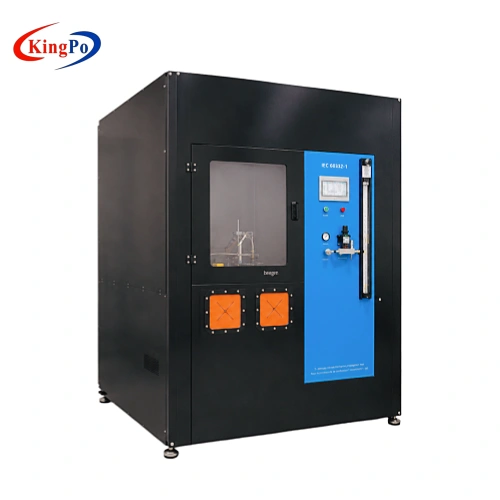

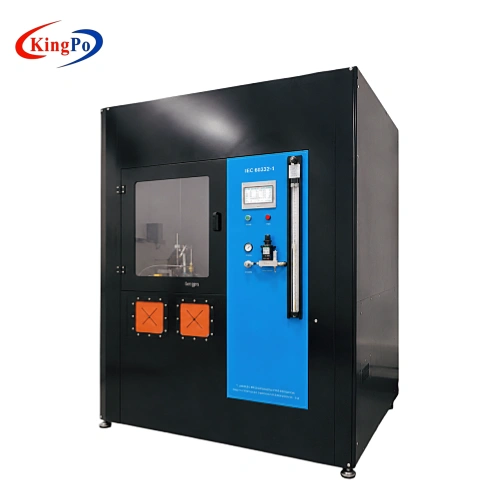

The IEC 60332-1 Single Cable Flame Propagation Tester is built with a controlled combustion chamber featuring an observation window and ventilation system. This design provides a stable and safe testing environment while allowing clear monitoring of the flame application process.

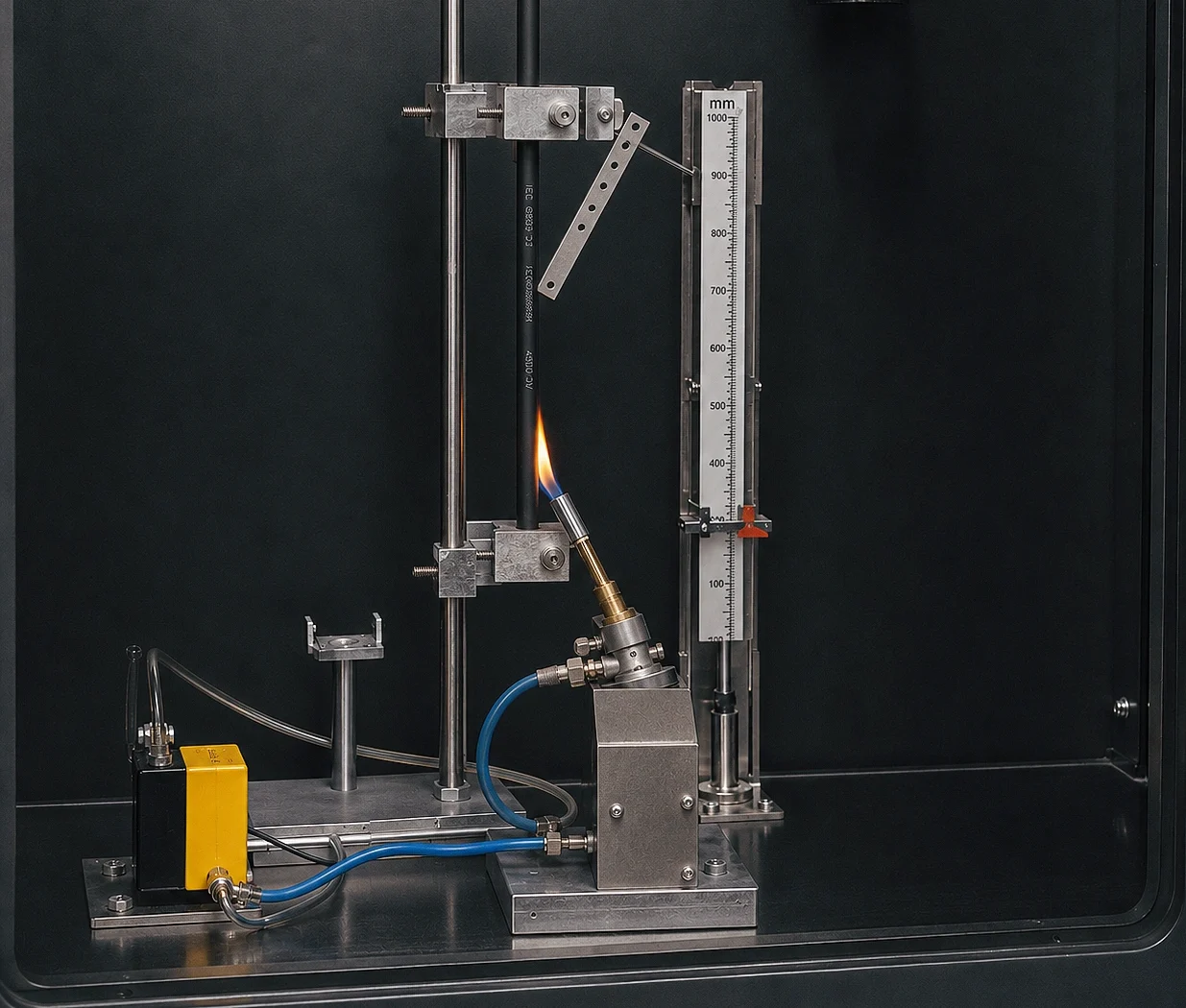

The equipment uses a precision brass burner with an opening of Φ7 ± 0.05 mm, supported by accurate gas flow control to generate a consistent 1 kW pre-mixed flame. Flame performance is verified through the copper block calibration method, ensuring reliable and repeatable thermal output. The tester also offers adjustable specimen positioning and test angles from 0° to 90°, along with a digital control system that enables automatic ignition and precise timing, enhancing both operational efficiency and test consistency.

Testing Principle

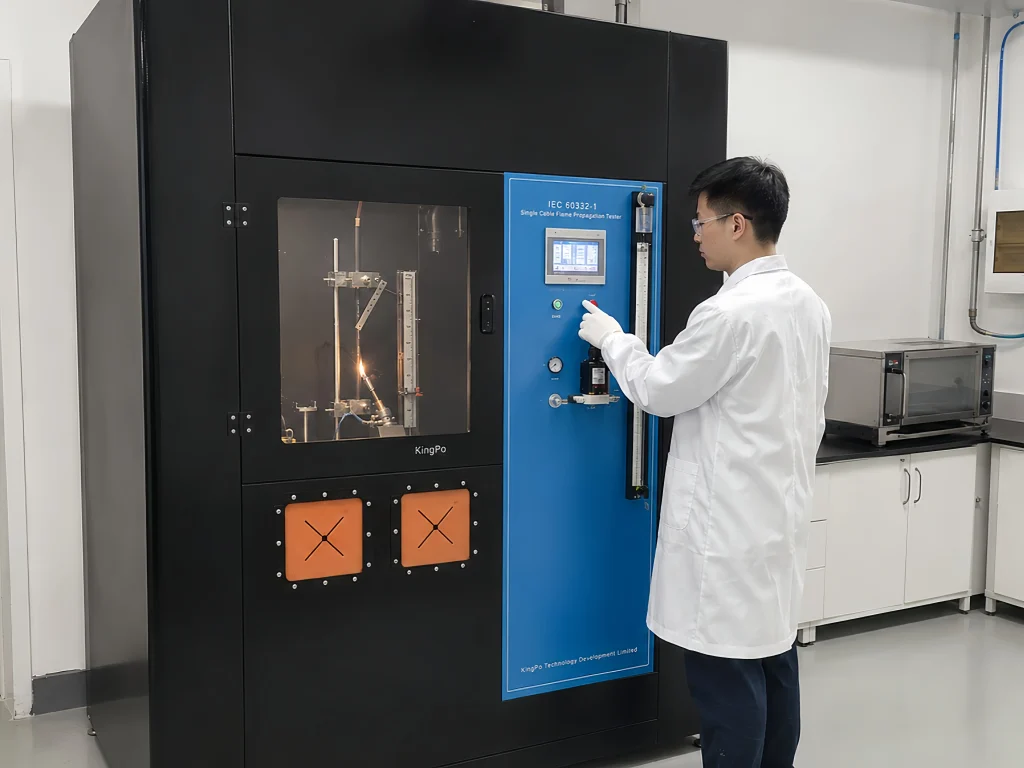

The IEC 60332-1 series is used to evaluate the resistance of a single vertical insulated wire, cable, or optical fibre cable to flame propagation. During the test, a standardized 1 kW pre-mixed propane-air flame is applied to the lower section of the vertically mounted specimen for a duration determined by the cable’s overall diameter.

After the flame is removed, the test records several key indicators, including the extent of charring or flame spread along the cable, the duration of any afterflame, and whether flaming droplets or particles are generated. These measurements provide essential data for assessing the cable’s fire performance and its ability to limit vertical flame spread. Such evaluation is particularly important for cables installed in vertical risers, shafts, and other building applications where fire propagation poses significant safety risks.

Common Error Mitigation

To achieve accurate and repeatable test results, the following practices are recommended:

• Allow sufficient stabilization time after adjusting gas flow rates before performing flame calibration or starting the test.
• Ensure the specimen is properly aligned and positioned so that its bottom edge is exactly 50 mm above the burner, and remains straight throughout the test.
• Maintain stable and accurate gas flow rates (propane 650 ± 30 mL/min and air 10 ± 0.5 L/min) to ensure consistent flame characteristics.
• Set the test angle correctly according to the specific requirements of the applicable test method.
• Conduct testing in a draft-free environment to prevent external airflow from distorting the flame or affecting results.
• Regularly clean and inspect the burner to avoid blockages or residue buildup that could compromise flame consistency.
• Accurately record and document char length, afterflame duration, and flaming droplet observations to support reliable compliance evaluation.

Primary Use Cases & Business Value

This equipment provides cable manufacturers and testing laboratories with a reliable solution for conducting standardized vertical flame propagation tests on single cables. By enabling accurate evaluation of flame spread, afterflame duration, and flaming droplets, the tester supports critical stages of product development, material qualification, and quality control.

It plays an important role in helping manufacturers ensure that their cables meet fire safety requirements, particularly for applications in buildings, power distribution, and communication systems. The equipment also assists laboratories in delivering consistent and compliant test results, strengthening their service capability and technical credibility.

Industrial Applications & Lab Scenarios

• Cable manufacturers — Conduct flame retardancy verification for power cables, communication cables, and building wiring to ensure compliance with international fire safety standards.
• Testing laboratories — Perform IEC 60332-1 single cable vertical flame propagation testing as part of routine compliance services and material certification programs.
• Certification bodies — Evaluate the vertical flame performance of cables during product certification and regulatory approval processes.
• Quality assurance departments — Carry out incoming material inspection and production monitoring to maintain consistent product quality.
• Research institutions — Support the development and comparative evaluation of new flame-retardant materials and cable designs.

Strategic Procurement Advantages & Global Support

• Precise 1 kW pre-mixed flame control with copper block calibration
• Adjustable test angle (0–90°) and accurate specimen positioning
• Controlled combustion chamber with observation window and ventilation
• Digital timing control for improved test repeatability
• Technical support available for equipment setup and standard interpretation
