FMVSS 302 Horizontal Flammability Tester | Automotive Interior Materials

FMVSS 302 Flammability Tester For Testing Flammability Of Textiles

The FMVSS 302 Horizontal Flammability Tester evaluates the burning behavior of automotive interior textiles and other materials by exposing a horizontally mounted specimen to a controlled flame. The test measures the time taken for the flame to travel between two marked points and calculates the burning rate to assess the material’s flammability.

This Automotive Interior Flammability Tester is essential for verifying that vehicle interior materials, such as seat fabrics, headliners, door panels, and carpets, meet the flammability requirements of FMVSS 302. It helps automotive manufacturers and suppliers ensure compliance with safety regulations and reduce fire risks in vehicles.

Technical Parameters

Professional Construction & Technical Precision

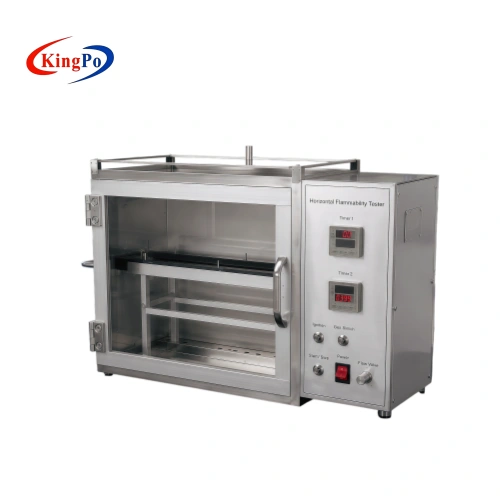

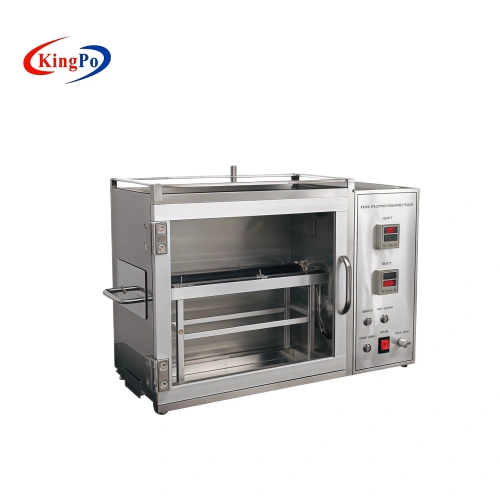

The FMVSS 302 Horizontal Flammability Tester features an integrated design combining the combustion chamber and control system, which facilitates convenient installation and operation. The chamber and critical components are constructed from stainless steel, providing excellent resistance to smoke and gas corrosion for long-term durability.

The equipment is equipped with a precision burner system capable of maintaining a stable flame height of 38 mm ± 2 mm, along with a standardized specimen clamping mechanism. These features ensure consistent flame application and accurate specimen positioning, which are essential for obtaining reliable and repeatable burning rate measurements in accordance with FMVSS 302 and related standards.

Testing Principle

In the FMVSS 302 test, a specimen is clamped horizontally in the test chamber. A flame with a height of 38 mm ± 2 mm is applied to the free end of the specimen for a specified time. The time taken for the flame to travel from the first mark (38 mm) to the second mark (292 mm) is recorded, and the burning rate is calculated to evaluate the material’s flammability.

This horizontal burning test provides a standardized method to assess how quickly flame spreads across automotive interior materials under controlled conditions.

Common Error Mitigation

To obtain accurate and consistent test results, the following practices are recommended:

• Ensure the flame height is correctly adjusted to 38 mm ± 2 mm before each test.
• Properly condition and mount the specimen according to the standard requirements.
• Maintain stable laboratory temperature and humidity within the specified range.
• Accurately record the time between the two measurement marks to calculate the burning rate correctly.
• Regularly inspect and clean the burner nozzle to ensure consistent flame application.

Applications & Use Cases

This FMVSS 302 Horizontal Flammability Tester helps automotive material suppliers and manufacturers verify that interior textiles and components meet the horizontal burning requirements of FMVSS 302 and related standards. It supports product development, quality control, and regulatory compliance, helping reduce fire safety risks in vehicles.

• Automotive interior material manufacturers — Conducting horizontal flammability testing of seat fabrics, headliners, carpets, door panels, and other vehicle interior textiles to verify compliance with FMVSS 302 burning rate requirements during product development and material approval.
• Testing laboratories — Performing FMVSS 302 and ISO 3795 compliance testing for automotive interior materials, including measurement of flame spread rate across textiles, leather, plastics, foams, and composite materials used in vehicles.
• Automotive OEMs and suppliers — Evaluating and approving interior materials from suppliers through standardized horizontal burning tests to ensure vehicle components meet FMVSS 302 flammability safety requirements before mass production.
• Certification bodies — Assessing the flammability performance of automotive interior materials as part of vehicle type approval processes, supporting regulatory compliance with FMVSS 302 and related international standards such as ISO 3795 and SAE J369.
• Research institutions — Studying the flame spread behavior and burning characteristics of new automotive textiles, coatings, and composite materials under the controlled horizontal burning conditions specified in FMVSS 302 and related test methods.

Key Advantages

This FMVSS 302 Horizontal Flammability Tester is designed to meet FMVSS 302 requirements for evaluating the horizontal burning rate of automotive interior materials. It provides manufacturers and testing laboratories with a reliable method to measure flame spread across textiles, leather, plastics, foams, and composites, supporting compliance with vehicle fire safety regulations.

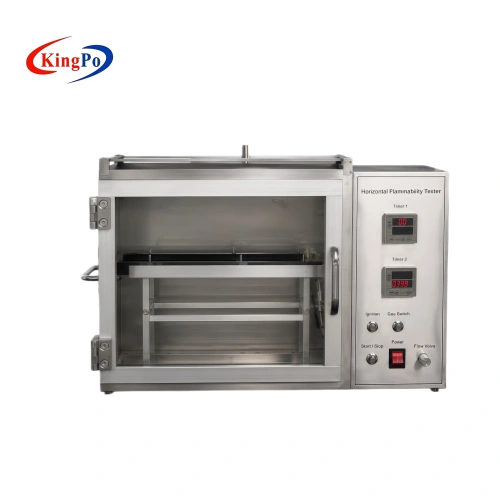

The equipment features a precision burner system capable of maintaining a stable flame height of 38 mm ± 2 mm, along with a standardized specimen clamping mechanism and clear measurement marks at 38 mm and 292 mm. These capabilities enable accurate and repeatable burning rate measurements. Its stainless steel construction provides excellent corrosion resistance, while the integrated design with automatic ignition helps laboratories achieve consistent test results with improved operational efficiency.
