Comparative Tracking Index Tester – KingPo KP-FT03 with Platinum Electrodes and 600V Precision for IEC 60112 Compliance.

Comparative Tracking Index Equipment – IEC60112 CTI/PTI High Accuracy System

The Comparative Tracking Index Equipment (KP-FT03) is a high-accuracy test system manufactured by KingPo, designed to assess resistance to tracking and erosion on solid insulating materials under combined electric field and moist/contaminant conditions. It applies voltage (100–600V) and drips 0.1% NH4Cl solution between platinum electrodes to determine Comparative Tracking Index (CTI) and Proof Tracking Index (PTI) per IEC60112 and GB/T4207, suitable for lighting, low-voltage apparatus, household appliances, and insulating materials.

KingPo Factory Advantages

ISO9001 & CE-certified manufacturer with global exports. KingPo has supplied over 200 units of the FT series tracking test equipment to electrical safety labs and material manufacturers in China, Europe, and Southeast Asia since 2018, with CNAS calibration reports available on all equipment. The KP-FT03 is supported by lifetime free software upgrades and 48-hour on-site response during warranty period in Dongguan.

Professional Construction & Technical Precision

Key features include:

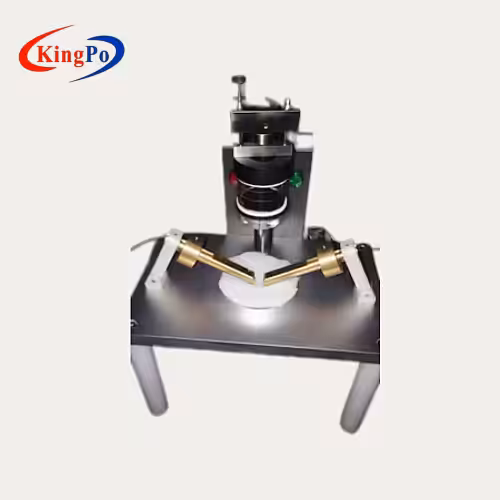

• Electrode Assembly: Brass head with platinum tip – welding force 1.0 ± 0.05N, distance 4.0 ± 0.01mm, angle 60° ±5° for stable contact and accurate current flow
• Voltage Control: 100–600V (48–60Hz) adjustable – voltage drop <8% under 1.0 ± 0.1A short-circuit condition, ensuring reliable high-field simulation

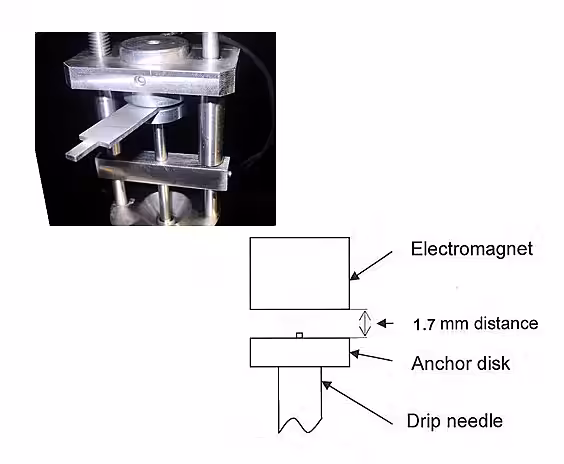

• Droplet System: Height 30–40mm adjustable, size 44–55 drops/cm³ – interval 30 ± 5s for consistent contamination and repeatable CTI/PTI results
• Leakage Detection: Triggers at >0.5A current for 2s – automatic power cut-off and indication for unqualified specimens, preventing damage
• Control System: Single-chip microcomputer + touch screen – independent ventilation, automatic process control, and high anti-interference performance
• Test Chamber: Minimum 0.5 m³ volume – maintains stable environmental conditions for precise comparative tracking index evaluation

Comparative Tracking Index Technical

Comparative Tracking Index Tester.pdf

Primary Use Cases & Business Value

The Comparative Tracking Index Equipment supports key stages:

• Insulating Material Validation – Determine CTI/PTI for solid materials in electric field and contaminant conditions
• Product Certification – Generate compliant data for IEC60112 / GB/T4207 submissions in lighting and household appliances
• Production QC – Batch testing of insulating materials, connectors, and accessories for tracking resistance
• Failure Analysis – Investigate erosion or tracking failures in returned electrical components

It enables reliable material selection, reduces safety risks from tracking, and accelerates certification processes.

Procurement Benefits

Fast setup with independent ventilation and touch screen control, comprehensive documentation, and strong after-sales support including lifetime software upgrades. Improve insulating material quality control, reduce production accidents from tracking, and minimize risks of non-compliance or material failures. Contact us today for your Comparative Tracking Index Equipment quote – we’ll respond within 24 hours with detailed technical information and pricing tailored to your needs.

Compliance & Regulatory Assurance

The Comparative Tracking Index Tester is vital for meeting global safety mandates. According to reports from the CPSC (U.S. Consumer Product Safety Commission), electrical tracking in appliances remains a leading cause of residential fires. Furthermore, technical discussions on EE Times emphasize the necessity of $CTI$ validation for the next generation of high-density electronic packaging. For researchers looking into the molecular breakdown of polymers under electrical stress, extensive peer-reviewed data can be found on ScienceDirect, providing the scientific basis for our KP-FT03’s precision engineering.

Attention

• This equipment should be placed on level ground or table, in an environment of temperature 25±10℃, humidity 50±30%RH.
• Keep this equipment away from heat or corrosion source.
• Please keep this tester at least 200mm away from wall, for heat dissipation.
• Please check and calibrate this equipment once a year. Ensure the performance and precision.
• Its not allowed to stabbed or scrap touch screen with a sharp object.
