ISO 594 vs ISO 80369-7: Luer Gauge, Reference Connector & Test Equipment Guide

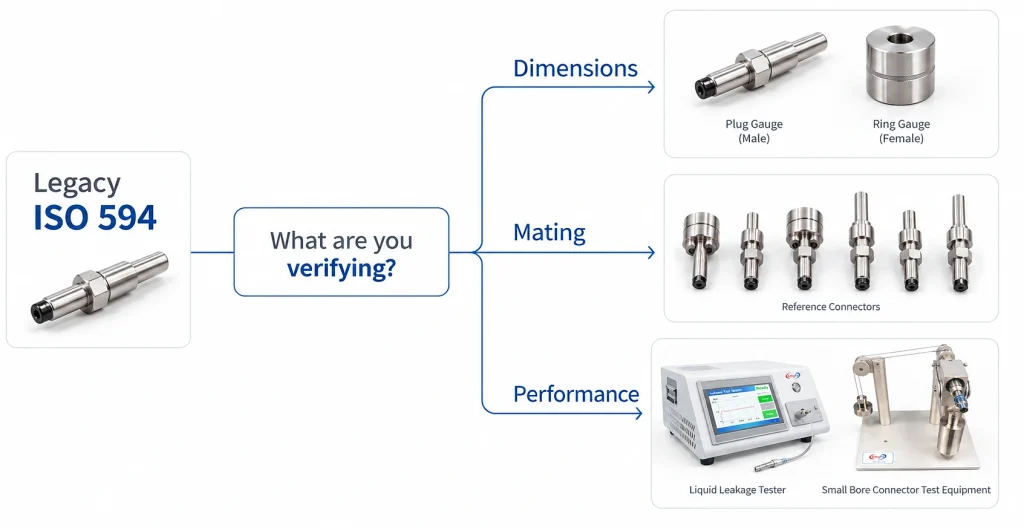

1. What Are You Actually Trying to Verify?

One of the most common mistakes in Luer connector projects is to begin with a product name: “I need an ISO 80369-7 gauge,” “I need C.1,” or “I need a replacement for our ISO 594 gauge.”

Those descriptions may be useful, but they do not yet define the engineering task. Before selecting hardware, first identify what characteristic you need evidence for.

In most projects, the requirement falls into one of three categories:

1.1 Dimensional or fit inspection

If your objective is to inspect connector geometry during receiving inspection, production control or prototype development, a dimensional gauge may be appropriate.

For example, a Male Plug Gauge for female Luer connectors provides a controlled male taper interface for basic dimensional and fit verification. For male Luer samples, a Female Ring Gauge serves the corresponding dimensional / fit-checking role.

1.2 Reference mating

Functional connector tests frequently need a standardized mating component. ISO 80369-7 Annex C contains reference connector configurations used for this purpose.

A reference connector should therefore be understood as a controlled mating interface, not simply as another plug gauge or ring gauge. Its selection depends on the device under test, male/female orientation, Luer slip or Luer lock configuration and the test procedure being performed.

1.3 Functional performance testing

When a test requires controlled pressure, subatmospheric pressure, force, torque, time or another loading condition, the reference connector is only one component of the complete test setup.

The laboratory may also need a fixture, pressure source, vacuum source, force system, torque mechanism, measurement instruments, timing control and a defined method for evaluating the result.

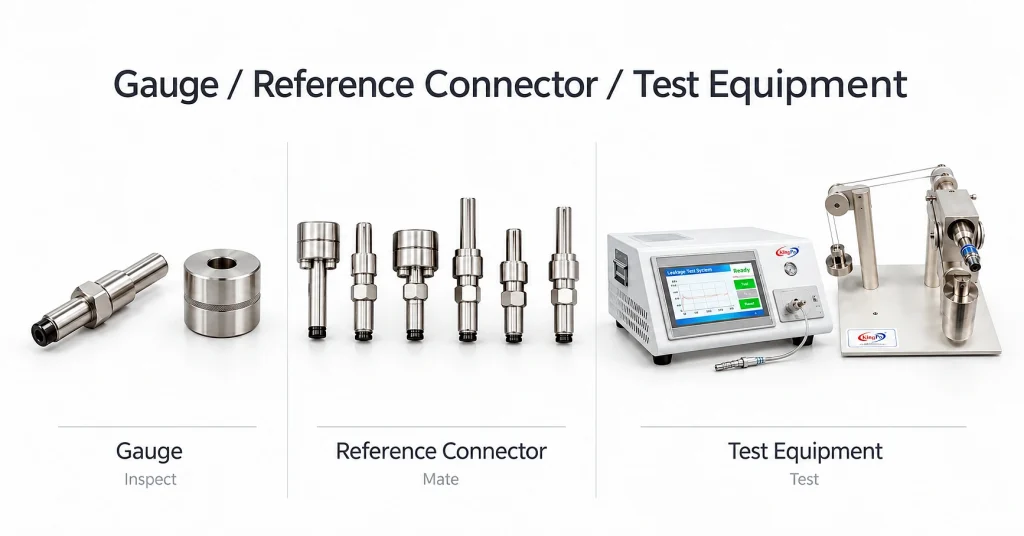

2. Luer Gauge vs Reference Connector vs Test Equipment

The three categories are mechanically related, and in some cases they may appear visually similar. Their roles within a test program, however, are not interchangeable.

This distinction also explains why the phrase “ISO 80369-7 gauge” can be ambiguous. One engineer may mean a plug gauge, another may mean a Figure C reference connector, while another may actually be asking for a complete leakage test setup.

3. ISO 594 vs ISO 80369-7: What Actually Changed?

ISO 594-1 and ISO 594-2 were historically associated with the 6% Luer taper and Luer lock fittings used in medical equipment. Those standards have been withdrawn. The current ISO 80369-7 framework addresses small-bore connectors intended for intravascular and hypodermic applications and includes dimensional and functional performance requirements.

The important engineering point is that the transition should not be interpreted as:

Instead, the transition should begin with the requirement that the old gauge or test method was intended to verify.

For a broader view of the current product structure, the ISO 80369-7 Luer Gauges and Reference Connectors guide maps dimensional gauges and the main Annex C reference connector options.

4. Can Existing ISO 594 Gauges Still Be Used?

This is usually the most important practical question for a manufacturer that already owns gauges, fixtures or inspection procedures based on ISO 594.

The answer is not simply “yes” or “no.” Four different issues should be separated.

Case A — The controlled product drawing still specifies ISO 594

An existing device may still have a controlled drawing, customer specification, regulatory record or internal inspection instruction that explicitly references ISO 594.

In that situation, changing the inspection tool is not merely a purchasing decision. The engineering and quality teams should consider whether the controlled requirement itself is being changed and whether that change needs formal review.

Case B — The project is a new ISO 80369-7 design

For a new project, an older ISO 594 gauge should not automatically be accepted simply because the taper appears similar or the sample physically mates with the gauge.

Start from the current drawing, required verification characteristic and relevant ISO 80369-7 test configuration.

Case C — The old gauge still has a valid calibration certificate

This distinction matters in audited quality systems. A gauge can be dimensionally stable, calibrated and traceable while still being technically unsuitable for the new verification task.

Case D — A customer simply requests an “ISO 594 plug gauge”

Before quoting, clarify whether the customer is:

• following an old controlled drawing;
• performing incoming or production dimensional inspection;
• trying to perform an ISO 80369-7 functional test;
• looking for a reference mating connector;
• or trying to replace a damaged legacy gauge with a current equivalent.

The same purchasing phrase can lead to several completely different products.

5. Selecting a Dimensional Luer Gauge

For dimensional screening, begin with the gender of the device under test.

For laboratories that routinely work with both male and female Luer components, a complete ISO 80369-7 Luer Gauge Set and Reference Connector Set can reduce repeated individual purchasing and make it easier to separate dimensional gauges from Annex C reference parts.

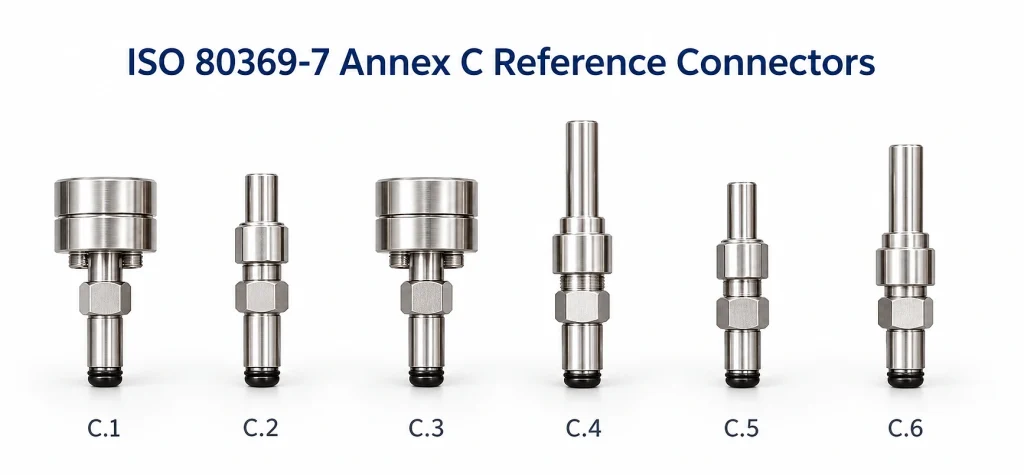

6. Which ISO 80369-7 Annex C Reference Connector Do You Need?

The first screening question is simple: Is the device under test male or female?

A male DUT normally mates with a female reference connector; a female DUT normally mates with a male reference connector. However, that only narrows the options. It does not determine the final Figure number.

You should next identify:

• whether the sample is Luer slip or Luer lock;
• which performance characteristic is being evaluated;
• the mating orientation required by the method;
• the applicable Figure or test procedure;
• whether the connector is being purchased alone or as part of a complete test setup.

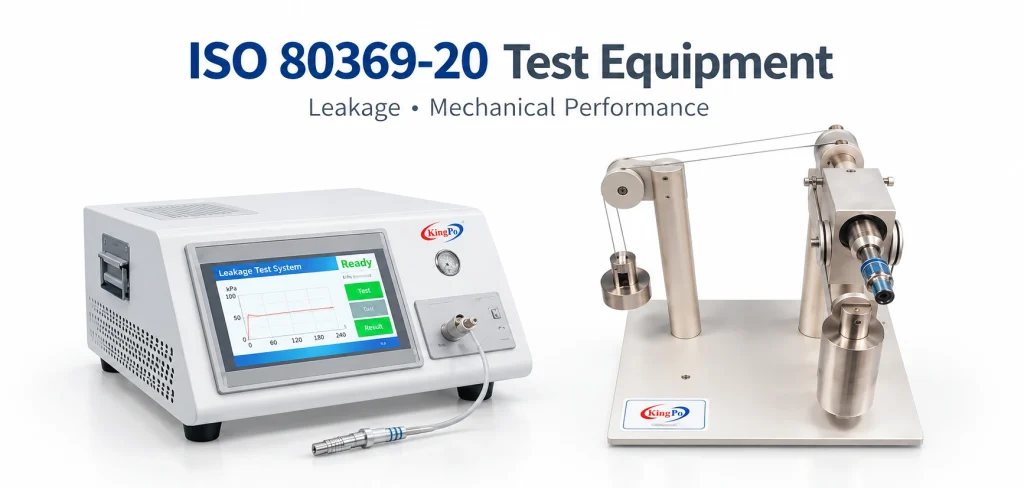

7. When Do You Need ISO 80369-20 Test Equipment?

ISO 80369-20 provides common test methods for evaluating performance requirements for small-bore connectors within the ISO/IEC 80369 series and ISO 18250 series.

For an ISO 80369-7 Luer project, the practical transition from “reference connector” to “test equipment” occurs when the laboratory must create and measure a defined physical condition.

Liquid leakage testing

A leakage test requires more than mating two components. The laboratory needs a controlled pressure condition, an appropriate fluid path, a suitable fixture and a defined means of evaluating leakage.

KINGPO’s ISO 80369-20 Liquid Leakage Tester is intended for these connector leakage evaluations and should be configured with the appropriate reference interface for the DUT.

Subatmospheric air leakage testing

Subatmospheric air leakage is a different engineering problem from positive-pressure liquid leakage. Vacuum control, sealing arrangement, fixture design and result interpretation are different.

For this test category, see the ISO 80369-20 Subatmospheric Air Leakage Tester.

Axial load and connector separation

Mechanical testing introduces another set of variables: loading axis, sample alignment, fixture stiffness, clamping position, loading rate and the condition used to determine whether separation has occurred.

For projects involving several performance tests rather than one isolated method, review the ISO 80369-20 Medical Small-Bore Connector Test Equipment before deciding which individual systems and fixtures are required.

8. What Does a Complete Functional Test Chain Contain?

A useful way to plan an ISO 80369 test station is to think in terms of a complete measurement and loading chain rather than a single piece of hardware.

This is especially important when transferring a test from R&D to QC or from an internal laboratory to an external certification laboratory. The equipment name alone does not fully describe the test configuration.

9. Four Real Engineering Selection Scenarios

10. Calibration, Documentation and Procurement

For medical-device manufacturers and third-party laboratories, the hardware itself is only part of the procurement requirement. Documentation should be defined at quotation stage rather than after delivery.

Calibration requirements

Before ordering, clarify whether you need only a manufacturing dimensional report, an external calibration certificate, a traceable calibration service or a specific accreditation scope accepted by your laboratory quality system.

Also define which characteristics need calibration. A generic statement such as “ISO 17025 certificate required” is less useful than a clear calibration scope linked to the actual measurement characteristics.

Documentation package

Depending on the laboratory, useful procurement documentation may include:

• product datasheet;
• drawing or dimensional confirmation;
• material / hardness information where applicable;
• calibration certificate or calibration-support documentation;
• equipment specification and measurement range;
• fixture configuration;
• operation documentation;
• traceability and data-export requirements for automated testers.

What to send with an RFQ

If the Figure number is uncertain, it is usually better to send the connector drawing and the required test than to guess which reference connector should be purchased.

11. Common Luer Tool Selection Mistakes

12. Final Luer Tool Selection Matrix

13. FAQ — ISO 594, ISO 80369-7 and Luer Test Equipment
