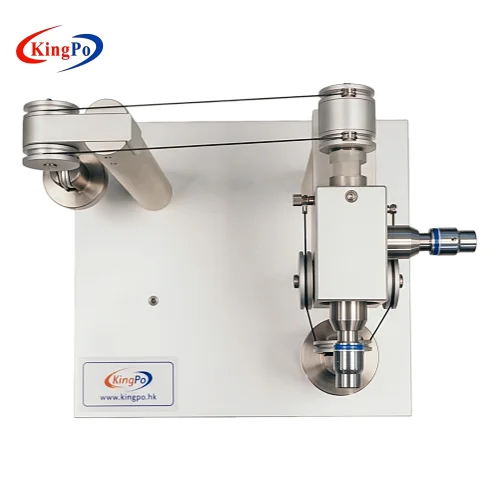

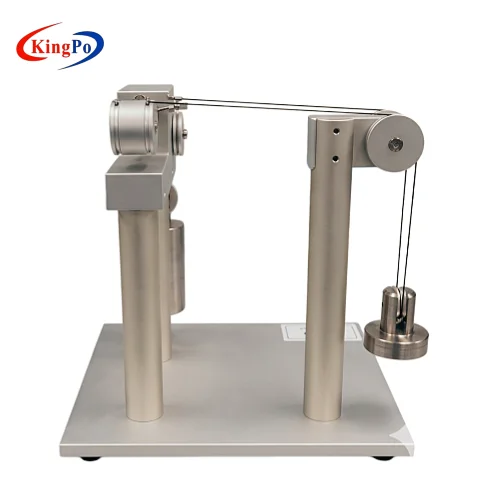

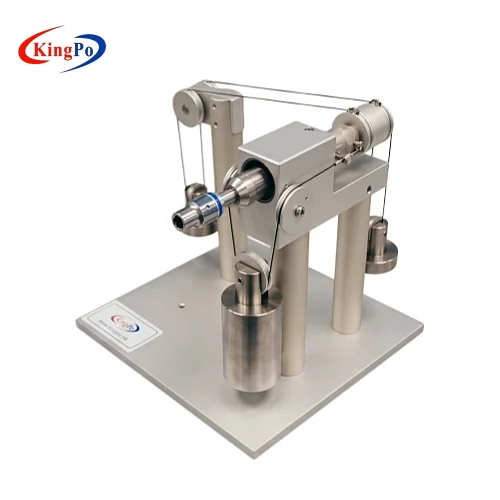

The ISO 80369-20 Medical Small Bore Connector Test Equipment is a comprehensive test system designed to evaluate the performance of small-bore connectors used in medical applications. It supports Annex B (pressure decay / subatmospheric-pressure air leakage) and Annex C (positive-pressure liquid leakage) test methods, and includes the Connector Assembly Device for Annexes B through I of ISO 80369-20 and ISO 18250-1.

Technical Parameters

Professional Construction & Technical Precision

The Medical Small Bore Connector Test Equipment is built with high-precision force sensors, pressure transducers, and flow meters to ensure accurate and repeatable test results. The system features a modular design that allows flexible configuration for different connector types and test methods as required by ISO 80369-20.

The PLC touchscreen controller enables programmable test sequences, real-time data monitoring, and automatic data logging. Robust mechanical fixtures and safety interlocks ensure reliable operation and operator safety during testing. The equipment is designed for long-term laboratory use with minimal maintenance requirements.

Testing Principle

The Medical Small Bore Connector Test Equipment evaluates the functional performance of small-bore connectors according to ISO 80369-20. The connector under test is mounted on precision fixtures, and various mechanical and fluidic tests are performed, including:

• Leakage Testing: Applying internal pressure or vacuum to detect liquid or gas leakage.
• Separation Force Testing: Measuring the axial force required to separate the connector.
• Resistance to Separation: Evaluating the connector’s ability to resist unintentional disconnection.
• Flow Rate Testing: Verifying flow characteristics through the connector.

All test parameters are precisely controlled and recorded, providing objective data to verify compliance with the standard and ensure the safety and reliability of medical connectors in clinical use.
