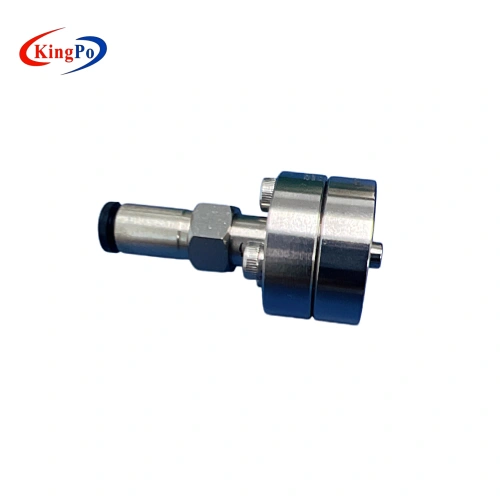

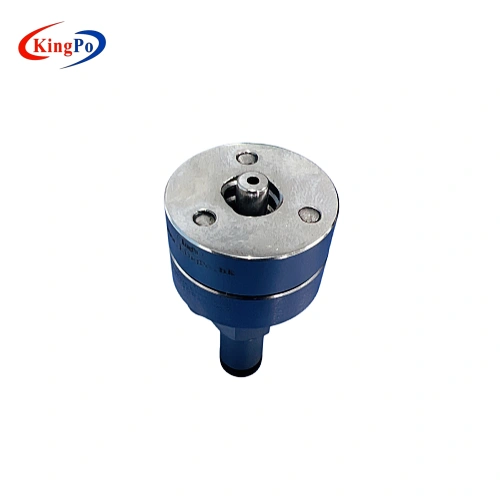

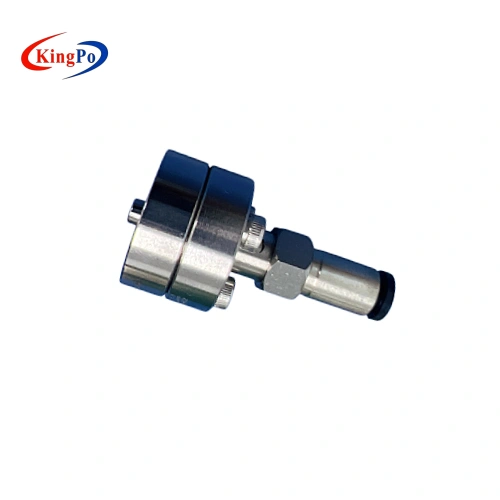

ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector
The ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector is a standard reference connector used for testing female Luer connectors in intravascular and hypodermic medical device applications. It provides the specified male Luer lock reference interface for ISO 80369-7 related leakage, separation from unscrewing, stress cracking and non-interconnectable characteristic evaluations.
- Applicable Standard: ISO 80369-7 Figure C.4 / Annex C
- Product Type: Male Reference Luer Lock Connector
- Test Object: Female Luer connectors
- Typical Test Applications: Leakage, separation from unscrewing, stress cracking and non-interconnectable characteristics
- Connector Type: Male reference Luer lock connector
- Thread Note: Double-start, right-hand thread of 2.5 mm pitch
- Important Limitation: Not a universal reference connector for every non-interconnectable characteristic evaluation
- Supply Option: Individual Figure C.4 connector or part of the complete ISO 80369-7 Luer Gauge Set
- Related Equipment: Used with applicable ISO 80369-20 test setups when performance testing is required
Product Overview
ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector
The ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector is used as a controlled mating component when evaluating female Luer connectors. It is designed for test configurations that require a male Luer lock reference interface, and should not be confused with the ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector or the ISO 80369-7 Male Plug Gauge.
In a typical test setup, the female Luer connector sample is mated with the Figure C.4 male reference Luer lock connector. The assembled connection is then used in the applicable ISO 80369 test procedure according to the required evaluation item, such as leakage, separation from unscrewing, stress cracking or non-interconnectable characteristics.
This page is intended for customers who specifically require Figure C.4 for female Luer connector testing. Customers who need several ISO 80369-7 reference connector configurations should consider the complete ISO 80369-7 Luer Gauge Set.

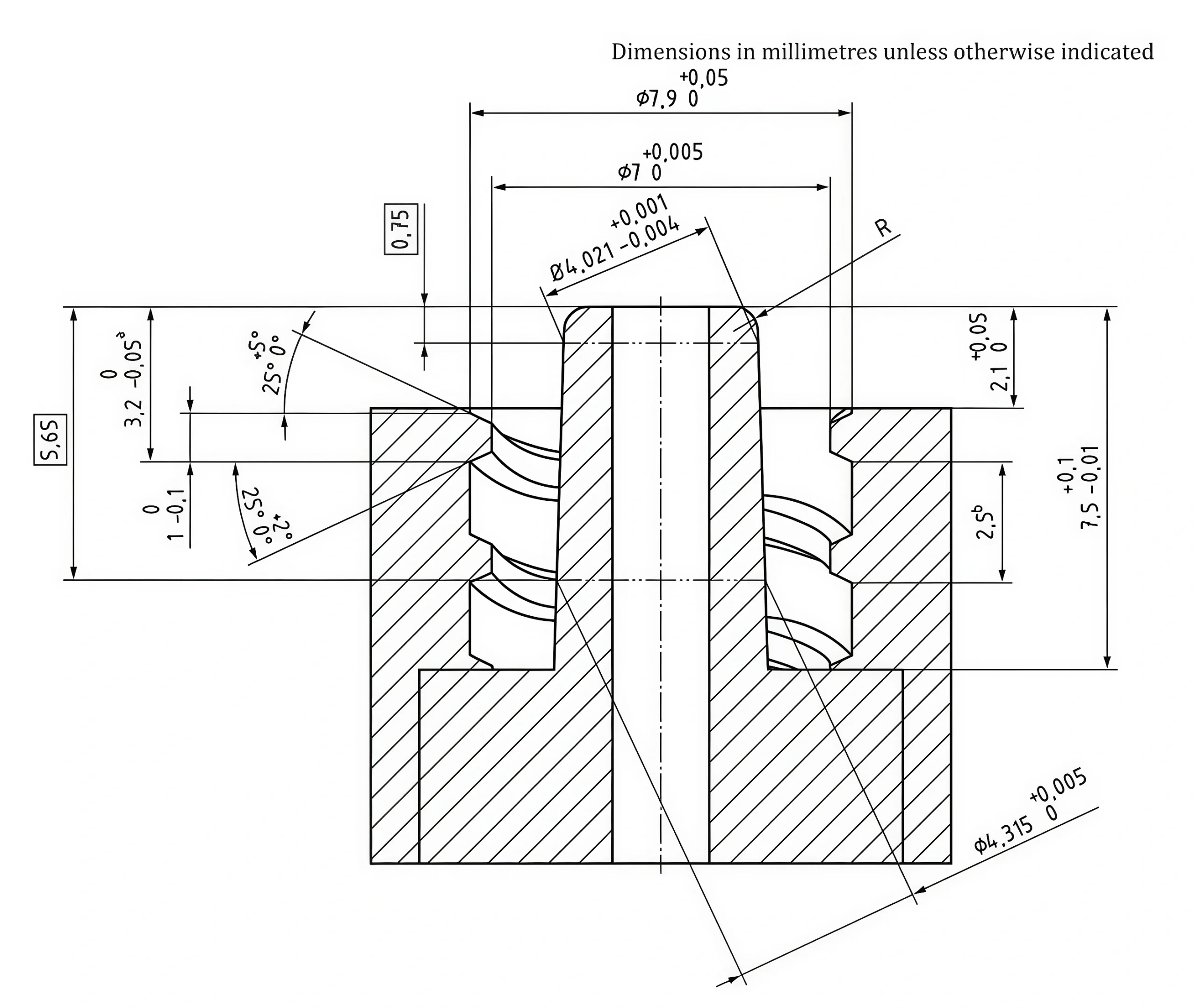

Key Drawing Notes and Use Limitation
Based on the ISO 80369-7 Figure C.4 drawing you provided, this reference connector is identified as a male reference Luer lock connector for testing female Luer connectors. The drawing includes thread-related notes and a specific limitation for certain non-interconnectable characteristic evaluations.
| Item | Figure C.4 Note |
|---|---|
| Figure Number | ISO 80369-7 Figure C.4 |
| Reference Connector Type | Male reference Luer lock connector |
| Test Object | Female Luer connectors |
| Thread Note | Double-start, right-hand thread of 2.5 mm pitch |
| Edge / Radius Note | R is a radius or chamfer not to exceed 0.5 mm |
| Key Distance Note | Maximum distance from the tip of the male Luer lock connector to the first complete profile of the internal thread should follow the referenced Table B.3 dimension |
| Important Limitation | This reference connector cannot be used for the test of non-interconnectable characteristics against its collar outside diameter because the corresponding defined range is wide and one single reference connector is not representative |
| Dimension Unit | Millimetres unless otherwise indicated |
- a Maximum distance from tip of male Luer lock connector to the first complete profile of the internal thread (see Table B.3,dimension t).
- b Double-star,right-hand thread of2,5mmpith
R is a radius or chamfer not to exceed 0,5 mm.
NOTE This reference connector cannot be used for the test of non-interconnectable characteristics against its collar outside diameter because its corresponding defined range (Ow) is wide and one single reference connector is not representative.
Figure C.4- Male reference Luer lock connector for testing female Luer connectors for leakage, separation from unscrewing, stress cracking and non-interconnectable characteristics
How It Is Used and What It Tests
Typical Use Procedure
- Confirm that the sample is a female Luer connector and that ISO 80369-7 Figure C.4 is the required reference connector.
- Mate the female Luer sample with the Figure C.4 male reference Luer lock connector.
- Install the assembled connection into the applicable ISO 80369 test setup.
- Apply the required leakage, unscrewing, stress cracking or non-interconnectability test condition.
- Record the result according to the selected test procedure.
- After testing, clean and protect the reference connector to avoid scratches, contamination or thread damage.
Typical Test Applications
The Figure C.4 connector may be used in ISO 80369-7 test configurations related to:
- Female Luer connector evaluation
- Luer lock mating interface verification
- Leakage-related test configurations
- Separation from unscrewing related test configurations
- Stress cracking related connector evaluation
- Non-interconnectable characteristic evaluation only when the selected procedure allows this reference connector
- Laboratory confirmation of female Luer connector fit and engagement
The exact test item, pressure, torque, load, holding time and judgment criteria should be confirmed according to the applicable ISO 80369-7 clause and ISO 80369-20 test method. The Figure C.4 connector itself is a reference connector, not a complete test apparatus.
Technical Features
- Designed according to ISO 80369-7 Figure C.4 reference connector geometry
- Male reference Luer lock interface for female Luer connector testing
- Threaded reference structure for Luer lock connector evaluation
- Double-start, right-hand thread configuration according to the Figure C.4 drawing note
- Precision-machined mating surface for repeatable connector engagement
- Hardened steel or stainless steel configuration can be supplied according to product specification
- Material information, dimensional confirmation or hardness confirmation can be provided where applicable
- Available individually or as part of the complete ISO 80369-7 Luer Gauge Set
- Suitable for R&D validation, laboratory testing and factory quality control
- Can be used with suitable ISO 80369-20 test equipment when performance testing is required
Operation and Handling Notes
The Figure C.4 connector should be handled as a precision reference component.
- Confirm the required figure number before testing.
- Do not replace Figure C.4 with Figure C.2 or Figure C.6 unless the selected procedure clearly requires that configuration.
- Confirm whether the tested sample is a female Luer connector.
- Check the thread engagement and mating surface condition before use.
- Do not force the connector into an incompatible or damaged sample.
- Keep the connector clean and free from visible scratches.
- Avoid impact, corrosion or contamination during storage and use.
- Store the connector in a protective case after testing.
- Confirm documentation requirements before order placement if the connector will be used in a regulated laboratory environment.
Who Needs This Connector
| Customer Type | Typical Need |
|---|---|
| Female Luer connector manufacturers | Female Luer connector verification using a male Luer lock reference connector |
| Syringe and needle manufacturers | Luer lock connector evaluation for medical device assemblies |
| IV cannula and infusion accessory manufacturers | Connector mating and leakage-related test configuration |
| Medical device R&D teams | Design validation of female Luer connector structures |
| Third-party testing laboratories | ISO 80369-7 reference connector setup for customer samples |
| Factory QC laboratories | Incoming inspection and production batch checking |
| Certification support teams | Preparing suitable reference connectors before formal testing |
This page is intended for users who already know they need the Figure C.4 male reference Luer lock connector. Customers looking for a full ISO 80369-7 configuration should refer to the complete ISO 80369-7 Luer Gauge Set.
Compliance & Regulatory Assurance
This ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector is manufactured according to the Figure C.4 reference connector geometry for female Luer connector testing. It supports ISO 80369-7 related connector evaluations when used with the appropriate test setup and procedure.
KINGPO can provide product datasheet, material information, dimensional confirmation or hardness confirmation where applicable. Please confirm any documentation requirement before order placement.
Technical Inquiry & Expert Support
The ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector is a standard reference connector manufactured according to the specified figure. To help KINGPO provide the correct item and supporting information, please include the following details when sending an inquiry:
- Required product: ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector
- Quantity required
- Whether you need this connector individually or as part of the complete ISO 80369-7 C.1–C.6 Luer Gauge Set
- Your sample type, especially female Luer connector
- Intended test application, such as leakage, separation from unscrewing, stress cracking or non-interconnectable characteristics
- Whether related ISO 80369-20 test equipment is also required
- Any documentation requirement, such as dimensional report, material information or hardness confirmation
KINGPO can help review your connector type and test purpose before quotation to confirm whether Figure C.4 is the correct reference connector for your ISO 80369-7 test setup.
Difference from Related ISO 80369-7 Gauges
Difference from Related ISO 80369-7 Gauges
| Related Product | Difference |
|---|---|
| ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector | Male Luer slip reference connector for testing female Luer connectors |
| ISO 80369-7 Figure C.4 Male Reference Luer Lock Connector | Male Luer lock reference connector for testing female Luer connectors |
| ISO 80369-7 Figure C.6 Male Reference Connector | Another male reference connector configuration for female Luer lock connector testing |
| ISO 80369-7 Male Plug Gauge | Dimensional or fit-checking gauge; not the same as the Figure C.4 reference connector |
| ISO 80369-7 Luer Gauge Set | Complete C.1–C.6 reference connector set for laboratories requiring multiple configurations |
| ISO 80369-20 Test Equipment | Test apparatus used to apply leakage, air leakage, axial load or related test conditions |
This distinction helps customers avoid using a Luer slip reference connector, another male reference connector, or a dimensional gauge when Figure C.4 is specifically required.
