Sand and Dust Test Chamber – IEC60529 Settling & Blowing Sand Dust Test Equipment

KP-DC1000A Settling Blowing Sand And Dust Test Chambers IEC60529

The Settling Blowing Sand & Dust Test Chamber is a precision environmental test system designed to evaluate dust ingress protection performance of electrical enclosures, automotive components and sealed products under IEC 60529 IP5X and IP6X conditions. It combines controlled talcum powder settling and blowing mechanisms with optional vacuum to simulate harsh dusty environments and verify enclosure integrity.

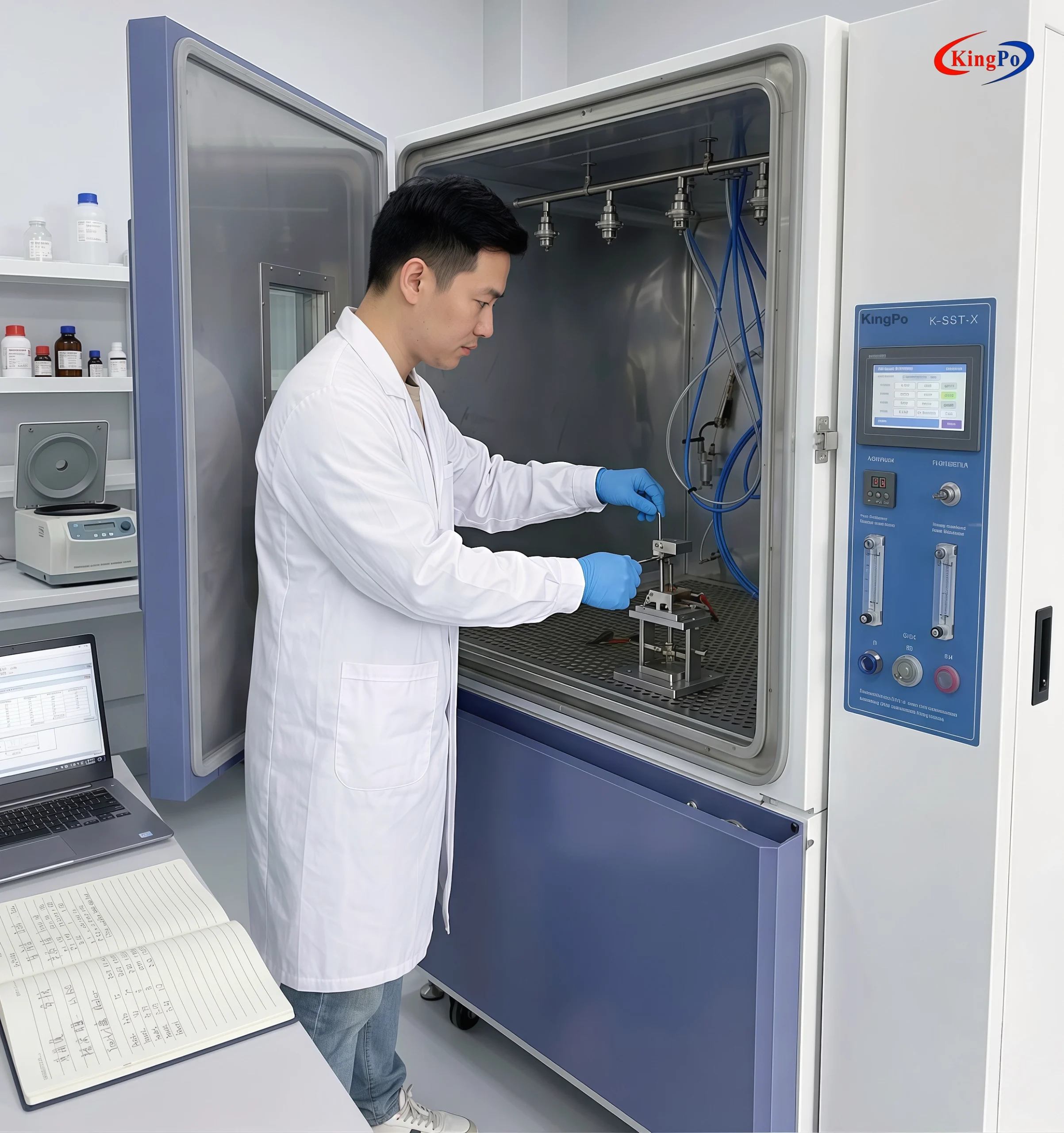

• Testing Automotive Lights and Electrical Dust Covers for IP6X Compliance

Testing Principle

The chamber circulates and settles talcum powder at a controlled concentration of 2–4 kg/m³ while maintaining airflow velocity ≤2 m/s. For IP6X testing, the vacuum system creates negative pressure inside the specimen to draw dust through seal gaps. The PLC controller ensures repeatable dust exposure and accurate test conditions as defined by the standards.

KingPo Factory Advantages

KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer, also holding SGS, PSE and RoHS certifications. We specialize in environmental and ingress protection testing equipment and have supplied settling blowing sand and dust test chambers to automotive manufacturers and certification laboratories worldwide. Each unit undergoes rigorous calibration and is delivered with complete documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.

Professional Construction & Technical Precision

Key features include:

• Precise control of talcum powder concentration (2–4 kg/m³) and air velocity (≤2 m/s) for realistic settling and blowing sand simulation
• Temperature regulation from room temperature to 60℃ with stable performance
• Vacuum system adjustable from 0 to 30 kPa for realistic pressure differential testing

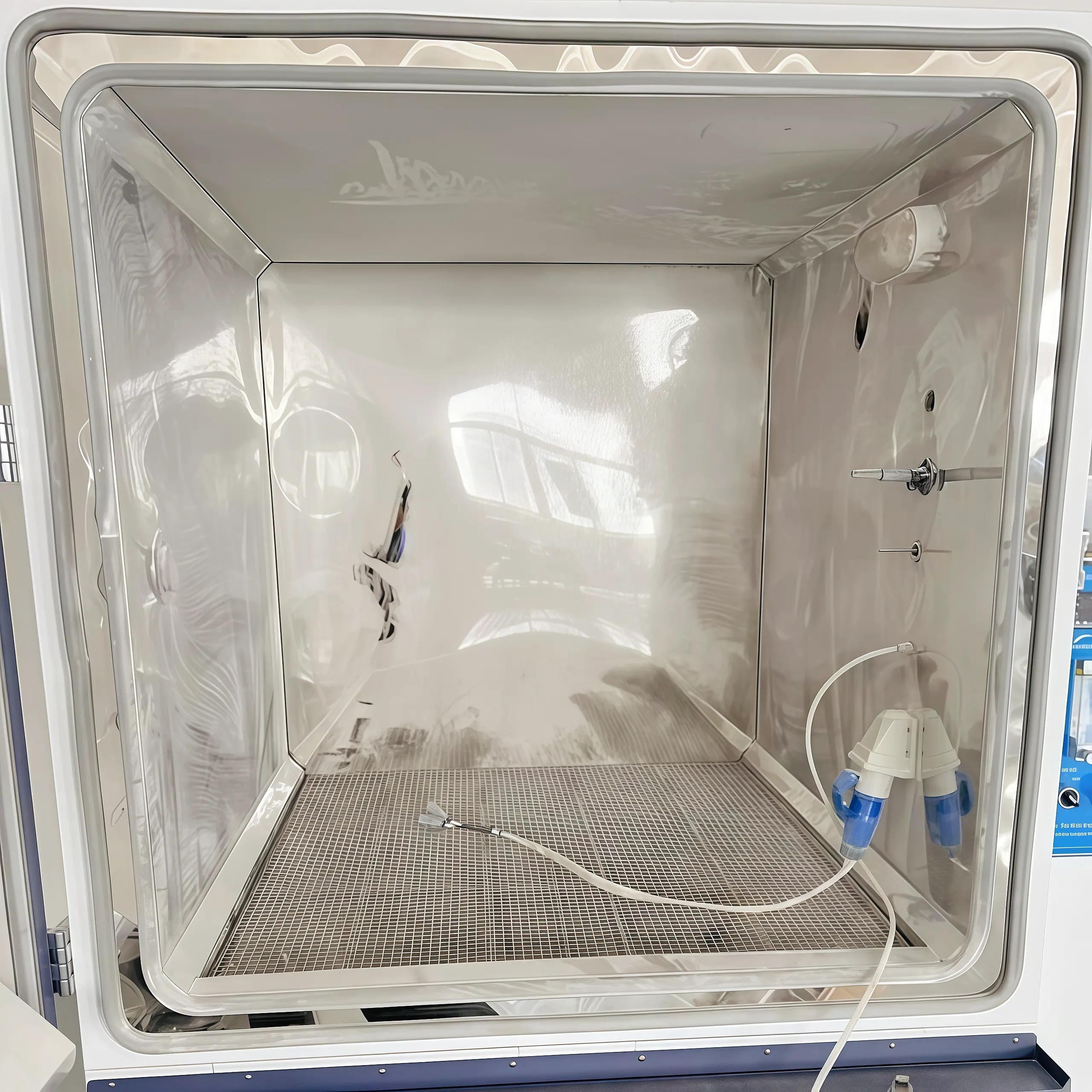

• SUS304 stainless steel interior with excellent corrosion resistance and easy cleaning
• PLC + color touchscreen controller for programmable test cycles and real-time monitoring
• Tempered glass observation door for safe visual inspection during testing

These technical elements combine to deliver exceptional accuracy, repeatability and compliance with the most stringent dust ingress protection standards.

Technical Parameters

Core Test Parameters

The sand and dust test chamber supports critical stages across the product lifecycle:

• Product Development – Validate dust-proof design of new automotive parts, electrical enclosures and outdoor equipment
• Certification Testing – Generate comprehensive data for IEC60529 IP5X/IP6X and related compliance
• Quality Control – Efficient batch verification of dust ingress resistance in production
• Failure Analysis – Identify dust penetration paths, seal degradation or material weaknesses under controlled conditions

By providing realistic and repeatable test conditions, the chamber significantly improves product durability, reduces costly field failures and accelerates time-to-market for dust-protected components.

Procurement Benefits

The chamber provides a large internal volume, precise dust concentration control, adjustable airflow and vacuum capability in a robust, easy-to-operate design. It delivers consistent, repeatable test results with minimal maintenance, making it a practical solution for sand and dust ingress testing.

Sand and Dust Test Chamber Applications

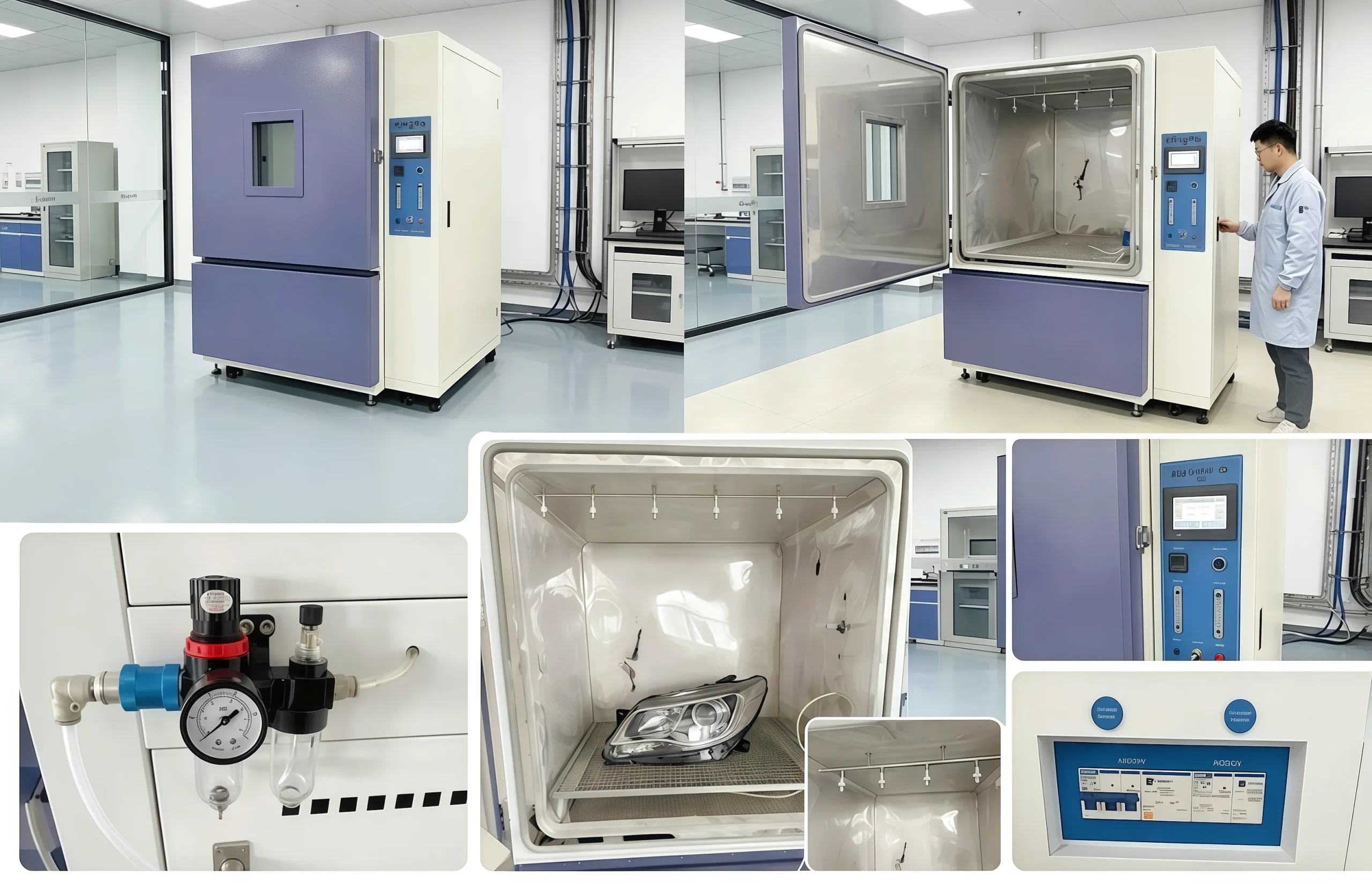

• Automotive Components – Dust-proof testing of lamps, sensors, connectors and electronic modules
• Electrical and Outdoor Equipment – Ingress protection verification for enclosures and machinery
• Production Quality Assurance – Batch testing of high-protection-grade products
• Certification Laboratories – Compliance verification per IEC60529, IEC60598-1 and IEC60068-2-68
