IEC 60695-11-4 50W Test Flame Burner
The IEC 60695-11-4 50W Test Flame Burner is a precision brass burner designed to generate a standardized 50 W pre-mixed methane test flame. It is used for fire hazard testing of electrotechnical materials and components, with copper block calibration support for flame heat output verification.
- Standards Support: Designed to support IEC 60695-11-4 Figure A.1 50 W test flame requirements
- Burner Type: Brass Bunsen burner for pre-mixed methane flame
- Burner Diameter: Φ9.5 mm ± 0.3 mm
- Flame Type: 50 W nominal pre-mixed methane test flame
- Flame Height: Approx. 20 mm, subject to calibration and test setup
- Test Angles: 0°, 20°, 45° adjustable positioning
- Calibration Support: Copper block method for heat output verification
- Gas Control: Gas flow and pressure adjustment for stable flame generation
- Material: Brass construction for durability and thermal stability
- MOQ: 1 set
- Delivery Time: 15 working days
Burner Flame Test Equipment IEC 60695-11-4 Figure A.1 Description
Burner Flame Test Equipment IEC 60695-11-4 Figure A.1 for 50W Flame Fire Hazard Testing
The IEC 60695-11-4 50W Test Flame Burner is a key component used to produce a standardized 50 W pre-mixed methane test flame as specified in IEC 60695-11-4 Figure A.1. It is commonly used in fire hazard testing setups for evaluating the flammability performance of solid insulating materials and electrotechnical products.
The burner is manufactured from brass with a precise inner diameter of Φ9.5 mm ± 0.3 mm. It supports flame height adjustment and can be used with copper block calibration to verify flame heat output. This burner is suitable for various horizontal and vertical flame test configurations that require a controlled 50 W test flame.
Technical Parameters
| Parameter | Specification | Remark or Notes |
|---|---|---|
| Applicable Standard | IEC 60695-11-4 Figure A.1 | 50 W test flame apparatus |
| Product Type | 50 W test flame burner | Burner component / flame generation apparatus |
| Burner Material | Brass | Durable and thermally stable construction |
| Burner Diameter | Φ9.5 mm ± 0.3 mm | According to burner specification |
| Flame Type | Pre-mixed methane flame | 50 W nominal test flame |
| Flame Height | Approx. 20 mm | Subject to adjustment and verification |
| Test Angles | 0°, 20°, 45° | Adjustable flame application positions |
| Calibration Method | Copper block with thermocouple | For flame heat output verification |
| Gas Control | Gas flow and pressure adjustment | For stable flame output |
| Application | Fire hazard testing of electrotechnical materials and components | Used with applicable IEC 60695 test setups |
-

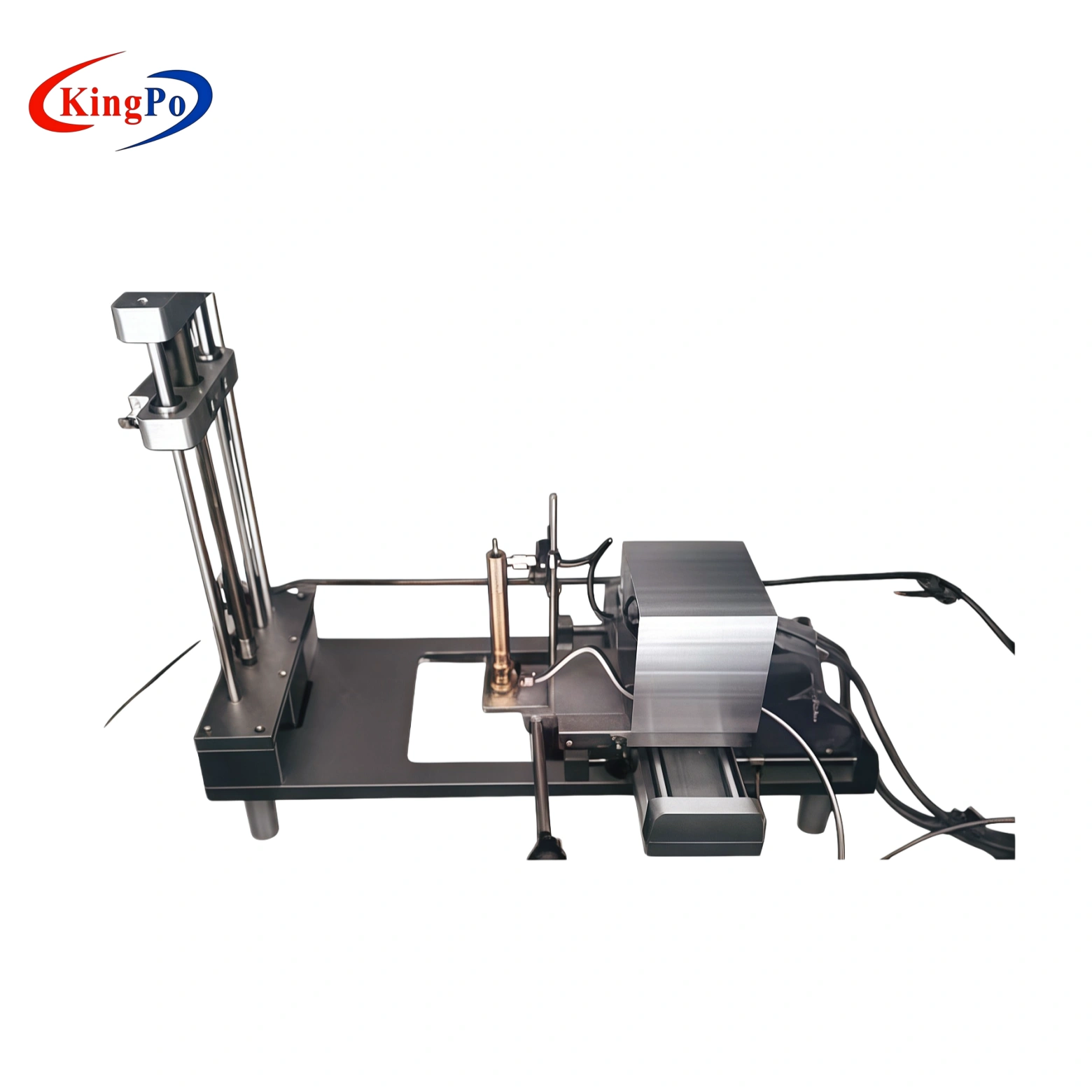

- IEC 60695-11-4 Figure A.1 50W Test Flame Burner
Professional Construction & Technical Precision
This 50W Test Flame Burner is precision-machined from brass to ensure consistent flame characteristics. The burner features an inner diameter of Φ9.5 mm ± 0.3 mm and is designed to produce a stable pre-mixed methane flame when used with appropriate gas flow control.
The burner supports adjustable positioning at 0°, 20°, and 45°, allowing flexible use in different test setups. It is compatible with copper block calibration methods to verify flame heat output under the specified calibration procedure.
Testing Principle
The burner generates a standardized 50 W pre-mixed methane test flame as defined in IEC 60695-11-4 Figure A.1. When connected to a suitable gas supply and ignition system, the burner produces a controlled flame that can be applied to test specimens in horizontal or vertical orientations.
Flame heat output can be verified using the copper block calibration method, where the temperature rise of a standardized copper block is measured to verify the flame heat output under the specified calibration procedure.
-

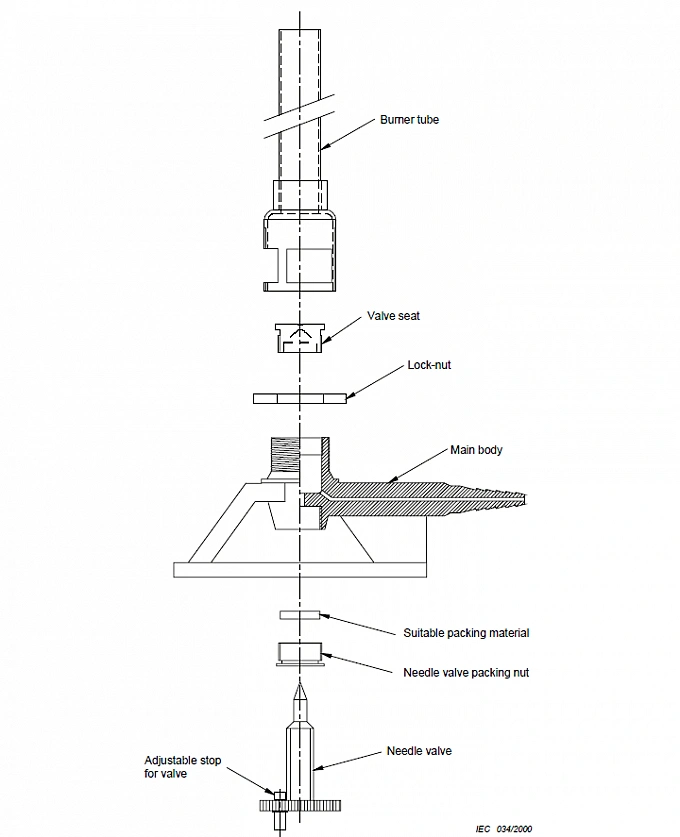

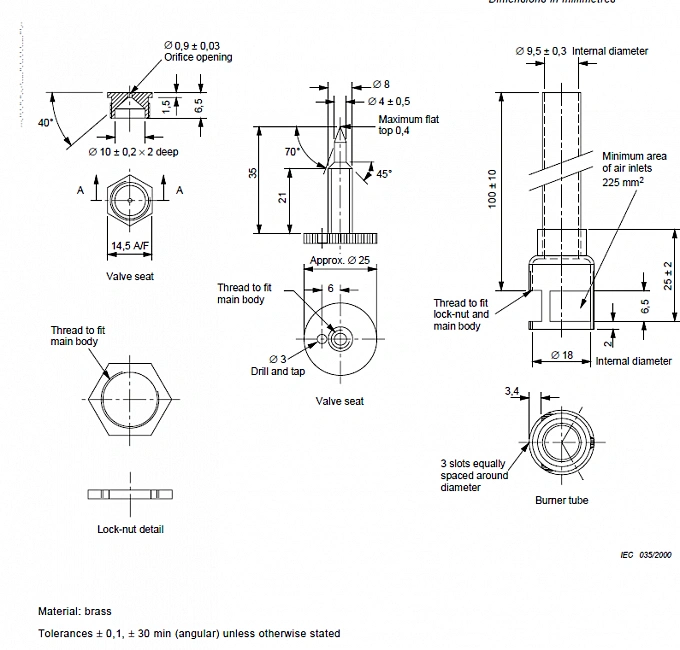

- IEC 60695-11-4 Figure A.1 Burner method A General assembly
Applications & Key Advantages
This burner is used in laboratory flame test setups requiring a standardized 50 W pre-mixed methane flame. It is suitable for fire hazard testing of electrotechnical materials, plastic components, insulating materials, and related IEC 60695 test configurations.
- Precision brass construction with Φ9.5 mm ± 0.3 mm burner diameter
- Supports copper block calibration for flame heat output verification
- Adjustable positioning for 0°, 20°, and 45° flame application
- Suitable for IEC 60695-11-4 Figure A.1 50 W test flame setups
Quality & Compliance Support
KingPo operates under ISO 9001, ISO 14001, and ISO 45001 certified management systems. Product-related CE, RoHS, PSE, SGS documentation, and test reports can be provided according to the applicable equipment configuration and customer requirements.
Compliance & Regulatory Assurance
This burner is designed to support the generation of a standardized 50 W pre-mixed methane test flame as specified in IEC 60695-11-4 Figure A.1. It helps laboratories and manufacturers establish consistent flame conditions for fire hazard testing of electrotechnical materials and components.
Calibration & Verification Support
- Factory verification of burner dimensions and basic assembly condition is provided.
- Regular inspection of the burner orifice and gas control components is recommended.
- Third-party calibration support for associated copper block and temperature measurement systems can be discussed upon request.
Technical Inquiry & Expert Support
KingPo offers IEC 60695-11-4 50W Test Flame Burners for standardized flame generation. Our engineering team can provide guidance on burner setup, gas control, and calibration procedures. For technical specifications or quotations, please contact us.
The Core Value We Deliver
- Precision brass burner manufactured to IEC 60695-11-4 Figure A.1 specifications
- Designed to generate a standardized 50 W pre-mixed methane test flame
- Supports copper block calibration for flame heat output verification
- Reliable and durable construction for laboratory use
- Professional technical support for flame test applications
