ME Equipment Threshold and Rough Handling Test System

Standards and Test Method Support

The system is designed to support selected mechanical test methods related to IEC 60601-1 and GB 9706.1-2020, especially requirements involving movement, stability, rough handling and mechanical stress resistance of ME equipment.

For bed-type ME equipment or medical bed applications, GB 9706.252 related movement requirements may also be reviewed according to the final product category and test program. The system supports test method implementation, while final compliance evaluation should follow the complete applicable standard, product configuration and laboratory test procedure.

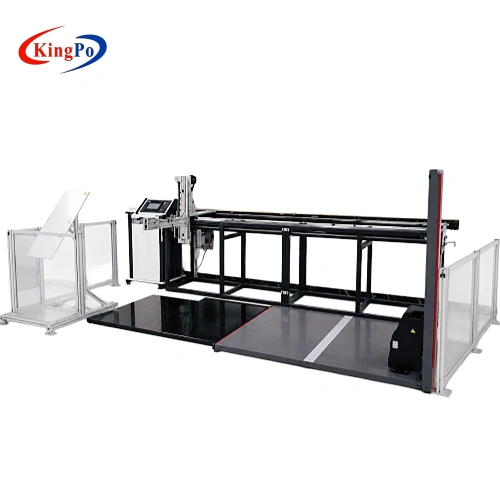

System Configuration

The system consists of a test platform, threshold device, door frame, replaceable obstacles, force sensor and pushing mechanism. It uses PLC control and servo motor horizontal drive, allowing operators to preset test speed, movement distance and test count through the touchscreen interface.

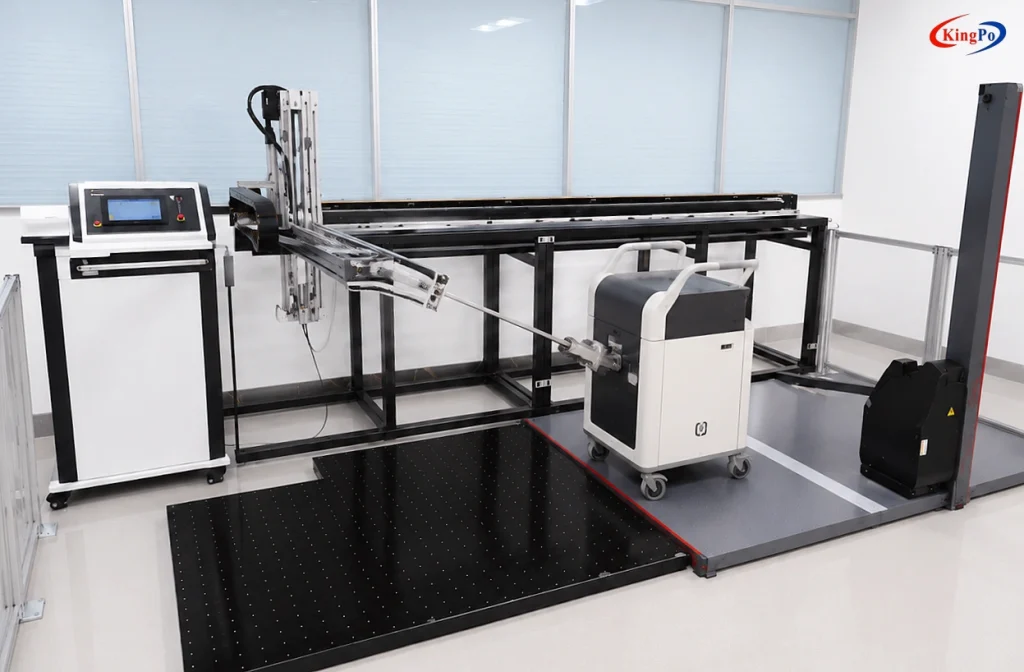

During testing, the ME equipment sample is placed on the platform and connected to the telescopic pushing arm. After the test starts, the system moves the sample through the selected threshold, obstacle, step or door frame path and displays the pushing or pulling force during operation.

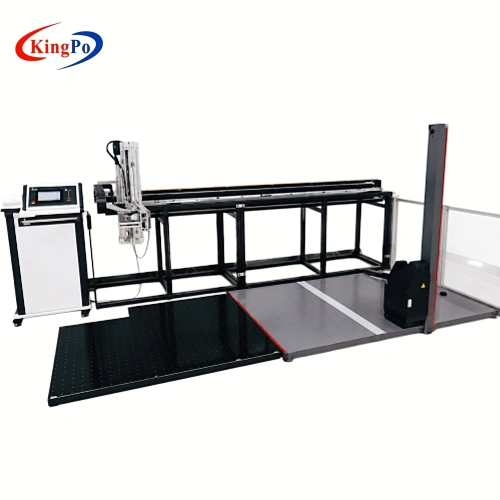

Professional Construction and Technical Precision

The system integrates a servo-driven horizontal pushing mechanism, PLC control system, force sensor and replaceable obstacle platform into one test configuration. The 7-inch touchscreen allows operators to set speed, distance and test count, while the force sensor supports real-time force display during movement and impact testing.

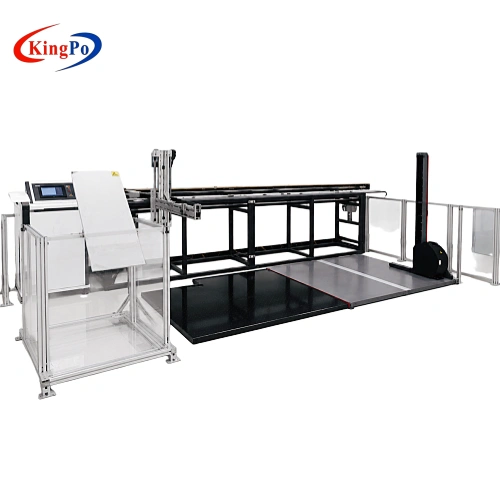

The platform is designed with M8 threaded holes for fixing replaceable obstacles. This allows laboratories to configure different threshold, step and door frame test layouts according to sample size, wheelbase, obstacle type and laboratory space.

Core Test Scenarios

This system is mainly used to reproduce movement and rough handling conditions that mobile ME equipment may experience during clinical use, transport and relocation inside medical facilities.

Typical test scenarios include:

• Movement over a threshold or fixed vertical obstacle
• Ascending step shock
• Descending step shock
• Door frame impact
• Inclined platform movement
• Repeated pushing movement for wheeled ME equipment
• Transport-related mechanical stress simulation

These scenarios help manufacturers and laboratories evaluate whether wheeled or transportable ME equipment can maintain structural integrity, functional safety and stable movement after repeated mechanical stress.

ME Equipment Rough Handling Tester Specifications

Key System Specifications

Test Function Parameters

The following test functions are based on the rough handling and movement-related configuration described in the product specification. Actual fixture layout can be adjusted according to the sample size, wheelbase, obstacle type and laboratory space.

Standards and Test Item Mapping

Testing Principle

The ME Equipment Rough Handling Tester simulates mechanical stress that mobile medical electrical equipment may experience during transport, relocation and daily clinical use.

The system drives the ME equipment sample horizontally through a controlled pushing mechanism. Depending on the selected setup, the sample can be moved across a threshold, fixed obstacle, step structure or door frame. During the movement, the force sensor monitors pushing or pulling force, while the PLC control system executes the preset speed, movement distance and test count.

This controlled process allows laboratories to reproduce transport-related mechanical stress more consistently than manual pushing or uncontrolled handling.

Test Workflow

The workflow below is a typical reference process for ME equipment threshold and rough handling testing. Actual steps may be adjusted according to the sample structure, selected clause and laboratory procedure.

1. Place the ME equipment sample on the test platform.
2. Select the required test item, such as threshold crossing, ascending step shock, descending step shock or door frame impact.
3. Install the corresponding obstacle, step, threshold or door frame fixture.
4. Fix the telescopic pushing arm at a suitable position on the sample.
5. Set test speed, movement distance and test count on the touchscreen.
6. Confirm the force sensor, pushing mechanism and protective guardrail status.
7. Start the automatic test sequence.
8. Monitor pushing force, sample movement and test condition.
9. Stop the test and inspect the sample if abnormal resistance, excessive impact or visible damage occurs.
10. Record the sample condition and test result after testing.

Applications and Laboratory Use

The ME Equipment Rough Handling Tester is suitable for mobile or transportable medical electrical equipment, including:

• Mobile medical electrical equipment
• Medical carts and trolley-type devices
• Wheeled diagnostic or therapeutic equipment
• Transportable hospital equipment
• Bed-type ME equipment requiring movement-related evaluation
• Equipment moved through thresholds, door frames, ramps or step transitions
• Equipment with casters, wheels or mobile bases used in hospital environments

Typical users include medical device manufacturers, R&D laboratories, quality control departments and third-party testing laboratories that need to verify mechanical strength, movement stability and rough handling resistance before product release or type testing.

Procurement Value

For manufacturers, this system helps standardize movement-related mechanical testing during product development, verification and quality control. It reduces manual test variation and provides a more repeatable way to evaluate whether mobile ME equipment can withstand threshold crossing, step impact and door frame impact in real use conditions.

For testing laboratories, the replaceable obstacle platform, presettable motion parameters, force display and configurable layout support flexible testing for different sample sizes, wheel configurations and test procedures.
