Spark Ignition Tester โ IEC 60601-1 Oxygen Rich Environment Fire Risk Assessment Apparatus
Spark Ignition Tester โ IEC 60601-1 compliant apparatus assesses the RISK of fire in an oxygen-rich environment for medical electrical (ME) equipment and systems by simulating spark ignition under controlled oxygen flow and electrical parameters per Figures 34-37.
- Standard Compliance: IEC 60601-1 (Clause 11.2.2, Figures 34-37) โ spark ignition tester for oxygen-rich environment fire risk evaluation in ME EQUIPMENT and ME SYSTEMS
- Test Speed: 0-30 times/min (PLC controlled)
- Oxygen Flow: <0.5 m/s (adjustable)
- Output: DC 0-80 V max voltage, 2 A max current
- Test Cycles: 0-99999 (presettable)
- Construction: Robust frame with PLC control and safety features
- MOQ: 1
- Price: To be quoted
- Standard Packaging: plywood box
- Delivery Period: 30 working days
- Payment Method: T/T
- Supply Capacity: 2 units per month

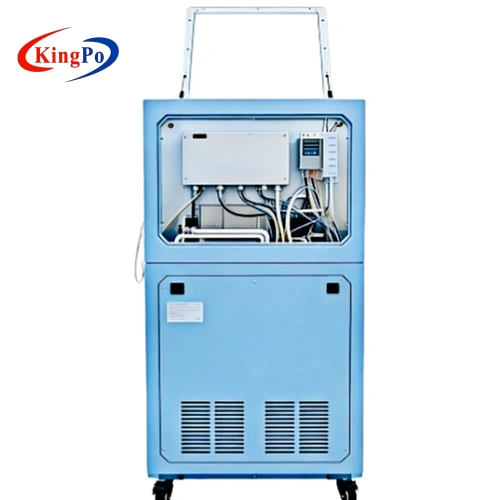

Spark Ignition Tester Description
Oxygen Environment IEC 60601-1 Spark Ignition Tester For Me Equipment / Systems
The Spark Ignition Tester is a specialized safety testing instrument manufactured by KingPo to evaluate the RISK of fire in an oxygen-rich environment for medical electrical (ME) equipment and ME systems in full compliance with IEC 60601-1 Clause 11.2.2 and Figures 34-37.
This apparatus determines whether a source of ignition exists by simulating spark conditions between contact pins (1 mm and 3 mm diameter) in a controlled oxygen flow (<0.5 m/s). It supports assessment under normal and single fault conditions, including temperature effects, solder joint failures, and spark energy limits defined in Figures 35-37. The system flushes contacts with oxygen while performing repeatable make/break operations, with cotton as the ignition indicator material. A minimum of 300 trials is typically performed to confirm no ignition occurs.
KingPo Factory Advantages
KingPo is an ISO9001-certified manufacturer with extensive experience in medical electrical safety testing equipment. We have supplied multiple IEC 60601-1 compliant spark ignition testers to global medical device manufacturers and accredited laboratories. All units include calibration certificates (additional cost), on-site installation guidance, a 1-year warranty, and 48-hour technical response from our Dongguan facility.

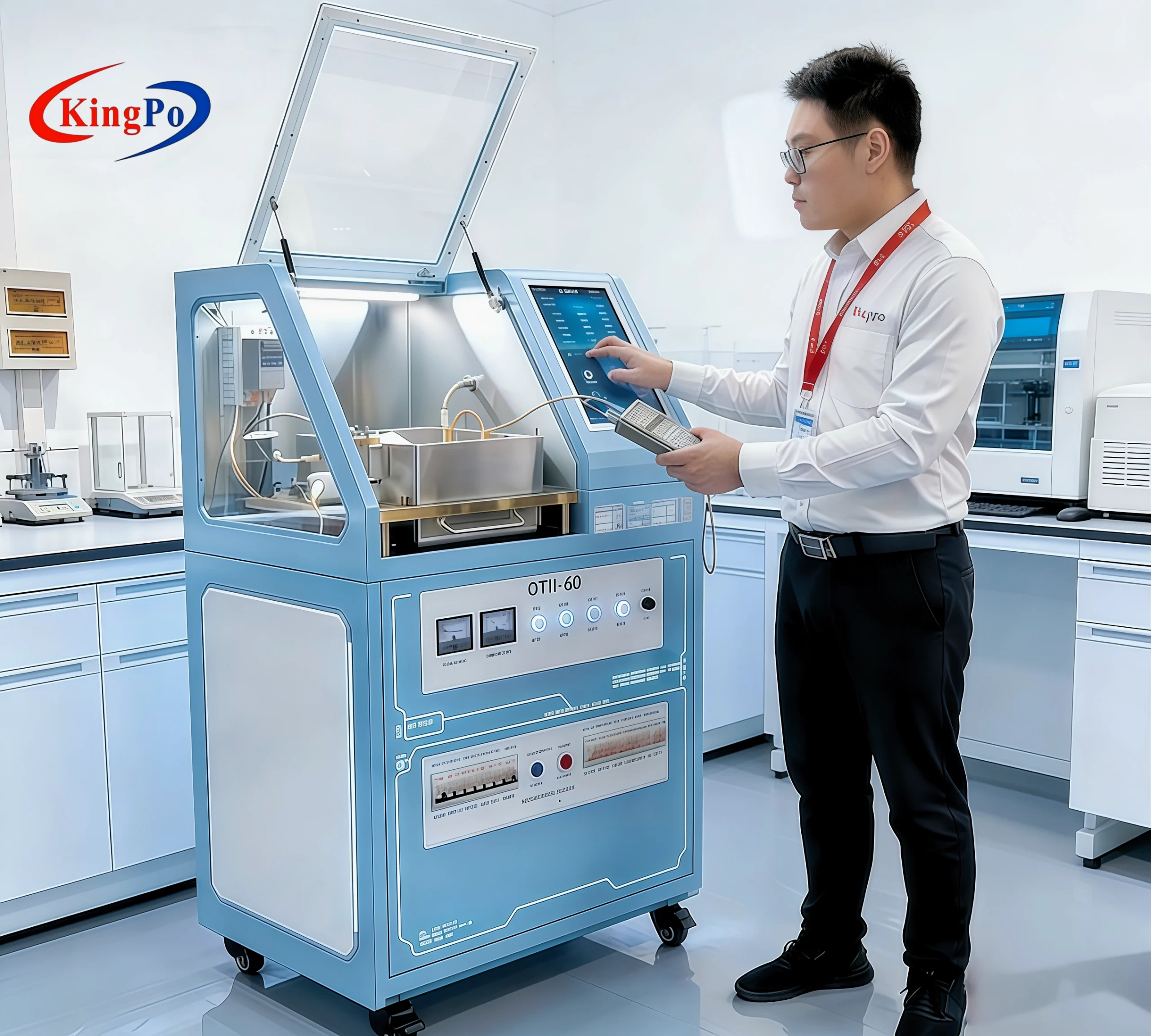

Professional Construction & Technical Precision
Key features include:
- PLC-controlled operation with adjustable test speed (0-30 times/min) and oxygen flow (<0.5 m/s)

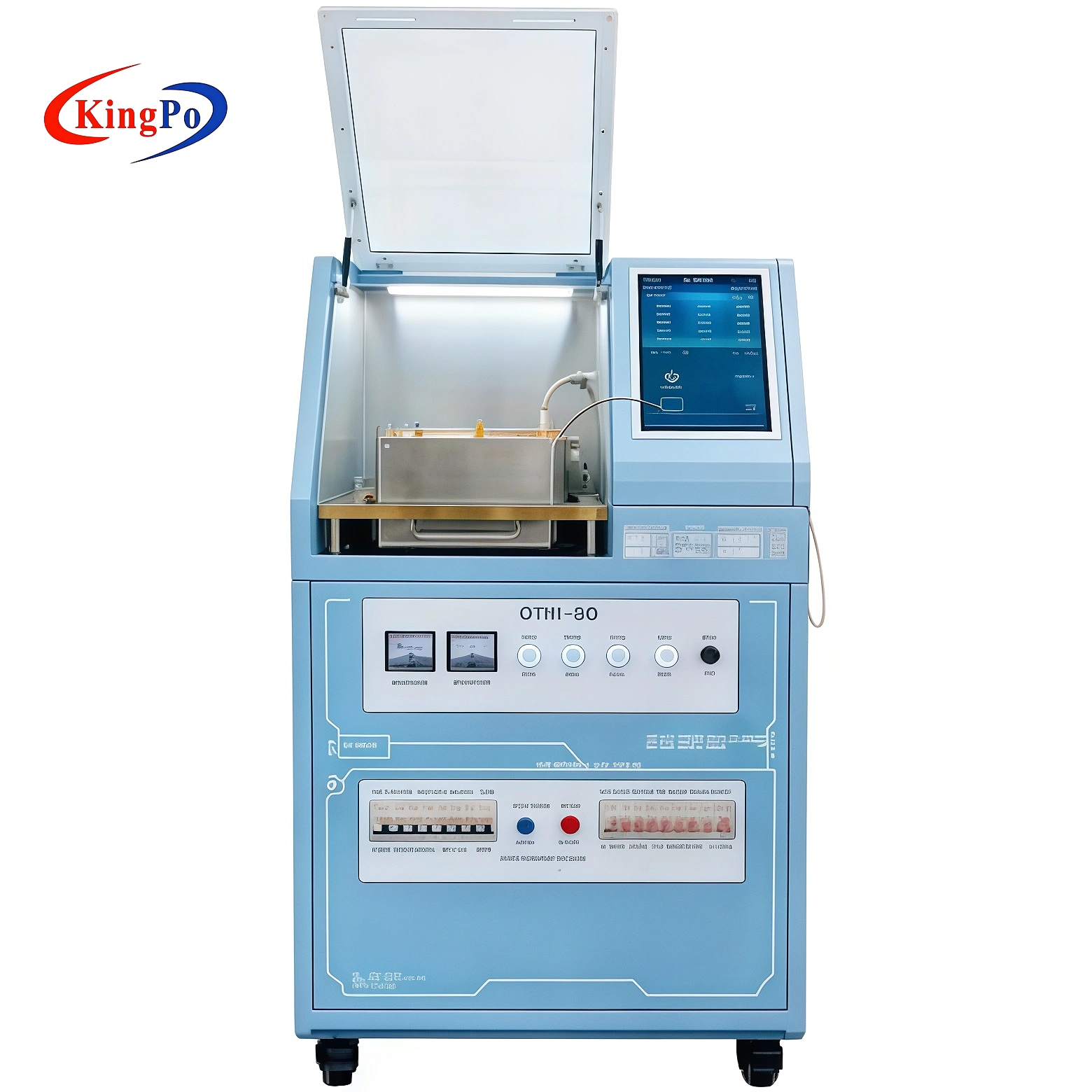

- DC output: 0-80 V voltage and 2 A current for precise spark energy simulation
- Test cycle counter: 0-99999 (presettable with automatic stop)

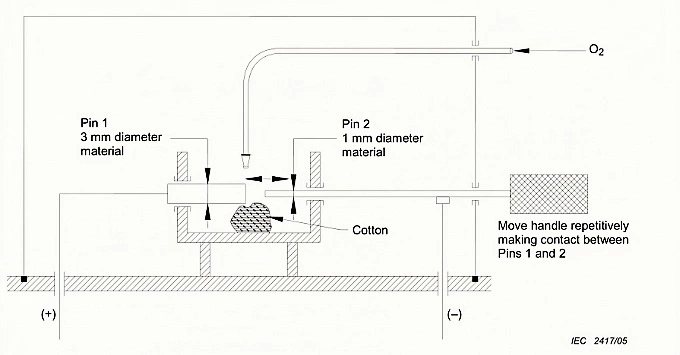

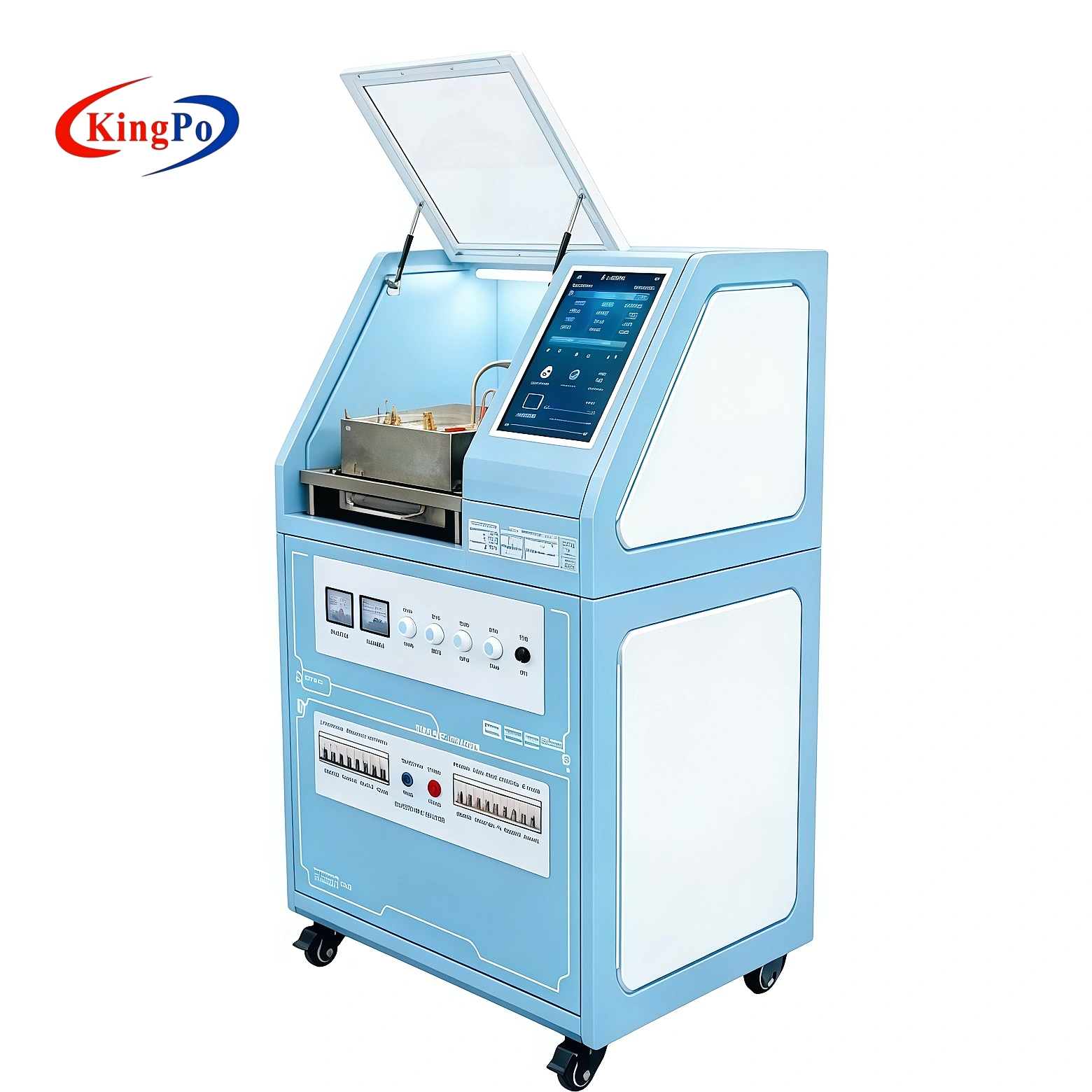

- Contact pins constructed from relevant materials (1 mm and 3 mm diameters) per Figure 34
- Integrated oxygen delivery tube and safety interlocks
- Robust enclosure suitable for laboratory use
These elements ensure accurate, repeatable simulation of worst-case spark ignition scenarios in 100% oxygen or lower concentrations, with proper justification documented in the RISK MANAGEMENT FILE when deviations apply.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | KP-601A Spark Ignition Tester |
| Standard | IEC 60601-1 (Clause 11.2.2, Figures 34-37) |
| Test Speed | 0-30 times/min (PLC control) |
| Oxygen Flow | <0.5 m/s (adjustable) |
| Max Output Voltage (DC) | 0-80 V |
| Max Output Current (DC) | 2 A |
| Test Cycles | 0-99999 (presettable) |
| Power Supply | AC 220 V 50 Hz |
| Dimensions (approx.) | 850 ร 900 ร 1650 mm (WรDรH) |
| Weight (approx.) | 150 kg |
| Packing Dimension | 97 ร 90 ร 180 cm (LรWรH) |
| Gross Weight | 213 kg |

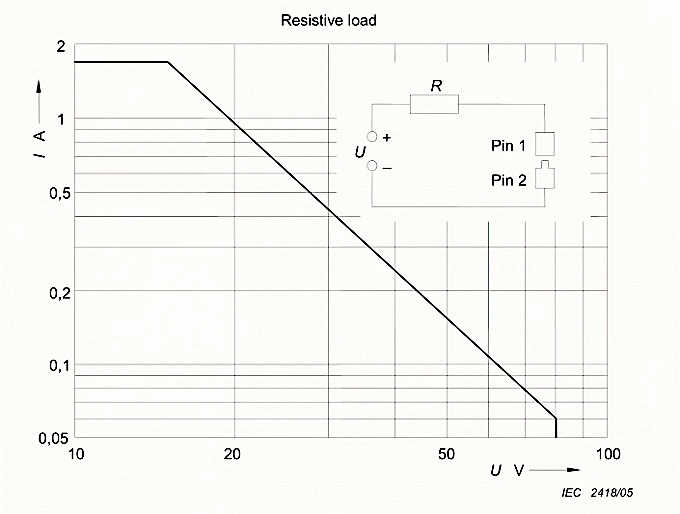

Figure 35 โ Maximum allowable current I as a function of the maximum allowable voltage U measured in a purely resistive circuit in an OXYGEN RICH ENVIRONMENT

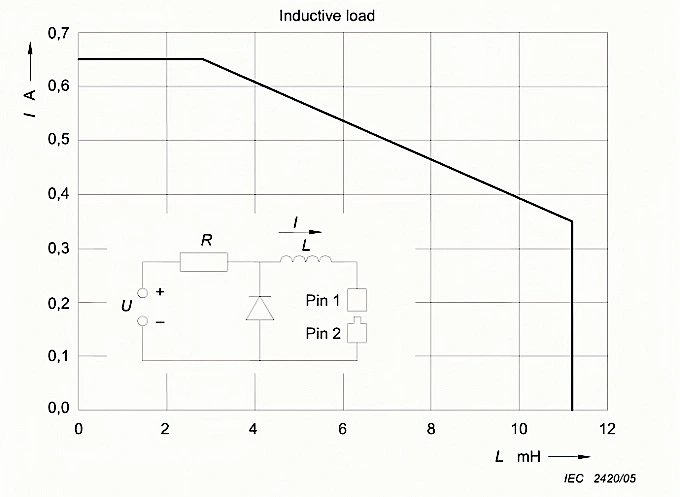

Figure 37 โ Maximum allowable current I as a function of the inductance L measured in an inductive circuit in an OXYGEN RICH ENVIRONMENT
The spark ignition tester supports essential stages:
- Product Development โ Assess fire risk mitigation in oxygen-rich environments for new ME equipment designs
- Certification Testing โ Generate data for IEC 60601-1 compliance regarding Clause 11.2.2 fire hazards
- Quality Control โ Verify insulation, components, and spark energy limits in production
- Risk Management โ Document worst-case scenarios and safety margins per the standard
It helps manufacturers reduce unacceptable fire risks, shorten compliance timelines, and ensure patient safety in oxygen-enriched medical settings.
Procurement Benefits
PLC control and adjustable parameters provide high repeatability and flexibility. Robust construction and comprehensive safety features ensure reliable long-term operation. This spark ignition tester enhances fire risk validation for ME equipment, supports regulatory compliance, and minimizes safety-related risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Spark Ignition Tester Applications
- Medical Electrical (ME) Equipment and Systems โ Fire risk evaluation in oxygen-rich environments per IEC 60601-1
- Oxygen-Concentrating Devices and Ventilators โ Spark ignition assessment under normal and single fault conditions
- Certification Laboratories & Quality Assurance โ Compliance verification for Clause 11.2.2 and Figures 34-37
- R&D and Risk Management โ Justification of safety margins and material selection for oxygen-enriched applications
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with IEC 60601-1 Clause 11.2.2, specifically addressing the RISK of fire in an OXYGEN RICH ENVIRONMENT for ME EQUIPMENT and ME SYSTEMS. It simulates spark ignition scenarios using standardized contact pins and oxygen flow to determine whether sparks provide adequate energy for ignition (per Figures 35-37), thereby supporting manufacturers in reducing fire hazards under normal and single fault conditions. Calibration certificates are available at additional cost. Regular verification of voltage/current output, oxygen flow rate, and test speed is recommended to maintain traceability.
Technical Inquiry for IEC 60601-1 Spark Ignition Tester
KingPo specializes in precision medical electrical safety testing equipment designed to IEC 60601-1 for ME EQUIPMENT and ME SYSTEMS. If you require spark ignition testing to evaluate fire risk in oxygen-rich environments, our engineering team can provide customized configurations and technical support.
The Core Value We Deliver to You
- Adjustable test speed 0โ30 times/min with PLC control for repeatable results
- Controlled oxygen flow less than 0.5 m/s for accurate simulation of oxygen-rich conditions
- DC output range 0โ80 V / 2 A for precise spark energy assessment per Figures 35โ37
- Test cycle counter up to 99999 with automatic stop function
- Robust construction with safety interlocks suitable for laboratory use
Take Action Now Tell us your testing needs (ME equipment type, oxygen concentration, or specific material requirements) โ our engineering team will reply with tailored recommendations within 24 hours.
