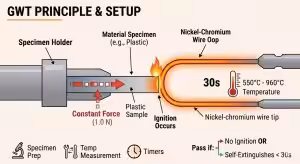

You use a glow wire test to see if electrical parts can handle fire. Manufacturers use special machines like the Kingpo KP-FT01 Glow Wire Tester for good results. The Glow Wire Test Apparatus heats up a wire and presses it on the material. You watch how the material acts when it gets hot and follow important rules from around the world.
When you use careful testing tools, you help make electrical products safe for all people.
Key Takeaways
-
Glow wire tests help see if electrical materials can handle fire and heat. This keeps people safe.
-
The Kingpo KP-FT01 Glow Wire Tester gives good results. It follows rules used around the world.
-
Get samples ready by cleaning them well. Cut them to the right size. This helps the test be correct.
-
Always use safety steps. Wear protective gear. Keep the testing area clean.
-
Look at the test results. Decide if the materials are safe from fire. Make changes if needed.
Purpose of Glow Wire Testing
Why the Test Is Needed
You need to know if electrical parts can handle heat and not catch fire. The glow wire test helps you check this. When you use this test, you see how materials react to high temperatures. This is important because many electrical faults start with heat. If a wire gets too hot, it can cause a fire. You want to make sure the materials in your products do not burn easily.
-
The glow wire test checks the flame resistance of materials.
-
It simulates high temperatures that could cause fire hazards.
-
You can see if materials can handle short bursts of heat and stop or slow down burning.
What It Achieves
When you use the glow wire test, you make your products safer. This test shows you how materials act when they touch something very hot. You can find out if a material will catch fire or stay safe. The test follows rules from IEC 60695-2-10 to 2-13, so you get results you can trust.
Here is a table that explains the main points:
|
Feature |
Description |
|---|---|
|
Purpose |
Checks how well materials resist flames in electrical equipment. |
|
Testing Method |
Simulates hot wire contact to see if materials ignite or burn. |
|
Importance |
Gives you important data for fire safety and helps you meet safety rules. |
Tip: When you test your materials, you help prevent electrical fires and protect people who use your products.
Equipment for Glow Wire Test
Main Tools and Apparatus
You need special tools to do a glow wire test. The Kingpo KP-FT01 Glow Wire Tester is a popular choice in labs and factories. This machine uses smart technology to check how materials handle heat. It follows the IEC 60695-2-10 standard, so you can trust the results.
Here is a table that lists the main features you should look for in your testing equipment:
|
Feature |
Description |
|---|---|
|
Computer-controlled system |
Lets you watch test settings as they happen |
|
High precision temperature control |
Keeps the wire at the right heat |
|
Stable and repeatable performance |
Gives you the same results every time |
|
Automatic data storage and retrieval |
Saves your test data for easy review |
|
Direct generation of professional reports |
Makes reporting quick and easy |
|
Glow wire temperature range |
Heats from 550°C to 960°C or more |
|
Test duration |
Usually set for 30 seconds |
|
Evaluated parameters |
Checks burning, flame spread, GWIT, GWFI |
The Kingpo KP-FT01 has all these features. You get a touchscreen that is simple to use. The device uses a K-type thermocouple to measure heat. The tester blocks outside interference, so your results are reliable.
Note: Clean test leftovers and check the thermocouple often. This keeps your equipment working well and your results trustworthy.
Sample Preparation
You must get your samples ready before the test. Cut the material to the right size and shape as the standard says. Make sure the surface is clean and has no dust or oil. Put the sample in the holder so it does not move during the test. This helps you get clear and correct results.
Always follow safety rules when using hot tools and samples. Wear gloves and safety glasses to protect yourself. Good preparation and careful setup make your glow wire test safe and successful.
Glow Wire Test Procedure
Preparing the Sample
You start by getting your sample ready. Cut the material to the size that the test standard asks for. Make sure the edges are smooth and the surface is clean. Remove any dust, oil, or dirt. Place the sample in the holder so it stays still during the test. If the sample moves, you may not get the right results.
Tip: Always wear gloves and safety glasses when you handle the sample. Hot tools and sharp edges can hurt you.
Setting Up the Tester
Next, you set up the Kingpo KP-FT01 Glow Wire Tester. Turn on the machine and check that the touchscreen works. Select the test type you want to run. You can choose from glow wire ignition temperature (GWIT), glow wire flammability index (GWFI), or the basic glow wire test. Make sure the K-type thermocouple is clean and connected. This sensor checks the wire’s temperature. Set the wire to the right starting temperature for your test.
-
Check the ventilation in the room.
-
Make sure the tester is on a stable table.
-
Review the safety features before you begin.
Heating and Application
Now you heat the wire. The tester brings the wire to the temperature you set. The temperature depends on the test type. Here is a table that shows common settings:
|
Test Type |
Starting Temperature |
Increment/Decrement |
Final Condition |
|---|---|---|---|
|
GWIT |
500°C |
+50°C |
Sustained combustion observed |
|
GWFI |
960°C |
-50°C |
Specimen self-extinguished |
You wait until the wire reaches the right heat. The tester will tell you when it is ready. Then, you move the hot wire to touch the sample for a set time, usually 30 seconds. Watch for any sparks, flames, or melting.
Observing Results
You must watch the sample closely during and after the test. Look for signs of burning, glowing, or self-extinguishing. Write down what you see. The tester may also record data for you. If the sample catches fire and keeps burning, it does not pass. If the sample stops burning on its own, it passes.
-
Record the time it takes for the flame to go out.
-
Note if the sample drips or melts.
-
Save your results for your report.
Note: Careful observation helps you understand how safe your material is. The glow wire test gives you clear answers about fire risk.
Safety Measures
Safety Protocols
You must follow strict safety protocols when you perform a glow wire test. These rules protect you and your workspace from harm. Always check your equipment before you start. Make sure the Kingpo KP-FT01 Glow Wire Tester sits on a stable surface. Keep the area around the tester clean and free of flammable items.
You should set up good ventilation in your lab. Hot wires and burning samples can release smoke or fumes. Open windows or use an exhaust fan to keep the air fresh. Never leave the tester running without supervision. Stay alert and watch the test from start to finish.
Here is a quick checklist for safety protocols:
-
Inspect the tester and wires for damage.
-
Remove paper, cloth, or plastic from the test area.
-
Turn on ventilation systems.
-
Keep a fire extinguisher nearby.
-
Read the user manual before you begin.
Tip: If you see sparks or flames spreading, stop the test right away and use the fire extinguisher.
Protective Equipment
You need to wear the right protective equipment during glow wire tests. This gear keeps you safe from burns, hot surfaces, and fumes. Always put on heat-resistant gloves before you touch the sample or the tester. Wear safety goggles to protect your eyes from sparks or splashes.
A lab coat or apron shields your clothes and skin. Closed-toe shoes protect your feet from falling objects. If your lab has strong fumes, use a face mask or respirator.
Here is a table to help you remember what to wear:
|
Equipment |
Purpose |
Emoji |
|---|---|---|
|
Heat-resistant gloves |
Protect your hands from burns |
🧤 |
|
Safety goggles |
Shield your eyes |
🥽 |
|
Lab coat/apron |
Guard your body and clothes |
🥼 |
|
Closed-toe shoes |
Protect your feet |
👟 |
|
Face mask/respirator |
Block harmful fumes |
😷 |
Note: You should never skip safety gear, even for short tests. Your safety matters most.
Testing Standards and Result Interpretation
International Standards (e.g., IEC 60695)
You need to follow international standards when you perform a glow wire test. These rules help you get results that everyone can trust. The most important standards come from the International Electrotechnical Commission (IEC). Here is a table that shows some key standards and what they cover:
|
Standard |
Description |
|---|---|
|
IEC 60695-2-10 |
General method for the Glow Wire Test |
|
IEC 60695-2-11 |
Glow Wire Ignition Temperature Test |
|
IEC 60695-2-12 |
Glow Wire Flammability Index Test |
You may also see other standards like UL 746A for polymeric materials. These rules make sure your tests match what is needed around the world.
Compliance Steps
You must follow clear steps to meet these standards. First, choose the right test method for your material. Set up your Kingpo KP-FT01 Glow Wire Tester according to the standard you need. Check that your sample size, wire temperature, and test time match the rules. Record all your settings and results. This helps you show that your products are safe.
Tip: The Kingpo KP-FT01 makes it easy to follow these steps. Its touchscreen and automatic data storage help you keep good records for every test.
Interpreting Results
You need to look at your results carefully. The glow wire test checks how your material reacts to heat and if it catches fire. You should pay attention to these main points:
-
Ignition temperature: The lowest temperature where your material starts to burn.
-
Contact time: How long the hot wire touches your sample.
-
Burning duration: How long your sample keeps burning after the wire moves away.
|
Parameter |
Description |
|---|---|
|
Ignition Temperature |
The minimum temperature at which the material ignites when exposed to the heated wire. |
|
Contact Time |
The duration for which the heated wire is in contact with the material during the test. |
|
Burning Duration |
The length of time the material continues to burn after ignition. |
If your sample stops burning quickly or does not catch fire, it passes the test. If it keeps burning, you may need to change your material.
Actions After Testing
After you finish the test, you should review your results and check your records. Clean the tester and get it ready for the next use. You should also calibrate the Kingpo KP-FT01 often. Regular calibration and maintenance keep your results accurate and help you meet safety rules every time.
Note: Good care of your equipment means you can trust your test results and keep your products safe.
You help make electrical products safer by doing each glow wire test step. Here is a simple overview of what you do:
|
Step |
Description |
|---|---|
|
1 |
Press a hot Nickel-Chromium glow wire on the material. |
|
2 |
Watch to see if the material catches fire. |
|
3 |
See if the material puts out the fire by itself in time. |
|
4 |
Look to see if any drips start a fire on tissue below. |
Using smart testers like the Kingpo KP-FT01 gives you correct results. When you use world rules, you make electrical problems less likely and earn trust from customers. Good testing keeps everyone safe and makes your company look good.
FAQ
What is the main goal of a glow wire test?
You use a glow wire test to see if a material can resist fire. This test helps you find out if your electrical parts will stay safe when they get very hot.
How does the Kingpo KP-FT01 make testing easier?
The Kingpo KP-FT01 gives you a touchscreen and automatic data storage. You can set up tests quickly and get results you can trust. The machine keeps your work simple and accurate.
Do you need special training to use a glow wire tester?
You do not need advanced training. You should read the user manual and follow safety rules. The Kingpo KP-FT01 has a user-friendly design, so you can learn to use it fast.
What should you do if your sample fails the test?
If your sample fails, you should review your material choice. Try a different material or improve the design. Always retest to make sure your product meets safety standards.
