Anti-Shock Probe Test Device โ IEC 62196-1 EV Connector Electrical Safety Tester
Anti-Shock Probe Test Device โ IEC 62196-1 compliant electrical safety tester for EV connectors and charging equipment, featuring switchable AC/DC 0-62V output and compatibility with standardized test probes for Clauses 10.1, 10.2 and 26.6 accessibility testing.
- Standard Compliance: IEC 62196-1:2022 โ anti-shock probe test device for EV connector electrical safety testing
- Output Voltage: Switchable AC 0-62V / DC 0-62V
- Applied Clauses: 10.1, 10.2, 26.6 โ protection against electric shock and accessibility of hazardous live parts
- Operation: Simple push-button activation with reset function and safety interlock
- Probe Compatibility: Works with various IEC standard test probes (IPXXB, IPXXD, etc.)
- Construction: Compact benchtop design suitable for laboratory and production quality inspection
- MOQ: 1
- Delivery Period: 7 days (goods in stock)
Anti-Shock Probe Test Device Description
IEC 62196-1 AC/DC Anti-Shock Probe Test Device for EV Connector Electrical Safety Testing

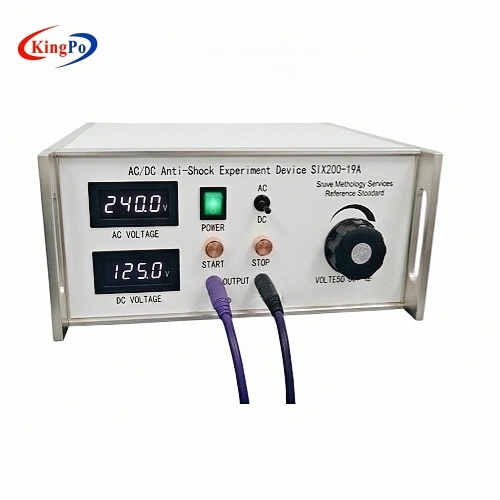

The Anti-Shock Probe Test Device is a precision electrical safety testing instrument manufactured by KingPo, designed to verify protection against electric shock in EV connectors, vehicle inlets, and related charging equipment in full compliance with IEC 62196-1:2022. This anti-shock probe test device works in conjunction with standardized test probes to determine whether hazardous live parts can be contacted during accessibility tests, thereby assessing insulation integrity and overall safety design.
During operation, one electrode connects to the energized part of the equipment under test, while the other connects to the standardized testing probe. Upon activation, the probe is applied to potentially accessible surfaces. A voltage indication confirms contact with live components, signaling a potential electric shock risk. The circuit can be safely reset after each test. The system supports Clauses 10.1, 10.2, and 26.6, making it an essential tool for EV charging equipment manufacturers, certification laboratories, and quality inspection institutes.
KingPo Factory Advantages
KingPo is an ISO9001 and CE certified manufacturer with extensive experience in EV connector and electrical safety testing equipment. We maintain stock of IEC 62196-1 anti-shock probe test devices for rapid 5-day delivery and have supplied over 150 units to global EV manufacturers and accredited labs since 2022. All units include calibration certificates (additional cost), a 1-year warranty, and 48-hour technical response from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- Switchable AC/DC 0-62V output for flexible AC or DC testing scenarios
- Compatibility with a wide range of IEC standard test probes
- Push-button operation with safety interlock and emergency stop
- Over-current protection and high-voltage interlock for operator safety

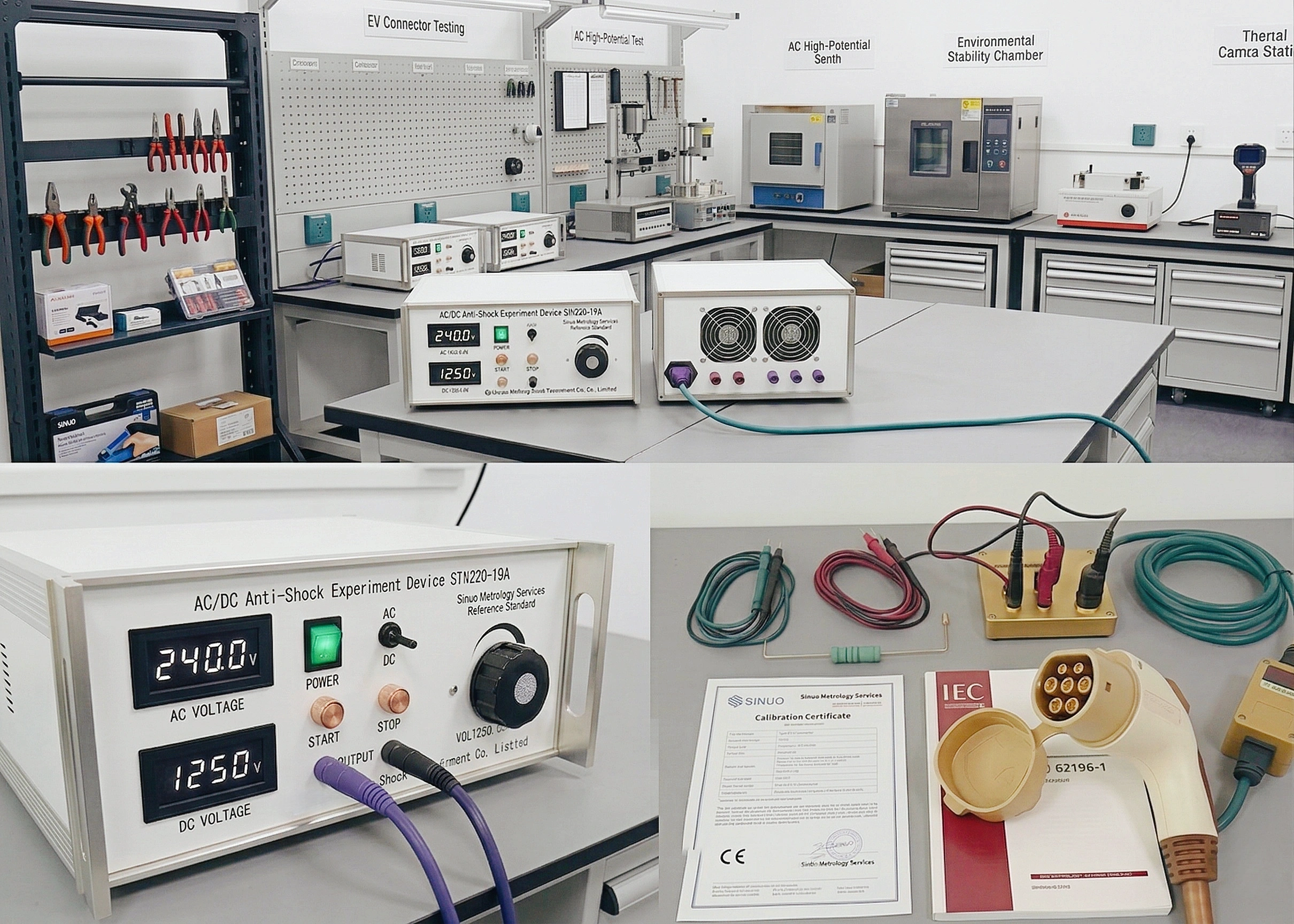

- Compact, durable benchtop construction suitable for laboratory or production line use
These elements ensure accurate, repeatable verification of electric shock protection.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | SN2210-19A Anti-Shock Probe Test Device |
| Applicable Standard | IEC 62196-1:2022 |
| Applied Clauses | 10.1, 10.2, 26.6 |
| Output Test Voltage | AC 0โ62 V / DC 0โ62 V (switchable) |
| Voltage Accuracy | ยฑ1% of reading |
| Probe Compatibility | Standard IEC test probes (e.g., IPXXB, IPXXD) |
| Operation Mode | Push-button activation with reset and safety interlock |
| Power Supply | AC 220 V ยฑ5%, 50/60 Hz |
| Operating Temperature | 0โ โ 40โ |
| Relative Humidity | โค80% RH (non-condensing) |
| Safety Features | Over-current protection, emergency stop, high-voltage interlock |
| Dimensions (WรDรH) | Approx. 300 ร 250 ร 150 mm |
| Weight | Approx. 8 kg |
Primary Use Cases & Business Value
The anti-shock probe test device supports key stages in product development and compliance:
- Product Development โ Validate enclosure and insulation design for new EV connectors
- Certification Testing โ Generate data for IEC 62196-1 compliance and safety approval
- Quality Control โ Batch inspection of hazardous live part accessibility
- Failure Analysis โ Identify risks of accidental contact with live components
It improves product safety, reduces field failure risks, and accelerates certification timelines.
Procurement Benefits
Compact benchtop design and 5-day delivery minimize project lead time. Simple push-button operation reduces training requirements. Comprehensive documentation and responsive after-sales service ensure long-term reliability. This anti-shock probe test device enhances EV connector safety validation, supports certification claims, and minimizes compliance risks. Contact us today for your quote โ we will respond within 24 hours with detailed technical specifications and pricing.
Anti-Shock Probe Test Device Applications
- EV Connectors & Vehicle Inlets โ Electric shock protection and accessibility verification per IEC 62196-1
- EV Charging Equipment โ Safety testing of plugs, socket-outlets, and cable assemblies
- Household & Industrial Electrical Appliances โ Insulation integrity and hazardous live part accessibility checks
- Certification Labs & Quality Assurance โ Compliance assessment for Clauses 10.1, 10.2 and 26.6
- R&D & Product Design โ Validation of enclosure safety for new conductive charging products
Compliance & Regulatory Assurance
This equipment is strictly designed and manufactured in accordance with IEC 62196-1:2022, specifically addressing Clauses 10.1, 10.2 and 26.6 for protection against electric shock in EV conductive charging accessories. It simulates real-world contact scenarios using standardized probes to evaluate whether hazardous live parts are accessible, thereby ensuring product reliability, safety, and compliance with international electrical safety standards. Calibration certificates are available at additional cost. Regular verification of voltage output accuracy and probe contact detection is recommended to maintain traceability.
Technical Inquiry for IEC 62196-1 EV Connector Electrical Safety Testing
KingPo specializes in precision electrical safety test equipment designed to IEC 62196-1:2022 for electric vehicle conductive charging interfaces. If you require anti-shock probe testing for vehicle connectors or inlets per Clauses 10.1, 10.2 and 26.6, our engineering team can provide customized probe configurations and technical support.
The Core Value We Deliver to You
- Switchable AC/DC 0โ62 V output with ยฑ1% accuracy
- Full compatibility with standard IEC test probes
- Simple push-button operation with safety interlock
- Compact benchtop design for efficient laboratory use
- Traceable calibration support for compliance testing
Take Action Now Tell us your testing needs โ our engineering team will reply with tailored recommendations within 24 hours.
