IEC 62196-1:2022 Air Saturated Test Chamber | Rust Corrosion Steam Testing Apparatus
The IEC 62196-1:2022 Air Saturated Test Chamber is a professional rust corrosion steam testing apparatus designed to accelerate corrosion testing of plugs, screws and EV charging connectors in accordance with IEC 62196-1:2022 Clause 30.
- Standard Compliance: IEC 62196-1:2022 Clause 30 โ air saturated rust corrosion steam test
- Test Space: W950 ร D650 ร H650 mm stainless steel chamber
- Vapor Temperature: (20 ยฑ 5)โ with precise PID control
- Humidity Display: LCD digital display with โค1 min response time to 99% humidity
- Timer Range: 0.1๏ฝ999.9 s/m/h with buzzer alarm
- Chamber Material: SUS#316 inner chamber with full argon welding
- MOQ: 1
- Delivery Period: 30 working days
IEC 62196-1:2022 Air Saturated Test Chamber Description
IEC 62196-1 Air Saturated Test Chamber Rust Corrosion Steam Testing Equipment For Plug Testing
The IEC 62196-1:2022 Air Saturated Test Chamber | Rust Corrosion Steam Testing Apparatus is a professional environmental test system manufactured by KingPo. It is specifically designed to perform accelerated rust and corrosion testing on metal components such as plugs, screws and EV charging connectors by simulating saturated water vapor conditions after ammonium chloride immersion, in full accordance with IEC 62196-1:2022 Clause 30.
Technical Parameters
Test Performance Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Standard | IEC 62196-1:2022 Clause 30 | Air saturated rust corrosion steam test after ammonium chloride immersion |
| Test Space | W950 ร D650 ร H650 mm | Compact chamber suitable for plugs and small metal components |
| Water Vapor Temperature | (20 ยฑ 5)โ | Precise PID control with platinum PT-100 sensor |
| Humidity Indication | LCD digital display | Real-time humidity monitoring with โค1 min response time to 99% humidity |
| Timer Range | 0.1๏ฝ999.9 s/m/h | Programmable with buzzer alarm at end of test |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Inner Chamber Material | SUS#316 stainless steel, full argon welding | High corrosion resistance and long-term durability |
| Outer Chamber Material | SUS#304 stainless steel | Robust and easy-to-clean exterior |
| Input Power | AC220V ยฑ10%, 50/60Hz | Standard single-phase laboratory power supply |
The IEC 62196-1 Air Saturated Test Chamber features a fully welded SUS#316 stainless steel inner chamber with argon arc welding throughout, providing superior corrosion resistance and ensuring a completely leak-free, long-term stable test environment. The outer enclosure is constructed from SUS#304 stainless steel for added structural strength and durability.
Precise environmental control is achieved through a high-accuracy platinum PT-100 sensor combined with a PID microcomputer temperature controller, maintaining the saturated water vapor temperature at (20 ยฑ 5)โ with excellent stability. Real-time monitoring of temperature and humidity is displayed on a clear LCD digital interface, with response time to 99% humidity within 1 minute.
The system incorporates a programmable timer (0.1 to 999.9 s/m/h) with audible buzzer alarm and intelligent automatic operation, making it highly reliable for repeatable corrosion and rusting tests on plugs, screws and EV charging connectors.
Testing Principle
After immersing the test specimens in a 10% ammonium chloride solution for 10 minutes, the parts are placed in the air saturated test chamber at (20 ยฑ 5)โ with high humidity for 10 minutes to accelerate rust and corrosion. The specimens are then dried at (100 ยฑ 5)โ and examined for signs of rust, as required by IEC 62196-1:2022 Clause 30.
Common Error Mitigation
To ensure repeatable and accurate results, always verify the vapor temperature has stabilized at (20 ยฑ 5)โ before placing specimens inside the chamber. Use the supplied high-quality test fixtures and ensure proper sealing of the chamber door. Regular cleaning of the inner chamber prevents contamination that could affect test outcomes.
Primary Use Cases & Business Value
The IEC 62196-1:2022 Air Saturated Test Chamber is used by EV charging connector manufacturers and certification laboratories to evaluate the corrosion resistance of metal components such as plugs and screws, ensuring long-term reliability and compliance with international safety standards.
Industrial Applications & Lab Scenarios
- EV charging connector manufacturers โ corrosion resistance testing of plugs and sockets per IEC 62196-1:2022
- Third-party certification laboratories โ traceable compliance testing for EV charging accessories
- R&D departments โ development and optimization of corrosion-resistant materials and coatings
- Quality control teams โ batch verification of metal components after surface treatment
- Regulatory compliance teams โ demonstration of rust and corrosion resistance for market approval
Strategic Procurement Advantages & Global Support
- High-Efficiency Testing: Precise temperature and humidity control with automatic operation for consistent, repeatable results.
- Certified Manufacturing: ISO 9001/14001/45001 and CE certified production with ISO 17025 traceable calibration ensures laboratory-grade reliability.
- Reliability & Support: Each unit undergoes rigorous factory calibration in our Dongguan facility and is backed by a full one-year warranty, on-site installation guidance, and lifetime technical engineering support.
Compliance & Regulatory Assurance
This equipment is designed and manufactured in full accordance with IEC 62196-1:2022 Clause 30 for air saturated rust corrosion steam testing. It provides a standardized, reproducible test method essential for demonstrating compliance with international requirements for corrosion resistance of plugs and metal components in EV charging systems.
For detailed information on test procedures, please refer to the latest edition of IEC 62196-1:2022. Regular cleaning and calibration of the temperature sensor are recommended to maintain accuracy.
Technical Inquiry & Expert Support
KingPo provides validated IEC 62196-1:2022 Air Saturated Test Chambers for rust corrosion steam testing. Contact our engineering team for custom configurations and setup support.
The Core Value We Deliver
- IEC 62196-1:2022 Compliance: Precise air saturated test chamber per Clause 30 for reliable rust corrosion evaluation.
- Accurate Environmental Control: (20 ยฑ 5)โ vapor temperature with fast response and LCD display.
- Robust Construction: SUS#316 inner chamber with full argon welding for long-term durability.
- Lab Ready: Complete system with programmable timer and automatic operation.
- Fast Response: Get a tailored technical recommendation within 24 hours.

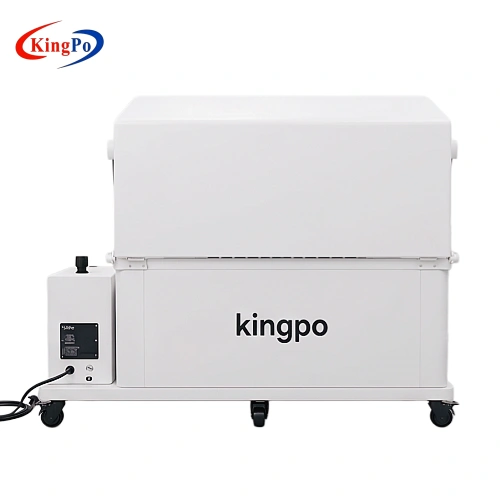

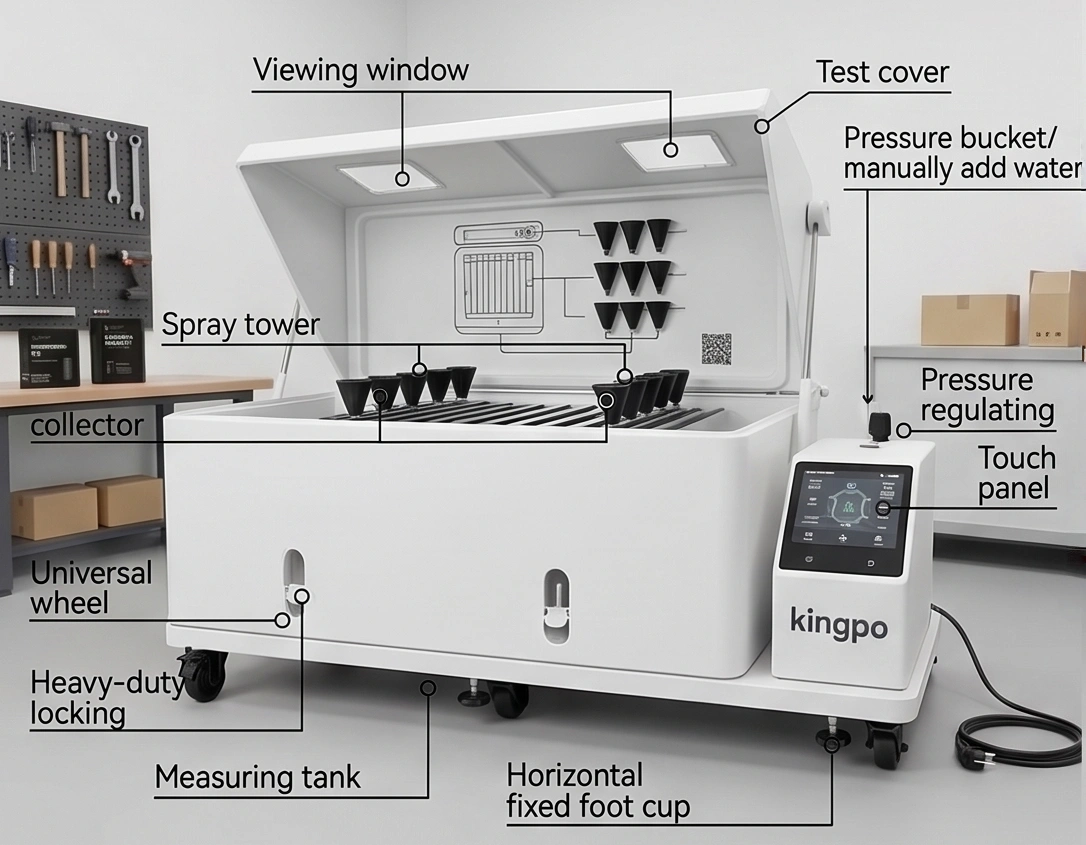

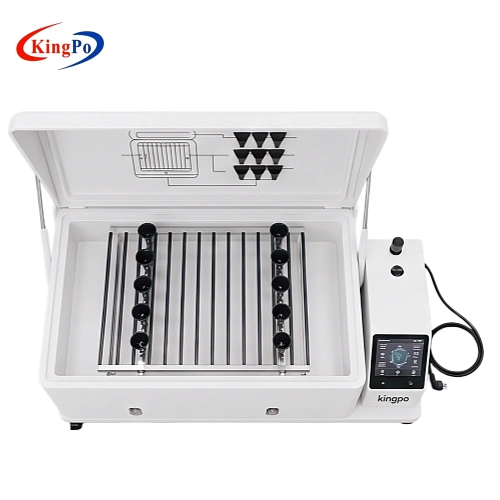

Air Saturated Test Chamber Detail Display
