Water Heater Performance Tester – IEC 60335-2-21 Dual Station Electric Storage Water Heater Testing System
Water Heater Performance Tester – IEC 60335-2-21 compliant dual station system tests heating performance, outlet temperature, case temperature, and safety parameters (withstand voltage, leakage current, insulation resistance, grounding resistance, power) for horizontal/vertical electric storage water heaters.
- Standard Compliance: IEC 60335-2-21:2012 Clause 22.102, 24.102.1, 24.102.2 – electric water heater performance and safety testing
- Dual Stations: Horizontal (110 cm length) + Vertical (80 cm height) – each supports 150 kg load with adjustable mounting hooks
- Measurement Parameters: Inlet/outlet water flow, temperature, case/average temperature, electrical parameters, five safety performances
- Control & Monitoring: Real-time display, automatic recording, alarm for power-on/off time limits and current/power deviations
- MOQ: 1
- Delivery Period: Customized, typically 1 month
Water Heater Performance Tester Description
Water Heater Performance Tester – IEC 60335-2-21 Dual Station Electric Storage Water Heater Testing System
The Water Heater Performance Tester is a dual-station test platform engineered by KingPo to evaluate the heating performance, sealing, temperature distribution, and electrical safety of horizontal and vertical storage-type electric water heaters in strict accordance with IEC 60335-2-21:2012 (Clauses 22.102, 24.102.1, 24.102.2). It simulates real operating conditions with controlled water and electricity supply, measuring outlet water temperature, case temperature, average temperature, and five critical safety parameters: withstand voltage, leakage current, insulation resistance, grounding resistance, and power.

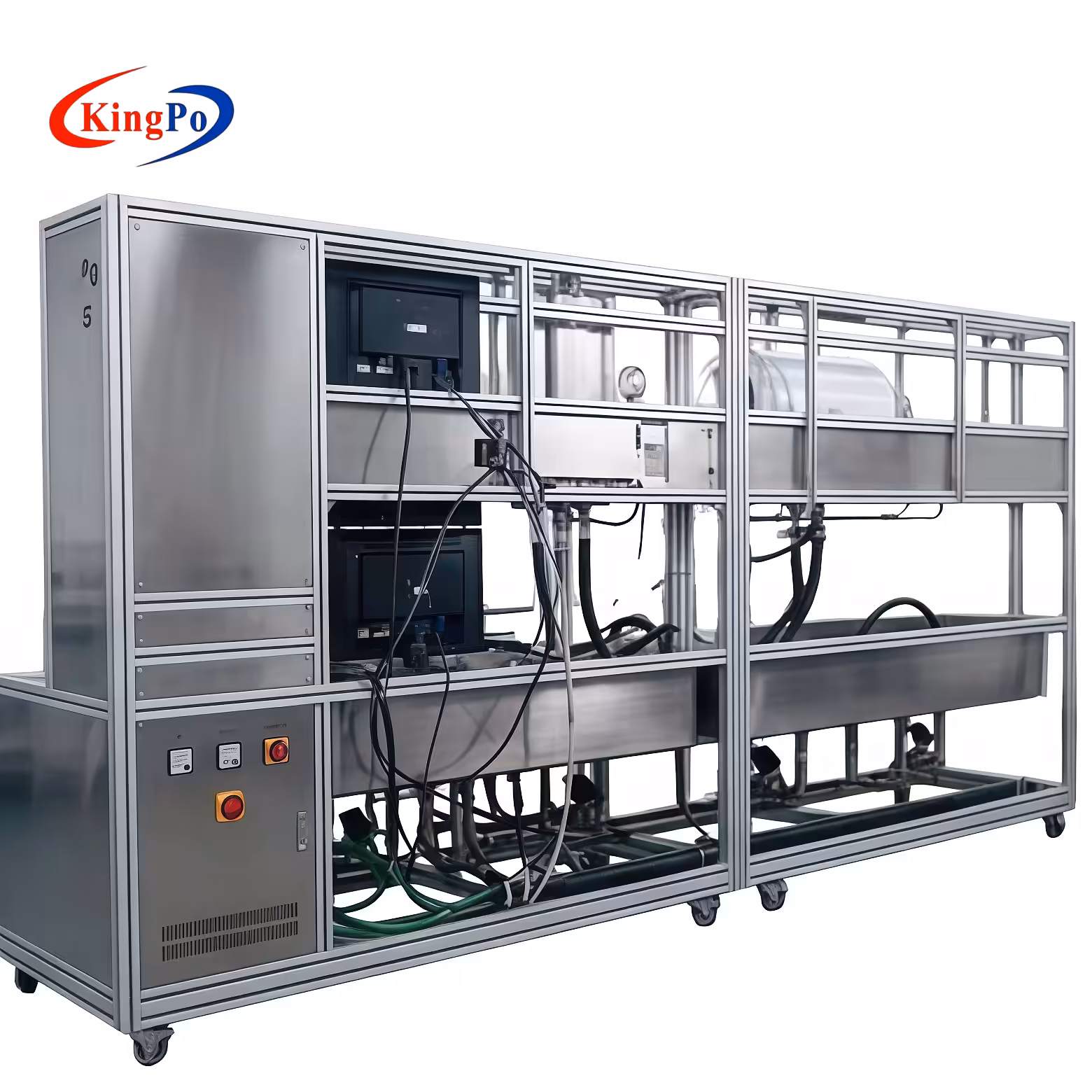

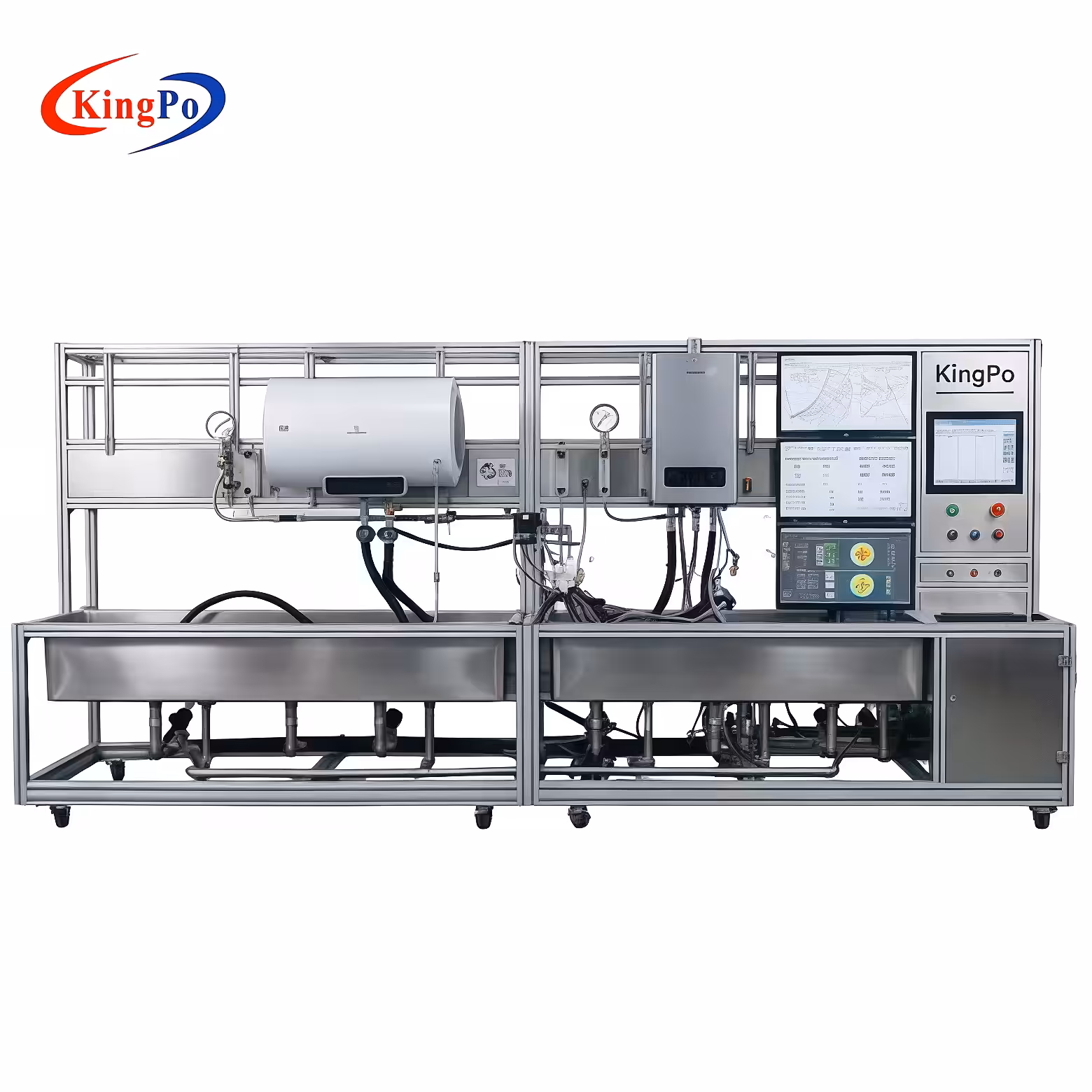

The system features two independent stations: horizontal (110 cm length) and vertical (80 cm height), each capable of supporting 150 kg with adjustable mounting hooks for precise positioning. Parameters are displayed in real time, automatically recorded, and queryable, with built-in alarms for abnormal conditions such as exceeding maximum power-on/off time or current/power limits. It is widely used for R&D validation, type approval, production sampling inspection, and quality assurance of electric storage water heaters.
KingPo Factory Advantages
KingPo is an ISO9001-certified manufacturer with over 15 years of experience in household appliance safety and performance testing equipment. We have delivered more than 40 units of IEC 60335-2-21 water heater performance testing systems to manufacturers and labs in China, Europe, and Southeast Asia since 2019. All equipment includes CNAS-accredited calibration reports, on-site installation guidance, lifetime free software upgrades, and 48-hour response during the warranty period from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:
- Dual Stations: Horizontal (110 cm length) and vertical (80 cm height), each with 150 kg load capacity and adjustable hooks for precise alignment
- Electrical Measurement: 0.5 level digital display meter for current, voltage, power; high-power terminals and European/American sockets
- Water System: Electromagnetic flowmeter (0.5 L/min min scale, 20 L/min max), pressure gauge (0–1 MPa, 0.02 MPa min scale, 0.5 accuracy), angle seat valve, 304 stainless steel sink/pipes
- Safety Protection: Independent leakage protection per station, waterproof electrical control, full grounding
- Control & Monitoring: Real-time parameter display, automatic recording, alarm for power-on/off time limits, current/power upper/lower limits
- Frame & Material: Formed aluminum structure with A3 sprayed sealing plates, 304 stainless steel sink and pipes for durability and corrosion resistance
These elements ensure accurate, repeatable testing with high safety.
Primary Use Cases & Business Value
The water heater performance tester supports essential stages:
- Product Development – Validate heating cycle, thermostat reset, and safety under water/electricity conditions
- Certification Testing – Generate data for IEC 60335-2-21 compliance and safety certification
- Quality Control – Batch verification of outlet temperature, case temperature, and safety parameters
- Failure Analysis – Identify issues in heating element, thermostat, or thermal circuit breaker performance
It reduces test time, improves product reliability, and accelerates market entry.
Compliance & Regulatory Assurance
Fully compliant with IEC 60335-2-21:2012 (particular requirements for storage water heaters). Calibration certificates available (additional cost). Regular verification of sensors, flowmeters, and electrical meters is recommended to maintain traceability and accuracy.
Procurement Benefits
Dual-station design doubles testing efficiency. Comprehensive documentation, installation support, and responsive after-sales service ensure long-term reliability. This water heater performance tester improves heating and safety validation accuracy, supports compliance claims, and minimizes quality risks. Contact us today for your customized quote – we’ll respond within 24 hours with detailed technical specifications and pricing.
Water Heater Performance Tester Technical
| Parameter | Specification |
|---|---|
| Model Number | Water Heater Performance Tester |
| Standard | IEC 60335-2-21:2012 Clause 22.102, 24.102.1, 24.102.2 |
| Test Stations | 2 (horizontal + vertical) |
| Horizontal Station | 110 cm length, 150 kg load capacity |
| Vertical Station | 80 cm height, 150 kg load capacity |
| Electrical Measurement | 0.5 level digital display (current, voltage, power) |
| Flowmeter | 0.5 L/min min scale, 20 L/min max |
| Pressure Gauge | 0–1 MPa, 0.02 MPa min scale, 0.5 accuracy |
| Power Supply | Test bench: 220V 50Hz; total power 3.5 kW × 2 |
Get Free Quote for IEC 60335-2-21 Water Heater Performance Tester
High-precision Water Heater Performance Tester – IEC 60335-2-21 compliant dual station equipment from KingPo factory.
The Core Value We Deliver to You
- Dual Stations – Simultaneous horizontal/vertical testing
- Full Safety Parameters – Withstand voltage, leakage current, insulation resistance
- Factory Advantages – MOQ 1 unit, 1-month delivery, 1-year warranty
- Complete Testing Support – Pair with our appliance test series
- Faster Compliance – Accurate IEC 60335-2-21 data
Take Action Now – Submit inquiry in 30 seconds for best price, technical details, and support!
Water Heater Performance Tester Applications
- Horizontal & Vertical Storage Water Heaters – Heating, outlet temperature, and safety performance testing per IEC 60335-2-21
- Electric Water Heater R&D – Validate thermostat reset, heating cycle, and enclosure sweat performance
- Certification Labs & QA – Compliance with IEC 60335-2-21 and safety certification
- Production Quality Control – Batch inspection of withstand voltage, leakage current, insulation resistance
- Failure Analysis – Identify issues in heating element, thermostat, or thermal circuit breaker

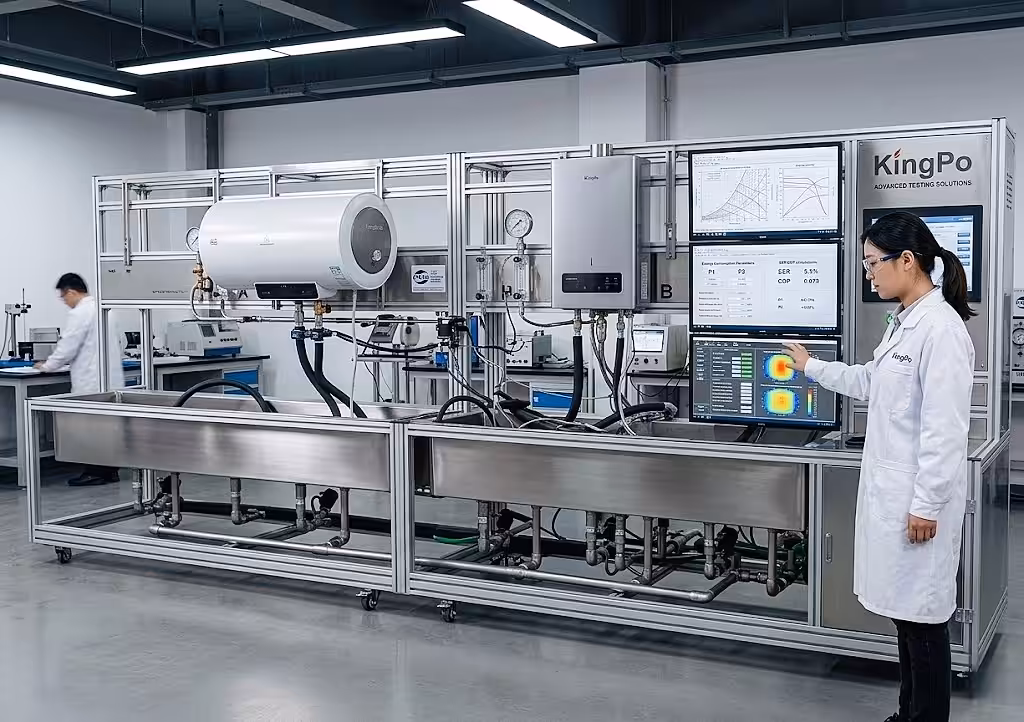

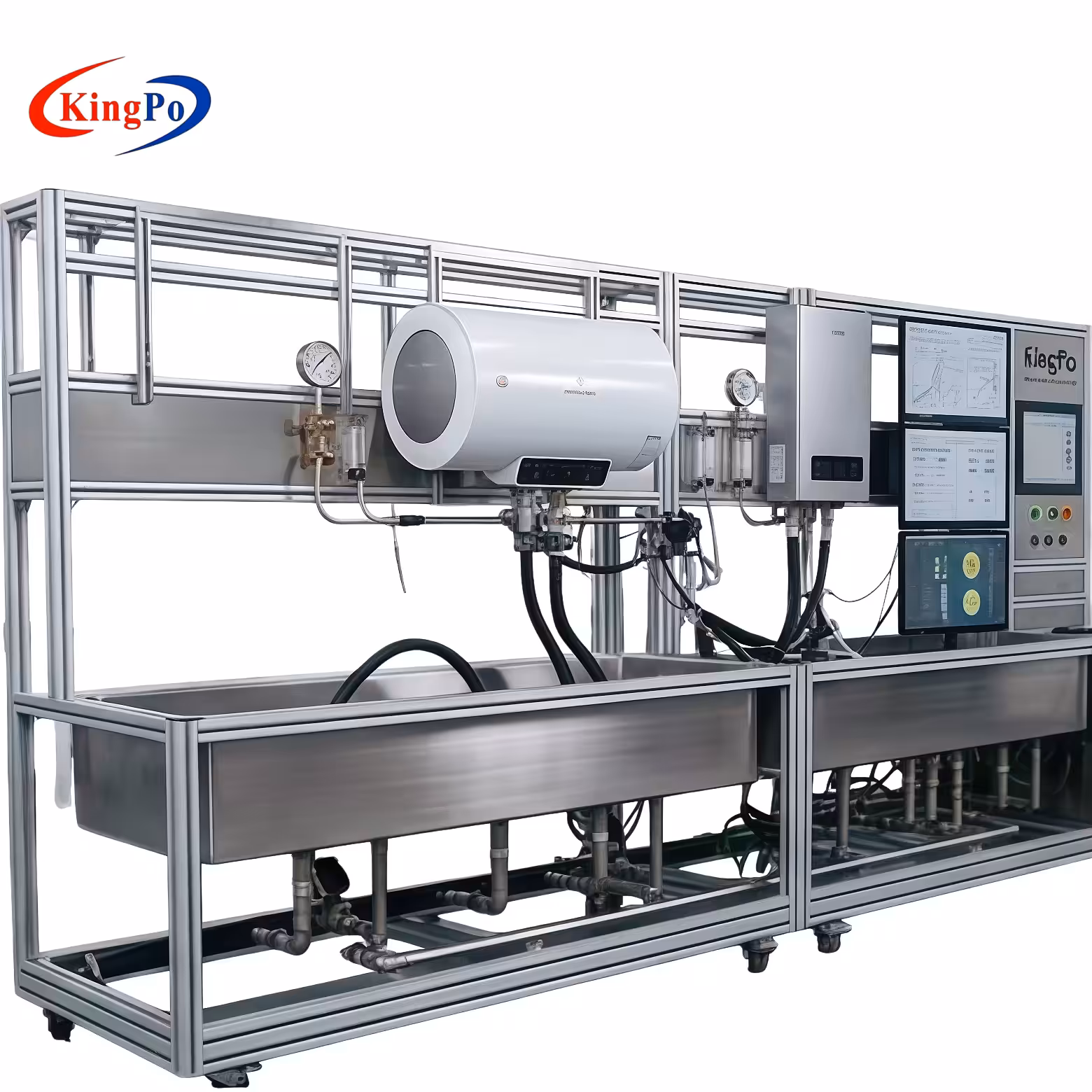

IEC 60335-2-21 Water Heater Performance Tester Detail
