IEC60456 Water Supply System Test Bench with 4-Station Automatic Hardness Control
Professional IEC60456 Water Supply System for washing machine performance evaluation. Features automated hardness adjustment (0 to 5 mmol/L) and 10 to 60 C temperature control with 0.25% FS precision across 4 simultaneous test stations.
-
International Compliance: Fully engineered for IEC 60456:2010, EN 60456, and GB/T 4288 standards.
-
Intelligent Hardness Control: Integrated RO + EDI system for automated 0 to 5 +/- 0.2 mmol/L regulation.
-
Precision Management: Dual-loop control for water temperature (10 to 60 C) and pressure (0.24 +/- 0.05 MPa).
-
High-Volume Capacity: Supports 4-station parallel testing with 15 kVA variable frequency regulated power.
-
MOQ: 1 Set
-
Delivery Period: 20 Days
IEC60456 Washing Machine Water Supply System
IEC60456 Water Supply System: Professional Washing Machine Performance Test Bench
The IEC60456 Water Supply System is the essential infrastructure for modern laboratories conducting performance evaluations of household clothes washing machines. Engineered to meet the rigorous demands of IEC 60456:2010, this system provides a stabilized environment by automating the control of water temperature, supply pressure, and ionic hardness. By ensuring precise standardized conditions, it allows global manufacturers and certification bodies to accurately measure energy consumption, water efficiency, and soil removal performance.
KingPo Factory Advantages โ Proven Reliability & Precision
As a dedicated manufacturer of electroacoustic and appliance testing equipment, KingPo (DG KingPo) specializes in high-integrity water treatment systems. Our Washing Machine Performance Test Systems are constructed with industrial-grade SUS304 stainless steel to ensure lifetime corrosion resistance. We integrate EDI deionization modules and automated chemical dosing (Magnesium Sulfate/Calcium Chloride) to streamline the complex water hardness adjustment process. Each system is delivered with a comprehensive technical file and supports CNAS calibration, ensuring your laboratory data is internationally recognized.
Professional Construction & Technical Precision
-

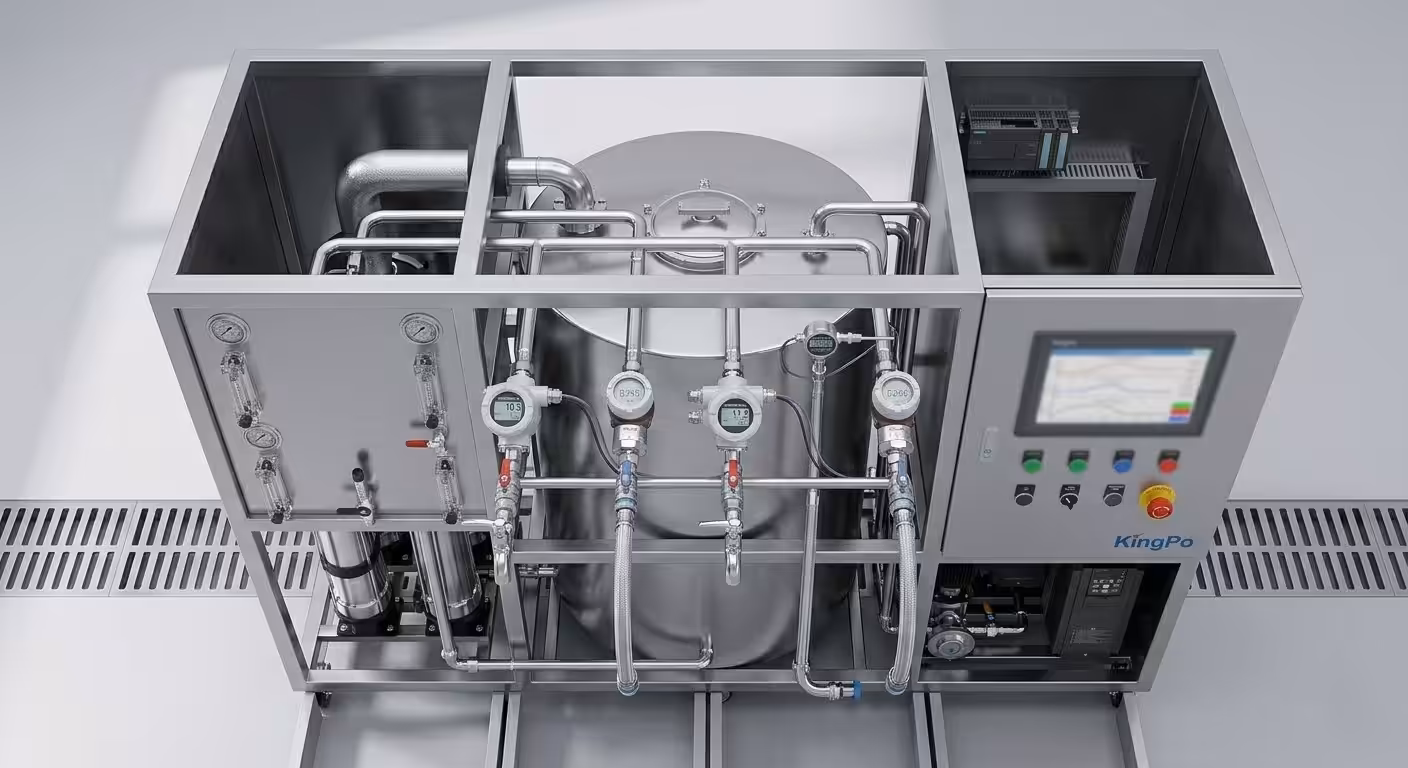

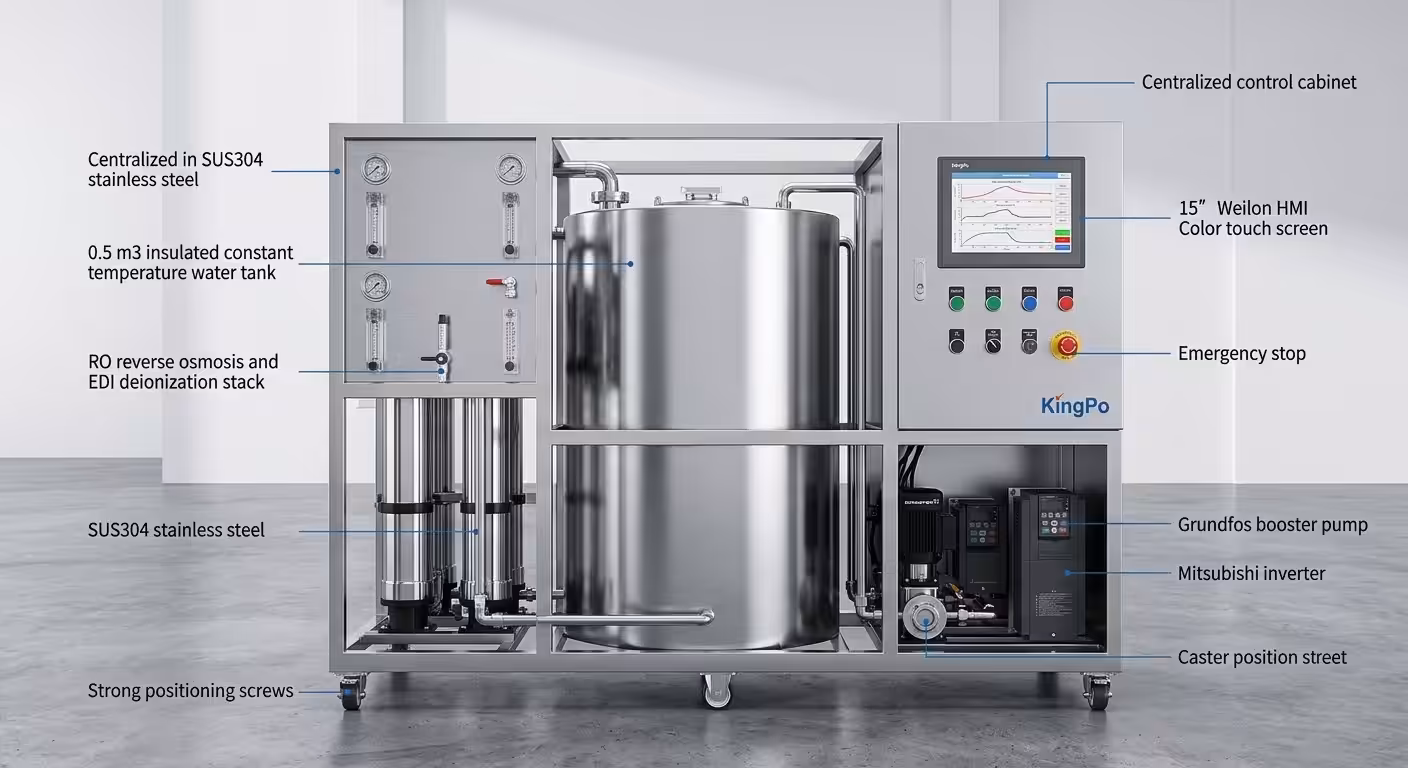

Advanced Water Purification Architecture โ Combines a 0.5 m3/h pure water machine with high-efficiency RO reverse osmosis and EDI modules to ensure a consistent baseline before precise hardness dosing.
-
Dynamic Hardness Regulation โ Automatically adjusts and stabilizes water hardness within the 0 to 5 +/- 0.2 mmol/L range, a critical factor for reproducible cleaning performance results.
-
Sophisticated Thermal Management โ Utilizes a 5-HP low-temperature heat pump and stainless steel flange heaters (7.5 kW x 3) to maintain water at a constant 10 to 60 +/- 1 C.
-
High-End Instrumentation โ Integrated with Yokogawa AXG electromagnetic flowmeters and WT330 electrical parameter meters for synchronized 4-channel data logging.
-
Stabilized Power Supply Environment โ Includes a 15 kVA single-phase variable frequency regulated power supply with voltage stability of <= 1% and frequency stability of <= 0.5%.
Primary Use Cases & Business Value
-
Energy Label Certification โ Providing the exact standardized water conditions required for ErP, Energy Star, and national energy labeling compliance.
-
R&D Engineering โ Enabling precise evaluation of how water hardness and temperature variations impact cleaning cycles and detergent effectiveness.
-
Global Benchmarking โ Facilitating accurate comparison between Units Under Test (UUT) and standard reference machines (drum/pulsator).
-
Quality Assurance โ Enhancing production line sampling by simulating varied global water conditions within a single facility.
Compliance & Regulatory Assurance
The system architecture is fully compliant with IEC 60456:2010, EN 60456, and GB/T 4288. All integrated sensors, including Pt100 Class A RTDs and Danfoss pressure transmitters, are calibrated to traceable standards to meet ISO/IEC 17025 laboratory requirements.
Procurement Benefits โ Turnkey Laboratory Solution
KingPo provides a complete turnkey package including the centralized control cabinet, Siemens S7-200 PLC architecture, and specialized LabVIEW-based testing software. Our 1-year warranty and direct technical support ensure that your IEC60456 Water Supply System operates at peak efficiency from day one. Contact KingPo today for a professional technical consultation and a competitive factory-direct quote.
IEC60456 System Technical Specifications
| Parameter | Specification Details |
| Model Number | SN333-W4 (KingPo Series) |
| Standard Compliance | IEC 60456:2010, EN 60456, GB/T 4288 |
| Water Temp Range | 10 to 60 C (Accuracy +/- 1 C) |
| Water Pressure Range | 0.24 +/- 0.05 MPa (Max 0.5 MPa) |
| Water Hardness Range | 0 to 5 +/- 0.2 mmol/L (Auto-adjustable) |
| Pure Water Capacity | 0.5 m3/h (RO + EDI Treatment) |
| UUT Max Dimension | 1000mm x 1000mm x 1500mm |
| Test Positions | 4 Simultaneous Stations |
| Instrumentation | Yokogawa AXG Flowmeter / WT330 Power Meter |
| Control System | Siemens S7-200 PLC + Weilon HMI |
| Power Supply | 3-Phase AC 380V 50Hz (50kVA Input) |
| Delivery Period | 1 Month |
Build Your Standardized Washing Machine Lab with KingPo
KingPo offers the most reliable IEC60456 Water Supply System, providing fully automated control over water quality, temperature, and pressure for world-class laboratory performance.
All-in-One Integration โ Heating, pressure boosting, and hardness adjustment in one system.
-
Traceable Accuracy โ Featuring Yokogawa and Danfoss instrumentation for 0.25% FS precision.
-
Global Compliance โ Fully meets IEC 60456 requirements for international energy labeling.
-
Engineered Durability โ High-quality SUS304 construction ensures long-term purity and performance.
-
Expert Support โ Dedicated software for data logging, report generation, and CNAS calibration.
ย Submit your inquiry now to receive a full system diagram and factory-direct pricing within 24 hours!
IEC60456 System Test Applications
- Household Appliance Labs โ Energy efficiency and cleaning performance testing.
-
Reference Machine Benchmarking โ Calibrating drum and pulsator reference machines.
-
Detergent Manufacturers โ Evaluating chemical effectiveness across varied water hardness.
- Certification Bodies โ Providing standardized water for ISO/IEC compliance audits.
IEC60456 Water Supply System Detail Display
