ISO 5151 Air Enthalpy Method Calorimeter 60K BTU Dual Station

Air Enthalpy Method Calorimeter – ISO 5151 60K BTU Dual Chamber Performance Testing System

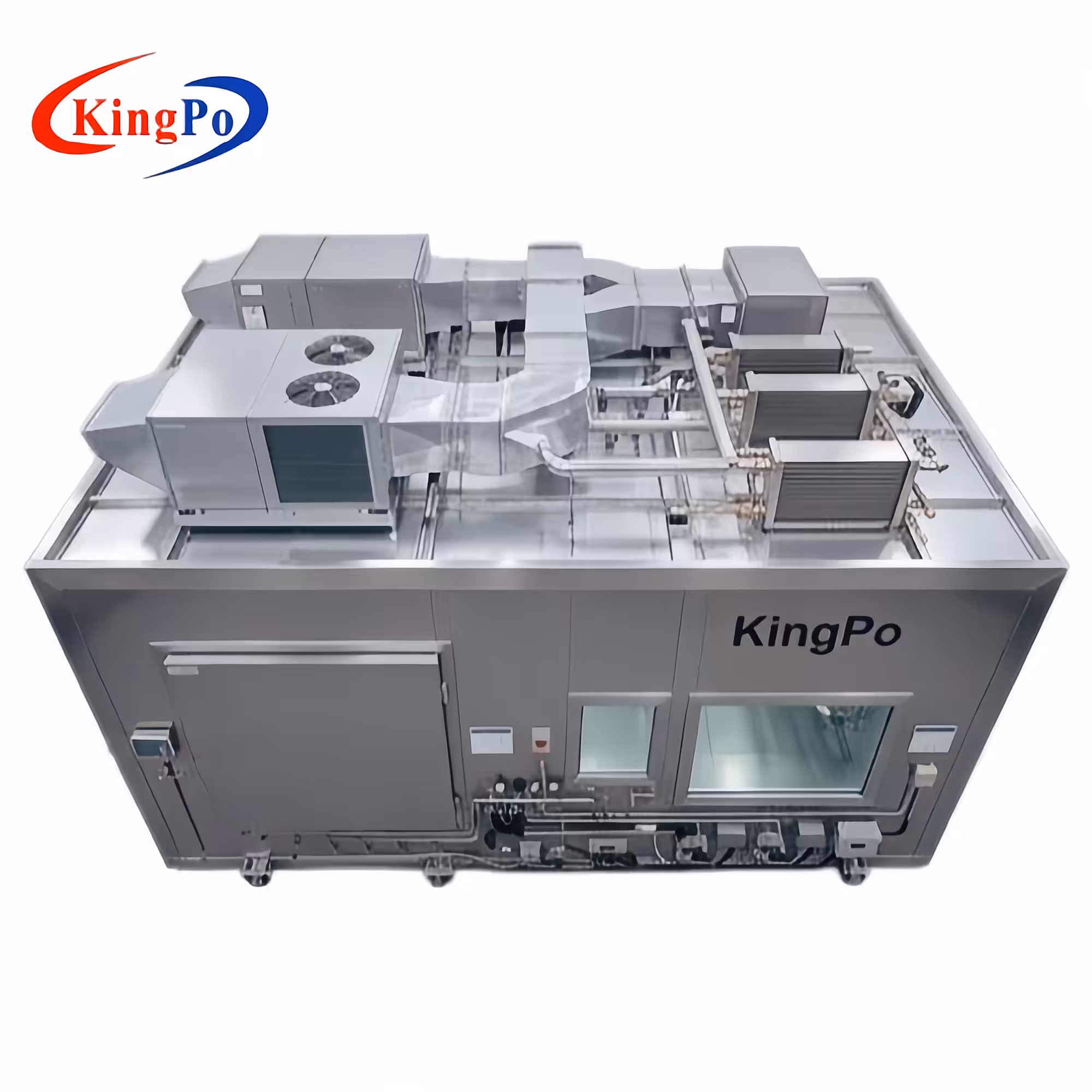

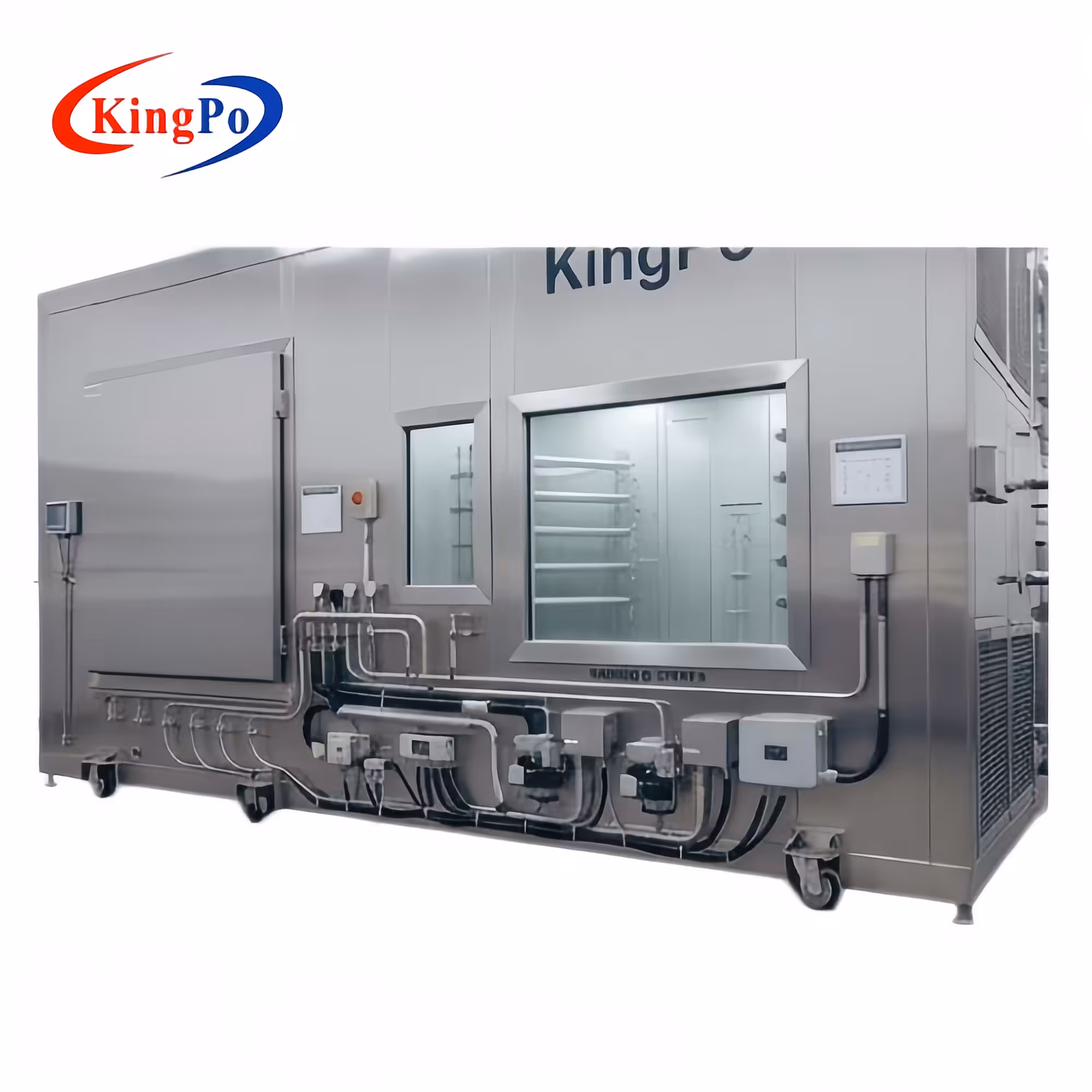

The Air Enthalpy Method Calorimeter is a high-accuracy environmental test chamber system engineered by KingPo for comprehensive performance evaluation of air conditioners according to ISO 5151 and related standards. It consists of two independent chambers: indoor side (Chamber A) and outdoor side (Chamber B), enabling precise measurement of cooling capacity, heating capacity, airflow, dehumidifying capacity, input power, EER/COP, voltage, current, and frequency under controlled temperature and humidity conditions.

The dual-station design allows simultaneous testing of two single-phase units (≤30K Btu/h each, total ≤60K Btu/h) or single unit testing up to 60K Btu/h. It supports split-type, window-type, freestanding, ceiling cassette, ducted, and inverter air conditioners, making it ideal for R&D validation, type approval, production sampling inspection, and energy labeling compliance.

KingPo Factory Advantages

KingPo is an ISO9001-certified manufacturer specializing in air conditioner performance labs. We have delivered over 50 enthalpy method calorimeter systems worldwide since 2018, including multiple 60K BTU dual-code units to leading OEMs in China, Southeast Asia, and Europe. All chambers include CNAS-accredited calibration reports, on-site installation guidance, lifetime free software upgrades, and 48-hour response during the warranty period from our Dongguan facility.

Professional Construction & Technical Precision

Key features include:

• Dual Chambers: Indoor A (airflow 300–4000 m³/h) and Outdoor B (200–2000 m³/h) with independent temperature/humidity control
• Test Range: Cooling/heating capacity 6000–60000 Btu/h; power 0–5 kW, voltage 0–300 V, current 0–20 A, frequency 50/60 Hz
• Measurement Parameters: Dry/wet bulb temperatures, pressure, airflow, electrical parameters, EER/COP, dehumidifying capacity with 0.5 level accuracy

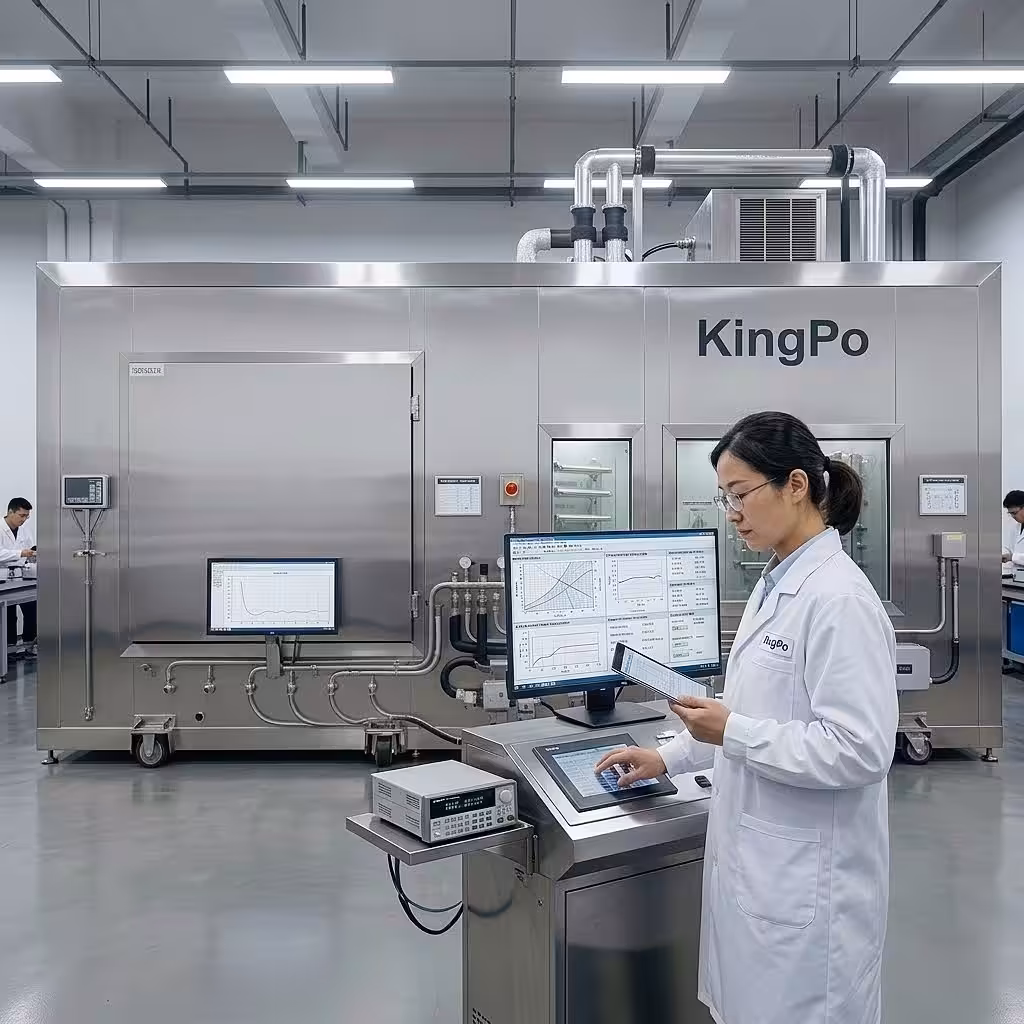

• Computer Control: Automated data acquisition, real-time monitoring, and report generation for T1/T2/T3 rated/max/minimum cooling/heating conditions
• Test Conditions: Supports rated cooling (T1/T2/T3), maximum cooling, freeze-up, minimum cooling, enclosure sweat, rated/maximum/minimum heating, automatic defrost
• Sample Compatibility: Split/window/ceiling/duct types; inverter air conditioners; dimensions up to 1000×800×1000 mm (window) or 1000×500×2000 mm (split)

These features ensure repeatable, standards-compliant performance data.

Primary Use Cases & Business Value

The air enthalpy method calorimeter supports key stages:

• Product Development – Validate cooling/heating efficiency, airflow, and inverter technology under various conditions
• Certification Testing – Generate data for ISO 5151 compliance and energy labeling
• Quality Control – Batch verification of rated performance and dehumidifying capacity
• R&D Optimization – Test new refrigerants and compressor effects on EER/COP

It accelerates product improvement, shortens certification cycles, and ensures market compliance.

Compliance & Regulatory Assurance

Fully compliant with ISO 5151:2017 (non-ducted and ducted air conditioners – performance testing) and aligned with ISO 13253, GB/T 7725. Calibration certificates available (additional cost). Regular verification of sensors, airflow meters, and power measurement is recommended to maintain accuracy and traceability.

Procurement Benefits

Computerized control and dual-chamber design reduce test time and labor. Comprehensive documentation, installation support, and after-sales service ensure long-term reliability. This air enthalpy method calorimeter enhances air conditioner performance validation, improves energy efficiency claims, and minimizes compliance risks. Contact us today for your customized quote – we’ll respond within 24 hours with detailed technical specifications and pricing.
