Vacuum Cleaner Air Performance Testing System – IEC 60312 PC Automatic Suction & Efficiency Evaluation

Vacuum Cleaner Air Performance Testing System – IEC 60312 PC Automatic Suction & Efficiency Evaluation

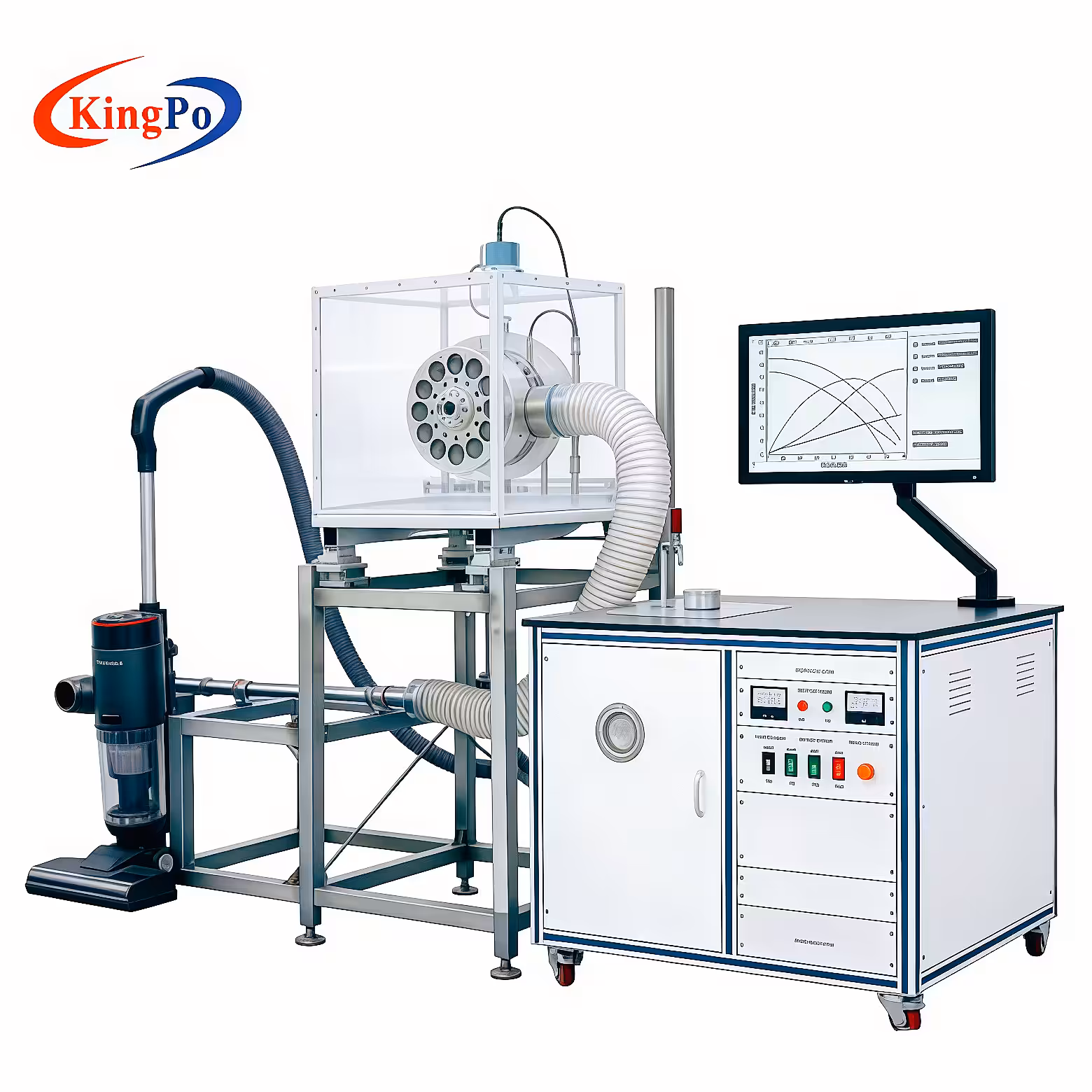

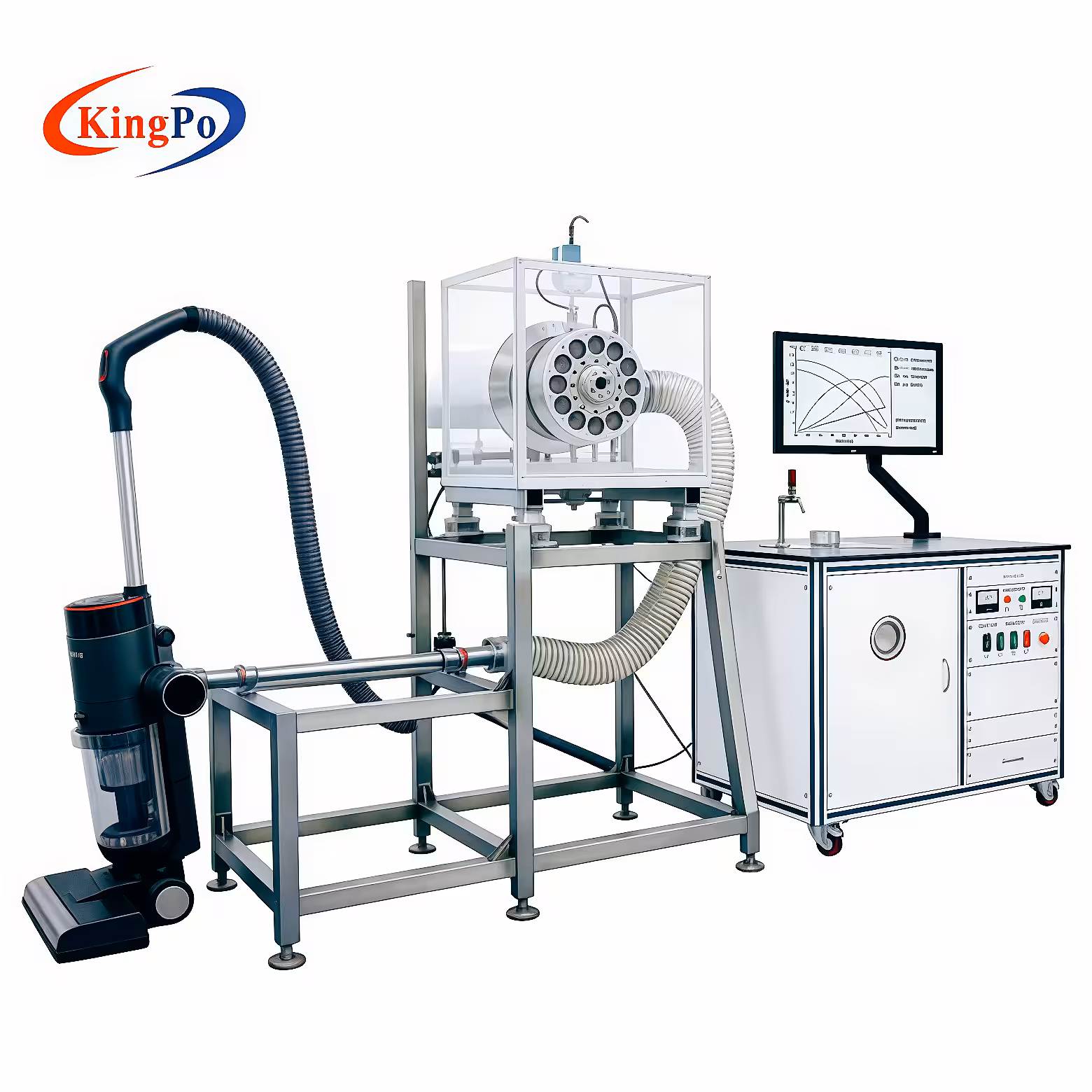

The Vacuum Cleaner Air Performance Testing System is a fully automated, PC-controlled test platform manufactured by KingPo to evaluate the comprehensive air performance of vacuum cleaners in strict accordance with IEC 60312 and IEC 62885-2016. The system measures key parameters including input voltage (U), current (I), input power (P1), power factor, suction power (P2), air volume (Q), vacuum degree (H), and overall efficiency (N). It employs an orifice plate method (European Standard B type pressure equalizing box) with 10 orifice sizes (φ50 mm to fully closed) to simulate different airflow resistances, automatically collecting data at each point and generating characteristic curves and reports.

The test system supports automatic operation with PLC central control, high-precision AC/DC parameter meters, vacuum transmitter, and flow sensor. It can perform full characteristic curve testing (P1/Q, Ps/Q, Hm/Q, n/Q, U/Q, I/Q), fixed-point pass/fail judgment, and alarm notification. Ideal for vacuum cleaner R&D, type approval, and production quality inspection, the system ensures accurate, repeatable results with minimal operator intervention.

KingPo Factory Advantages

KingPo is an ISO9001-certified manufacturer with over 20 years of experience in household appliance testing equipment. We have delivered multiple vacuum cleaner air performance testing systems to manufacturers and certification labs worldwide. All units include detailed documentation, optional calibration certificates (additional cost), and responsive after-sales support from our Dongguan facility.

Professional Construction & Technical Precision

Key features include:

• Orifice Plate System: 10 orifice sizes (φ50 to 0 mm) controlled automatically or manually for airflow range 0.5–5 m³/min
• Electrical Measurement: AC parameter meter (voltage 10–300 V, current 0.01–50 A, power up to 15000 W, power factor 0.05–1.00) with 0.5 level accuracy
• Vacuum & Flow Sensors: Vacuum transmitter -50.0~0.0 kPa (±0.5%), flow sensor for precise air volume calculation
• Control & Data System: PC + PLC control, automatic data acquisition, curve plotting, report generation (printable), fixed-point testing with pass/fail alarm
• Pressure Equalizing Box: European Standard B type (500×500×500 mm), designed per IEC 60312 for stable flow measurement
• Safety & Environment: Insulation >5 MΩ, withstand voltage 1800 V/2 s, grounding <0.2 Ω; operating temp 0–40°C, humidity 30–90%

These elements deliver high repeatability and compliance with standard requirements.

Primary Use Cases & Business Value

The vacuum cleaner air performance testing system supports essential stages:

• Product Development – Validate suction power, efficiency, and airflow under different orifice conditions
• Certification Testing – Generate traceable data for IEC 60312 and IEC 62885 compliance
• Quality Control – Batch inspection with fixed-point pass/fail judgment and alarm
• Performance Analysis – Plot full characteristic curves for motor and fan optimization

It accelerates design iteration, shortens certification timelines, and strengthens product competitiveness.

Compliance & Regulatory Assurance

The KingPo KP-VC312 provides a robust technical foundation for manufacturers aiming to navigate the evolving global regulatory landscape. Our system is built on the core aerodynamic principles outlined in the U.S. Department of Energy (DOE) Test Procedures, ensuring that every measurement of suction power and airflow is reproducible and audit-ready.

To support compliance with the European Commission’s Ecodesign and Energy Labelling framework, the KP-VC312 automates the complex calculation of air performance (P2) and efficiency. Furthermore, our evaluation logic aligns with the technical benchmarks used by Topten.eu, the leading European reference for high-efficiency appliance certification.

Procurement Benefits

PC automatic operation and curve/report generation reduce manual effort and errors. Comprehensive documentation, installation support, and after-sales service ensure long-term reliability. This vacuum cleaner air performance testing system improves suction and efficiency evaluation accuracy, supports marketing claims, and minimizes compliance risks. Contact us today for your customized quote – we’ll respond within 24 hours with detailed technical specifications and pricing.
