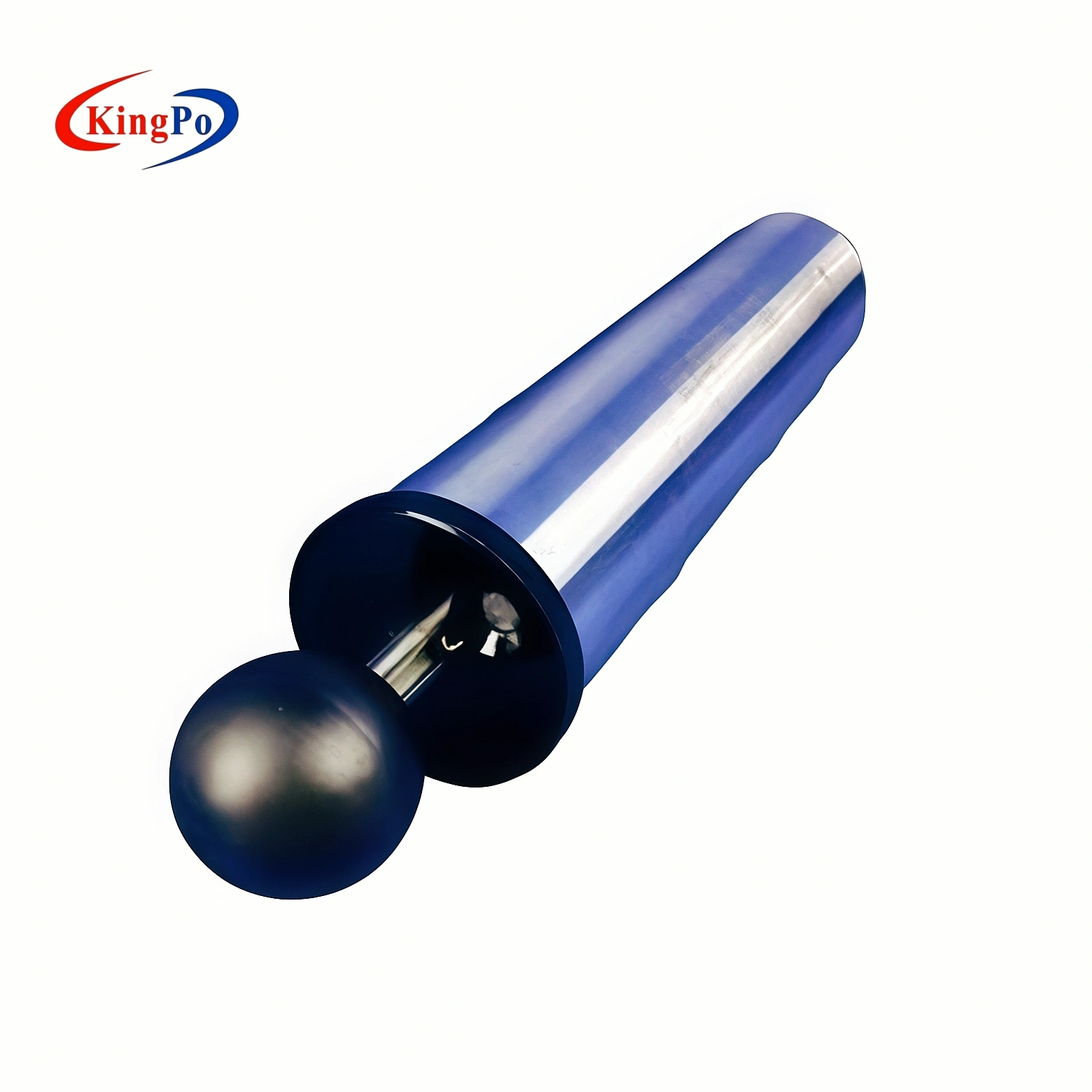

Spring Impact Hammer โ IEC 60068-2-75 Impact Test Apparatus
Spring Impact Hammer performs standardized mechanical impact testing according to IEC 60068-2-75 for electrical enclosures and components.
- Impact Energy: Adjustable 0.14 J, 0.2 J, 0.35 J, 0.5 J, 0.7 J, 1.0 J
- Striking Element Mass: 250 g ยฑ 5 g
- Material: Stainless steel body with polyamide hemispherical face
- Release Mechanism: Spring-operated with front nose cone trigger
- Standards Compliance: IEC 60068-2-75, IEC 60065, IEC 60335-1, IEC 60598-1
- Construction: Rigid cylindrical body with knob for spring compression
- MOQ: 1
- Delivery Period: 7 working days
Spring Impact Hammer Description

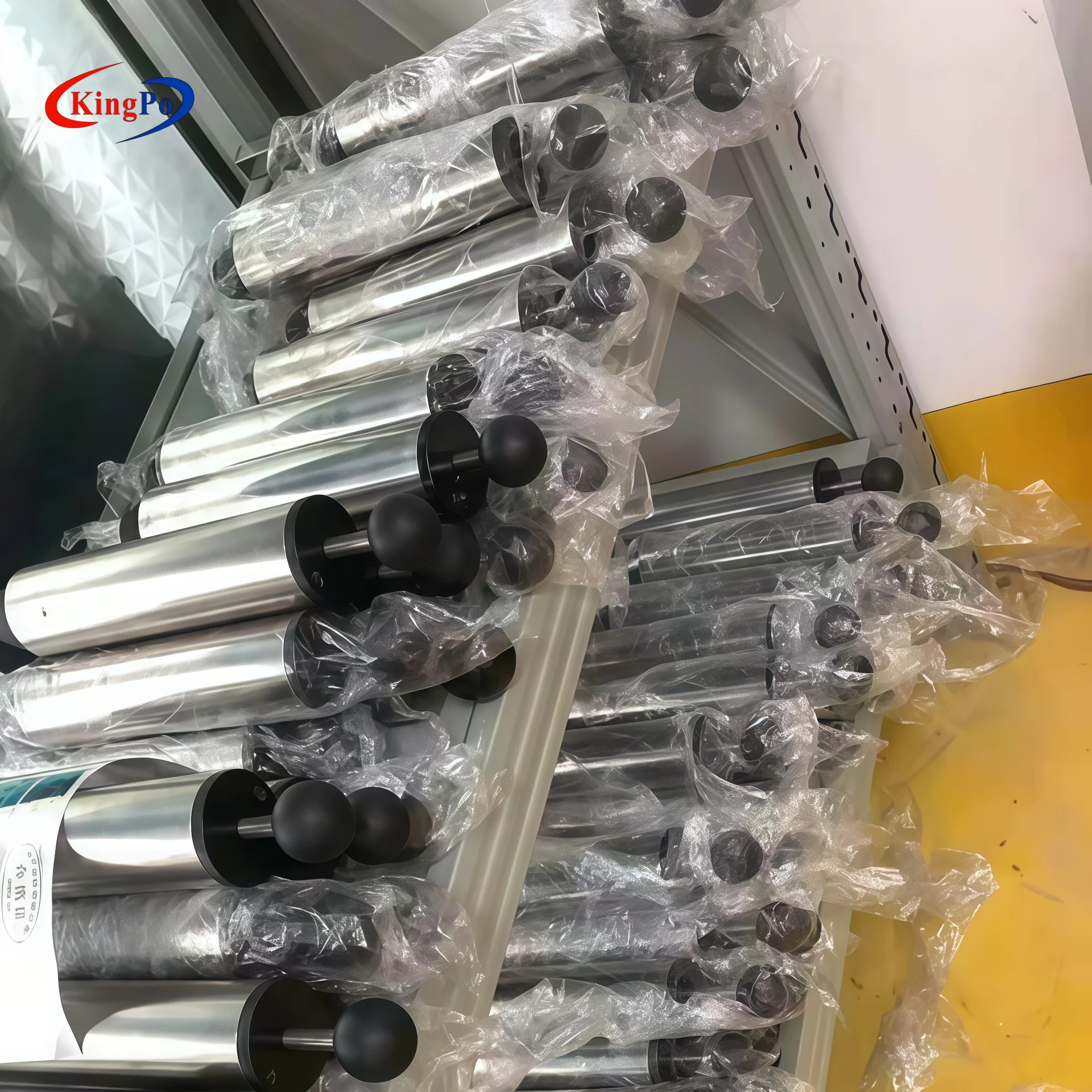

Spring Impact Hammer For IEC60068-2-75 IEC Test Equipment
The Spring Impact Hammer is a mechanical test device used to assess the resistance of enclosures and components to external mechanical impacts. It is designed and manufactured in accordance with IEC 60068-2-75 and is commonly applied in conjunction with standards such as IEC 60065, IEC 60335-1 and IEC 60598-1.
Testing Principle

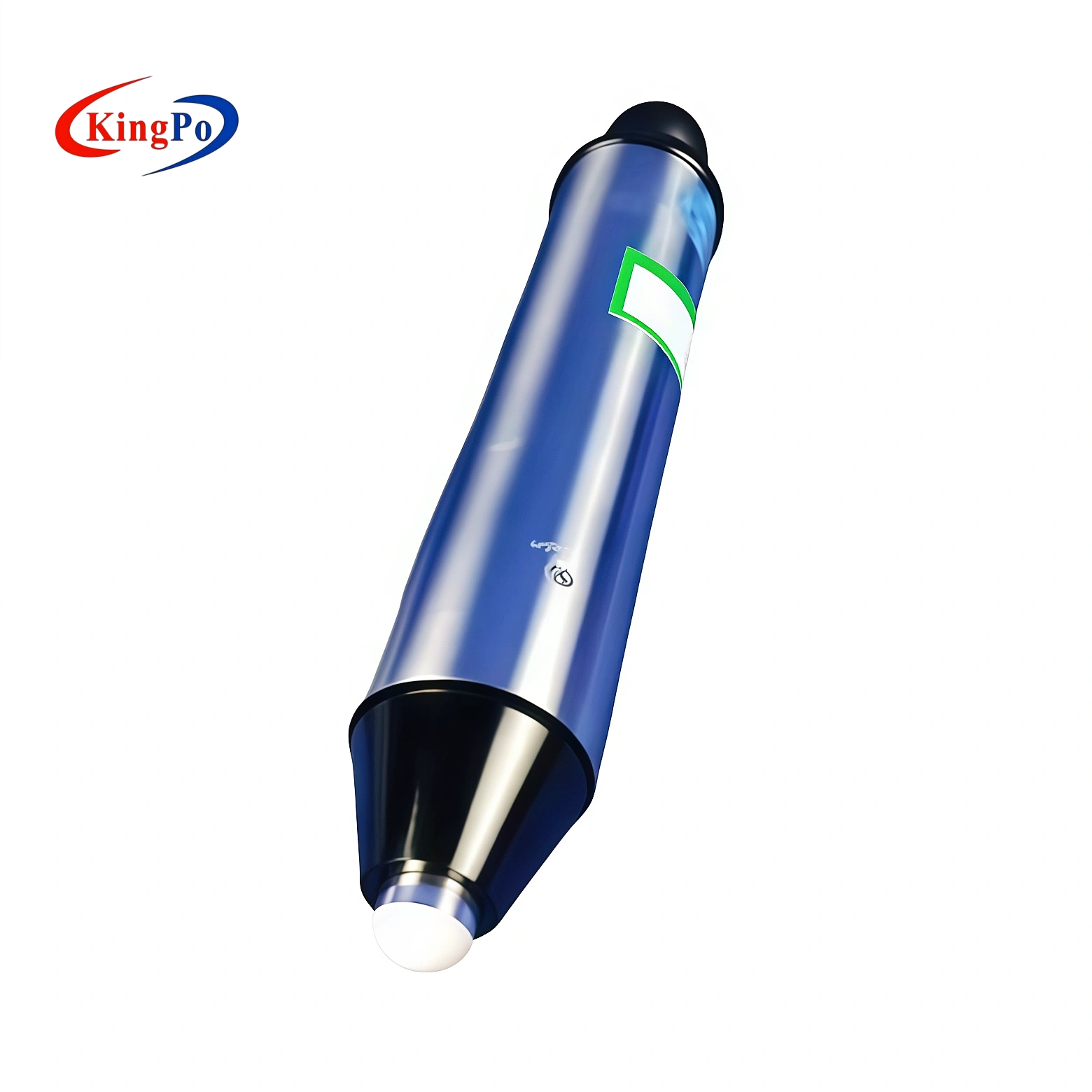

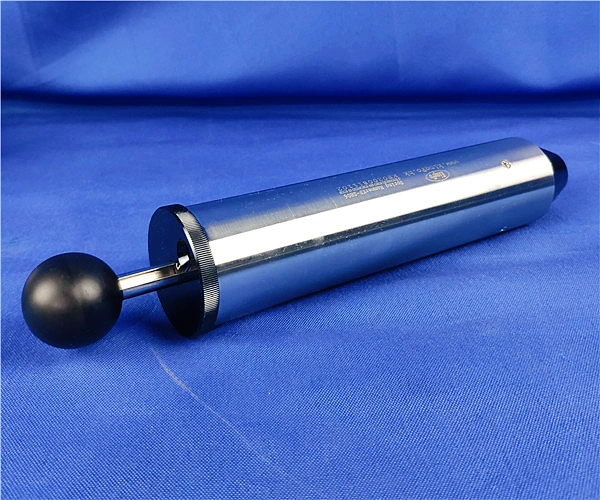

The apparatus consists of a cylindrical body housing a spring-loaded hammer with a hard polyamide hemispherical striking face. The spring is compressed by rotating the rear knob. When the front nose cone is pressed against the test surface, the release mechanism activates, propelling the hammer forward under spring force. This design ensures controlled and repeatable impact energy delivery for consistent test results.
KingPo Factory Advantages
KingPo is an ISO 9001, ISO 14001, ISO 45001 and CE certified manufacturer, also holding SGS, PSE and RoHS certifications. We specialize in environmental and mechanical testing equipment and have supplied spring impact hammers to manufacturers and certification laboratories worldwide. Each unit undergoes rigorous calibration and is delivered with complete documentation, on-site installation guidance, a full one-year warranty and lifetime technical support from our Dongguan facility.
Professional Construction & Technical Precision
Key features include:

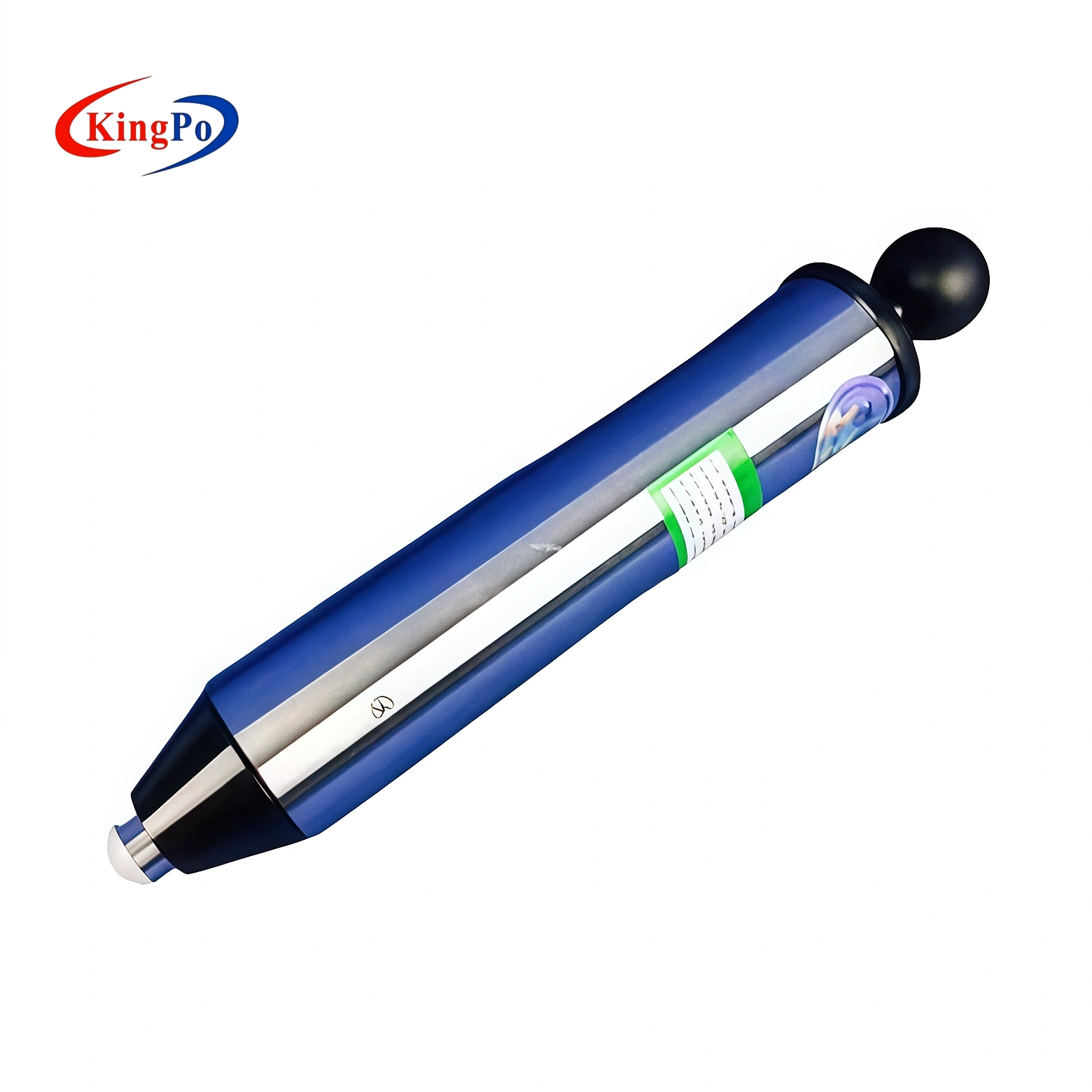

- Adjustable impact energies from 0.14 J to 1.0 J
- Striking element mass of 250 g ยฑ 5 g
- Stainless steel body with hard polyamide hemispherical striking face
- Spring compression and release mechanism operated via front nose cone
- Rigid cylindrical construction for stable and repeatable testing
These elements ensure the instrument provides accurate and consistent impact energy delivery while meeting the requirements of IEC 60068-2-75.
Technical Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Impact Energy | 0.14 J, 0.2 J, 0.35 J, 0.5 J, 0.7 J, 1.0 J | Adjustable model |
| Striking Element Mass | 250 g ยฑ 5 g | Stainless steel |
| Striking Face Material | Hard polyamide (hemispherical) | Per IEC 60068-2-75 requirements |
| Release Mechanism | Spring-operated with nose cone trigger | Manual operation |
| Standards Compliance | IEC 60068-2-75, IEC 60065, IEC 60335-1, IEC 60598-1 | Mechanical impact testing |
The Spring Impact Hammer is used to verify the mechanical impact resistance of enclosures and components in household appliances, luminaires, information technology equipment and similar products. It supports design validation, production quality control and third-party certification by providing consistent impact energy delivery and repeatable test results.
Procurement Benefits
The instrument offers precise energy adjustment, robust stainless steel construction and a reliable release mechanism. Its compact design makes it practical for laboratory and production use while maintaining long-term performance with minimal maintenance.
Spring Impact Hammer Applications
- Electrical Enclosures โ Verification of impact resistance
- Household Appliances โ Safety testing according to IEC 60335-1
- Luminaires โ Mechanical robustness evaluation per IEC 60598-1
- Certification Laboratories โ Compliance testing under IEC 60068-2-75
- R&D Departments โ Development and optimization of enclosure designs
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 60068-2-75 for hammer tests. It provides a standardized method to apply specified impact energies to enclosures and components, enabling accurate assessment of mechanical robustness and supporting compliance with relevant product safety standards.
For detailed information on impact testing methodology, please refer to the latest edition of IEC 60068-2-75.
Calibration certificates are available at additional cost. Regular verification of impact energy and striking element condition is recommended to maintain traceability.
Technical Inquiry for Spring Impact Hammer
KingPo specializes in environmental and mechanical testing equipment. If you require precise IEC 60068-2-75 impact testing for enclosures or components, our engineering team can provide technical support and configuration recommendations.
The Core Value We Deliver to You
- Adjustable impact energies from 0.14 J to 1.0 J
- Precision 250 g striking element with stainless steel construction
- Reliable spring-operated release mechanism
- Compliance with IEC 60068-2-75 and related standards
- Suitable for laboratory and production use
Tell us your required impact energy or test application โ our engineering team will reply with tailored recommendations within 24 hours.
Detail Display
