Flammability Test for Cables – IEC 60332 Vertical Flame Propagation Performance Assessment

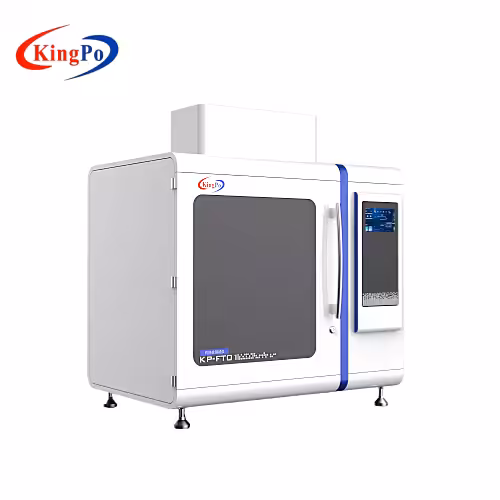

The Flammability Test for Cables represents a high-precision fire performance evaluation system engineered by KingPo to rigorously determine the vertical flame propagation characteristics of single insulated cables and optical cables. Utilizing a standardized blast burner compliant with IEC60695-11-2 Annex A and B, the apparatus applies a controlled pre-mixed propane-air flame to the base of a vertically suspended cable specimen. It precisely quantifies flame spread distance, residual burning duration, and the occurrence of flaming droplets or particles in accordance with:

• IEC 60332-1-1:2004 (test apparatus specification)
• IEC 60332-1-2:2004 (pre-mixed flame test procedure)
• IEC 60332-1-3:2004 (assessment of flaming droplets/particles)
• IEC 60332-2-2 (alternative flame application methods)

This flammability test for cables is indispensable for manufacturers, certification bodies, and quality assurance teams seeking to validate insulation material integrity under vertical flame exposure—critical for power distribution cables, telecommunication lines, building wiring, and appliance interconnects where fire propagation resistance directly impacts life safety and regulatory compliance.

KingPo Factory Advantages

As an ISO9001 and CE-certified manufacturer with established global export channels, KingPo has successfully delivered more than 140 units of this flammability test for cables equipment to leading cable producers and accredited testing laboratories across China, Europe, and Southeast Asia since 2020. Every unit is supplied with traceable CNAS calibration certificates. The system includes lifetime free software upgrades and a guaranteed 48-hour.

Professional Construction & Technical Precision

The equipment incorporates advanced engineering features to deliver repeatable, standards-compliant results:

• Burner Assembly — High-quality brass construction per IEC60695-11-2, with burner opening diameter Φ7 ± 0.05 mm and dual high-accuracy flowmeters ensuring propane flow of 650 ± 30 mL/min and air flow of 10 ± 0.5 L/min

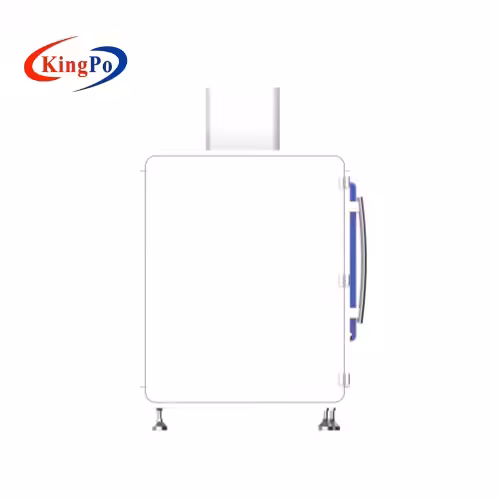

• Flame Calibration System — 1000 W copper block (Φ9 mm ± 0.01 mm, pre-drilling mass 10 ± 0.05 g) paired with Omega-armored K-type thermocouple, achieving temperature rise from 100 ± 5°C to 700 ± 3°C in exactly 45 ± 5 s
• Ignition & Control — Fully automatic intake ignition with maximum delay of 0.1 s, combined with electrical push-button interface and 9999 × 0.1 s precision timing
• Specimen Mounting — Vertical fixture supporting cable lengths of 600 ± 25 mm, lower edge positioned 50 mm above burner, with rigid horizontal supports spaced at 550 mm intervals

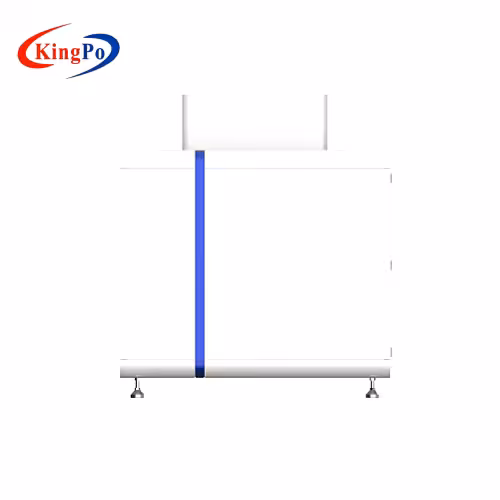

• Combustion Enclosure — 1 m³ volume chamber equipped with protective metallic screen (H1200 × W300 × D450 mm), providing stable, enclosed conditions for safe and observable testing
• Angle Adjustability — 0–90° continuous adjustment to accommodate diverse test configuratio

These design elements guarantee high reproducibility and traceability in every single cable flame propagation test.

Primary Use Cases & Business Value

This flammability test for cables delivers tangible benefits across multiple operational stages:

• Material & Design Validation — Quantifies insulation resistance to vertical flame spread in power, control, and data cables
• Regulatory Certification Support — Produces auditable test data required for IEC 60332-1 series compliance certification
• In-Process Quality Assurance — Enables rapid batch verification to detect and eliminate propagation-prone insulation formulations
• Risk Mitigation & Product Improvement — Provides actionable insights to enhance cable fire performance and reduce potential fire spread in end-use environments

Early identification of non-compliant behaviour accelerates design iteration, shortens time-to-market, and strengthens overall product safety credentials.

Compliance & Regulatory Assurance

The flammability test for cables equipment fully complies with IEC 60332-1-1:2004, IEC 60332-1-2:2004, IEC 60332-1-3:2004, IEC 60332-2-2, and GB/T 18380 series. Vertical flame propagation resistance is a key global safety requirement for cables.

The NIST (National Institute of Standards and Technology) provides extensive research on cable fire dynamics and material performance. The NFPA (National Fire Protection Association) regularly updates electrical safety codes (e.g., NFPA 70) to address flame risks in wiring. For detailed engineering analysis, technical papers on cable flame propagation and fire modeling are available on IEEE Xplore. Regular calibration ensures traceability and acceptance by certification bodies.

Procurement Benefits

• Featuring intuitive electrical controls, automatic ignition sequencing, and a robust enclosed chamber, the flammability test for cables minimizes setup time and operator dependency while maximizing test repeatability. Each unit is accompanied by detailed technical documentation, CNAS-accredited calibration certificates, and lifetime software update entitlement.
• Investing in this equipment elevates your cable fire safety validation capability, reduces non-conformance risks, and supports faster achievement of international market access. Contact us today for a tailored quotation and technical consultation—we guarantee a response within 24 hours with comprehensive specifications and customized pricing.
