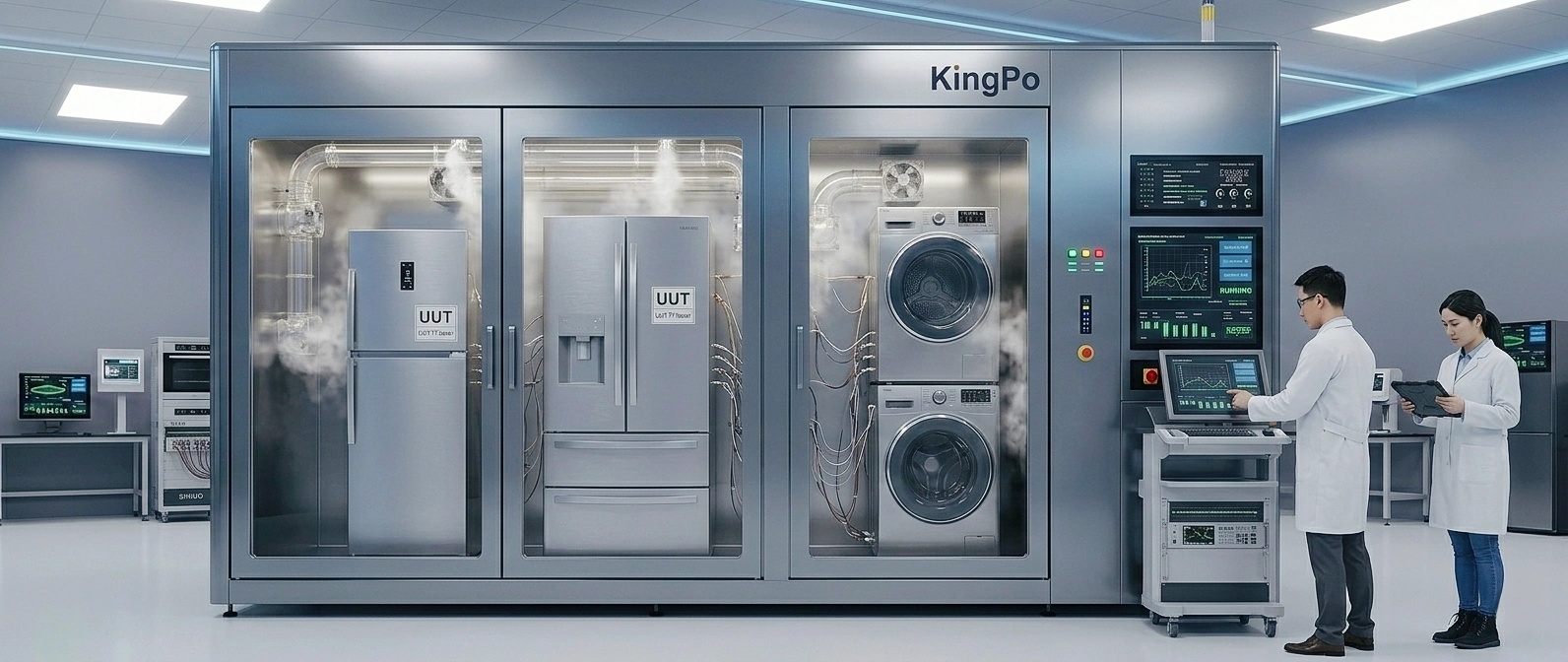

IEC 62552 Energy Efficiency Temperature and Humidity Test Chamber

Energy Efficiency Temperature and Humidity Test Chamber – IEC 62552 Household Refrigeration Appliance Performance Testing System

The Energy Efficiency Temperature and Humidity Test Chamber is a high-precision environmental test system engineered by KingPo for comprehensive performance evaluation of household refrigeration appliances in full compliance with IEC 62552, ISO 15502, and related standards. This energy efficiency test chamber simulates controlled ambient conditions (0–75°C temperature, 30–85% RH humidity) to measure key parameters including energy consumption, storage temperatures (fresh food, frozen food, chill compartment), freezing capacity, load temperature rise time, cooling speed, voltage, current, power, power factor, and working coefficient.

The chamber supports single-door vertical refrigerators, double-door vertical refrigerators, and horizontal freezers, with customizable internal dimensions and test stations to accommodate different appliance sizes. It uses polyurethane insulation board for excellent thermal stability and is widely applied in product development, quality control, certification testing, and energy labeling verification for refrigeration manufacturers.

KingPo Factory Advantages

KingPo is an ISO9001-certified manufacturer specializing in refrigeration appliance performance labs. We have delivered over 40 energy efficiency temperature and humidity test chambers worldwide since 2019, including customized IEC 62552 units to leading OEMs in China, Southeast Asia, and Europe. All chambers include CNAS-accredited calibration reports, on-site installation guidance, lifetime free software upgrades, and 48-hour response during the warranty period from our Dongguan facility.

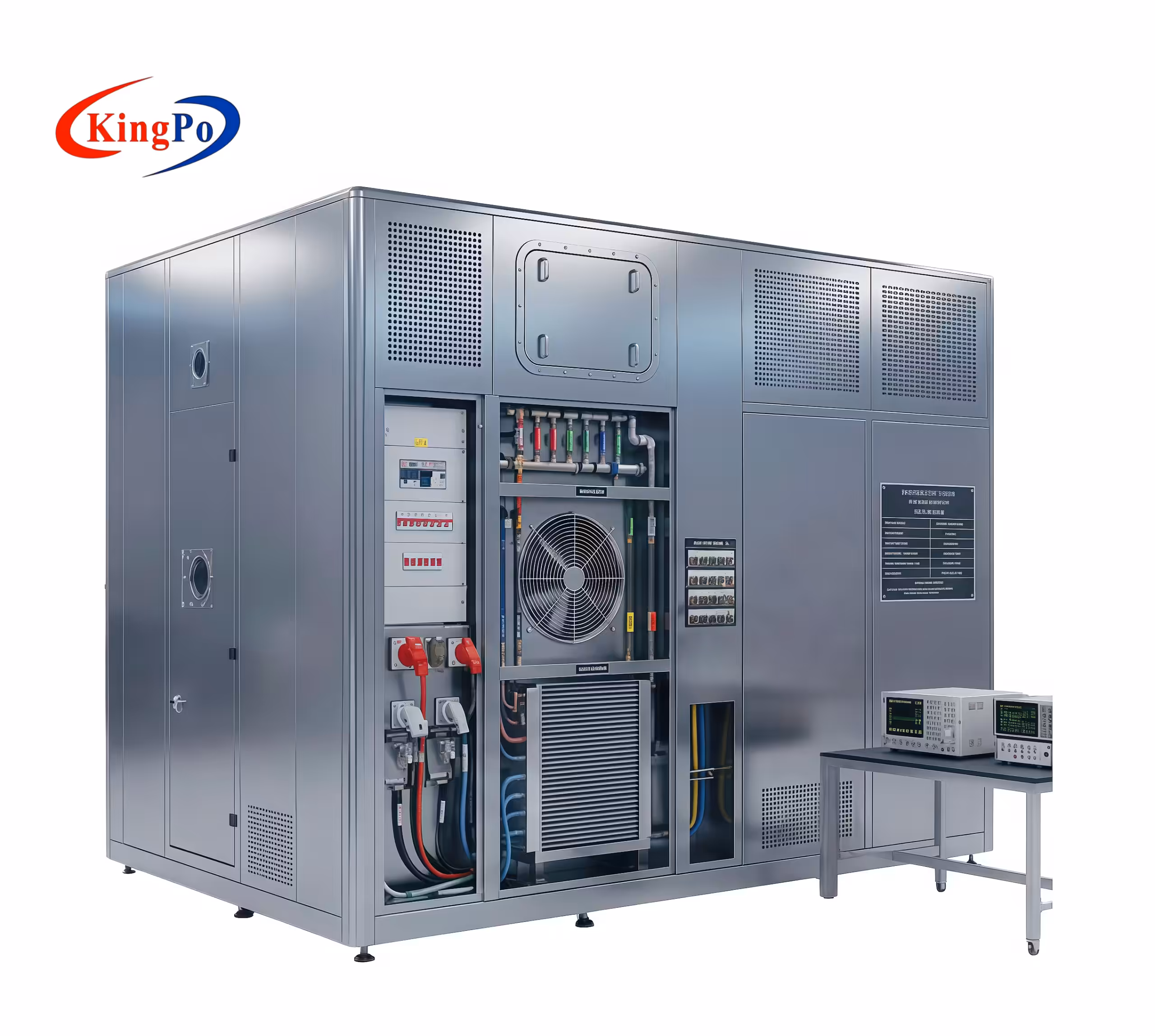

Professional Construction & Technical Precision

Key features include:

• Temperature Control: 0～75℃ range with ±0.2℃ testing/control accuracy using multi-zone PID regulation
• Humidity Control: 30～85% RH with ±2% RH testing/control accuracy via humidification/dehumidification system
• Chamber Construction: Polyurethane insulation board for low heat loss and stable internal environment
• Data Acquisition: PLC + computer system for real-time monitoring, automatic recording, and report generation
• Test Capabilities: Supports energy consumption test, storage temperature mapping, freezing capacity, load rise time, cooling speed, and electrical parameters
• Customization: Tailored chamber dimensions, test stations, and software functions to meet specific standards or appliance types

These features ensure accurate, repeatable results compliant with IEC 62552 requirements.

Primary Use Cases & Business Value

The energy efficiency test chamber supports key stages:

• Product Development – Optimize compressor, insulation, and refrigerant performance for lower energy consumption
• Certification Testing – Generate data for IEC 62552 compliance and energy labeling (EU, China GB/T 8059)
• Quality Control – Batch verification of cooling capacity and storage temperatures in production
• R&D Optimization – Test under various ambient conditions to improve efficiency and reliability

It shortens development cycles, reduces energy consumption, and ensures regulatory compliance.

Compliance & Regulatory Assurance

Fully compliant with IEC 62552-2015 (household refrigerating appliances – characteristics and test methods), ISO 15502, and GB/T 8059. Calibration certificates available (additional cost). Regular verification of temperature/humidity sensors and power meters is recommended to maintain traceability.

Procurement Benefits

Customizable design and precise control reduce test variability. Comprehensive documentation, installation support, and after-sales service ensure long-term reliability. This energy efficiency temperature and humidity test chamber improves refrigeration performance validation, supports energy labeling claims, and minimizes compliance risks. Contact us today for your customized quote – we’ll respond within 24 hours with detailed technical specifications and pricing.
