KingPo IEC 60745-2-6 Electric Hammer Durability Test Apparatus (YW-1186)

Electric Hammer Durability Test for Power Tool Safety Compliance

Hand-held electric tools must undergo rigorous operational testing to ensure they do not present electrical or mechanical hazards during extended use. The Electric Hammer Durability Test system is specifically designed to evaluate the intermittent running performance of electric hammers and impact drills under standardized laboratory conditions. This process is essential for determining whether an appliance meets the safety and endurance limits defined by IEC 60745-2-1 and IEC 60745-2-6.

The testing process involves loading the electric hammer into the rack and operating it intermittently through programmed cycles. By utilizing a Mitsubishi PLC and 7-inch touch screen, the system accurately simulates normal use while monitoring the tool’s response to different load pressures. This standardized Electric Hammer Durability Test ensures that the motor, striking mechanism, and electrical insulation remain intact under high-stress conditions, providing manufacturers with reliable data for international certification.

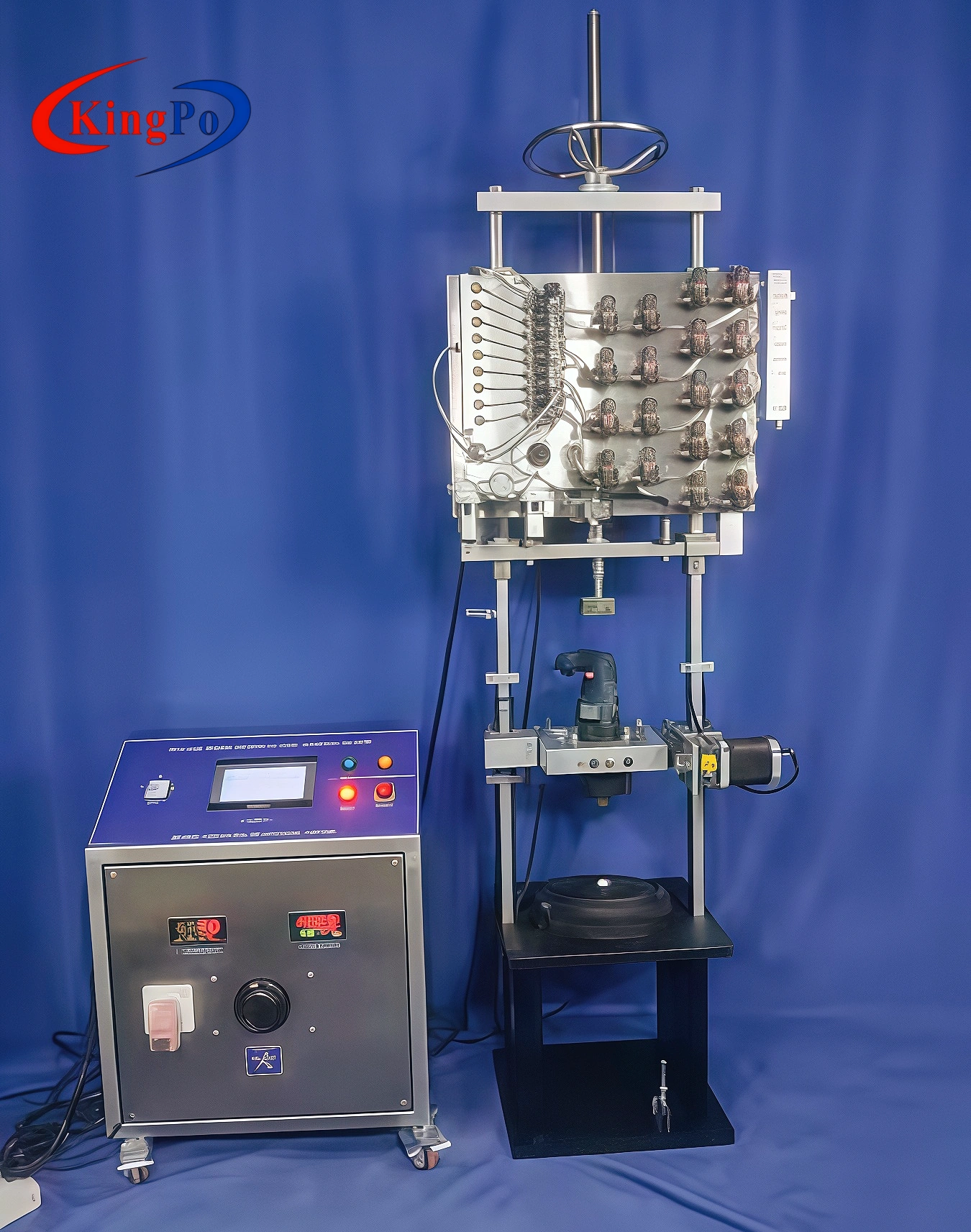

The Electric Hammer Durability Test apparatus includes calibrated impact heads (0.7kg to 3.4kg) and a 90kg steel base equipped with additional weights for vibration damping. This automated mechanical approach eliminates the variability of manual testing, providing the traceable data required for TUV, UL, and Intertek audits. With an adjustable 0-250V power source, the system allows for the monitoring of real-time current and power consumption across various international voltage standards.

Electric Hammer Durability Test – KingPo Factory Advantages

KingPo develops specialized laboratory testing equipment for household appliance and power tool manufacturers worldwide. Our engineering team specializes in mechanical stress analysis, combining robust steel structures with precision pneumatic controls to ensure reliable Electric Hammer Durability Test performance.

Each system features a modular rack design (40x40x200cm) and an independent electric cabinet, simplifying installation and maintenance. We utilize high-grade SUS304 components for critical contact areas to ensure testing accuracy and durability. With extensive export experience, KingPo provides technical consultation, professional calibration certificates, and after-sales engineering support for our global customers.

Professional Construction & Technical Precision

Key technical capabilities include:

• Standardized Friction & Load: Calibrated 100N to 400N load pressure matching IEC Table 101.

• Precision Timing Control: Mitsubishi PLC manages “ON” and “OFF” times from 0 to 999.9 seconds.

• Heavy-Duty Stability: 390kg rack weight ensures the Electric Hammer Durability Test is not affected by external resonance.

• Rotation Versatility: Manual rotation at 0°, 90°, and 180° for multi-axial durability verification.

• Integrated Monitoring: Real-time display of load voltage (0-250V) and operating current.

• Chemical-Resistant Hardware: Precision-machined components designed for long-term laboratory operation.

• Traceable Accuracy: Delivered with certificates verifying load accuracy, stroke speed, and timing logic.

Primary Use Cases & Business Value

• Certification Readiness: Ensuring electric hammers meet the mandatory requirements of IEC 60745-2-6 Figure 103.

• Mechanical Fatigue Analysis: Evaluating the long-term survival of gearboxes and striking pins.

• Electrical Hazard Prevention: Identifying motor overheating or insulation breakdown during the Electric Hammer Durability Test.

• Production QC: Periodic batch testing to ensure consistent manufacturing quality.

Compliance & Regulatory Assurance

The testing system supports the specific Electric Hammer Durability Test methods defined in IEC 60745-2-6 Figure 103. By accurately controlling the rubbing frequency, impact force, and electrical cycles, manufacturers can identify design improvements and enhance product safety before entering global markets.

Procurement Benefits

A professional Electric Hammer Durability Test system enables power tool manufacturers to validate product quality early in the development cycle. Automated procedures reduce manual workload while ensuring consistent testing conditions across multiple product samples, providing a cost-effective solution for modern safety testing laboratories.
