IEC 61591 Range Hood Test System for Airflow Performance Measurement

IEC 61591 Range Hood Test System for Cooking Fume Extractor Performance Testing

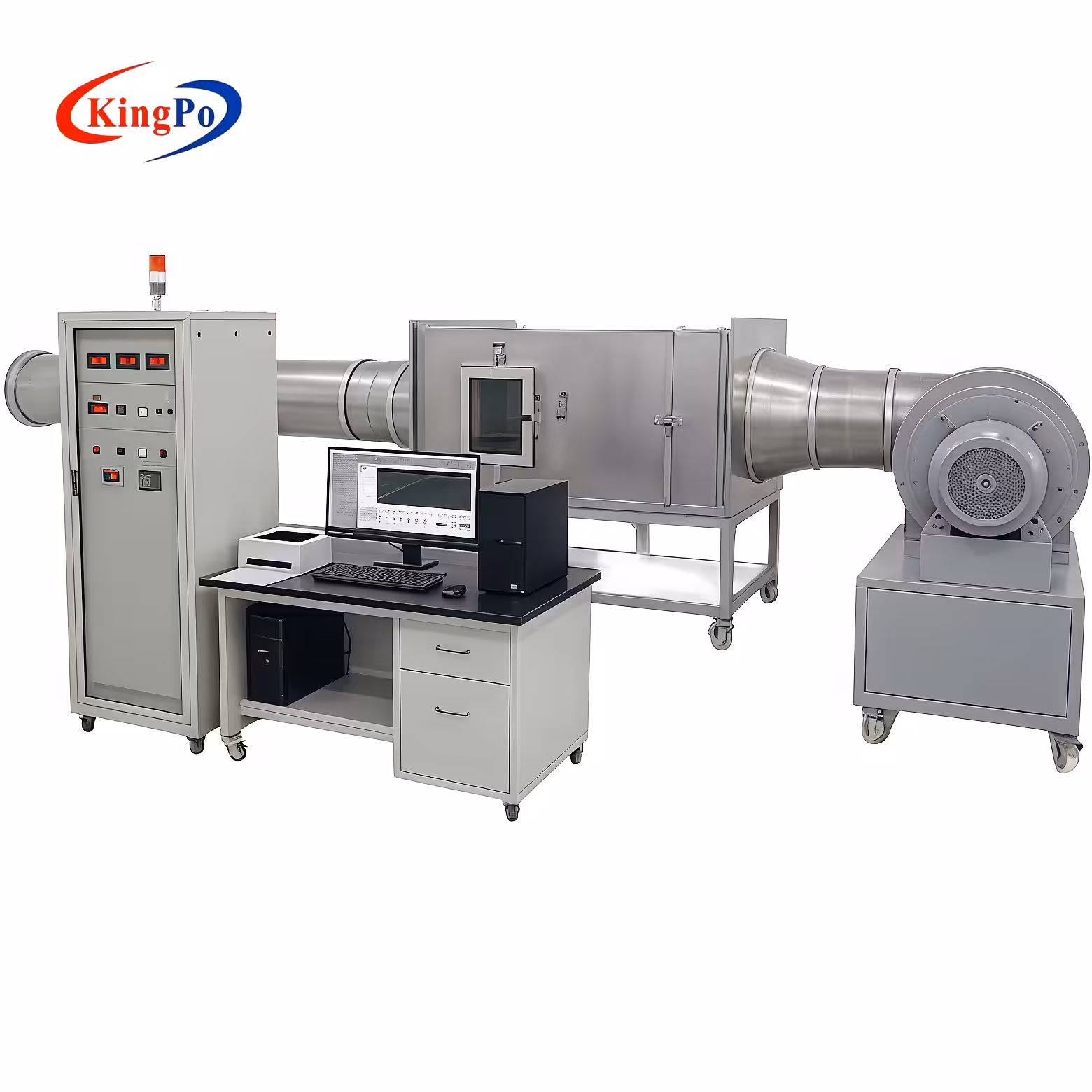

Kitchen ventilation appliances such as range hoods must meet strict airflow performance and efficiency requirements to ensure effective removal of cooking fumes and smoke. The IEC 61591 range hood test system is designed to evaluate the aerodynamic and electrical performance of cooking fume extractors under standardized laboratory conditions.

The testing system measures key performance indicators including airflow rate, static pressure, electrical power consumption, rotational speed, temperature, and humidity. These parameters are essential for determining whether a range hood meets the performance limits defined by international appliance standards such as IEC 61591, AMCA 210, and ISO 5801.

The airflow measurement process uses a calibrated nozzle airflow method combined with differential pressure sensing. By measuring the pressure difference across standard nozzles, the system calculates the airflow generated by the tested appliance. This method ensures reliable airflow measurement across the full testing range.

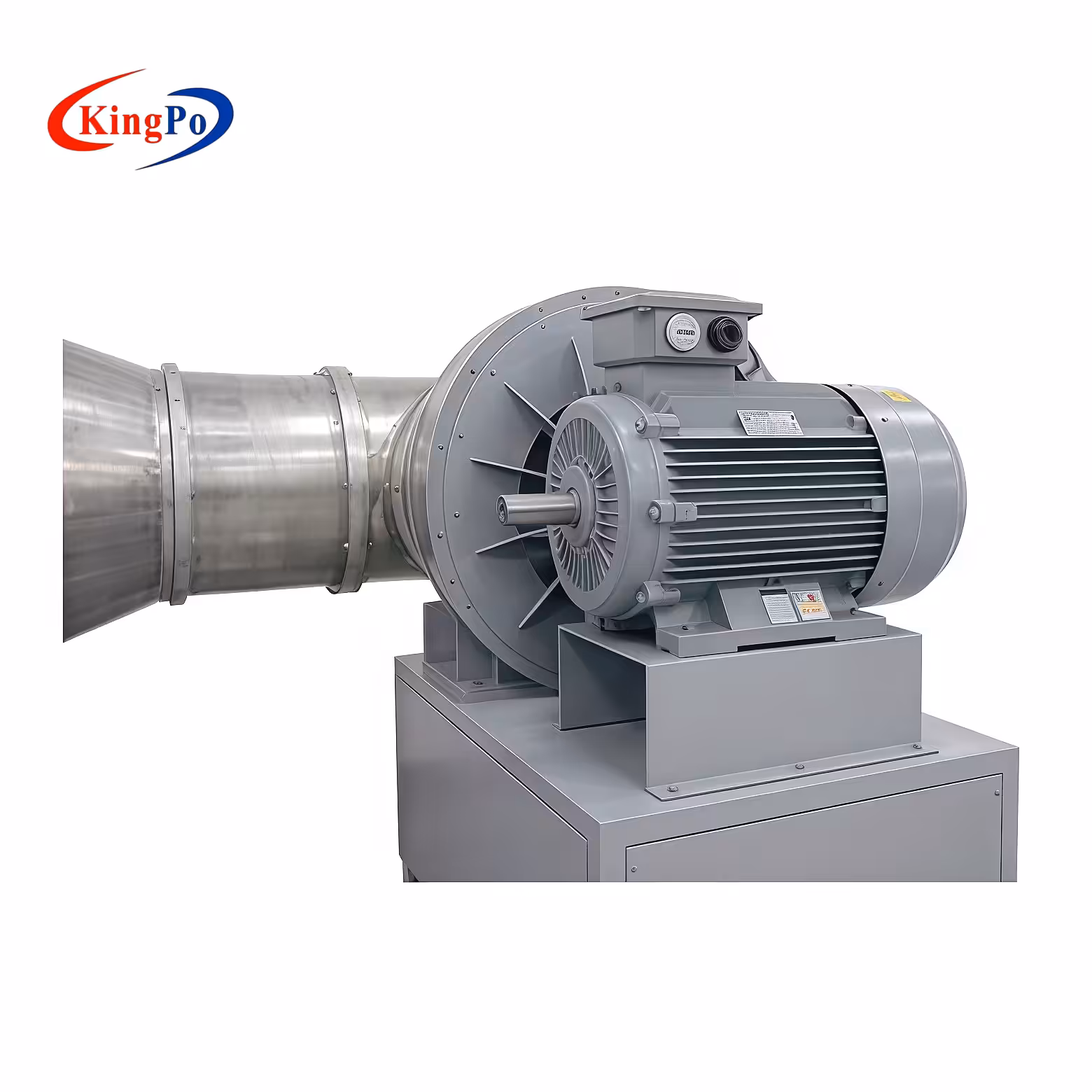

A frequency-controlled auxiliary fan provides stable airflow conditions and allows engineers to adjust airflow continuously during the testing process. The airflow chamber contains flow equalizing plates and nozzle components that ensure consistent airflow distribution and accurate measurement results.

The system is controlled by an industrial computer interface that allows operators to monitor real-time test data and automatically collect measurement results. The software records airflow, pressure, electrical parameters, and environmental data while generating performance curves such as airflow versus static pressure and efficiency curves.

With automated testing functions and accurate sensor integration, the IEC 61591 range hood test system provides reliable performance evaluation for product development, certification testing, and quality control applications.

IEC 61591 Range Hood Test System – KingPo Factory Advantages

KingPo develops laboratory testing equipment for household appliance manufacturers and product testing laboratories worldwide. Our engineering team specializes in airflow performance testing systems for ventilation appliances, combining stable airflow chambers, precision sensors, and industrial control systems to ensure reliable testing performance.

Each testing system is designed with modular structures that simplify installation and maintenance while supporting long-term laboratory operation. Measurement instruments can be verified through accredited calibration laboratories to ensure testing accuracy required for certification procedures. With international export experience in appliance testing equipment, KingPo provides technical consultation, installation guidance, and after-sales engineering support for global customers.

Professional Construction & Technical Precision

Key technical capabilities include:

• Airflow measurement range up to 50 m³/min suitable for residential range hood testing

• Differential pressure measurement up to 2000 Pa with high precision sensors

• Frequency-controlled auxiliary fan for smooth airflow adjustment

• Nozzle airflow measurement method for standardized airflow calculation

• Integrated measurement of voltage, current, and electrical power consumption

• Environmental monitoring including temperature, humidity, and atmospheric pressure

• Industrial PC software for automated testing and curve generation

Primary Use Cases & Business Value

Typical applications include:

• Range hood airflow performance verification during product development

• Ventilation efficiency testing for certification laboratories

• Quality inspection testing for production quality control

• Performance benchmarking between different appliance models

• Energy efficiency optimization through airflow analysis

By accurately measuring airflow and pressure characteristics, manufacturers can identify design improvements and enhance ventilation efficiency before products enter the market.

Compliance & Regulatory Assurance

The testing system supports airflow performance testing methods defined in IEC 61591, AMCA 210, and ISO 5801. To understand the specific energy efficiency benchmarks required for market access in Europe, you can refer to the EU selection criteria for vacuum cleaners and fans or the official European Commission guidelines on energy-efficient products.

Procurement Benefits

A professional airflow testing system enables appliance manufacturers to validate ventilation performance early in the product development process. Automated testing procedures reduce manual workload while ensuring consistent testing conditions across multiple product samples.

With integrated airflow measurement, pressure sensing, and automated reporting software, the IEC 61591 range hood test system provides a complete solution for ventilation appliance testing laboratories.
