KingPo KP-9571 Abrasion Resistance Test Machine and Power Tool Vibration Measurement System

Professional Abrasion Resistance Test Machine & Vibration Measurement System for Power Tools

The Abrasion Resistance Test Machine and Vibration Measurement System (Model KP-9571) is an essential integrated platform for evaluating the structural integrity and ergonomic safety of handheld power tools. In high-intensity industrial environments, the durability of a tool is defined not just by its surface wear but by its internal resistance to harmonic stress. By combining abrasion resistance analysis with precise vibration metrology, KingPo provides a 360-degree solution for manufacturers aiming for IEC 60745-1 and ISO 28927-1 certification.

The Intersection of Wear Resistance and Vibration Analysis

Why use an Abrasion Resistance Test Machine context for vibration? Because excessive vibration is the primary driver of mechanical wear and material fatigue in power tools. The KP-9571 identifies the resonant frequencies that cause internal friction and surface degradation. By measuring the vibration emission values at the handle, engineers can predict the “abrasion life” of internal components and the ergonomic safety of the tool, effectively preventing occupational health issues like Vibration White Finger (VWF).

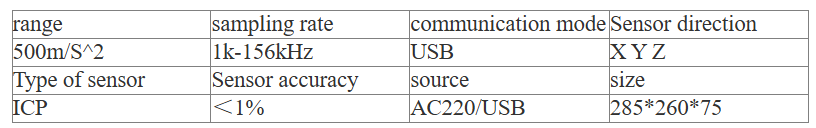

Measurement System Hardware  operations:

• High-Response Sensing Array: Integrated ICP-type vibration sensors with 1% linearity, specifically calibrated for the high-frequency impact profiles of heavy-duty power tools.

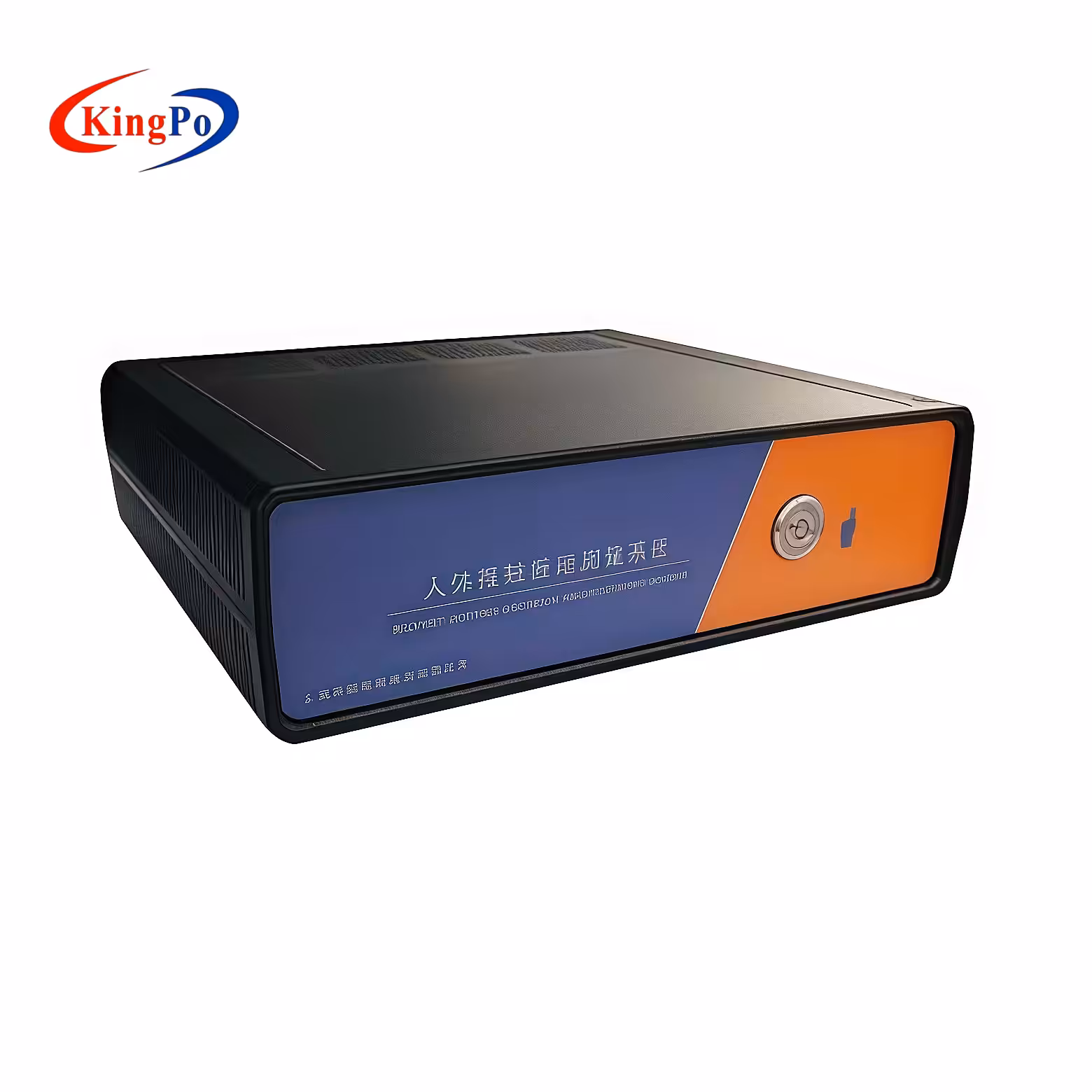

• Industrial-Grade Data Acquisition: A ruggedized measurement hub with BNC shielded connections, ensuring zero signal drift and ultra-stable data transmission via high-speed USB interface.

• Portable Lab Design: A 2.0 KG compact form factor allowing for on-site Abrasion Resistance and vibration audits directly on the factory floor or in the laboratory.

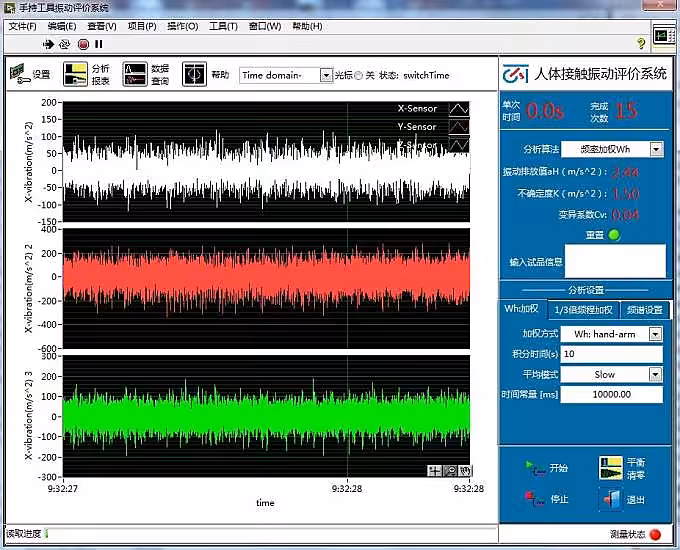

Time-vibration amplitude curve

• The software uses linear average, exponential average and peak average to calculate the frequency amplitude signal. It can also be used for fault and exception analysis of tools.

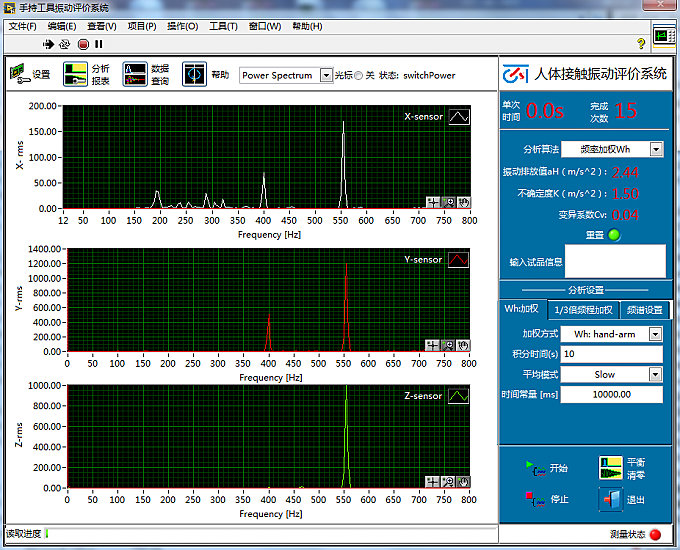

Frequency-amplitude curve：

• The software adopts standard 1/3 octave frequency weighting, ISOWh method frequency weighting for users to select, real-time monitoring, interface display test times, test time, for customer interaction, can more effectively control the variation of variation coefficient produced by different operators.

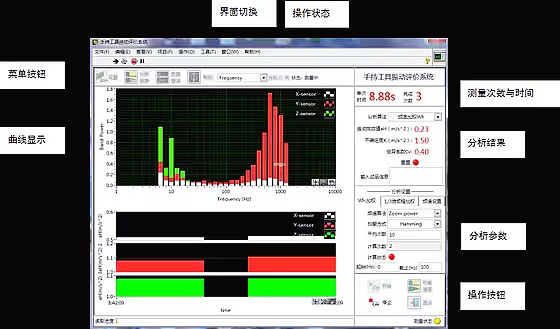

1/3 octave, vibration level curve:

• The test and analysis interface shows the amplitude and frequency of different central frequency bands with 1 ≤ 3 octave, the data analyzed by Wh method and 1 ≤ 3 octave method, and shows that the vibration emission value aH, uncertainty K and coefficient of variation Cv, are in good agreement with the standard requirements through the measurement of the tool handle.

Test data analysis:

• In order to facilitate customer operation, the software provides a variety of design methods, such as single person test, 3 person / 5 continuous operation, time delay trigger, threshold trigger and so on, which is convenient and effective.

Software setup:

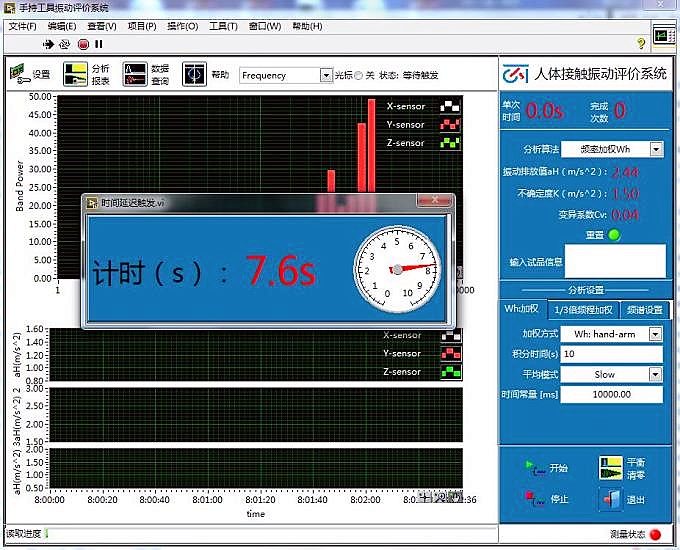

Test test interface

plant parameter

Advanced Technical Functionalities

• Integrated WH Frequency Weighting – Utilizing the ISO 8041 standard method, the system filters vibration signals to match the human body’s response, a critical metric for tools that must pass stringent European and North American safety standards.

• High-Bandwidth Data Logging – Features high-speed USB connectivity and professional BNC sensor inputs, ensuring zero data loss during high-wattage power tool stress tests.

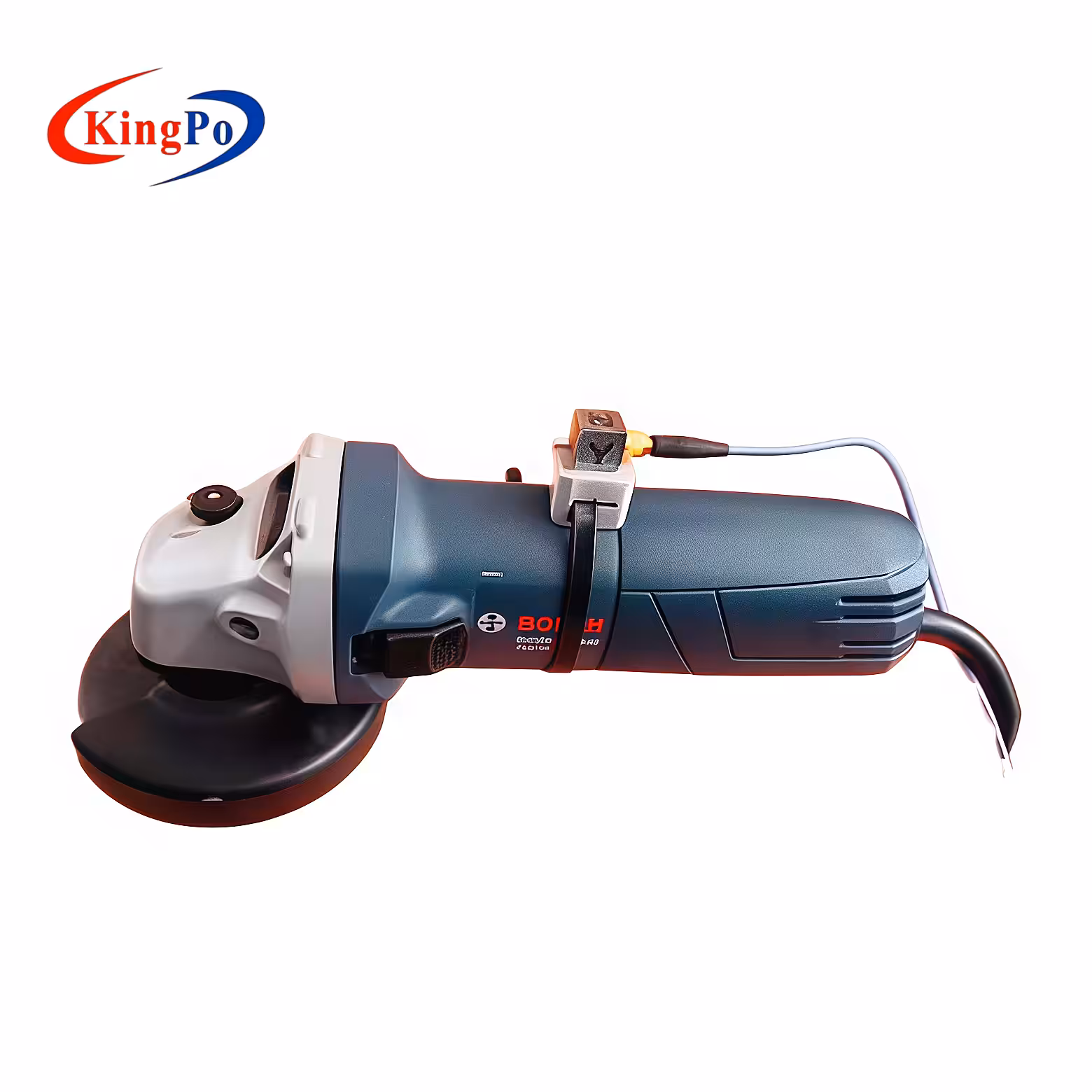

• Multi-Axial Handle Evaluation – Specifically designed to evaluate vibration and mechanical stress at various contact points, providing a comprehensive map of how the tool resists wear and transfers energy to the operator.

• Structural Fatigue Metrics – Through optional extension modules, the system can be adapted to analyze whole-body vibration and the abrasion resistance of mounting components under dynamic loads.

Strategic Market Access through Precision Metrology

For manufacturers of portable power tools, proving durability is the key to market dominance. Utilizing the KingPo Abrasion Resistance Test Machine and Vibration Analyzer allows R&D teams to refine their damping systems and material choices early in the design phase. This ensures that the final product not only meets EN 60745.1 limits but also demonstrates superior resistance to mechanical wear, providing a competitive edge in the global marketplace.

Industry Standard Compliance The KP-9571 is engineered to meet the rigorous vibration emission requirements defined in BS EN ISO 28927-1. For detailed methodology and limit values, you may refer to the official [BSI Standard Specifications for Angle Grinders].
