ISO 7176-11 Wheelchairs Test Dummies | Anthropomorphic Test Dummies for Wheelchair Testing

ISO 7176-11 Wheelchairs Test Dummies | Anthropomorphic Test Dummies for Wheelchair Stability and Durability Testing

The ISO 7176-11 Wheelchairs Test Dummies | Anthropomorphic Test Dummies for Wheelchair Stability and Durability Testing are professional test devices manufactured by KingPo. They are designed to simulate the mass and mass distribution of human occupants for stability, performance and durability testing of manual and powered wheelchairs, in full accordance with ISO 7176-11.

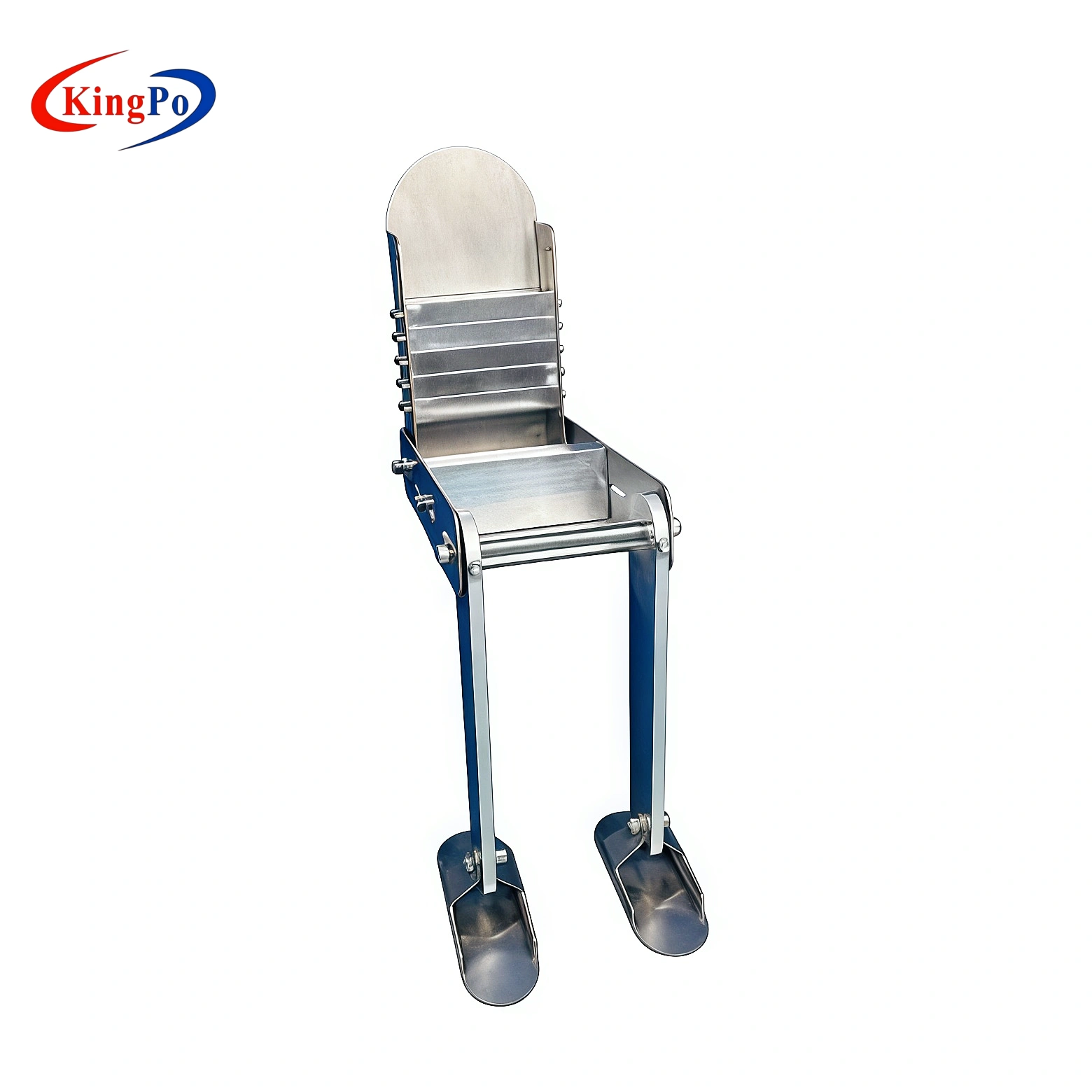

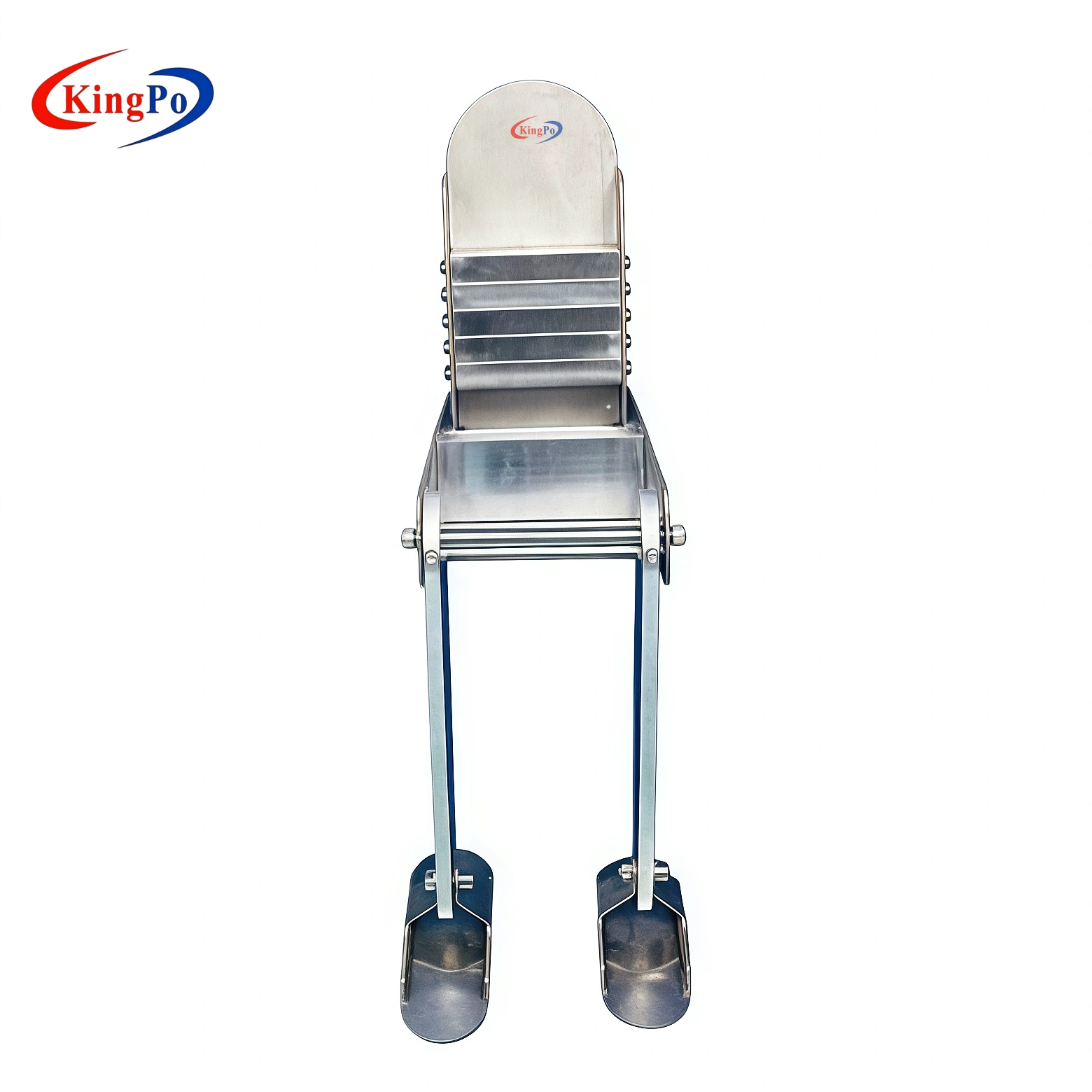

Each test dummy is constructed with three rigid segments (torso, thigh and lower leg) connected by high-precision pivots at the hip and knee joints. The hip pivot is located at (78 ± 25) mm in both X and Y directions, and the knee pivot follows the same tolerance, ensuring accurate kinematic simulation of human posture. All segmental masses and centres of mass are manufactured to the exact values and formulae given in ISO 7176-11 Tables B.1 and C.1–C.3, with linear dimensions rounded to the nearest millimetre and masses to 0.1 kg.

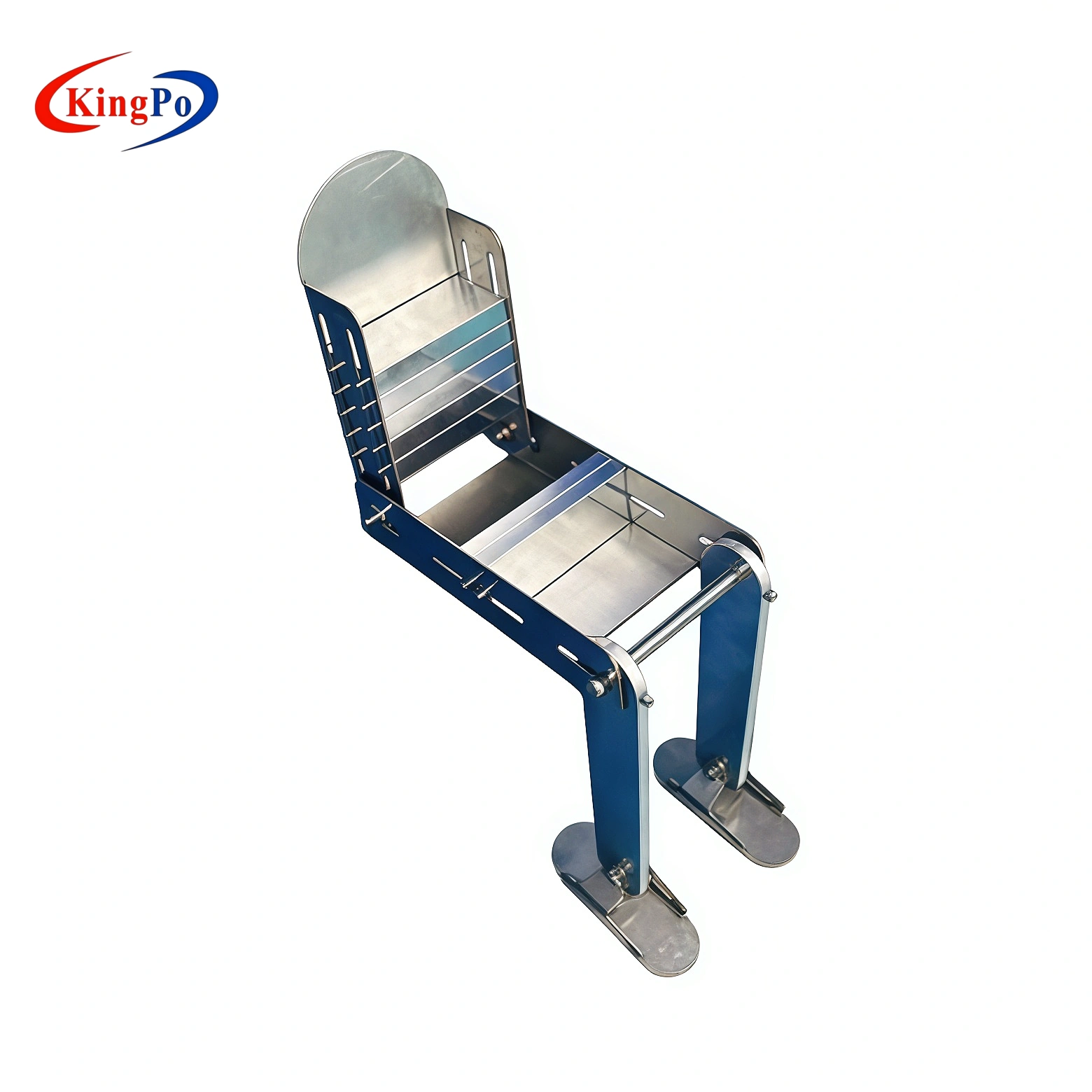

The torso, thigh and lower leg segments are equipped with rigid loading plates covered by high-density foam cushions that accurately transfer load to the wheelchair seat and backrest while preventing unrepresentative damage. The overall centre of mass is fully adjustable on-site to match the required Xdummy and Ydummy coordinates, allowing laboratories to configure the dummy for any mass within the 25–300 kg range with laboratory-grade repeatability. The entire assembly is robust, stable and engineered for thousands of test cycles in both static and dynamic conditions.

Technical Parameters

Table B.1 — Nominal Location of Overall Centre of Mass

Table C.1 — Nominal Mass and Recommended CoM Location of Torso Segment

Table C.2 — Nominal Mass and Recommended CoM Location of Thigh Segment

Table C.3 — Nominal Mass and Recommended CoM Location of Lower Leg Segment

Location of Pivots

• x hip shall be (78 ± 25) mm
• y hip shall be (78 ± 25) mm
• y knee shall be (78 ± 25) mm

Testing Principle

The test dummies replicate the mass and mass distribution of a seated or standing human occupant. When placed in the wheelchair under test, they enable precise evaluation of static and dynamic stability, brake performance, obstacle-climbing ability, durability and other parameters as defined in the ISO 7176 series.

Common Error Mitigation

To achieve maximum repeatability, always confirm the overall centre of mass position and segmental mass distribution using the balance or scale method (Annex A) before testing. Ensure correct dummy positioning on the seat and backrest reference planes and verify pivot freedom of movement. Periodic inspection and replacement of foam cushions prevent compression set that could alter load distribution.

Primary Use Cases & Business Value

The ISO 7176-11 Wheelchairs Test Dummies are the internationally standardized anthropomorphic devices used to simulate human occupants with precise mass and centre-of-mass distribution. They enable wheelchair manufacturers and independent certification laboratories to conduct repeatable, traceable evaluations of static and dynamic stability, brake effectiveness, obstacle-climbing performance, structural durability and overall safety under realistic loading conditions, ensuring products fully comply with international safety and performance requirements.

Industrial Applications & Lab Scenarios

• Wheelchair Manufacturers — Full-range stability and durability testing of manual wheelchairs, electrically powered wheelchairs and scooters, including verification of new designs, material selections and seating systems under controlled human-like loading.
• Third-Party Certification Laboratories — Traceable compliance testing according to the complete ISO 7176 series, providing standardized test data for regulatory certification and type approval.
• R&D Departments — Development and optimization of next-generation wheelchair designs through precise adjustment of centre of mass and segmental loading to evaluate ergonomics, manoeuvrability and safety enhancements.
• Quality Control Teams — Batch verification and consistency checking of production wheelchairs to ensure every unit meets specified safety and performance criteria before shipment.
• Regulatory Compliance Teams — Demonstration of product safety and performance for international market access, supporting technical documentation, risk assessment and certification submissions.

Strategic Procurement Advantages & Global Support

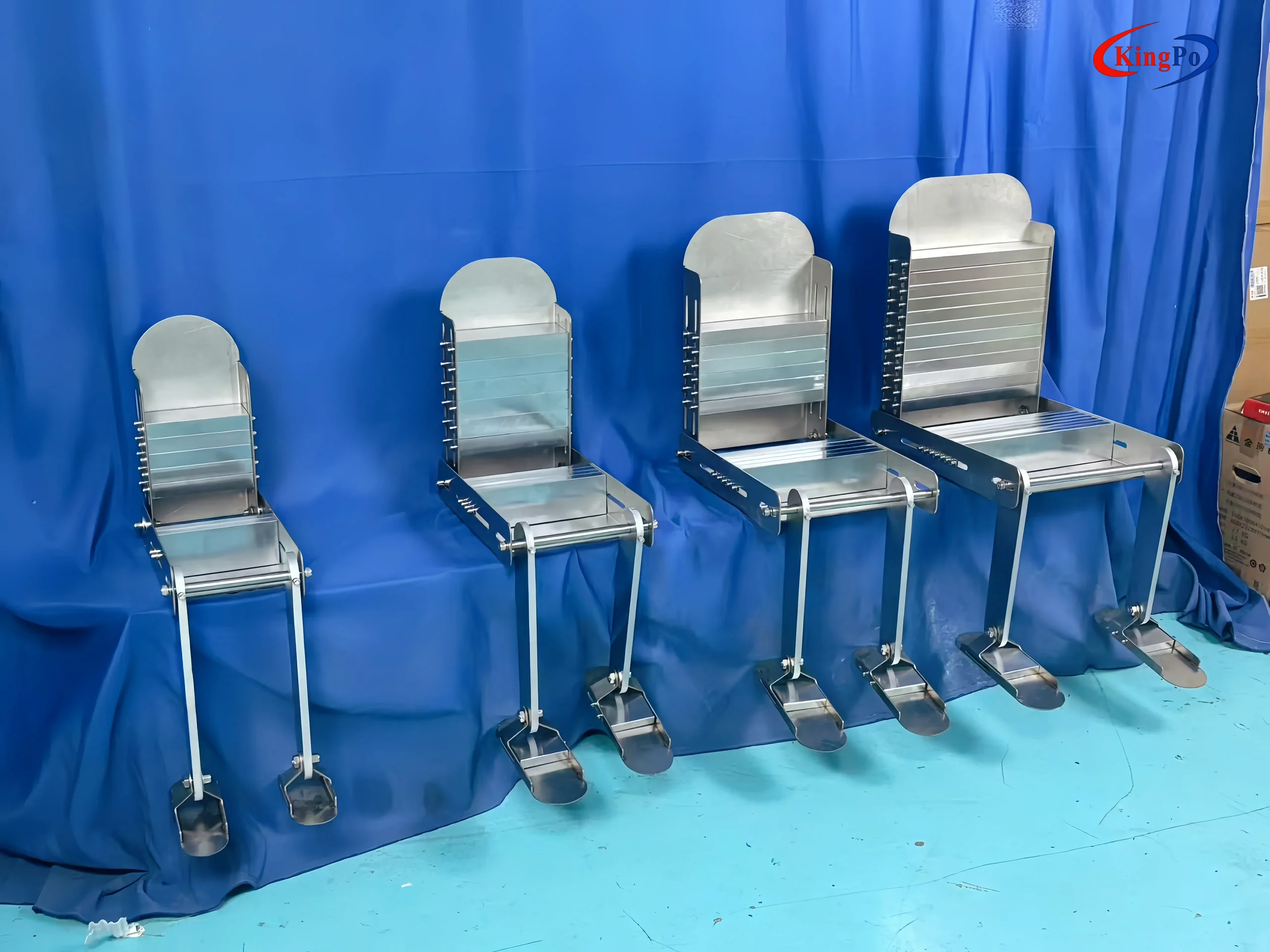

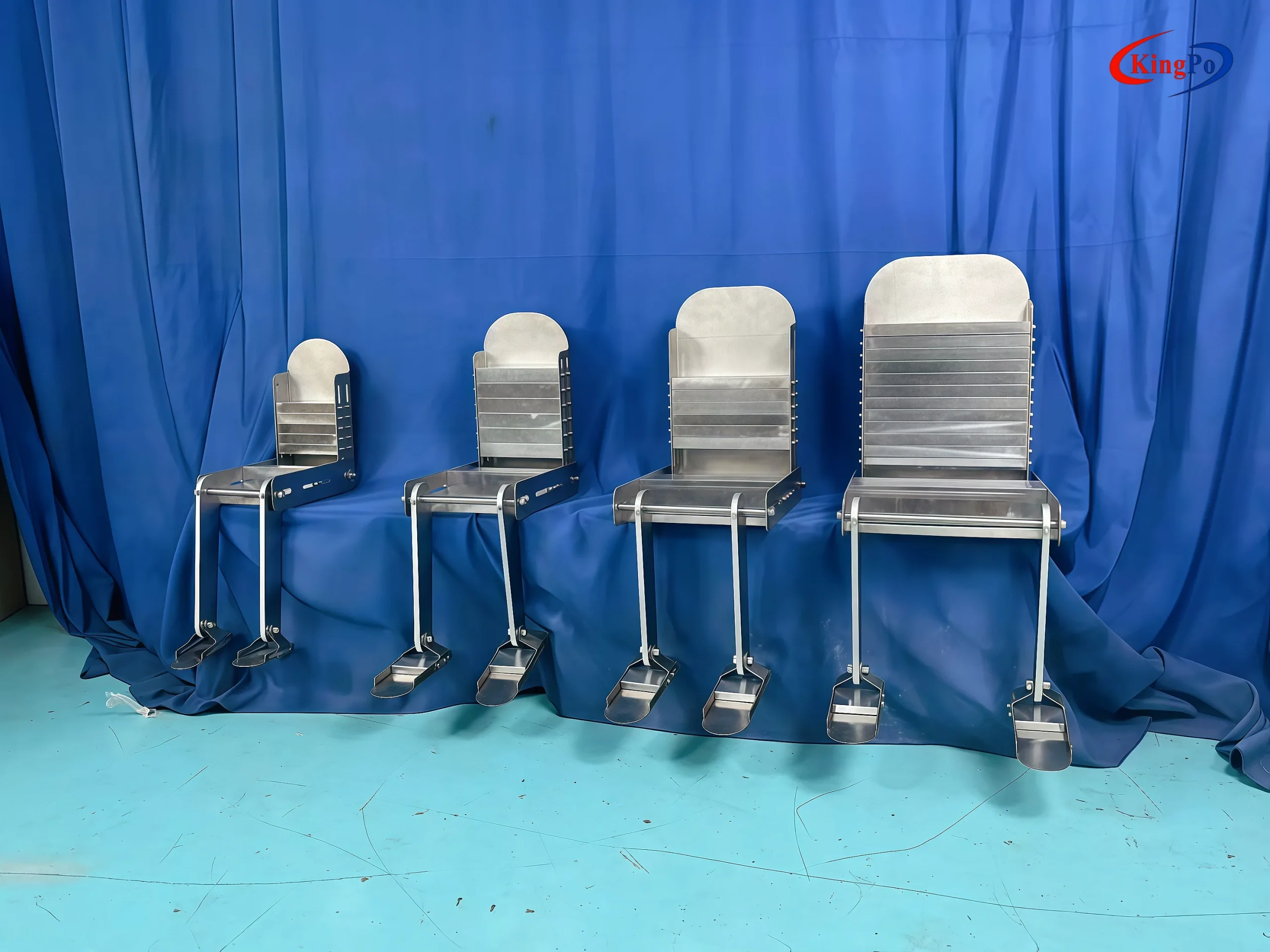

• High-Efficiency Testing: Complete set of 12 mass configurations enables fast, repeatable ISO 7176-11 testing.
• Certified Manufacturing: ISO 9001/14001/45001 and CE certified production with ISO 17025 traceable calibration ensures laboratory-grade reliability.
• Reliability & Support: Each set undergoes rigorous factory calibration in our Dongguan facility and is backed by a full one-year warranty, on-site installation guidance, and lifetime technical engineering support.
