Artificial Listening Speaker Analyzer Test Solution Short Circuit Protection

Professional Artificial Listening Speaker Analyzer for Rapid QC

The KP1565 is a pioneering Artificial Listening Speaker Analyzer engineered to revolutionize acoustic quality control. Traditional methods rely heavily on human auditory inspection, which is prone to fatigue, subjective bias, and operational inconsistencies. This advanced Speaker Analyzer utilizes state-of-the-art algorithms to simulate professional human listening, accurately identifying Rub & Buzz and other mechanical defects in just 6 seconds. Integrated into a seamless Speaker Test System, it provides 100% repeatable, objective data, ensuring that every speaker leaving your factory meets the highest acoustic standards without risking occupational hearing damage.

KingPo Factory Advantages in Speaker Test Systems

KingPo Instrument specializes in developing high-precision electroacoustic instrumentation. Our Speaker Test System solutions, centered around the Artificial Listening Speaker Analyzer core, have been successfully deployed by over 1,200 manufacturers in 30+ countries. We have 15+ years of experience in optimizing mass-production acoustic testing. Each KP1565 unit undergoes strict CNAS calibration and a 48-hour stability test. Our dedicated engineering team provides 48-hour rapid response support to ensure your quality control line maintains peak efficiency.

KP1565 Artificial Listening Speaker Analyzer Specifications

Technical Precision & Robust Construction

• Core Audio Analysis: The heart of this Artificial Listening Speaker Analyzer is the dual-channel AD2122 module, delivering laboratory-grade analysis of THD and frequency response.

• Integrated Noise Isolation: The Speaker Test System includes a custom aluminum alloy shielding box lined with sound-absorbing material, crucial for stable testing in noisy factory environments.

• Professional Power Amplification: The AMP50 amplifier within the Speaker Analyzer ensures clean, low-distortion power output to the driver, vital for detecting subtle defects.

• Production Line Optimization: Designed for simplicity, the Speaker Test System software requires minimal operator training. Pass/Fail limits are easily configured by technicians, with subsequent testing controlled via a foot pedal.

Primary Use Cases & Business Value

• Automated Loudspeaker Production QC: Utilizing the Artificial Listening Speaker Analyzer as a 100% automated station to replace multiple manual listening booths.

• R&D Acoustics Lab: Employing the full Speaker Test System for detailed analysis of prototype drivers, including precise F0 and impedance measurement.

• Incoming Component Inspection: Validating raw speaker units for integration into consumer electronics using the high-speed Speaker Analyzer protocols.

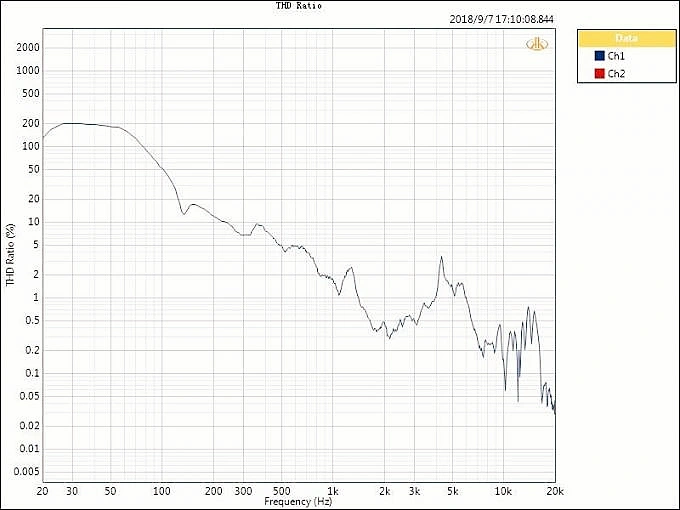

Test results – distortion curve

The total distortion ratio corresponding to each frequency point obtained by sweeping.

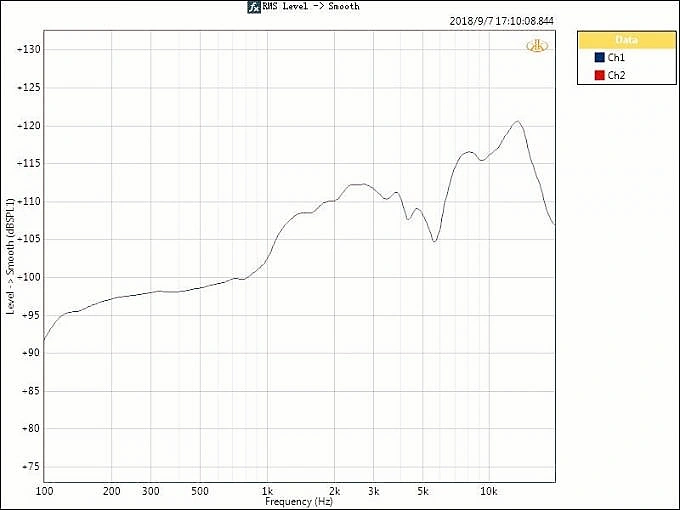

Test results – frequency response curve (1/6 Oct, smooth)

Test the response of the same signal amplitude for different frequencies.Set the control curve according to standard frequency response curve with offset which usually is 3dB or otherwise accords to the requirements of your product.

 Compliance & Regulatory Assurance Compliance Design Statement：This Speaker Test System is strictly designed and manufactured in accordance with the requirements of IEC 60268-5 (Sound System Equipment – Loudspeakers). It is specially used to detect acoustic performance and mechanical defects via our proprietary Artificial Listening Speaker Analyzer algorithms, simulating real-world audio playback scenarios to ensure product reliability, safety, and compliance with international electroacoustic standards.

Procurement Benefits & Technical Support

Upgrading to a digital Speaker Test System is essential for modern quality assurance. We offer comprehensive training, custom test jig design, and a 12-month warranty. Submit your technical inquiry today to discuss how our Artificial Listening Speaker Analyzer can optimize your quality control process.

Artificial Listening Speaker Analyzer Applications

• High-Volume Speaker Manufacturing – Replaces manual auditory checks for rapid QC.

• Consumer Electronics Production – Integrates Speaker Analyzer technology into automated lines for smartphones, laptops, etc.

• Acoustic R&D – Utilizes the full Speaker Test System for detailed driver characterization and compliance verification.

• Automotive Audio Assembly – Validates speaker performance against IEC 60268 standards in complex environments.

• Batch Inspection & QA – Deploys the Artificial Listening Speaker Analyzer for incoming material control to ensure consistency.
