IEC Residual Voltage Tester | Capacitor Discharge Test Apparatus
The IEC Residual Voltage Tester is a fully automated capacitor discharge test apparatus designed to measure residual voltage on plugs and accessible parts after power disconnection in accordance with multiple IEC safety standards.
- Standard Compliance: IEC 61010-1, IEC 62368-1, IEC 60601-1, IEC 60335-1 โ residual voltage testing
- Peak Detection: Disconnects at positive or negative voltage peak (normal & reversed polarity)
- Test Modes: Line-Ground, Line-Neutral, Neutral-Ground
- Voltage Range: 0โ300 V with 0.1 V resolution
- Current Capacity: Up to 10 A with 10 A time-delay fuse
- One-Button Operation: Micro-controller based with LCD display and automatic result calculation
- MOQ: 1
- Delivery Period: 30 working days
IEC Residual Voltage Tester Description

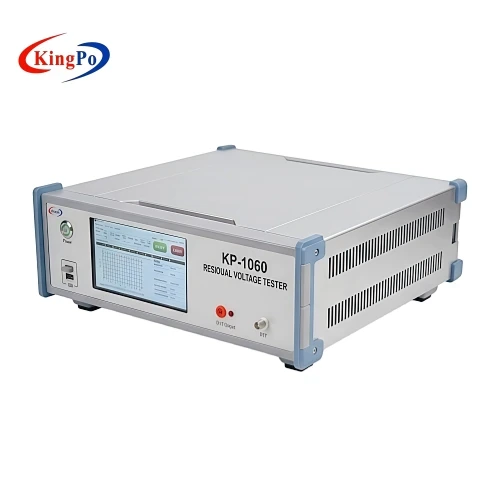

Medical Test Equipment for IEC Residual Voltage Testing Includes Cables and Calibration Certificate
The IEC Residual Voltage Tester | Capacitor Discharge Test Apparatus is a professional safety test instrument manufactured by KingPo. It is designed to measure residual voltage after plug disconnection for electrical and medical equipment, fully compliant with IEC 61010-1, IEC 62368-1, IEC 60601-1 and IEC 60335-1.
Technical Parameters
Test Performance Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Applicable Standards | IEC 61010-1, IEC 62368-1, IEC 60601-1, IEC 60335-1 | Built-in presets for residual voltage testing after plug disconnection |
| Test Voltage Range | 0 โ 300 V | 0.1 V resolution, suitable for most low-voltage safety testing |
| Peak Detection Accuracy | Disconnects within 5% of true voltage peak | Positive or negative peak detection with normal/reversed polarity support |
| Test Time Range | 0.50 โ 99.0 seconds | Programmable for accurate residual voltage decay analysis |
| Test Time Accuracy | ยฑ1% (โฅ1 s) / ยฑ10 ms (<1 s) | High timing precision meeting stringent IEC safety requirements |
| Test Modes | Line-Ground, Line-Neutral, Neutral-Ground | Comprehensive testing of all accessible parts |
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Maximum Test Current | 10 A | Protected by 10 A, 250 V time-delay fuse (1-ยผโ ร ยผโ) |
| Probe Impedance | > 100 Mฮฉ, < 25 pF | High-impedance design prevents circuit loading and ensures measurement accuracy |
| Voltage Meter Accuracy | ยฑ1.5% of measuring range | High precision for reliable residual voltage verification |
| Voltage Setting Resolution | 0.1 V | Fine adjustment capability |
| Frequency | 50โ60 Hz | Compatible with standard laboratory power frequency |
| Power Supply | AC 220 V, 50/60 Hz | Standard single-phase laboratory supply |
The tester features a rugged industrial-grade enclosure designed to withstand a 6-inch drop without damage. It incorporates a high-speed micro-controller with precise peak-voltage detection circuitry and solid-state switching to disconnect the line exactly at the voltage peak.
All measurement channels (Line-Ground, Line-Neutral, Neutral-Ground) use high-impedance probes to avoid influencing the circuit under test. The system includes built-in scope output for waveform analysis and an ergonomic front panel with one-button operation for maximum efficiency and operator safety.
Testing Principle
The apparatus powers the equipment under test to its rated voltage, then disconnects the supply precisely at the voltage peak (positive or negative). It measures and records the residual voltage decay on accessible parts (plug pins or internal terminals) over a preset time, automatically determining compliance with the required decay limits of the selected IEC standard.
Common Error Mitigation
To ensure repeatable and accurate results, always confirm the correct polarity and standard preset before testing. Verify that test leads are securely connected and free of damage. Perform a zero-voltage check prior to each test sequence and allow the unit to stabilize after power-on. Regular calibration of the voltage measurement circuit maintains long-term accuracy.
Primary Use Cases & Business Value
The IEC Residual Voltage Tester is used by manufacturers and certification laboratories to verify that electrical and medical products do not retain hazardous residual voltage after disconnection, thereby ensuring user safety and regulatory compliance.
Industrial Applications & Lab Scenarios
- Medical device manufacturers โ residual voltage testing of IEC 60601-1 equipment
- Household appliance manufacturers โ compliance testing per IEC 60335-1
- IT and laboratory equipment makers โ verification according to IEC 61010-1 and IEC 62368-1
- Third-party certification laboratories โ traceable safety testing with calibration certificate
- R&D and quality control teams โ rapid product development and batch verification
Strategic Procurement Advantages & Global Support
- High-Efficiency Testing: One-button operation with presets for multiple IEC standards delivers fast, repeatable results.
- Certified Manufacturing: ISO 9001/14001/45001 and CE certified production with ISO 17025 traceable calibration ensures laboratory-grade reliability.
- Reliability & Support: Each unit undergoes rigorous factory calibration in our Dongguan facility and is backed by a full one-year warranty, on-site installation guidance, and lifetime technical engineering support.
Compliance & Regulatory Assurance
This equipment is designed and manufactured in accordance with IEC 61010-1, IEC 62368-1, IEC 60601-1 and IEC 60335-1 for residual voltage testing after plug disconnection. It provides a standardized, traceable method to verify that accessible parts do not retain dangerous voltage levels, ensuring full compliance with international safety requirements.
For detailed information on test procedures, please refer to the latest editions of the applicable IEC standards. Annual calibration is recommended to maintain traceability.
Technical Inquiry & Expert Support
KingPo provides validated IEC Residual Voltage Testers with full calibration certificate and cables. Contact our medical engineering team for custom configurations and setup support.
The Core Value We Deliver
- Multi-Standard Compliance: Presets for IEC 61010-1, IEC 62368-1, IEC 60601-1 and IEC 60335-1.
- Peak Voltage Disconnect: Accurate testing at positive or negative peak with polarity reversal.
- Precision Measurement: ยฑ1.5% voltage accuracy and automatic result calculation.
- Lab Ready: Includes cables, manual and calibration certificate for immediate use.
- Fast Response: Get a tailored technical recommendation within 24 hours.

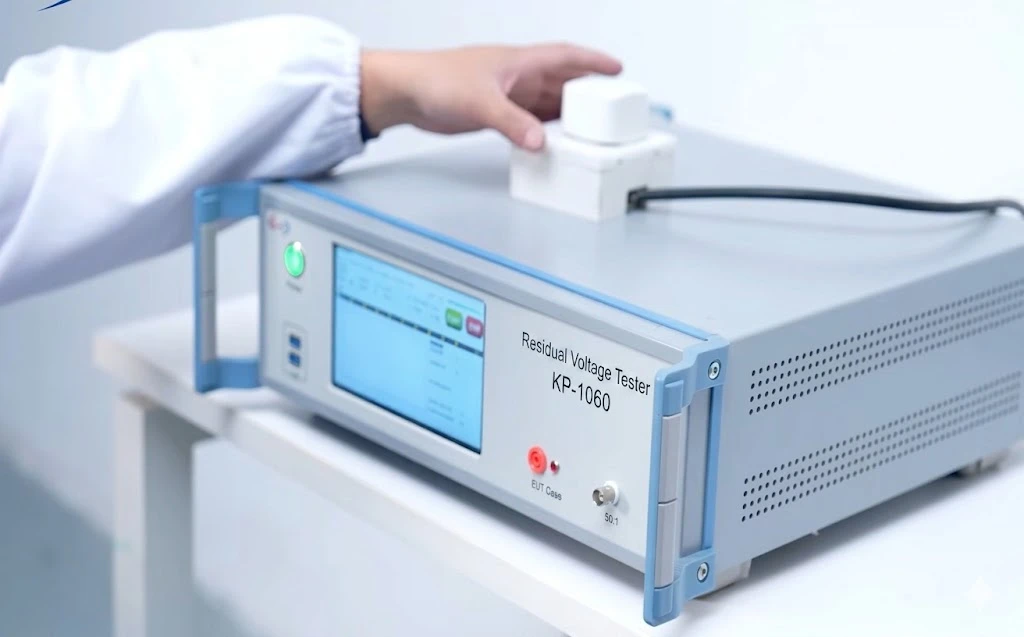

How to use Capacitor Discharge Tester

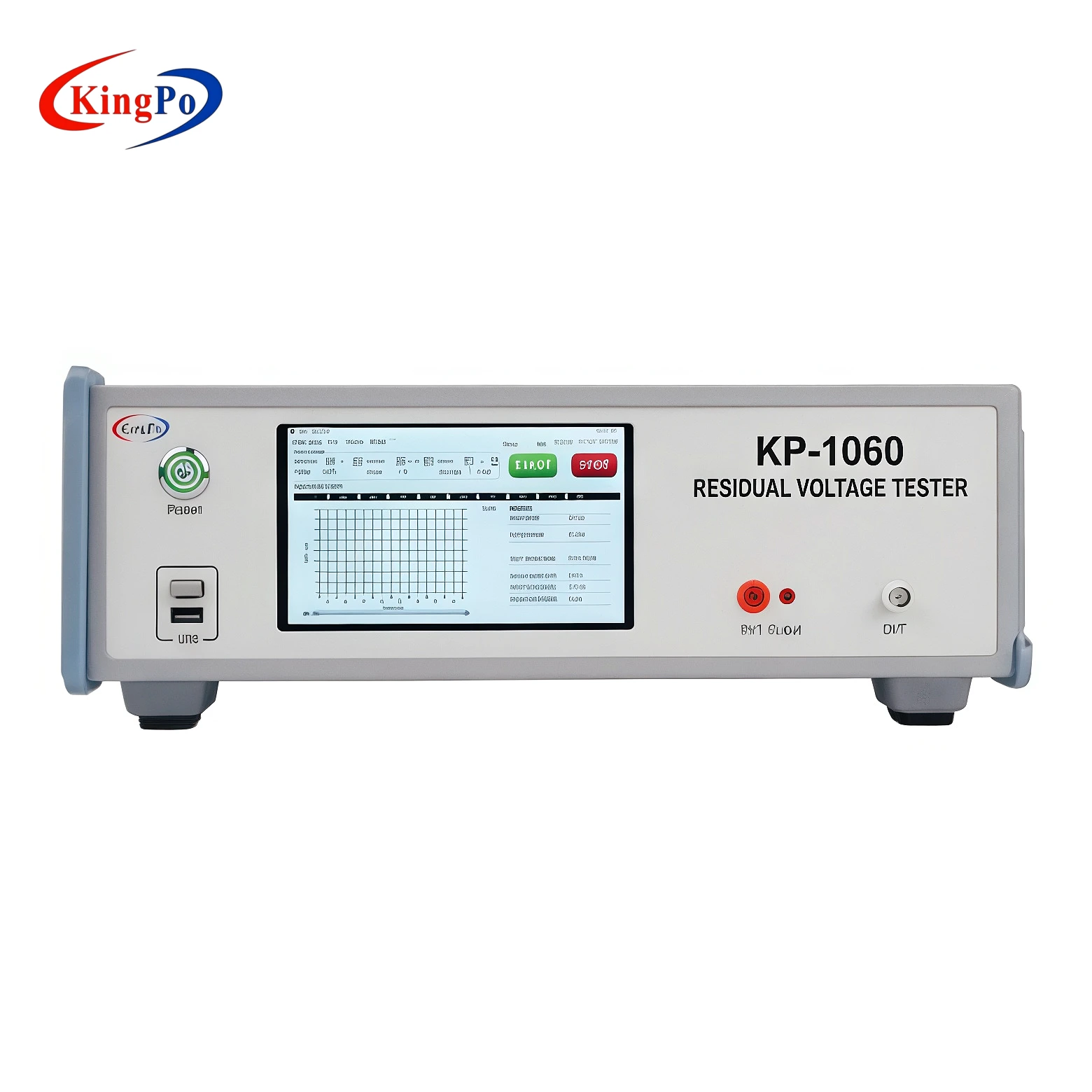

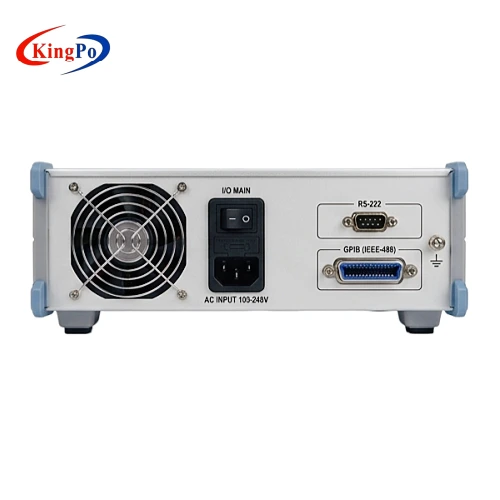

Residual Voltage Tester Detail Display
IEC Residual Voltage Tester FAQs
