IEC 60745-2-5 Circular Saw Switch & Lower Guard Endurance Test Device

IIEC 60745-2-5 for Power Tool Safety Compliance

Hand-held electric tools must undergo rigorous operational testing to ensure they do not present electrical or mechanical hazards during extended use. The IEC 60745-2-5 compliance test system is specifically designed to evaluate the mechanical strength and structural durability of circular saw safety mechanisms under standardized laboratory conditions. This process is essential for determining whether an appliance meets the strict endurance and recovery limits defined by Annex M, Annex BB, and Clause 17.101.

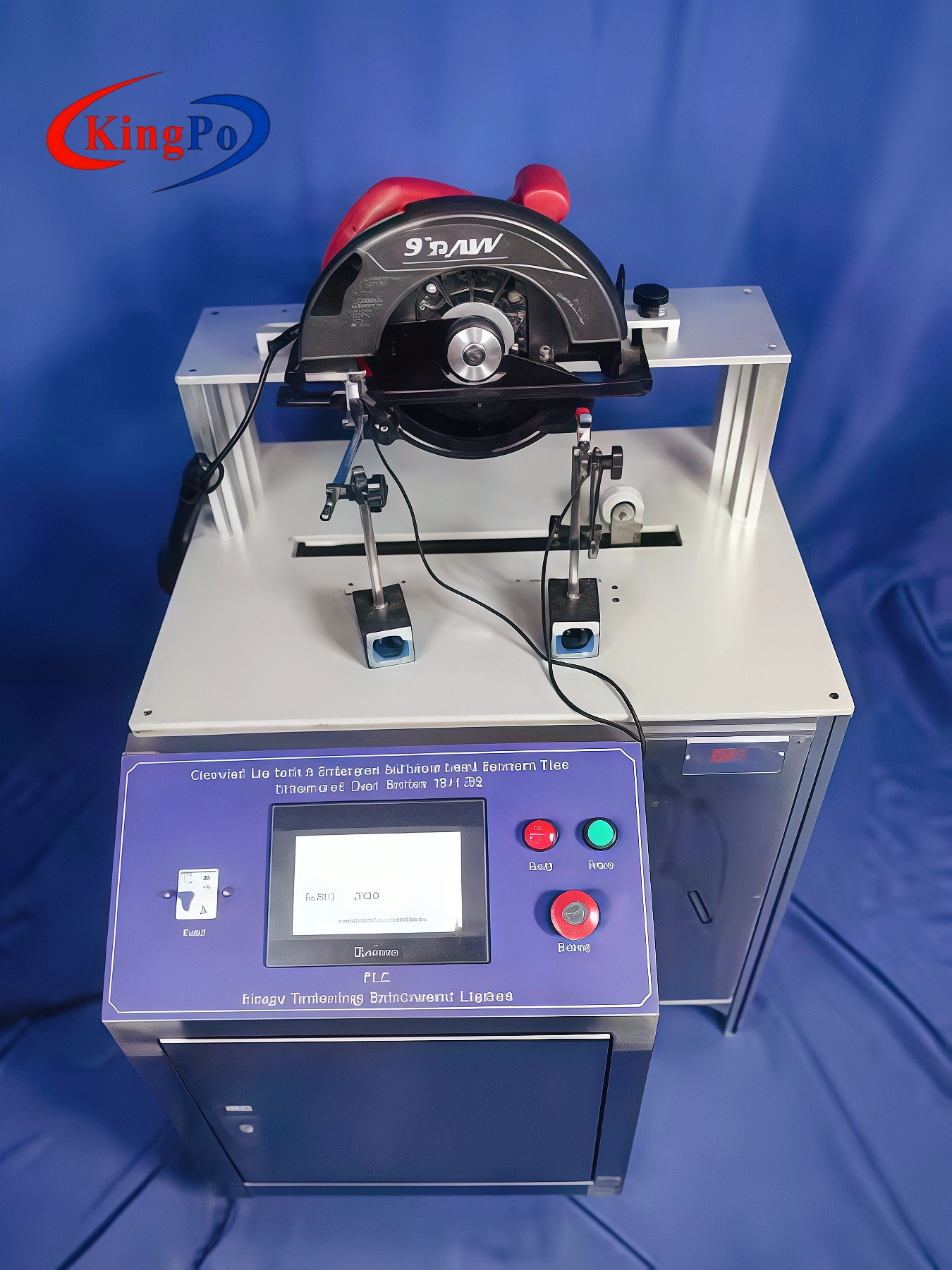

The testing process involves loading the circular saw into the specialized fixture at a 90° horizontal cutting position and operating it through automated “Open-and-Release” cycles. By utilizing a Mitsubishi PLC and 7-inch touch screen, the system accurately simulates real-world usage while monitoring the lower guard’s response to spring tension and pivot friction. This standardized IEC 60745-2-5 evaluation ensures that the protective cover consistently shields the blade within the mandatory 0.3s threshold, providing manufacturers with reliable data for international certification.

The IEC 60745-2-5 test apparatus includes high-speed infrared position sensors and a motor-driven actuator to eliminate the variability of manual testing. This automated approach provides the traceable data required for TUV, UL, and Intertek audits. With a dual-purpose electrical cabinet, the system also facilitates switch endurance testing, allowing for the simultaneous monitoring of electrical contact stability and mechanical trigger wear across tens of thousands of cycles.

IEC 60745-2-5 – KingPo Factory Advantages

KingPo develops specialized laboratory testing equipment for household appliance and power tool manufacturers worldwide. Our engineering team specializes in mechanical stress analysis, combining robust industrial frames with precision electronic controls to ensure reliable IEC 60745-2-5 testing performance.

Each system features a vibration-damping chassis and an integrated Mitsubishi HMI, simplifying test programming and data observation. We utilize high-grade components for all critical contact areas to ensure long-term testing accuracy and durability under high-frequency operation. With extensive export experience, KingPo provides technical consultation, professional calibration certificates, and after-sales engineering support for our global customers to ensure their products achieve seamless market access.

Professional Construction & Technical Precision

Key technical capabilities include:

• Standardized Geometry Control: Secure mounting at 90° as per IEC 60745-2-5 Figure M.301.

• High-Resolution Timing: PLC-based detection of 0.3s recovery time with 0.01s resolution.

• Programmable Cycle Capacity: Preset up to 999,999 tests to exceed standard 50k durability requirements.

• Variable Speed Logic: Adjustable cycle rates from 0-30 times/minute to match Annex BB specificities.

• Automated Timeout Logging: Real-time counting and recording of every “over-0.3s” recovery failure.

• Robust Stability: 80kg heavy-duty rack ensures the IEC 60745-2-5 test is not affected by external resonance.

• Traceable Accuracy: Delivered with certificates verifying timing logic, sensor accuracy, and dimensional compliance.

Primary Use Cases & Business Value

• Certification Readiness: Ensuring circular saws meet the mandatory requirements of IEC 60745-2-5 Annex M21.18.

• Mechanical Fatigue Analysis: Evaluating the long-term survival of guard return springs and pivot hinges.

• Switch Durability Evaluation: Identifying contact failure or trigger sticking during the IEC 60745-2-5 endurance run.

• Production QC: Periodic batch sampling to ensure consistent manufacturing quality and spring tension.

Compliance & Regulatory Assurance

The testing system supports the specific IEC 60745-2-5 methods defined in EN 60745-2-5: 2010. By accurately controlling the recovery frequency, mechanical impact, and electrical cycles, manufacturers can identify design improvements and enhance product safety before entering global markets.

Procurement Benefits

A professional IEC 60745-2-5 test device enables power tool manufacturers to validate product quality early in the development cycle. Automated procedures reduce manual workload while ensuring consistent testing conditions across multiple product samples, providing a cost-effective solution for modern safety testing laboratories seeking high-fidelity data and reduced recall risks.
