Ultimate 3*3*3m Walk-In Dust Test Chamber | IEC 60529 Compliant

Dust Test Chamber 3×3×3m – Large Walk-In IP5X IP6X IEC 60529 Dust Ingress Tester

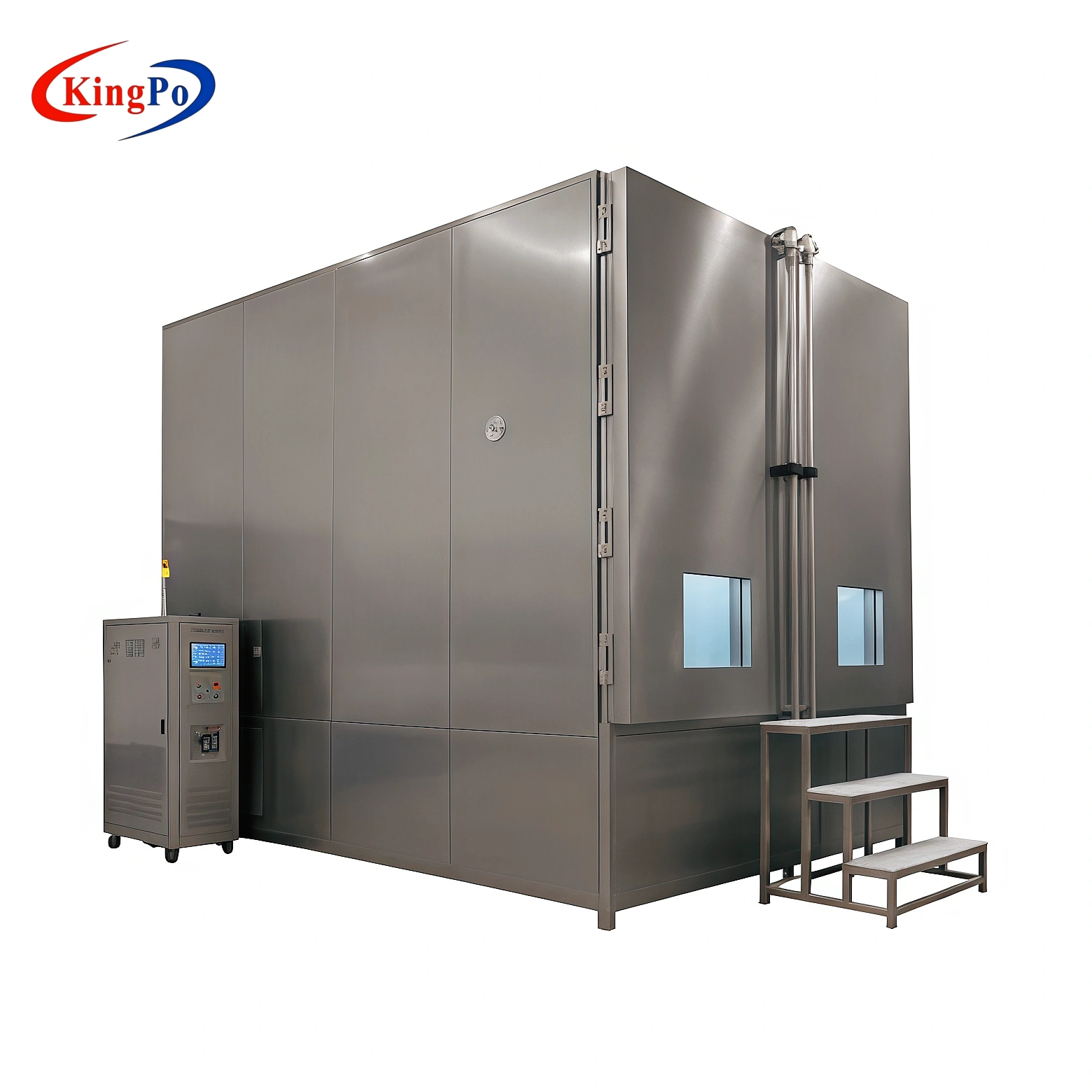

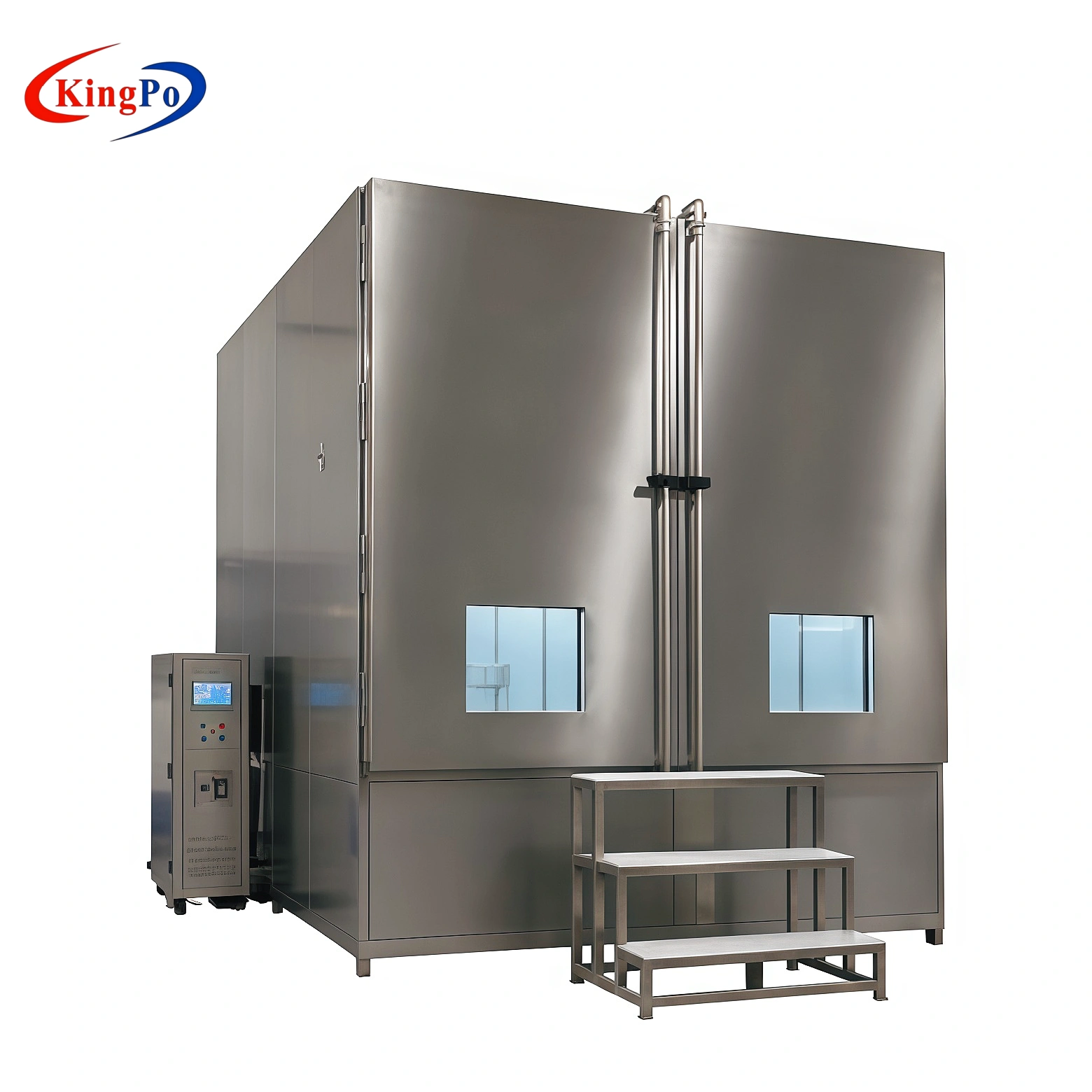

IP5X & IP6X Large Dust Test Chamber The IP5X & IP6X Big Dust Test Chamber is engineered to evaluate dust resistance according to IEC 60529, ISO 20653, and other international standards. With a spacious 3*3*3 meter internal test area, this chamber accurately simulates harsh dust environments for automotive, electronics, aerospace, and industrial components.

Professional Construction & Technical Precision

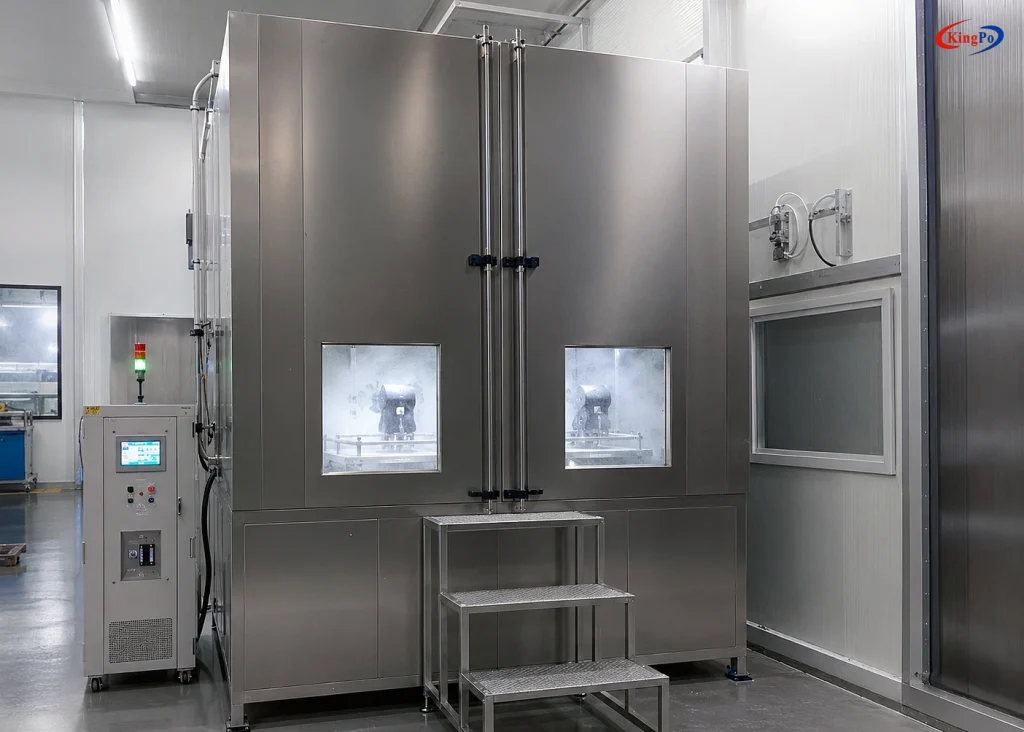

The Dust Test Chamber is built with a robust steel frame and corrosion-resistant materials to withstand long-term operation in demanding test environments. The spacious 3×3×3 m internal volume allows testing of full-size vehicles, large industrial equipment, or multiple large components simultaneously.

The system features advanced talcum powder dispersion technology that maintains a uniform concentration of 2 kg/m³ with airflow velocity precisely controlled below 2 m/s. An integrated dust filtration system ensures clean operation, while the tempered glass door provides safe visual monitoring. The touchscreen HMI controller enables programmable test cycles, real-time data monitoring, and high repeatability across all test zones.

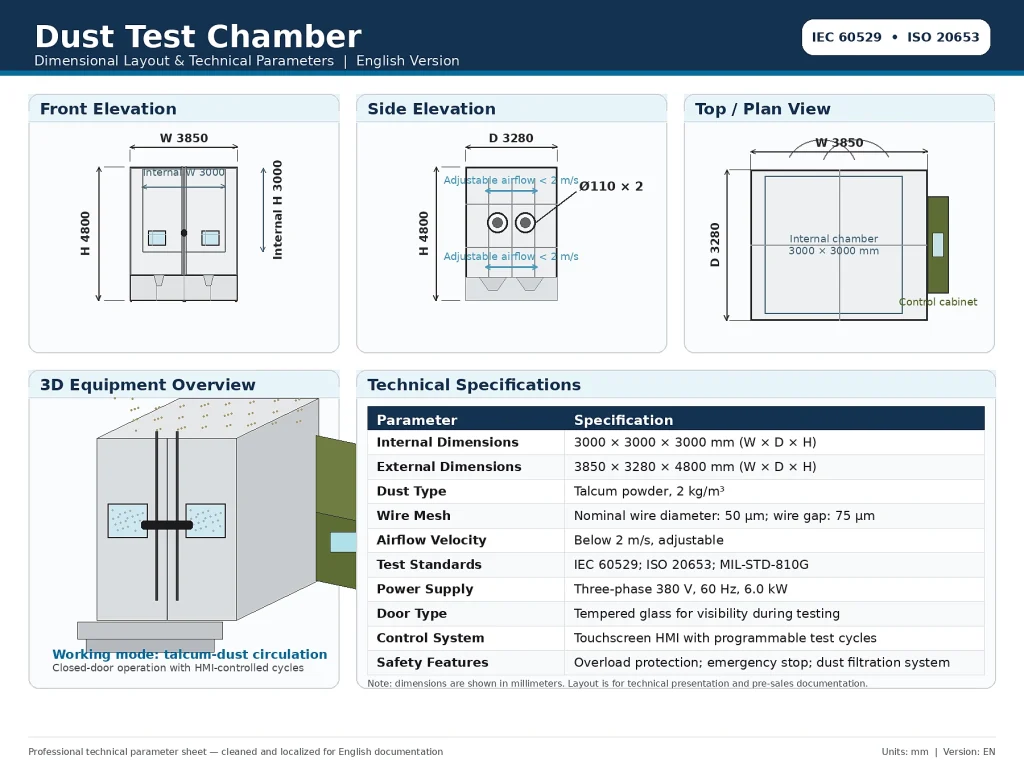

Dust Test Chamber Technical

Testing Principle

The Dust Test Chamber evaluates the ability of enclosures to protect against dust ingress as defined in IEC 60529 IP5X/IP6X. This IEC 60529 IP5X IP6X walk-in dust test uses talcum powder at 2 kg/m³ with airflow velocity below 2 m/s, accurately simulating natural dust deposition and wind-driven dust exposure for large equipment.

For IP5X testing, the specimen is exposed to circulating dust to verify protection against dust entry. For IP6X (dust-tight) testing, negative pressure can be applied inside the specimen to draw dust through any potential seal gaps. After the test, the specimen is inspected internally for dust penetration, verifying the effectiveness of sealing designs under harsh dusty environmental conditions. The large internal volume ensures uniform dust exposure across the entire test space.

Common Error Mitigation & Safety Guidelines

To achieve accurate and repeatable dust ingress test results while ensuring safe operation, the following practices are strongly recommended:

• Verify correct dust concentration (2 kg/m³) and airflow velocity (<2 m/s) before each test series.
• Ensure specimens are properly sealed and positioned to allow uniform dust exposure across all surfaces.
• Use fresh, dry talcum powder and maintain the integrated dust filtration system regularly.
• Calibrate airflow sensors and verify chamber uniformity at recommended intervals.
• Record all critical parameters—including dust concentration, airflow velocity, test duration, and observations—for complete traceability and standards compliance.

Safety Notes

• Ensure proper ventilation and wear appropriate respiratory protection when handling talcum powder.
• Do not test with flammable, explosive, or hazardous materials.
• Only qualified personnel should operate or maintain the equipment.

Primary Use Cases & Business Value

The Dust Test Chamber delivers exceptional value by enabling reliable validation of dust protection performance on large-scale and high-value equipment. It significantly improves testing throughput, reduces the need for multiple smaller chambers, supports international compliance, and helps manufacturers minimize field failures caused by dust ingress in automotive, aerospace, and industrial applications.

Industrial Applications & Lab Scenarios

• Automotive Manufacturers — Full vehicle and large component IP5X/IP6X testing
• Aerospace and Defense — Dust resistance validation for aircraft and military equipment
• Industrial Equipment Producers — Sealing integrity testing for large machinery and control systems
• Rail and Transportation — Dust protection verification for rolling stock and signaling equipment
• Third-Party Certification Laboratories — Large-scale IEC 60529 IP5X/IP6X and MIL-STD-810G compliance testing
• R&D and Quality Assurance Departments — Accelerated reliability testing for oversized prototypes

Strategic Procurement Advantages & Global Support

• Test large-scale equipment or multiple items simultaneously in a spacious 3×3×3 m Dust Test Chamber
• Achieve high uniformity and repeatability with precise talcum powder control (2 kg/m³) and adjustable airflow (<2 m/s)
• Benefit from robust construction, advanced filtration, and user-friendly touchscreen operation
• Ensure full compliance with IEC 60529, ISO 20653, and MIL-STD-810G standards
• Receive responsive technical support, on-site installation guidance, and full documentation from an experienced manufacturer
