The UL 1581 VW-1 FT1 Flame Test Chamber is used to determine the flammability of wires and cables under vertical flame conditions. A controlled flame is applied to the lower end of a vertically mounted specimen for 15 seconds, then removed for 15 seconds. This cycle is typically repeated up to five times while recording afterflame time, afterglow time, and flame propagation behavior. This vertical flame tester helps manufacturers verify that their cables meet the flammability requirements of UL 1581 VW-1 and CSA FT1. It is suitable for evaluating single-core and multi-core cables used in buildings, vehicles, and electronic equipment, supporting product development and regulatory compliance.

Technical Parameters

Professional Construction & Technical Precision

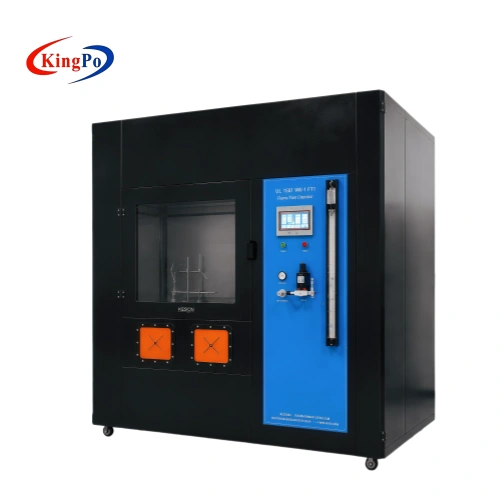

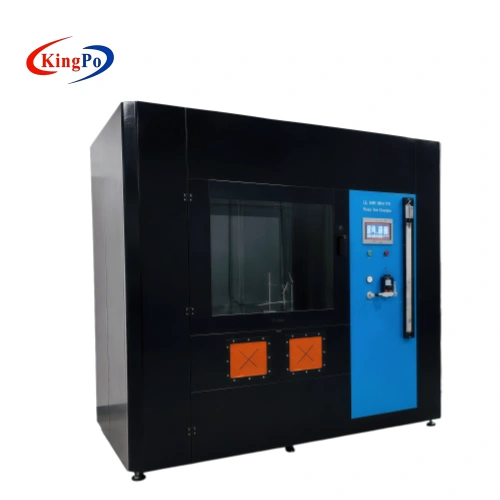

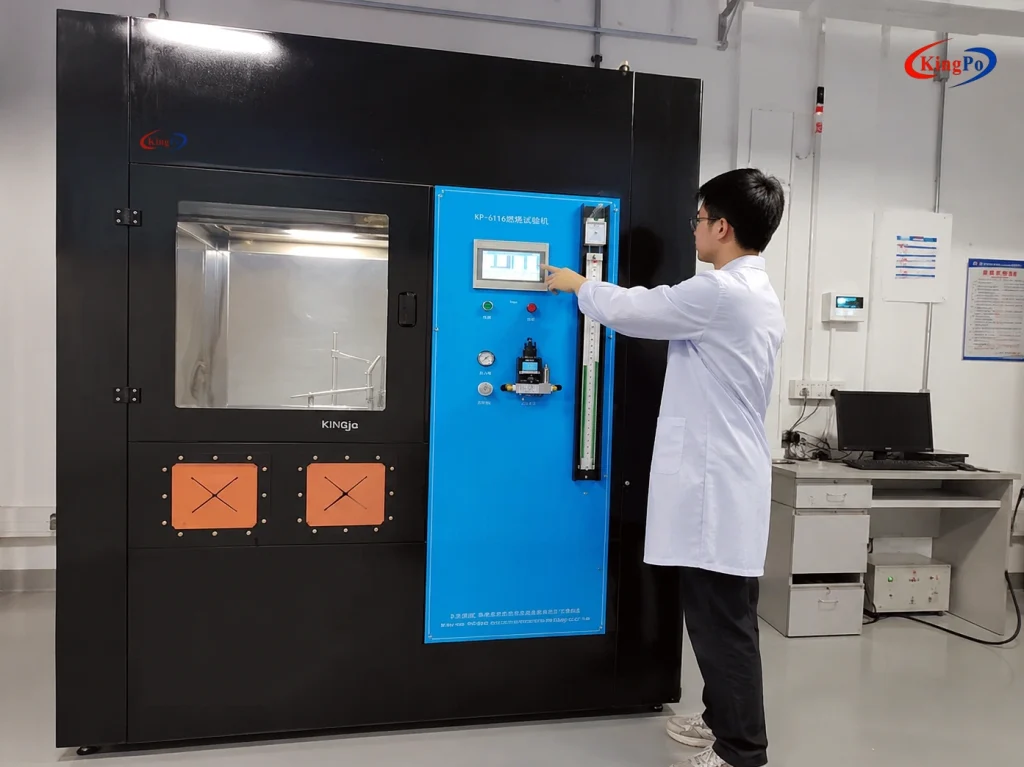

The UL 1581 VW-1 FT1 Flame Test Chamber features a large sealed combustion chamber built with an aluminum alloy frame and corrosion-resistant panels. It includes a toughened glass observation window and sealed operation ports, allowing safe and clear monitoring of the test process.

The equipment integrates a precision Bunsen burner system and an automatic control unit capable of executing the standard burn/extinguish cycle. Its robust construction and integrated safety systems help maintain stable test conditions while ensuring operator safety during repeated flame application.

Testing Principle

In the VW-1 test, a vertically mounted wire or cable specimen is exposed to a controlled flame applied from below at a specified angle. The flame is applied for 15 seconds and then removed for 15 seconds, with this cycle typically repeated up to five times. During the test, the equipment records afterflame time, afterglow time, and observes whether the flame propagates to the upper clamp or causes dripping of burning material.

This standardized method evaluates the vertical flame propagation resistance of wires and cables under repeated ignition conditions. It helps determine the material’s ability to self-extinguish and resist flame spread, providing critical data for assessing the fire safety performance of cables used in buildings, vehicles, and electronic equipment.

Common Error Mitigation

To obtain accurate and consistent test results, the following practices are recommended:

• Correctly adjust the flame height and burner angle before each test series, as even small deviations can affect flame application and test repeatability.
• Ensure specimens are properly prepared, conditioned, and securely mounted according to the standard to avoid inconsistent burning behavior.
• Maintain stable laboratory temperature and humidity within the specified range, as environmental conditions can influence flame characteristics and material response.
• Accurately record afterflame and afterglow times using the digital timing system to ensure precise and traceable test data.
• Regularly inspect and clean the burner nozzle to prevent blockage or flame instability, which could compromise test consistency and reliability.

Applications & Use Cases

The UL 1581 VW-1 FT1 Flame Test Chamber is used by wire and cable manufacturers, testing laboratories, certification bodies, and research institutions to perform vertical flame testing on power cables, communication cables, and electronic wires. It supports material development, quality control, product certification, and compliance verification for cables used in buildings, vehicles, and electronic equipment.

Key Advantages

This UL 1581 VW-1 FT1 Flame Test Chamber is designed to meet UL 1581, IEC 60332, and CSA FT1/FT2 requirements for vertical flame testing of wires and cables. It provides manufacturers and testing laboratories with a reliable solution to evaluate cable flame retardancy under standardized conditions.

The equipment features a large sealed chamber with automatic test cycle control, a precision burner, and a high-resolution timing system. These capabilities enable consistent and repeatable test results while improving operational safety and efficiency.
