IEC 60695-11-2 1kW Test Flame Burner
The IEC 60695-11-2 1kW Test Flame Burner is a precision brass burner designed according to IEC 60695-11-2 Figure A.1. It is used to generate a standardized 1 kW pre-mixed propane/air test flame for fire hazard testing applications.
- Standard Compliance: Manufactured according to IEC 60695-11-2 Figure A.1 requirements
- Burner Tube: Brass construction with inner diameter of Φ7 mm ± 0.05 mm
- Precision Manufacturing: High-accuracy machining to ensure consistent flame characteristics
- Standardized Flame Output: Designed to produce a stable 1 kW nominal pre-mixed flame
- Durable Construction: Brass material provides excellent heat resistance and longevity
- MOQ: 1 set
- Delivery Time: 15 working days
IEC 60695-11-2 1kW Test Flame Burner Description

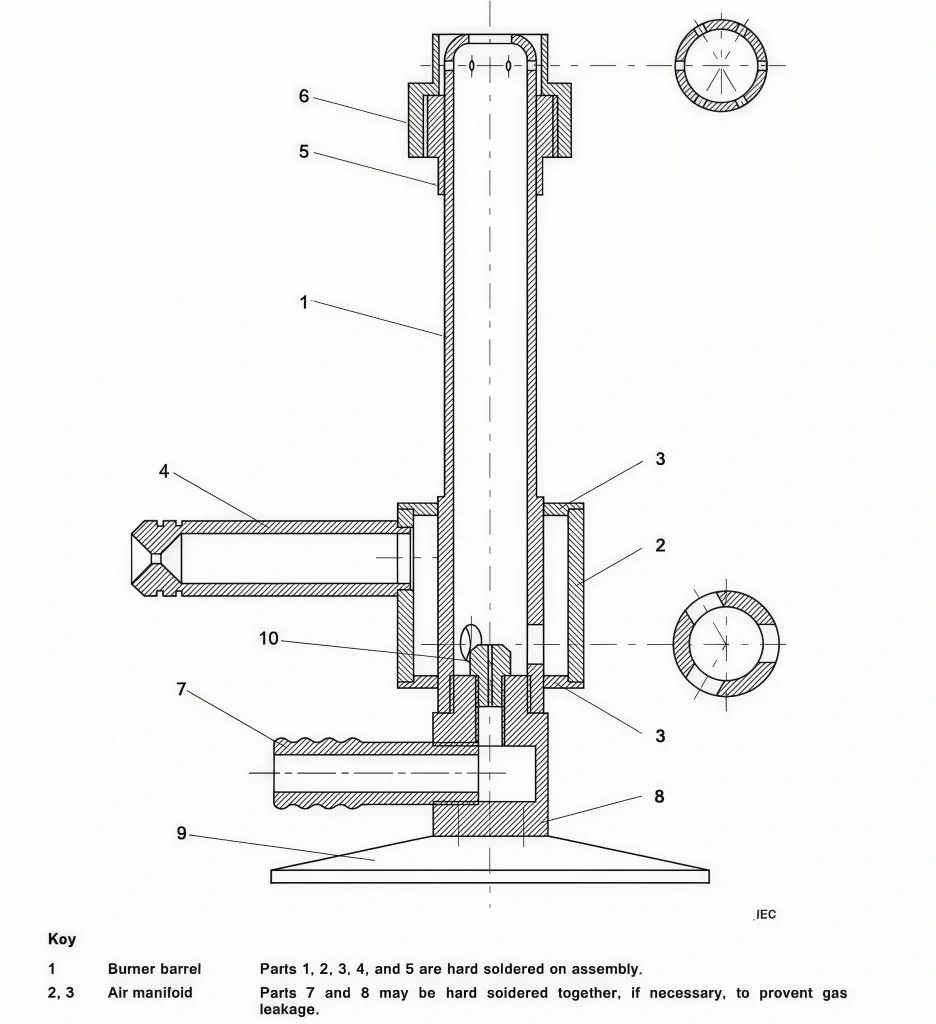

IEC 60695-11-2 Figure A.1 Burner Flame Test Equipment

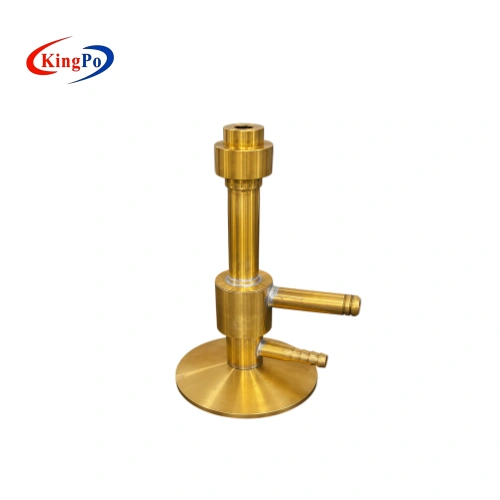

The IEC 60695-11-2 1kW Test Flame Burner is a specialized brass burner used to generate a standardized 1 kW nominal pre-mixed flame for fire hazard testing. The burner features a precisely machined tube with an inner diameter of 7 mm ± 0.05 mm, helping ensure repeatable flame geometry and consistent flame behavior as required by IEC 60695-11-2 Figure A.1.
This 1 kW Test Flame Burner is an important component in standardized flammability test setups. It is commonly used by testing laboratories, electrical and electronic product manufacturers, certification bodies, and quality control departments to evaluate the fire safety performance of materials and components under controlled flame exposure conditions.
Technical Parameters
| Parameter | Specification | Remark / Notes |
|---|---|---|
| Applicable Standard | IEC 60695-11-2 Figure A.1 | Defines the 1 kW nominal pre-mixed flame burner for standardized fire hazard testing |
| Burner Tube Material | Brass | Provides excellent thermal conductivity and long-term durability under high-temperature conditions |
| Burner Inner Diameter | Φ7 mm ± 0.05 mm | Precision-machined tolerance ensures consistent flame geometry and repeatable thermal output |
| Flame Type | 1 kW nominal pre-mixed flame | Standardized test flame used across multiple IEC fire hazard testing methods |
| Gas Type | Propane or propane/butane mixture | Commonly used fuel for generating a stable pre-mixed flame |
| Flame Characteristics | Stable and well-defined flame geometry | Designed to deliver consistent ignition energy for reliable flammability evaluation |
| Construction | Precision-machined brass burner assembly | Robust construction suitable for repeated use in laboratory testing environments |
| Application | Fire hazard testing of electrical and electronic materials | Serves as a standardized ignition source in various IEC flammability test setups |
| Recommended Gas | Commercial propane or propane/butane mixture | Should be used with appropriate air mixing to achieve the required 1 kW flame |
Professional Construction & Technical Precision

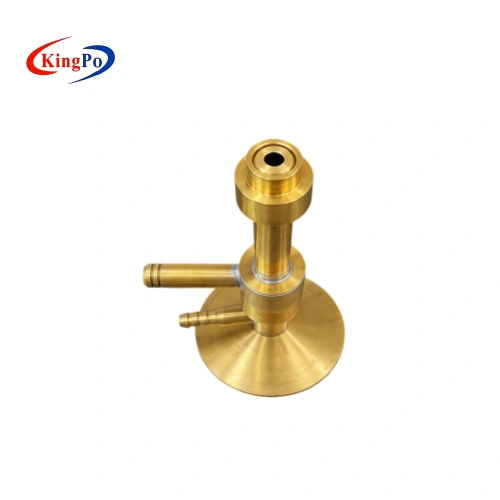

The IEC 60695-11-2 1kW Test Flame Burner is manufactured from high-quality brass with a precisely controlled inner diameter of 7 mm ± 0.05 mm. This tight dimensional tolerance is important for maintaining stable flame formation and repeatable test conditions during standardized fire hazard testing.
The robust brass construction provides good thermal resistance and mechanical durability during repeated flame testing. Its precision-machined design helps laboratories generate the 1 kW nominal pre-mixed flame required by IEC 60695-11-2 when the burner is used together with a suitable gas supply, air supply, flow control system, and flame verification procedure.
IEC 60695-11-2 Figure A.1 Burner Flame Test Equipment
Testing Principle
The IEC 60695-11-2 1kW Test Flame Burner is designed to generate a stable nominal 1 kW pre-mixed propane/air flame for controlled fire hazard testing. When connected to the proper gas and air supply, the burner produces a consistent test flame that can be applied to materials, components, or product parts according to the relevant test method. This helps laboratories evaluate ignition behavior, flame response, and fire hazard performance under repeatable test conditions.
The precision-machined Φ7 mm ± 0.05 mm burner tube helps maintain stable flame geometry and supports reliable comparison between tests.
Common Error Mitigation
To obtain consistent and reliable flame performance, the following practices are recommended:
- Use the correct gas type and maintain proper gas and air mixing ratios as specified in the relevant test standard.
- Regularly inspect the burner tube for blockage, deformation, or carbon buildup.
- Ensure the burner is correctly positioned and aligned according to the specific test method.
- Allow sufficient warm-up time to stabilize the flame before conducting tests.
- Periodically verify flame characteristics against the requirements of IEC 60695-11-2.
Applications & Use Cases
The IEC 60695-11-2 1kW Test Flame Burner is used by testing laboratories, electrical and electronic product manufacturers, certification bodies, and research institutions to perform standardized flammability testing with a controlled 1 kW pre-mixed flame. It supports fire hazard evaluation of materials, insulating parts, enclosures, and components, helping with material selection, product development, quality control, and compliance verification for electrical and electronic equipment.
Calibration & Verification Support
This IEC 60695-11-2 1kW Test Flame Burner is manufactured to meet the dimensional and material specifications defined in IEC 60695-11-2 Figure A.1. It supports laboratories in producing the standardized 1 kW pre-mixed flame required by multiple fire hazard testing standards.
Metrological Integrity & Validation
- The burner tube dimensions should be periodically verified to maintain compliance with the standard.
- Regular cleaning and inspection of the burner are recommended to ensure stable flame performance.
- Proper maintenance helps preserve the accuracy and repeatability of the test flame.
Technical Inquiry & Expert Support
KingPo supplies IEC 60695-11-2 1kW Test Flame Burners for standardized fire hazard testing. Our team can provide guidance on proper use, flame adjustment, and integration into various flammability test setups. For technical specifications or quotations, please contact us.
The Core Value We Deliver
- Precision-manufactured IEC 60695-11-2 1kW Test Flame Burner compliant with Figure A.1
- Brass construction with tight dimensional tolerance (±0.05 mm) for consistent flame output
- Essential component for standardized fire hazard testing of electrical and electronic products
- Supports reproducible results across laboratories and test facilities
- Technical support for equipment operation and flame management
IEC 60695-11-2 1kW Test Flame Burner
IEC 60695-11-2 1kW Test Flame Burner FAQs
