0.1 mm Magnified Glass โ IEC 62368-1 Glass Fragment Measurement Tool
0.1 mm Magnified Glass is a precision optical tool for measuring glass fragment sizes after high-pressure lamp failure in IEC 62368-1 cl.8.5.5.2 tests, ensuring accurate safety compliance.
- Standard Compliance: IEC 62368-1 cl.8.5.5.2 โ Direct reference for glass fragment measurement
- High Resolution: 0.1 mm scale for precise particle sizing
- 20x Magnification: Clear viewing of small debris on sticky mat

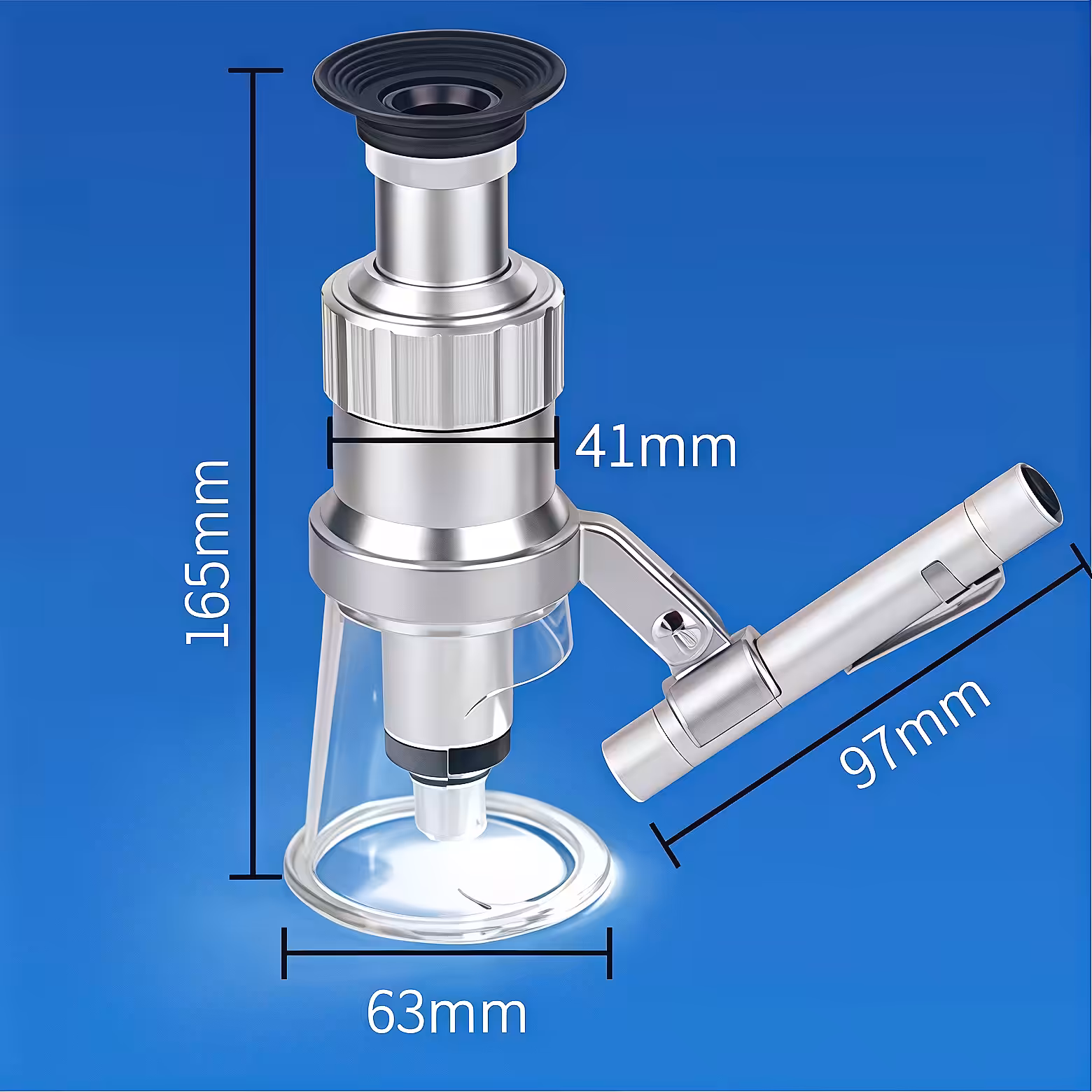

- Aluminum Alloy Frame: Lightweight, durable and corrosion-resistant
- MOQ: 1
- Price: To be quoted
- Standard Packaging: Safety carton or protective case
- Delivery Period: 15 days typical
- Payment Method: T/T
- Supply Capacity: 100 units/month
0.1 mm Magnified Glass Description

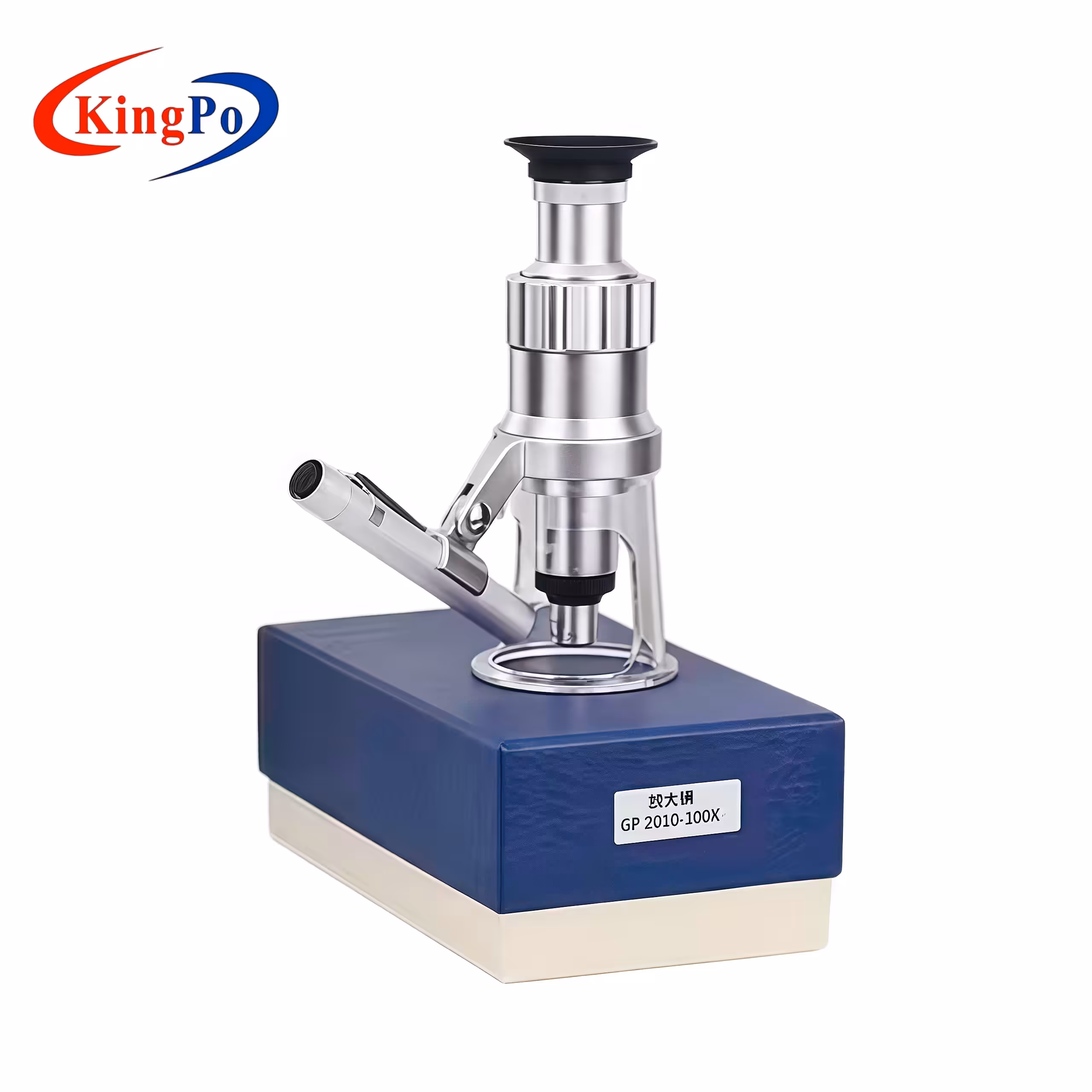

0.1 mm Magnified Glass โ IEC 62368-1 Lamp Failure Glass Fragment Test Tool
The 0.1 mm Magnified Glass is a specialized optical measurement tool manufactured by KingPo, designed for precise evaluation of glass fragment sizes and area following simulated high-pressure lamp failure. Compliant with IEC 62368-1 cl.8.5.5.2, this tool is used to assess debris expulsion risks from equipment vents after lamp rupture, ensuring no hazardous sharp particles are produced that could cause injury or safety issues.
In AV/IT equipment with high-pressure lamps (projectors, stage lighting, displays), lamp explosion can generate dangerous glass fragments. The KINGPO 0.1 mm Magnified Glass addresses this by providing 20x magnification and a 0.1 mm resolution scale, allowing labs to accurately measure particles captured on a dark sticky mat, verify safety barriers and confirm compliance with global standards (CE, UL, CB Scheme, CCC).
This hand-held tool features distortion-free optics, ergonomic aluminum alloy construction and clear scale visibility, delivering repeatable, certification-grade measurement results for lamp safety validation.
ย Core Role & Purpose
The 0.1 mm Magnified Glass is essential for:
- Measuring glass fragment sizes and area post-lamp rupture
- Verifying compliance with IEC 62368-1 cl.8.5.5.2 (MS3 parts testing)
- Assessing horizontal debris expulsion risk from vents
- Ensuring no sharp particles pose injury hazards
It supports worst-case operating position testing as specified in instructions.
Professional Construction & Technical Precision
Key features include:
- Magnification: 20x (clear, distortion-free viewing)
- Resolution: 0.1 mm scale for exact particle measurement
- Material: Aluminum alloy frame (lightweight, durable)
- Design: Ergonomic hand-held structure for lab convenience
- Application: Optimized for dark sticky mat particle analysis
These ensure accurate, repeatable glass fragment evaluation.
Primary Use Cases & Business Value
The tool supports key stages:
- Lamp Safety Validation โ Measure fragment sizes in R&D to optimize protection designs
- Certification Reporting โ Labs generate precise data for IEC 62368-1 compliance submissions
- Production QC โ Manufacturers verify lamp assemblies meet debris safety limits
- Failure Analysis โ Investigate explosion-related defects in returned products
It helps deliver safer lamp-equipped products, reduce injury risks and accelerate certification.
Compliance & Regulatory Assurance
Fully compliant with IEC 62368-1 cl.8.5.5.2 glass fragment measurement requirements. Aligned with CE, UL, CB Scheme, CCC for AV/IT equipment. Regular inspection recommended.
0.1 mm Magnified Glass Technical
| Parameter | Specification |
|---|---|
| Model Number | IEC62368-1-cl.8.5.5.2-Magnified-Glass |
| Magnification | 20x |
| Resolution | 0.1 mm |
| Material | Aluminum Alloy |
| Standards Compliance | IEC 62368-1 cl.8.5.5.2 |
| Design | Hand-held, ergonomic |
| Certifications | ISO9001, CE |
| MOQ | 1 unit |
| Price | To be quoted |
| Standard Packaging | Safety carton or protective case |
| Delivery Period | 15 days typical |
| Payment Method | T/T |
| Supply Capacity | 100 units/month |
| Warranty | 1 year |
| Origin | China (KingPo manufacturer) |
Get Free Quote for 0.1 mm Magnified Glass
We provide high-precision 0.1 mm Magnified Glass direct from KingPo factory, ensuring reliable IEC 62368-1 glass fragment measurement.
The Core Value We Deliver to You
- Exact cl.8.5.5.2 compliance โ 0.1 mm resolution for accurate particle sizing
- High Clarity & Durability โ 20x magnification, aluminum alloy construction
- Factory Advantages โ MOQ 1 unit, 15-day delivery, 1-year warranty, ISO9001 & CE
- Complete Testing Support โ Pair with our IEC 62368 series for full lamp safety checks
- Faster Certification โ Identify debris risks early, reduce failures
Take Action Now โ Submit inquiry in 30 seconds for best price, stock status, and technical support within 24 hours!
0.1 mm Magnified Glass Applications
- High-Pressure Lamp Equipment โ Projectors, stage lighting, display lamps
- AV/IT & Consumer Electronics โ TVs, monitors, lamp-equipped panels
- Certification Labs & QA โ Third-party and in-house IEC 62368-1 cl.8.5.5.2 testing
- Global Safety Certifications โ Supports CE, UL, CB Scheme, CCC by verifying fragment safety
- Related Scenarios โ Glass debris measurement after simulated lamp explosion
0.1 mm Magnified Glass Details
